ACD heat pump - MPD | 2 Heads - 30,000 BTU Compressor | Montreal, Laval, Longueuil, South Shore & North Shore
The ACD MPD 30 000 multi-zone heat pump heats and cools 2 rooms with a single outdoor unit. it delivers 18,000 BTU/h at −8 °C, heats down to −20 °C. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.

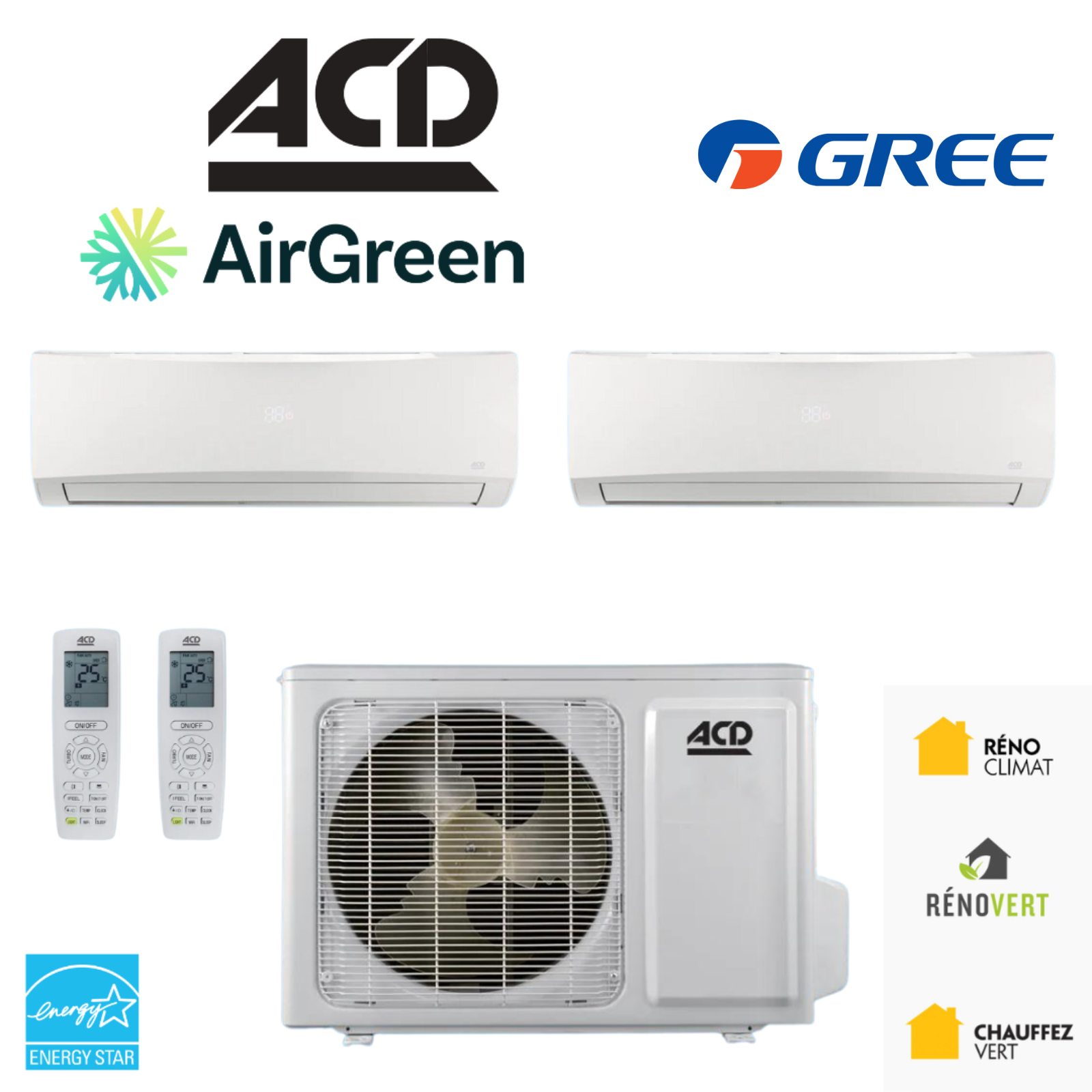

2 rooms, one outdoor unit.
Compared with the 48 multi-zone systems of 30,000 BTU we sell. Figures come from the manufacturer’s data and the AHRI certification.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 4 heads.
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 61 % of its rated capacity.
Tap a temperature: capacity, efficiency and the cost of one hour of heating.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
Where it ranks among same-size multi-zone systems.
Compared with the 48 multi-zone systems of 30,000 BTU we sell. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.

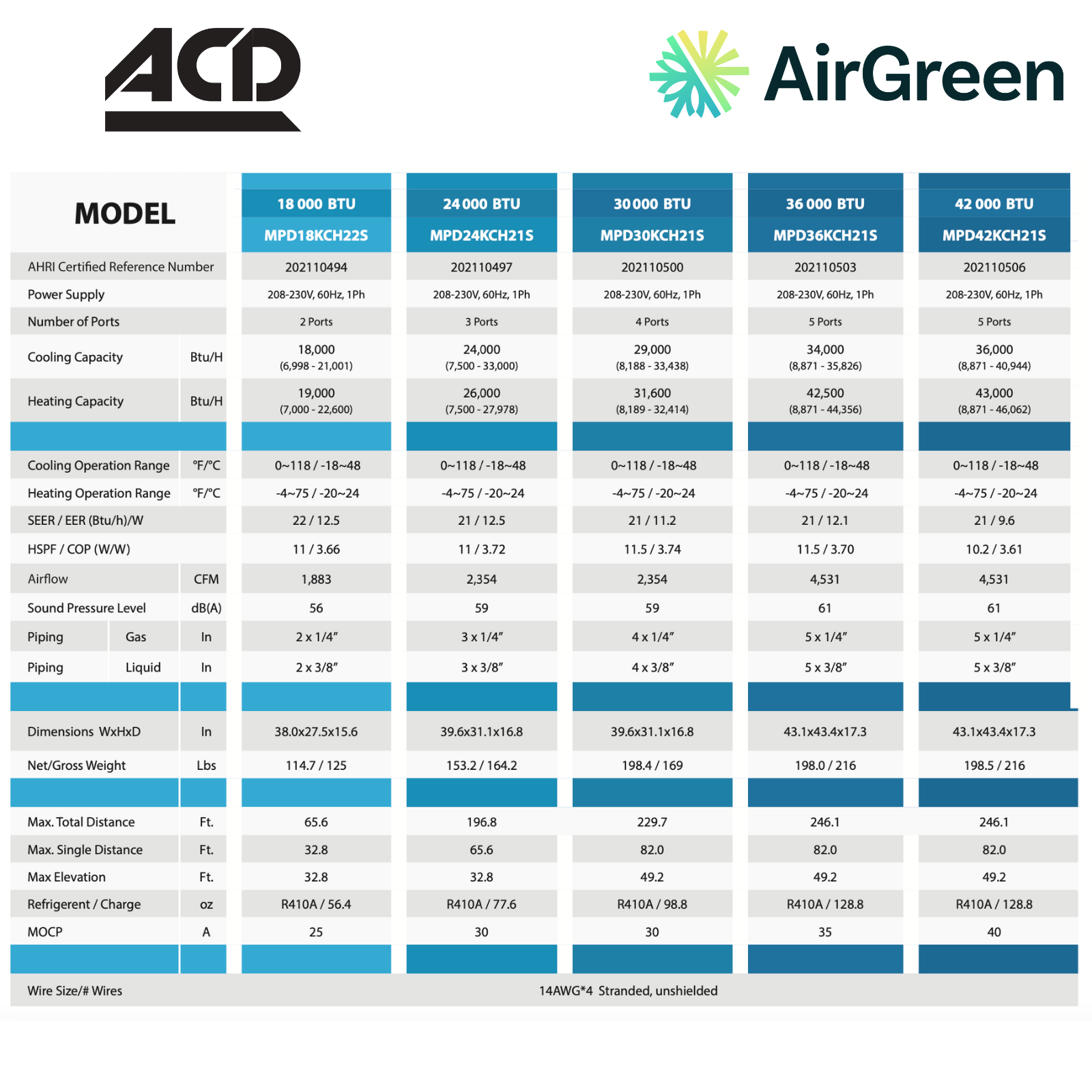

Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
ACD - MPD Heat Pump | 2 Heads - 30,000 BTU Compressor | Montreal, Laval, Longueuil, South Shore & North Shore
Optimal Comfort with the Dual-Zone Heat Pump
In the world of heating, ventilation, and air conditioning (HVAC), the quest for a solution that is efficient, economical, and environmentally friendly is ongoing. AirGreen, your trusted partner in the Montreal, Laval, Longueuil areas, as well as the South and North Shores, is proud to present the wall-mounted 2-zone ACD - MPD heat pump, a flagship product that meets all these expectations.
Advanced Technical Features
The ACD - MPD wall-mounted heat pump stands out for its exceptional performance, offering a cooling capacity of 30,000 BTU and an effective heating capacity down to -20°C. Designed for dual-zone installations, with the possibility of extending up to four zones, this heat pump represents an ideal solution for homes and offices seeking precise temperature control in different rooms.
- Flexible zones for customized comfort: Set up to four independent comfort zones to meet the specific needs of each space.
- Dimensions and installation: With optimized exterior dimensions (39.6x31.1x16.8), installation is simplified, perfectly adapting to different architectural contexts.
- Advantageous subsidies: Benefit from federal and provincial subsidies reaching up to $5,000 and $900, respectively, highlighting not only the energy efficiency of the heat pump but also its positive environmental impact.
- Energy Star® and AHRI certification: The assurance of uncompromised performance and reliability, with a 21.0 SEER efficiency rating.
- Cutting-edge technology: Equipped with a robust compressor guaranteed for 10 years, low voltage start-up, LED display, self-diagnostic, vertical swing, turbo mode, and washable filters, this heat pump offers an unmatched user experience.
Technological Innovations for Unmatched Comfort
The ACD - MPD heat pump incorporates advanced features that place it at the top of its category:
- Turbo mode for rapid temperature adjustment in your spaces.
- Washable filters for consistently pure and healthy air.
- Built-in dehumidifier, essential during the humid months.
- Timer Sleep mode for optimized energy management overnight.
These innovations, combined with an exterior sound pressure level of only 59.0 dB(A) and the use of environmentally friendly R-410A gas, make the ACD - MPD heat pump a responsible choice for those who do not want to compromise their comfort while preserving the planet.
Commitment and After-Sales Service
At AirGreen, we understand that purchasing a heat pump represents a significant investment. That's why we are committed to providing exceptional after-sales service, including a 6-year labor warranty straight from the distributor and a possible comprehensive 10-10-10 warranty (compressor, parts, labor), thus ensuring your peace of mind for many years.
Why Choose AirGreen for Your Wall-Mounted 2-Zone Heat Pump?
- Local Expertise: Our deep knowledge of Montreal's climate and surrounding areas allows us to advise you on the most suitable solution for your needs.
- Professional Installation: Our certified technicians ensure an installation that meets the strictest standards, thus ensuring the longevity and efficiency of your system.
- Customer Satisfaction: Our priority is your comfort and satisfaction. We ensure that each project is carried out with the utmost care, from the initial consultation to the commissioning of your heat pump.
Conclusion
The ACD - MPD wall-mounted 2-zone heat pump from AirGreen is the ideal choice for those seeking a heating and cooling solution that is high-performing, economical, and environmentally friendly. With AirGreen, you not only get an exceptional product but also expert and dedicated service, ensuring the comfort of your home or business throughout the year.
Warranty: 10 years on the compressor, 10 years on parts and 6 years on labor, straight from the distributor.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 18,000 BTU/h at −8 °C, 18,400 at −15 °C.
How many heads can I connect?
Up to 4 on this outdoor unit. This product is configured for 2 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 9 combinations, from 9 + 9 to 18 + 24 (in thousands of BTU). Each head is sized for its room.
Down to what temperature does it heat?
Down to −20 °C.
Is it noisy?
Indoors, the reference head goes down to 29 dB(A). Outdoors, 59 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 10 years on the compressor and 10 years on parts. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
