ACD heat pump - MPD | 3 Heads - 30,000 BTU Compressor | Montreal, Laval, Longueuil, South Shore & North Shore

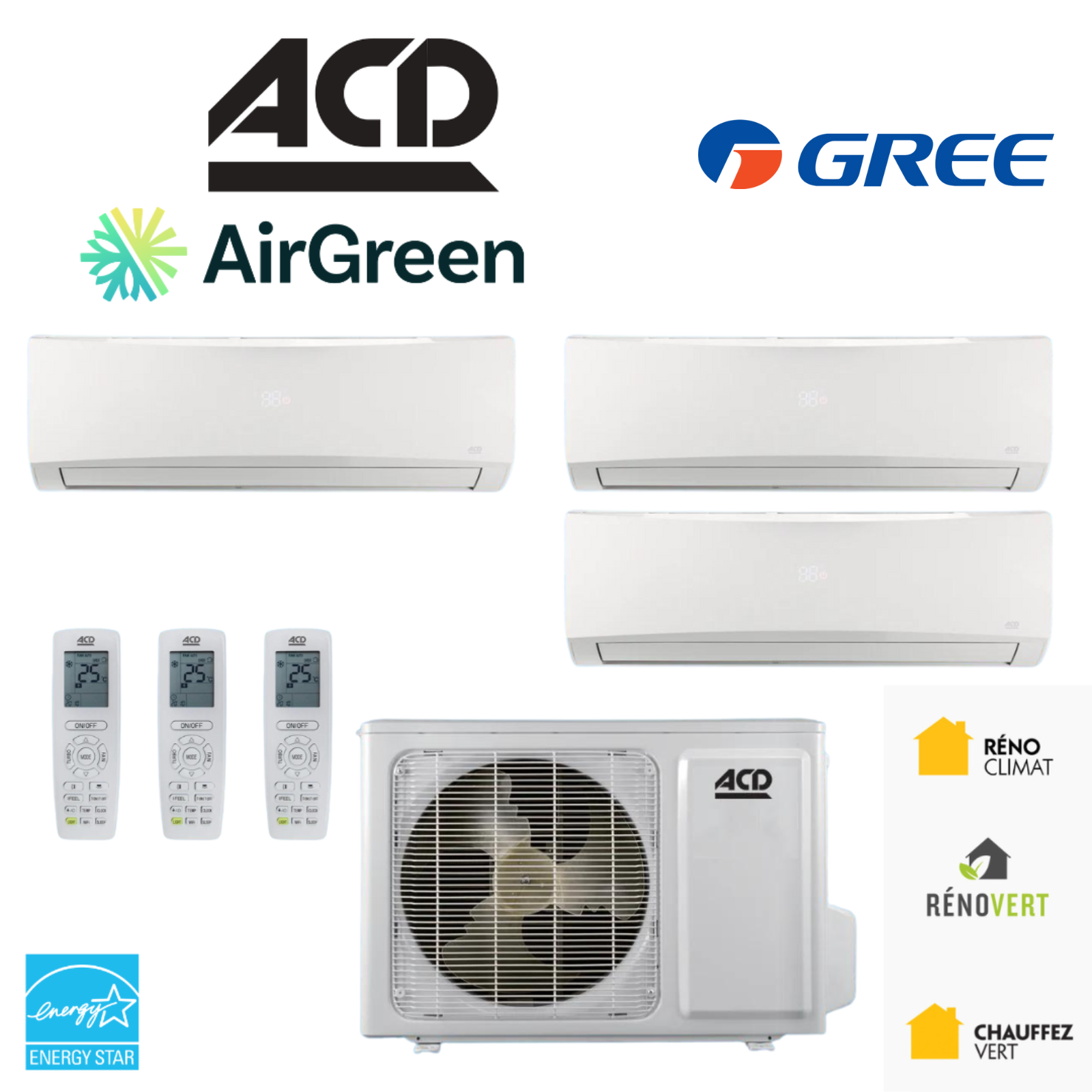

The ACD MPD 30 000 multi-zone heat pump heats and cools 3 rooms with a single outdoor unit. it delivers 18,000 BTU/h at −8 °C, heats down to −20 °C. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
3 rooms, one outdoor unit.
Compared with the 48 multi-zone systems of 30,000 BTU we sell. Figures come from the manufacturer’s data and the AHRI certification.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 4 heads.
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 61 % of its rated capacity.
Tap a temperature: capacity, efficiency and the cost of one hour of heating.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
Where it ranks among same-size multi-zone systems.
Compared with the 48 multi-zone systems of 30,000 BTU we sell. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.

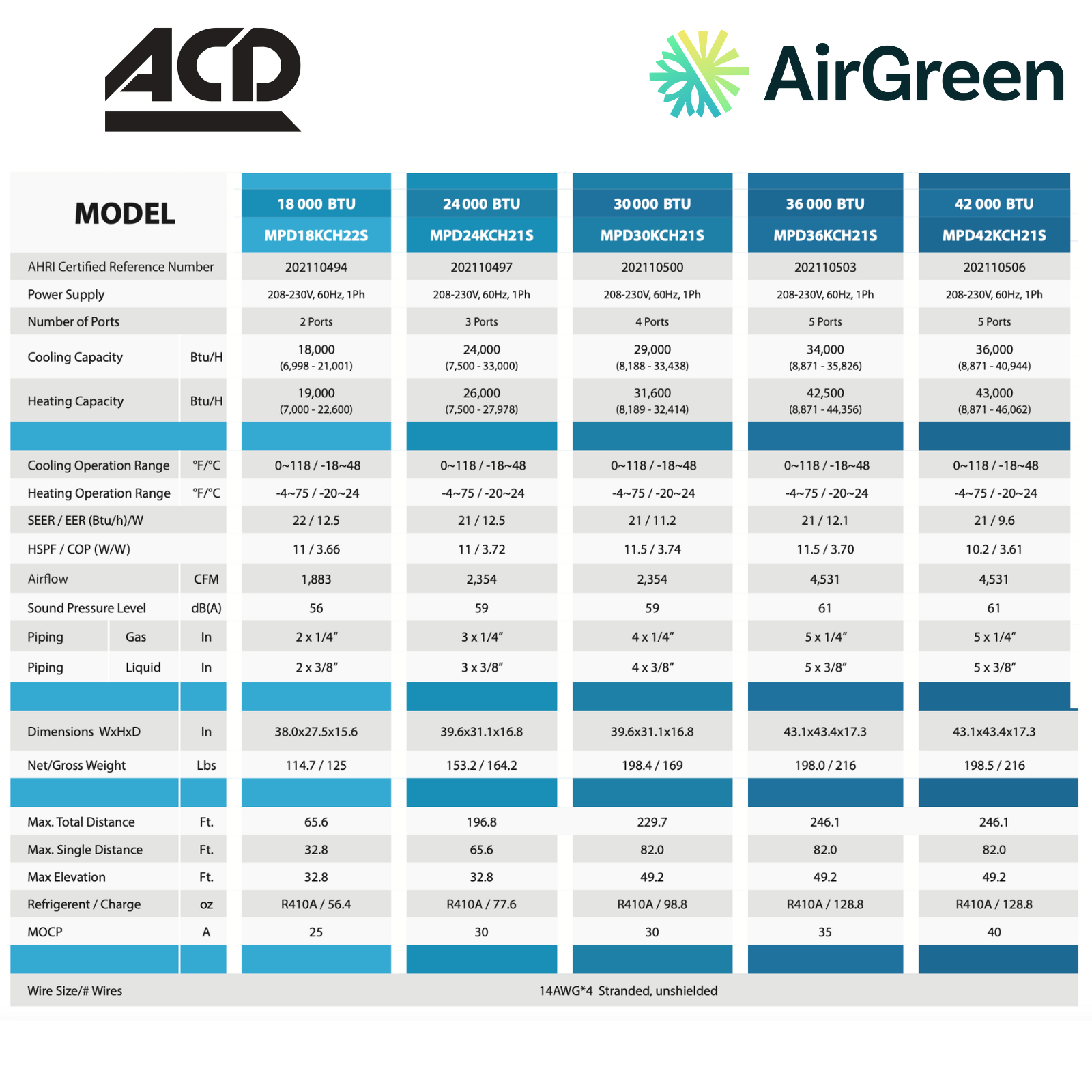

Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
ACD - MPD Heat Pump | 3 Units - 30,000 BTU Compressor | Montreal, Laval, Longueuil, South Shore & North Shore
Introduction to the Triple Zone Heat Pump
In a world where domestic comfort has become an absolute priority, the Wall-Mounted 3-Zone Heat Pump emerges as a revolutionary solution for residents of Montreal, Laval, Longueuil, as well as the South Shore and North Shore. Boasting impressive capacity and remarkable energy efficiency, this cutting-edge technology offers an answer tailored to the specific needs of each household.
Technical Characteristics
The ACD - MPD Heat Pump stands out with its cooling capacity of 30,000 BTU and heating capability down to -20°C, making it an ideal piece of equipment to withstand the characteristic climate variations of our region. Its compact exterior dimensions (39.6x31.1x16.8) allow for discreet and elegant installation.
- Covered zones: Capable of managing up to 4 zones (with an optimal Triple Zone configuration), it perfectly adapts to the size and layout of your space.
- Serial numbers: With interior units identified by the numbers OCD09KCH23S-I, OCD12KCH22S-I, OCD18KCH20S-I, and OCD24KCH20S-I, each component is designed for optimal operation.
- Energy efficiency: Certified by Energy Star® and benefiting from a 21.0 SEER performance rating, it ensures high-level energy performance.
- Advantageous subsidies: Take advantage of federal and provincial subsidies that can reach up to $5,900, a significant financial asset.
Innovative Features
The Wall-Mounted 3-Zone Heat Pump incorporates advanced features to enhance your user experience:
- Low voltage start-up for increased energy efficiency.
- LED display and self-diagnosis for simplified use and maintenance.
- Vertical swing, turbo mode, and washable filters for personalized comfort and improved air quality.
- Dehumidification and sleep timer for an ideal indoor environment, day and night.
Installation and Warranty
Choosing the ACD - MPD Heat Pump also means benefiting from professional installation by AirGreen, your HVAC expert in Montreal and surrounding areas. With a comprehensive warranty of 10 years on the compressor and parts, and the possibility to extend this warranty to labor, you are assured of a durable and secure investment.
Why Choose AirGreen for Your Wall-Mounted 3-Zone Heat Pump?
Our expertise in HVAC in Montreal, Laval, Longueuil, on the South Shore, and the North Shore, allows us to offer you an installation tailored to your needs, with impeccable customer service. At AirGreen, we understand the importance of a comfortable home and commit to providing solutions that enhance your quality of life while optimizing your energy consumption.
Conclusion
The Wall-Mounted 3-Zone Heat Pump is more than just a heating and cooling equipment; it's a promise of comfort, efficiency, and durability. With AirGreen, you choose a trustworthy partner to assist you in improving your living space. Invest in the comfort of your home today and experience the ideal indoor climate, no matter the season.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 18,000 BTU/h at −8 °C, 18,400 at −15 °C.
How many heads can I connect?
Up to 4 on this outdoor unit. This product is configured for 3 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 8 combinations, from 9+9+9 to 12 + 12 + 18 (in thousands of BTU). Each head is sized for its room.
Down to what temperature does it heat?
Down to −20 °C.
Is it noisy?
Indoors, the reference head goes down to 29 dB(A). Outdoors, 59 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 10 years on the compressor and 10 years on parts; labour is not included by the manufacturer. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
