ACD heat pump - MPD | 2 Heads - Compressor 42,000 BTU | Montreal, Laval, Longueuil, South Shore & North Shore
The ACD MPD 42 000 multi-zone heat pump heats and cools 2 rooms with a single outdoor unit. it delivers 29,000 BTU/h at −8 °C, heats down to −20 °C. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.

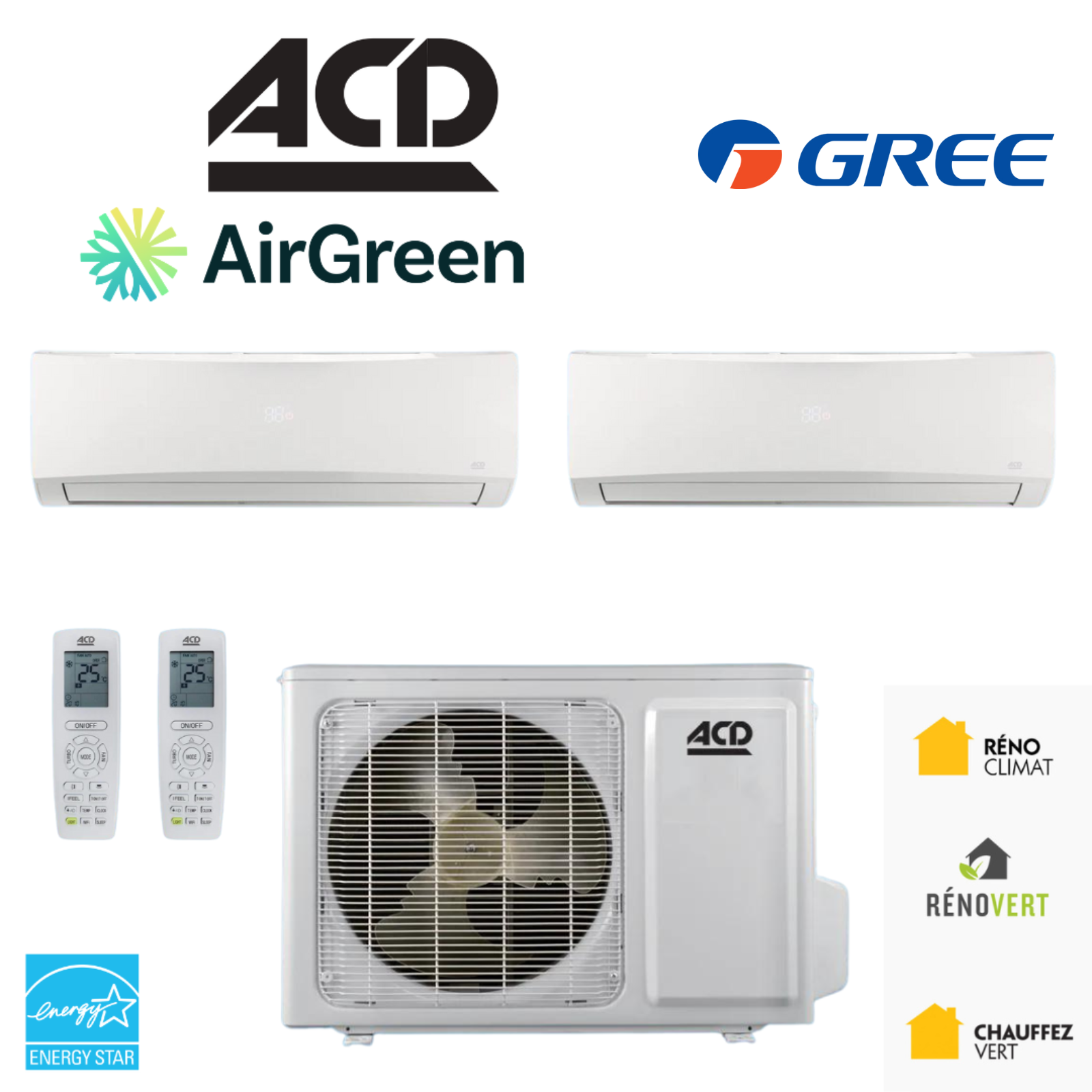

2 rooms, one outdoor unit.
Compared with the 86 multi-zone systems of 42,000 BTU we sell. Figures come from the manufacturer’s data and the AHRI certification.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 5 heads.
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 63 % of its rated capacity.
Tap a temperature: capacity, efficiency and the cost of one hour of heating.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
Where it ranks among same-size multi-zone systems.
Compared with the 86 multi-zone systems of 42,000 BTU we sell. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.

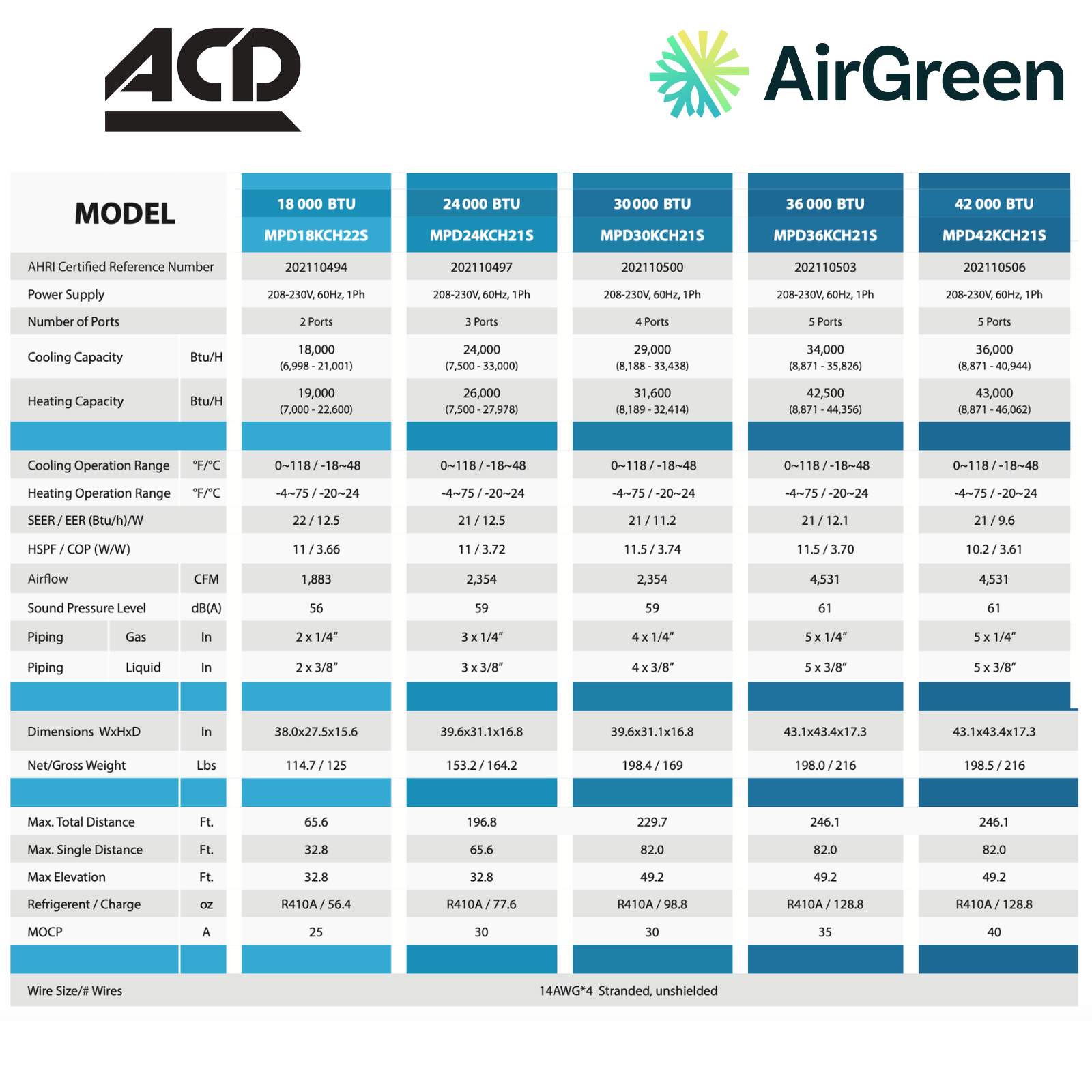

Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
ACD - MPD Heat Pump | 2 Heads - 42,000 BTU Compressor | Montreal, Laval, Longueuil, South Shore & North Shore
Introduction
In a world where home comfort is more than a luxury, it's a necessity, AirGreen emerges as the ideal partner to enhance living quality through innovative HVAC (Heating, Ventilation, and Air Conditioning) solutions. Specializing in the sale and installation of Double Zone Heat Pumps, we offer top-tier products tailored to the specific needs of our clients in Montreal, Laval, Longueuil, as well as the North Shore and South Shore. Among our flagship offerings, the Wall-Mounted 2-Zone Heat Pump stands out for its exceptional performance and unparalleled reliability.
Why Choose the ACD - MPD Heat Pump?
This section details the advantages and unique features of the Wall-Mounted 2-Zone ACD - MPD Heat Pump, an ideal solution for households seeking maximum energy efficiency and unmatched comfort throughout the year.
Performance and Efficiency
- Cooling and Heating Capacity: With an impressive capacity of 42,000 BTU for cooling and efficient heating even at -20°C, this heat pump ensures optimal comfort in all seasons.
- Energy Efficiency: Thanks to a 21.0 SEER rating, it guarantees a significant reduction in energy consumption, which translates to substantial savings on electricity bills.
Design and Features
- Design and Dimensions: The compact exterior dimensions allow for discreet and aesthetic integration into any living space.
- Advanced Technologies: Equipped with features such as low voltage start-up, LED display, self-diagnosis, vertical swing, Turbo mode, and many others, this heat pump offers an exceptional user experience.
- Filtration and Comfort: Washable filters and the dehumidify mode ensure healthy and comfortable indoor air, contributing to a more pleasant living environment.
Installation and Subsidies
- Easy Installation: The flexibility of installation, with the possibility of extending up to 5 zones, meets the needs of homes of different sizes and configurations.
- Attractive Subsidies: Homeowners benefit from federal and provincial subsidies totaling up to $5,450, making this investment even more advantageous.
A Commitment to Quality and Service
At AirGreen, we commit not only to providing superior quality products but also exceptional customer service. Our 10-year warranty on the compressor and parts, and 6-year warranty on labor straight from the distributor, is a testament to our confidence in the durability and reliability of our heat pumps. Furthermore, we offer the possibility of an extended 10-10-10 warranty, ensuring total peace of mind for our clients.
Why Trust AirGreen?
- Local Expertise: With in-depth knowledge of the climate in Montreal and its surroundings, we advise our clients on the best HVAC solutions tailored to their specific needs.
- Professional Installation: Our certified technicians ensure quick, efficient, and standard-compliant installation, securing the proper functioning and longevity of your heat pump.
- Continuous Support: Our dedicated customer service is always available to answer your questions and assist you in using your heat pump, ensuring a worry-free experience.
Conclusion
By opting for the Wall-Mounted 2-Zone ACD - MPD Heat Pump from AirGreen, you are choosing a cutting-edge heating and cooling solution, designed to provide optimal comfort and exceptional energy efficiency. Our commitment to quality, service, and customer satisfaction makes us the number one choice for your HVAC needs in Montreal, Laval, Longueuil, and the surrounding areas.
Warranty: 10 years on the compressor, 10 years on parts and 6 years on labor, straight from the distributor.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 29,000 BTU/h at −8 °C, 26,600 at −15 °C.
How many heads can I connect?
Up to 5 on this outdoor unit. This product is configured for 2 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 10 combinations, from 9 + 9 to 24 + 24 (in thousands of BTU). Each head is sized for its room.
Down to what temperature does it heat?
Down to −20 °C.
Is it noisy?
Indoors, the reference head goes down to 29 dB(A). Outdoors, 61 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 10 years on the compressor and 10 years on parts. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
