ArcoAire DLCMRA heat pump | 2-Zones | 48,000 BTU compressor
The ArcoAire DLCMRA 48 000 multi-zone heat pump heats and cools 2 rooms with a single outdoor unit. it delivers 30,200 BTU/h at −8 °C, heats down to −30 °C. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
2 rooms, one outdoor unit.
Compared with the 82 multi-zone systems of 48,000 BTU we sell. Figures come from the manufacturer’s data and the AHRI certification.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 5 heads.
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
What it delivers when it gets really cold.
Tap a temperature: capacity, efficiency and the cost of one hour of heating.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
Where it ranks among same-size multi-zone systems.
Compared with the 82 multi-zone systems of 48,000 BTU we sell. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.
Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.

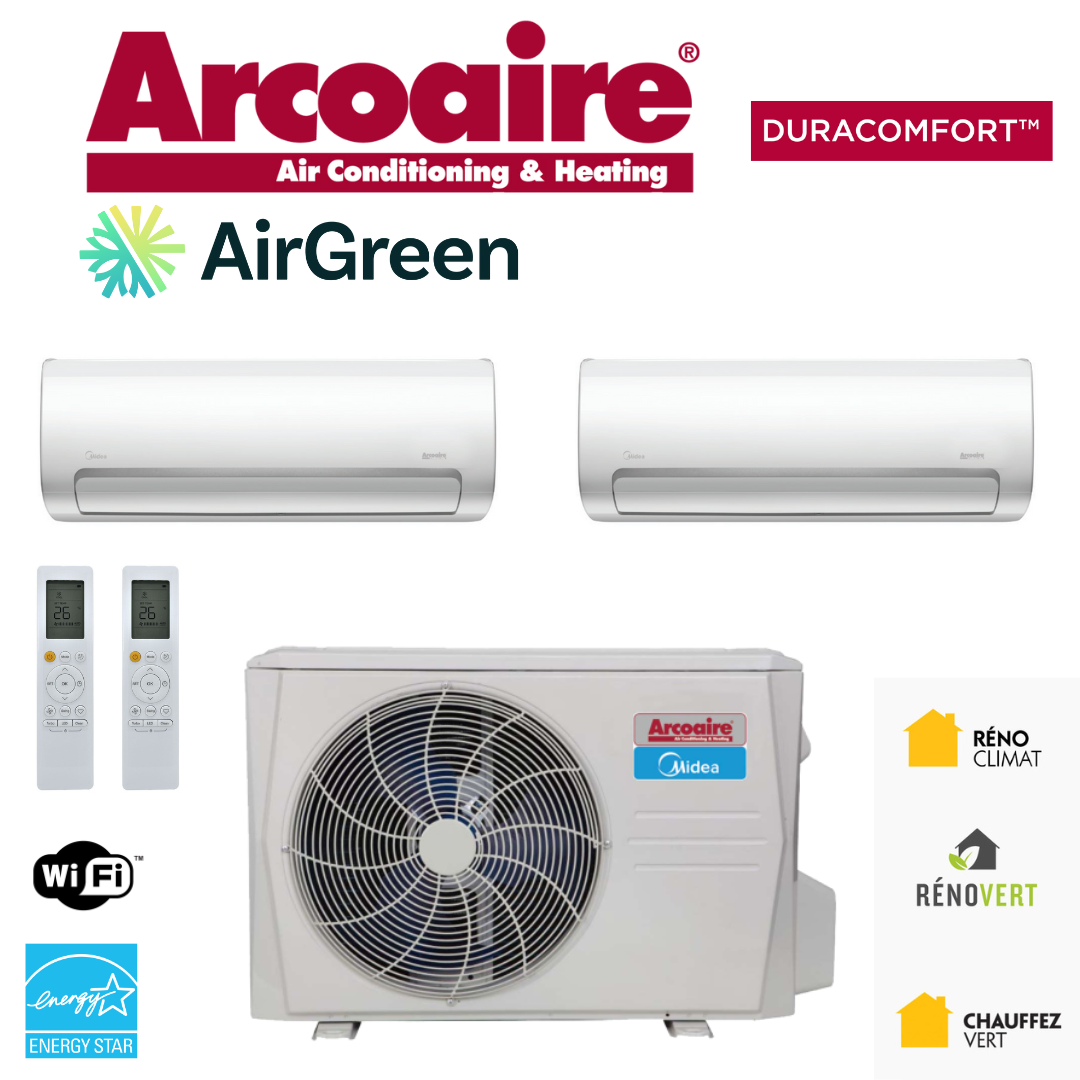

ArcoAire DLCMRA Heat Pump | 2-Zones | 48,000 BTU Compressor
A Tailor-Made Comfort Solution for Montreal and Surrounding Areas
The quest for an efficient and economical heating and cooling solution is a top priority for residents of Montreal, Laval, Longueuil, as well as the North Shore and South Shore. At AirGreen, we understand this need and offer the ArcoAire DLCMRA Wall-Mounted 2-Zone Heat Pump, a leading option to ensure the comfort of your home throughout the year.
The 9,000 + 9,000 and 9,000 + 12,000 BTU/h combinations do not appear in the manufacturer’s combination chart for the DLCMRAH48EAK: AirGreen confirms them with the manufacturer before the quote.
Unique Features of the ArcoAire DLCMRA Heat Pump
The ArcoAire DLCMRA heat pump stands out for its advanced technical features and its ability to provide both effective cooling and heating in extreme conditions, down to -30°C. Here's what makes this heat pump an exceptional choice:
- Impressive Capacity: With a 48,000 BTU compressor, it is capable of meeting the cooling and heating needs of large areas spread over 2 zones, with the possibility of extending up to 5 zones.
- Flexibility and Adaptation: The unit's external dimensions (41.15 x 17.63 x 52.48) allow for installation adapted to different spaces, while the interior serial numbers (DLFEHAH09XAK, DLFEHAH12XAK, DLFEHAH18XAK, and DLFEHAH24XAK) offer a variety of options to precisely meet your heating and cooling needs.
- Technology and Innovation: The optional WiFi module allows for easy and remote management of your system, while the 20.5 SEER efficiency rating ensures superior energy efficiency, reducing your electricity bills.
Economic and Ecological Benefits
Investing in the ArcoAire DLCMRA heat pump also comes with notable economic and ecological advantages:
- Energy Efficiency: The absence of an Energy Star® certification is compensated by a high efficiency rating (20.5 SEER), meaning this heat pump uses less energy to heat or cool your home, thus contributing to environmental protection.
Acoustic Comfort and Air Quality
- Operational Silence: With a sound pressure level of 64.0 dB(A) for the outdoor unit, the heat pump ensures relatively quiet operation, thus guaranteeing your peace of mind as well as that of your neighbors.
- Air Quality: The use of environmentally friendly R-410A gas minimizes the ecological impact of the device while ensuring superior indoor air quality for your home.
Warranty and Security
Peace of mind is essential when investing in a heating and cooling system. The ArcoAire DLCMRA heat pump offers a solid warranty, with 10 years on the compressor and parts and 6 years on labor, straight from the distributor. Furthermore, an additional warranty (10-10-10) is available, also extending labor up to 10 years, for complete protection of your investment.
Why Choose AirGreen for Your ArcoAire DLCMRA Heat Pump?
By choosing AirGreen, you opt for recognized expertise in the installation of HVAC systems in Montreal, Laval, Longueuil, and the regions of the North Shore and South Shore. Our team of certified professionals guarantees impeccable installation and after-sales service, thus ensuring the longevity and optimal performance of your heat pump.
Conclusion
The ArcoAire DLCMRA Wall-Mounted 2-Zone Heat Pump represents the ideal solution for those seeking a flexible, efficient, and economical heating and cooling option. With AirGreen, you not only get an exceptional product but also expert and personalized service, ensuring the comfort of your home for years to come.
Warranty: 10 years on the compressor, 10 years on parts and 6 years on labor, straight from the distributor.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 30,200 BTU/h at −8 °C.
How many heads can I connect?
Up to 5 on this outdoor unit. This product is configured for 2 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 10 combinations, from 9 + 9 to 24 + 24 (in thousands of BTU). Each head is sized for its room.
Down to what temperature does it heat?
Down to −30 °C.
Is it noisy?
Indoors, the reference head goes down to 34 dB(A). Outdoors, 64 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 10 years on the compressor and 10 years on parts. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
