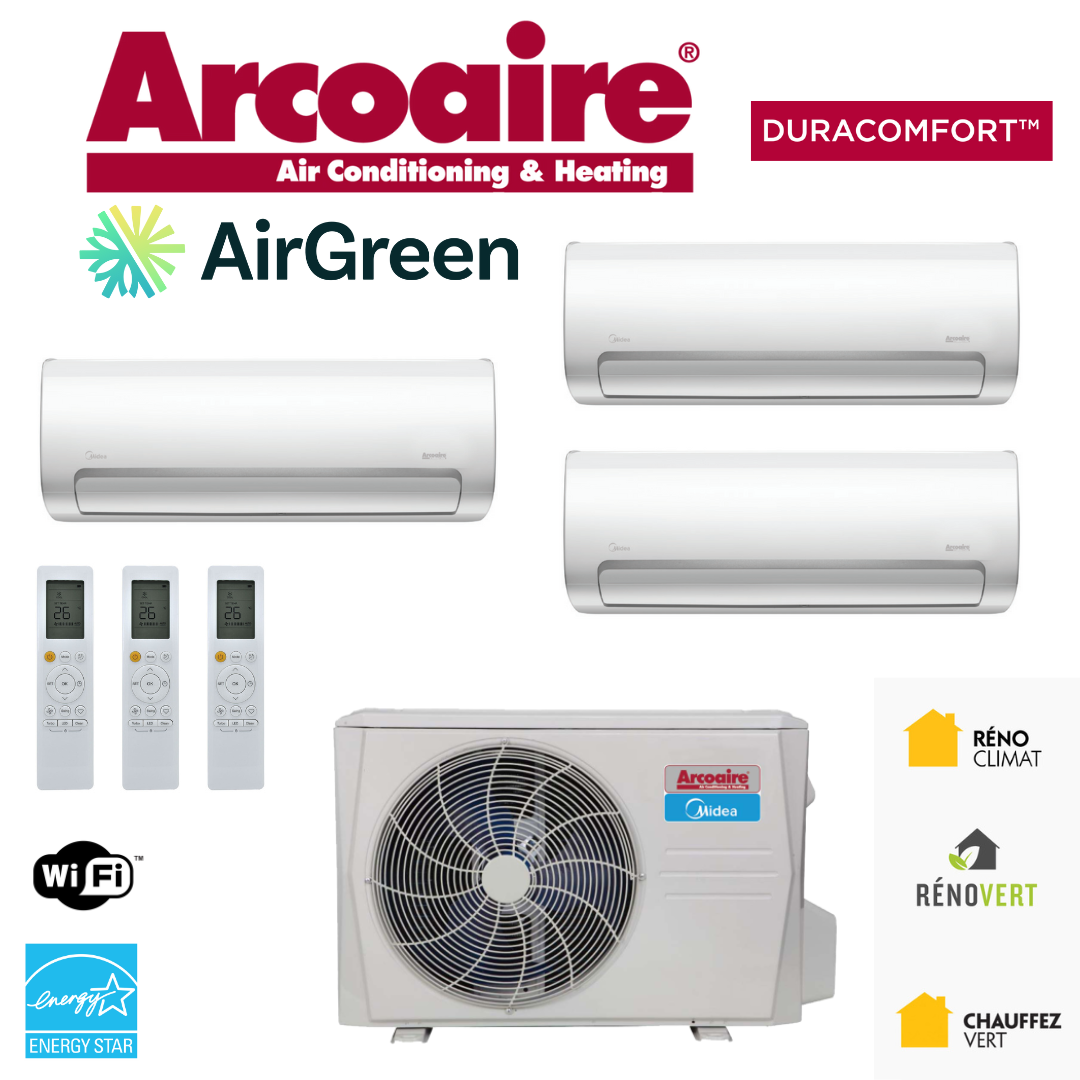

ArcoAire DLCMRA heat pump | 3-Zones | 27,000 BTU compressor
The ArcoAire DLCMRA 27 000 multi-zone heat pump heats and cools 3 rooms with a single outdoor unit. it delivers 17,800 BTU/h at −8 °C, heats down to −30 °C. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
3 rooms, one outdoor unit.
Compared with the 26 multi-zone systems of 27,000 BTU we sell. Figures come from the manufacturer’s data and the AHRI certification.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 3 heads.
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 83 % of its rated capacity.
Tap a temperature: capacity, efficiency and the cost of one hour of heating.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
Where it ranks among same-size multi-zone systems.
Compared with the 26 multi-zone systems of 27,000 BTU we sell. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.
Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.

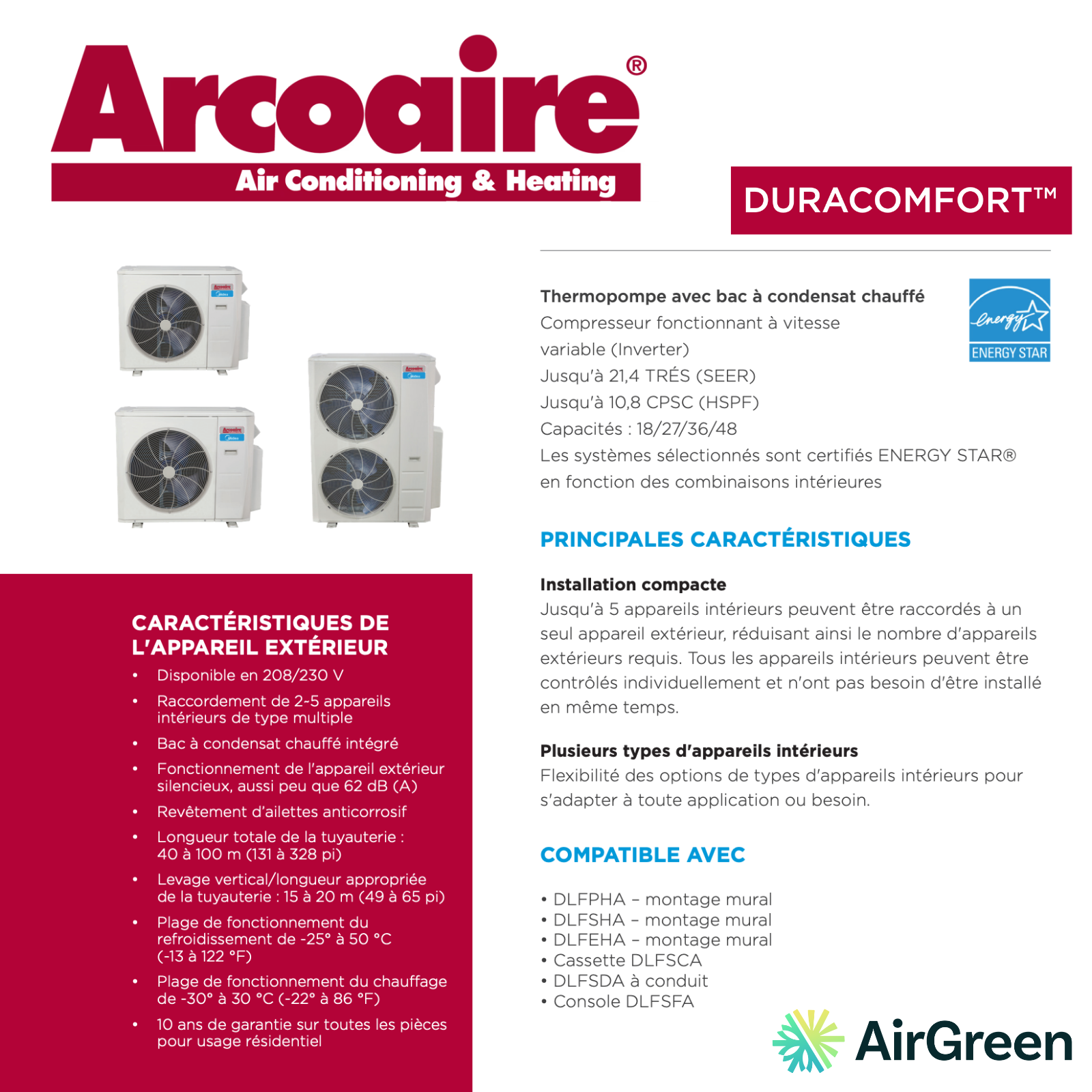

The manufacturer’s documentation, as PDF.
Everything we have written about this system.
ArcoAire DLCMRA Heat Pump | 3-Zones | 27,000 BTU Compressor
A Revolutionary HVAC System for Your Comfort in Montreal, Laval, Longueuil, and Beyond
At AirGreen, we're proud to introduce our latest gem in heating and cooling solutions: the ArcoAire DLCMRA Wall-Mounted 3-Zone Heat Pump. This HVAC (heating, ventilation, and air conditioning) system isn't just an answer to your thermal comfort needs; it's a revolution in energy optimization and climate control for your living or working space.
Advanced Performance and Technology
This three-zone wall-mounted heat pump stands out for its exceptional ability to offer tailored comfort in three distinct zones of your home or office, with just one external compressor boasting a capacity of 27,000 BTU. Whether heating or cooling, it efficiently meets each specific need thanks to its cutting-edge technology and innovative design.
- Heating Capacity down to -30°C: Even in the harshest winters of Montreal, Laval, Longueuil, North Shore, and South Shore, this heat pump maintains a pleasant temperature inside.
- Flexible Dimensions and Installation: With compact external dimensions and three different-sized interior units, it perfectly adapts to the architecture of any space without compromising aesthetics.
- Optional WiFi Connectivity: Remote control via WiFi allows you to adjust settings for each zone through your smartphone, ensuring optimal comfort at all times and in any place.
Energy Efficiency and Savings
- High Efficiency of 20.4 SEER: This triple-zone heat pump is not only powerful; it's also remarkably efficient, allowing for significant savings on your energy bills.
- Environmentally Friendly: Using R-410A gas, it respects the environment while providing superior comfort.
Acoustic Comfort and Durability
- Reduced Sound Pressure Level: With a sound level of only 63.0 dB(A) for the external unit, it ensures quiet operation that won't disturb your peace.
- Comprehensive Warranties: Enjoy total peace of mind with a 10-year warranty on the compressor and parts and a 6-year warranty on labor, straight from the distributor. It is also possible to extend the labor warranty.
Why Choose the ArcoAire DLCMRA 3-Zone Heat Pump?
Choosing this heat pump at AirGreen means opting for an HVAC solution that combines performance, efficiency, and comfort. Whether you live in Montreal, Laval, Longueuil, or the surrounding areas, our team of experts is ready to support you in your project, from selecting to installing your triple-zone heat pump. With our expertise and commitment to customer satisfaction, we guarantee an unmatched experience.
AirGreen: Your trusted partner for an improved quality of life and significant energy savings.
Warranty: 10 years on the compressor, 10 years on parts and 6 years on labor, straight from the distributor.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 17,800 BTU/h at −8 °C, 22,600 at −15 °C.
How many heads can I connect?
Up to 3 on this outdoor unit. This product is configured for 3 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 5 combinations, from 9+9+9 to 12 + 12 + 12 (in thousands of BTU). Each head is sized for its room.
Down to what temperature does it heat?
Down to −30 °C.
Is it noisy?
Indoors, the reference head goes down to 34 dB(A). Outdoors, 63 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 10 years on the compressor and 10 years on parts. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
