LG Multi F MAX PMBL5620 Branch Y
LG’s genuine Y-branch that splits the main line of a Multi F MAX system into two branches.
AirGreen codeAG-AC-121
514 316-2973 · sales@airgreen.ca
Quick facts
The LG PMBL5620 branch Y is an original copper fitting for Multi F MAX systems. It splits the main refrigerant line into two branches, so two areas of a building can be served by a single outdoor unit. LG Canada presents it as the Y used to connect Multi F MAX indoor units.
A well-distributed piping layout
In a large house or a commercial space, the rooms to be served are often far from one another. The Y splits the line coming from the outdoor unit to feed two points, for example two distribution boxes on different floors. The kit includes the 3/4 in gas branch and the 3/8 in liquid branch.
Manufacturer specifications
- Gas: 3/4 in (19.05 mm); liquid: 3/8 in (9.52 mm)
- Copper fittings, design pressure of 551 psig
- Polyolefin foam insulation, UL94 HF-1 rating
The right Y for your unit
For R-32 Multi F MAX outdoor units, such as the KUMXB481A, LG specifies a different Y, the ARBLN03321. Note your outdoor unit’s model before ordering: we confirm the part. Brazing is done under dry nitrogen by a qualified refrigeration technician.
Installed by AirGreen in Greater Montréal
Our refrigeration technicians design and install the piping for Multi F MAX systems in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the outdoor unit model.

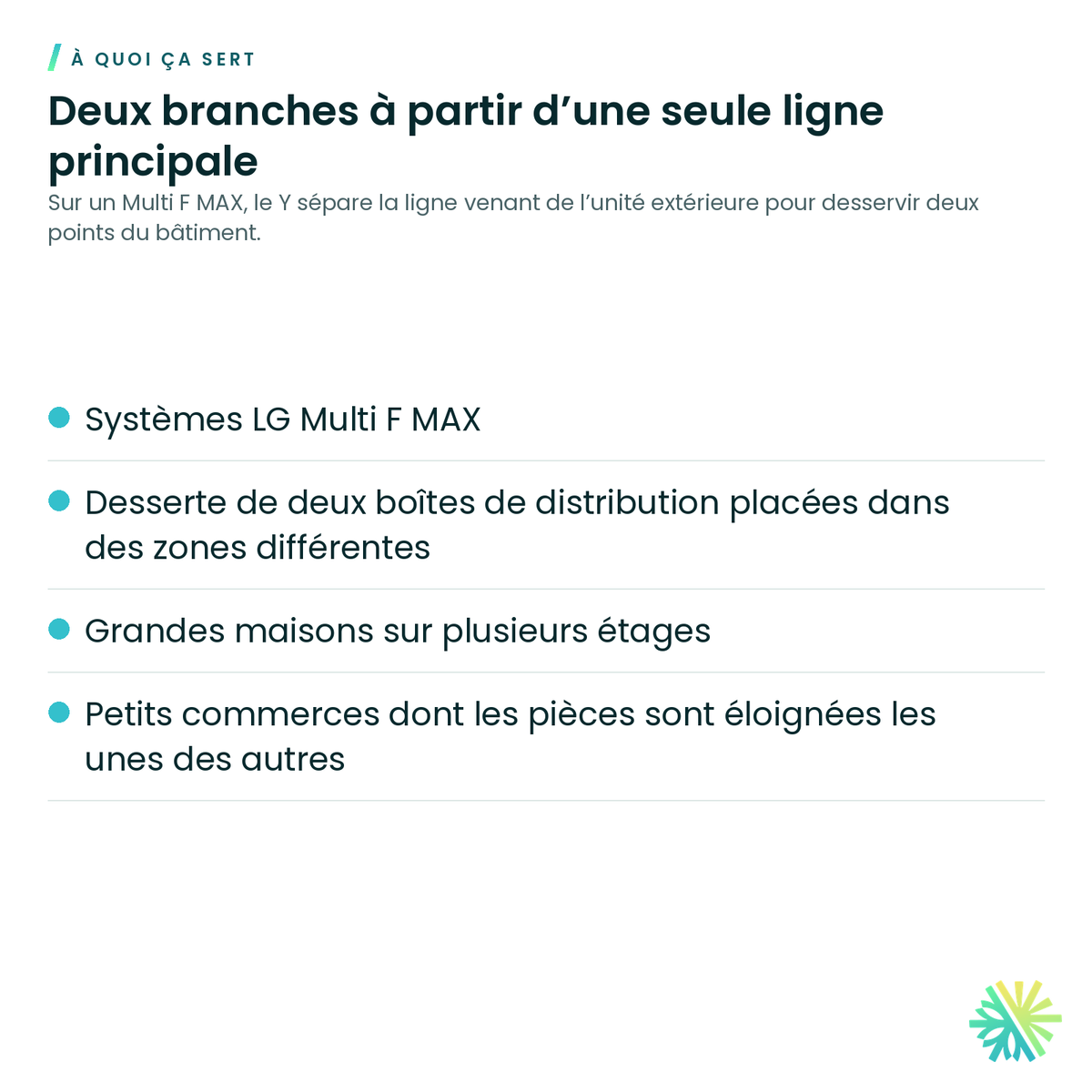

Two branches from one main line
On a Multi F MAX, the Y splits the line from the outdoor unit to serve two points in the building.
- LG Multi F MAX systems
- Feeding two branch distribution units in different areas
- Large multi-storey homes
- Small businesses with rooms far apart

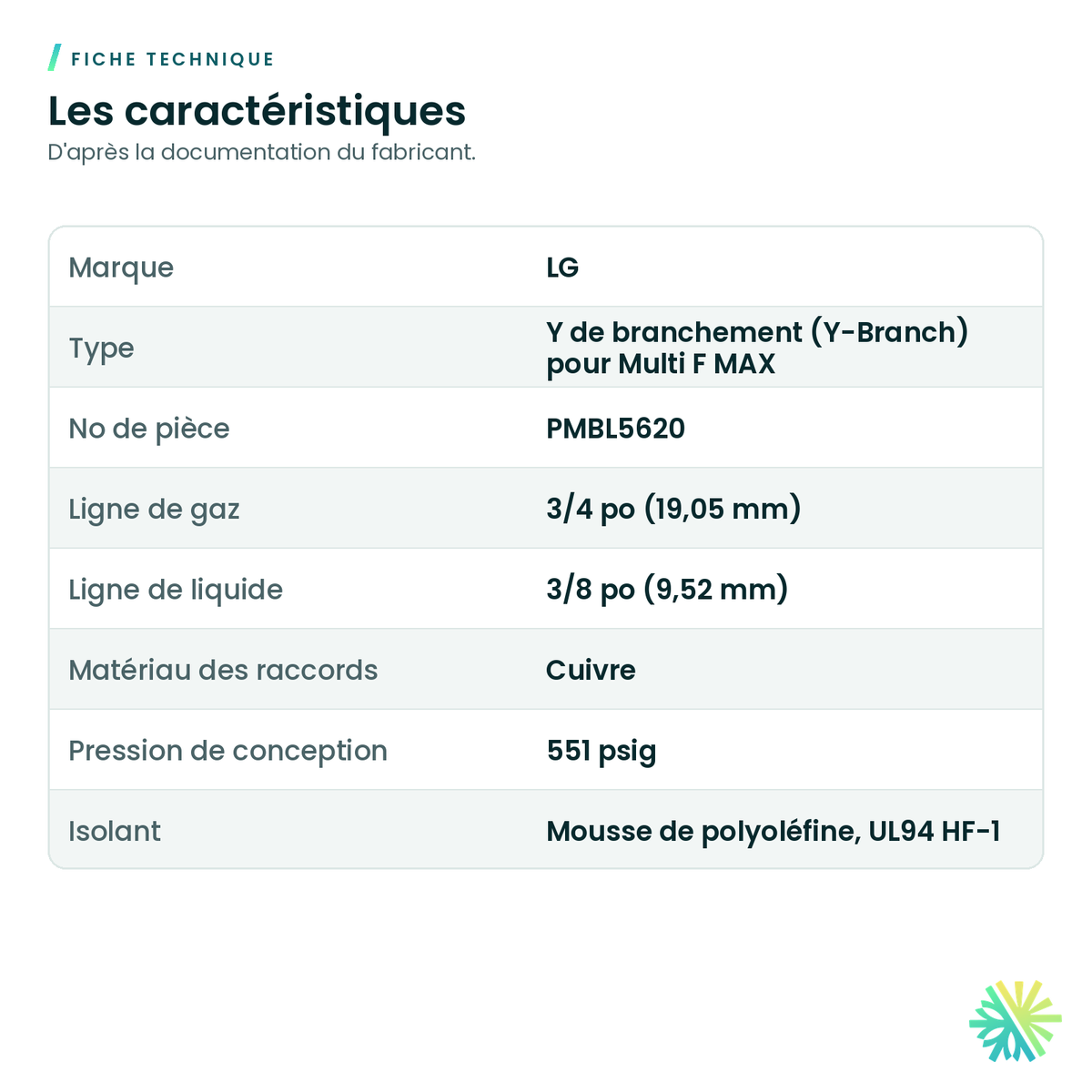

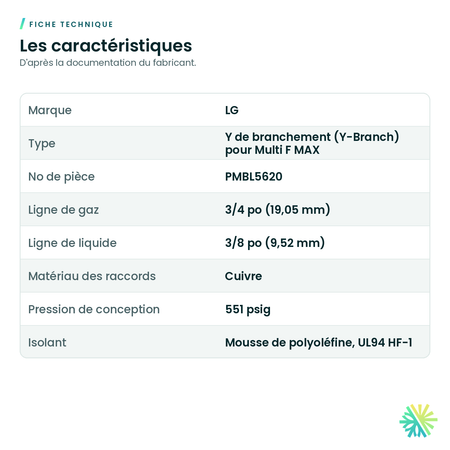

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

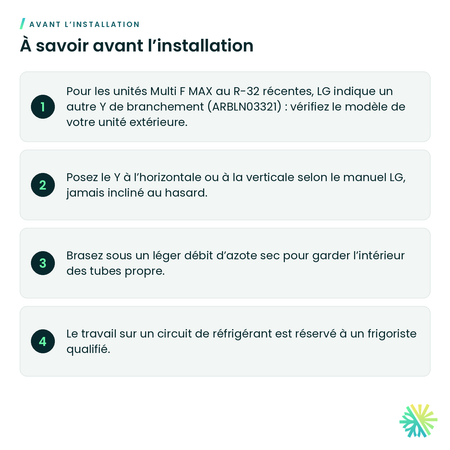

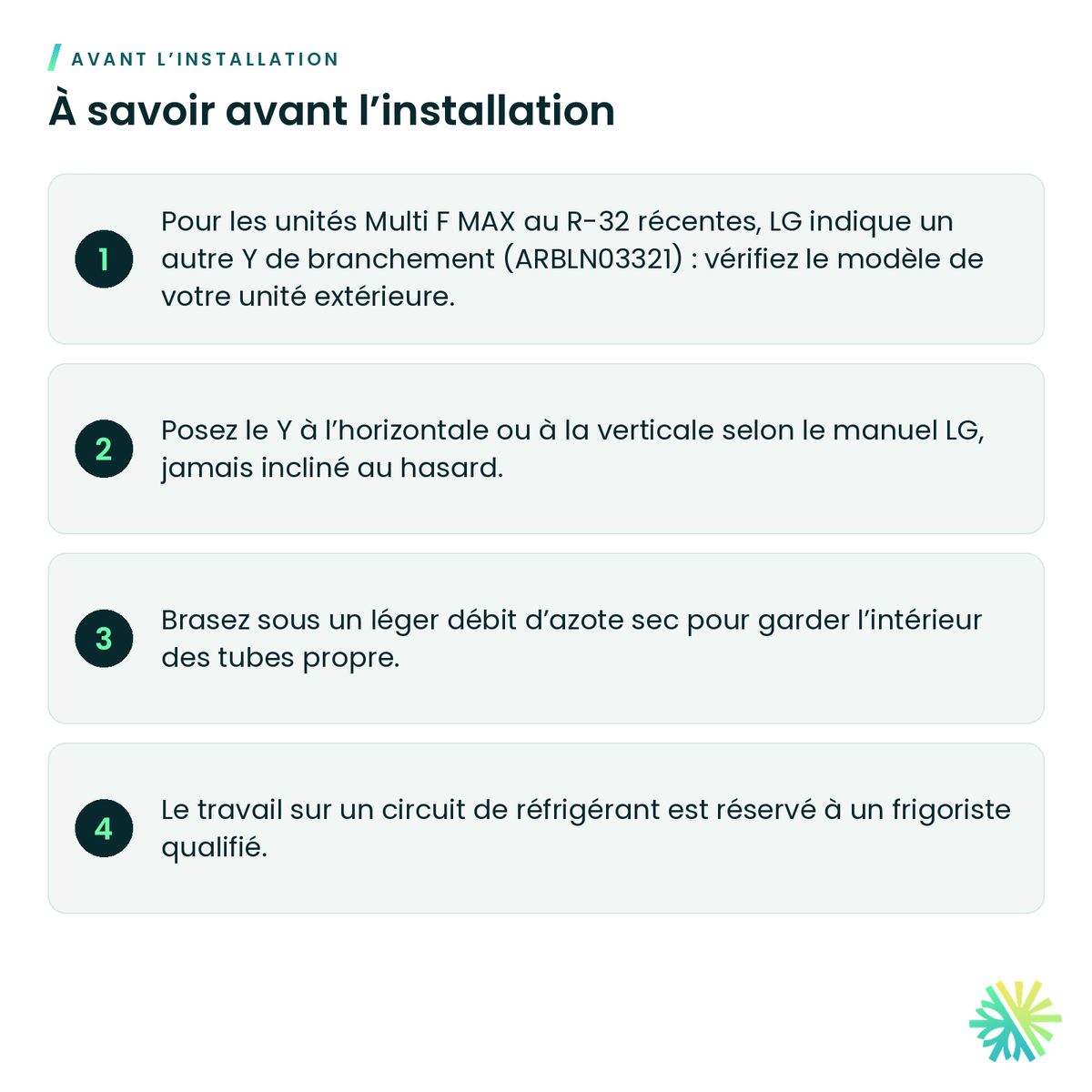

What to know before installing
- For recent R-32 Multi F MAX outdoor units, LG specifies a different Y-branch (ARBLN03321): check your outdoor unit model.
- Install the Y horizontally or vertically as the LG manual shows, never at a random angle.
- Braze with a light flow of dry nitrogen to keep the inside of the tubes clean.
- Work on a refrigerant circuit is reserved for a qualified refrigeration technician.
Manufacturer documents
You may also need
LG Multi F MAX Distribution Box
A.C.R. Soft Copper Tube – 50 ft Coil
Armaflex Elastomeric Tube Insulation – 6 ft Length
Silver Brazing Rods
Dry Nitrogen – Cylinder
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)Original partsSee all
Frequently asked questions
Does this Y fit my Multi F MAX?
LG lists it for Multi F MAX systems. For R-32 Multi F MAX outdoor units such as the KUMXB481A, LG specifies the ARBLN03321 Y-branch instead. Send us your unit model and we confirm the right part.
Why a genuine Y instead of a copper tee?
LG’s Y is designed to share refrigerant flow between two branches; the equipment manual calls for it at that point in the piping.
Is the insulation included?
LG describes copper fittings covered with polyolefin foam. The rest of the piping is insulated on site.
Can you install it?
Yes. Our technicians lay out the piping and install the Y, everywhere in Greater Montréal.
The genuine Y-branch for your Multi F MAX
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
