Élios Programmable Wi-Fi Wired Controller – KJRSAALW1
Élios’ programmable wall controller, with Wi-Fi to adjust your unit from your phone.
AirGreen codeAG-AC-058
514 316-2973 · sales@airgreen.ca
Quick facts
The Élios KJRSAALW1 programmable Wi-Fi wired controller (manufacturer model KJR-120N(X6W)/BGEF) has all the functions of the KJRSAALN1 and adds a 2.4 GHz Wi-Fi module. You adjust the unit at the wall or remotely, through a mobile app on iOS 9.0 and up or Android 6.0 and up.
Program at the wall, adjust from anywhere
The controller offers a weekly schedule with 4 settings per day, or a detailed schedule where each time slot has its own mode, set point and fan speed. It is a logical choice for a cottage, a condo or a rental property you want to keep an eye on from a distance. Élios lists it for its GGHLA and EAHM air handlers, its GPHLA units, its GKHRA, GQHRA and GQHLA cassettes and its EMC and EBC wall-mounted heat pumps.
Functions from the manual
- Follow Me, child lock and group control of up to 16 units.
- Furnace and dual-energy modes, and auxiliary electric heat, when the connected unit supports them.
- WPA-PSK/WPA2-PSK secure network and remote software updates.
Wiring
Powered at 12 V DC by the unit, it connects to the HA and HB terminals, with no polarity, using a 6 m 4-conductor cable suggested by the manufacturer. A 2.4 GHz Wi-Fi signal is needed where it is installed.
Installed by AirGreen in Greater Montréal
We install the controller, connect it to your network and program the schedule with you in Montréal, Laval, Longueuil, on the South Shore and the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with your indoor unit model and the quantity.

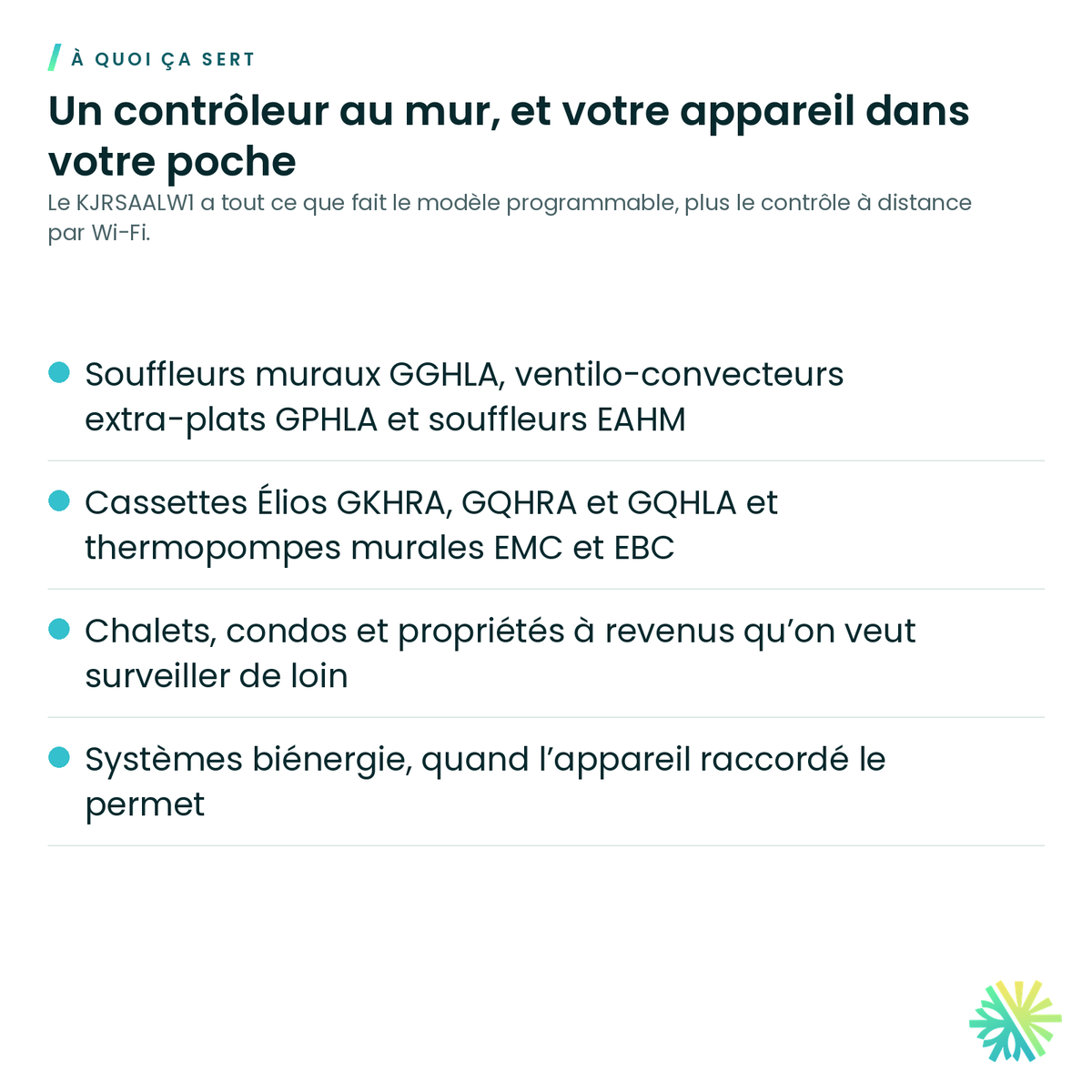

A controller on the wall, and your unit in your pocket
The KJRSAALW1 does everything the programmable model does, plus remote control over Wi-Fi.
- GGHLA wall-mount air handlers, GPHLA slim fan coils and EAHM air handlers
- Élios GKHRA, GQHRA and GQHLA cassettes and EMC and EBC wall units
- Cottages, condos and rental properties you want to watch from afar
- Dual-fuel systems, when the connected unit supports it

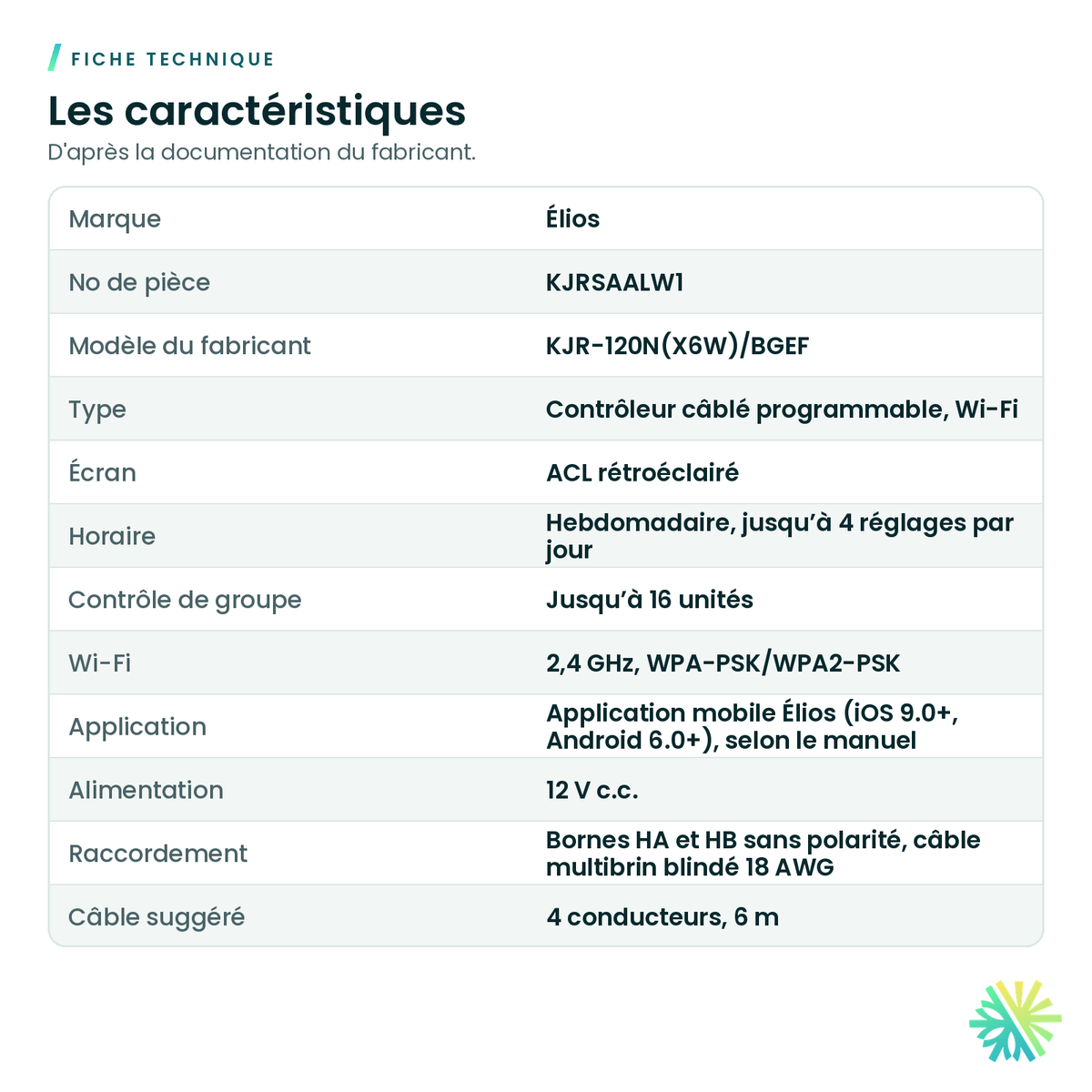

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

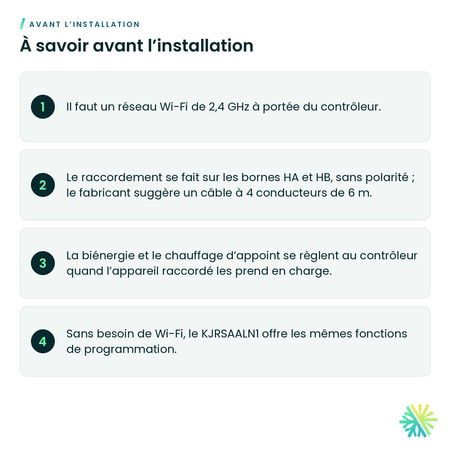

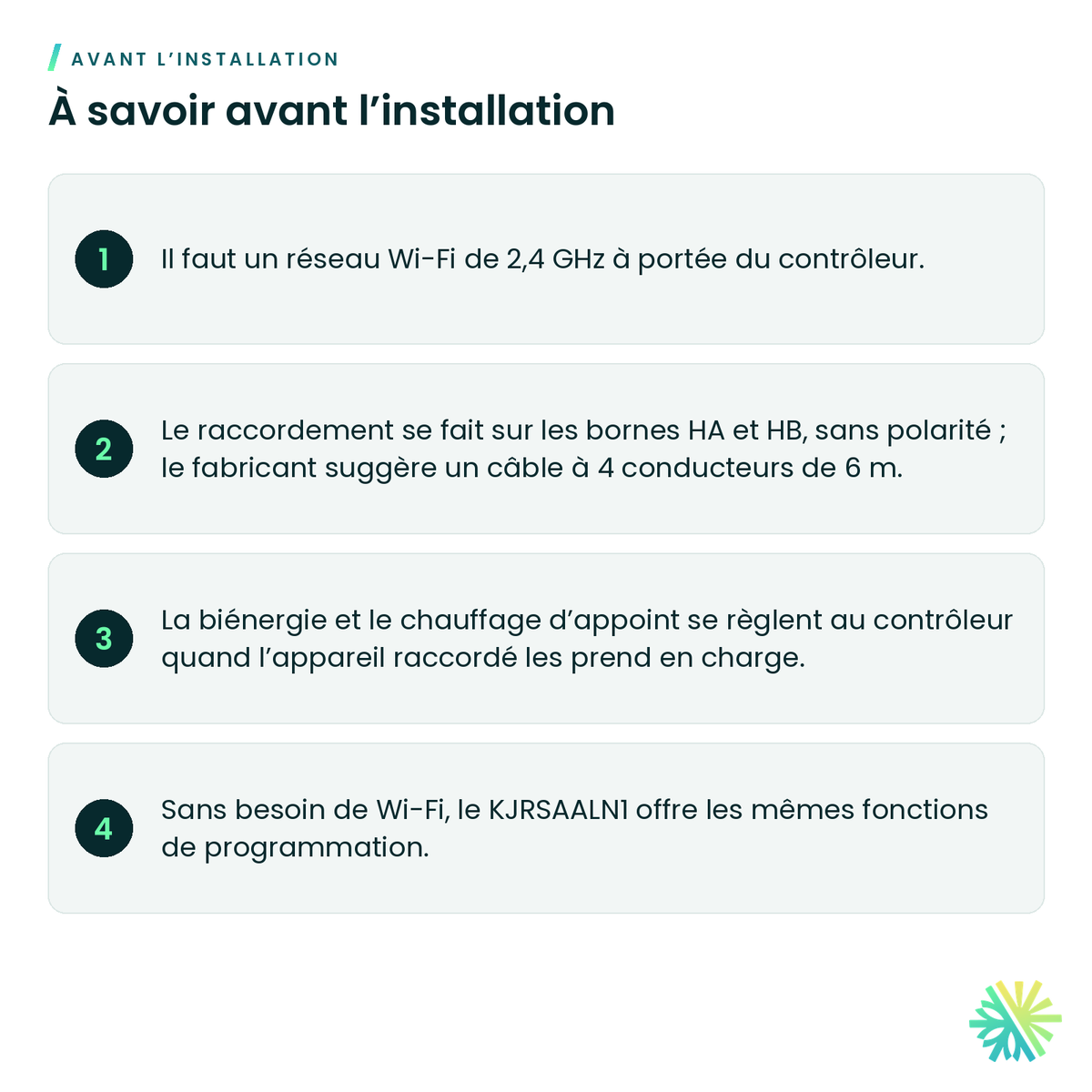

What to know before installing
- You need a 2.4 GHz Wi-Fi network within reach of the controller.
- It connects to the HA and HB terminals, no polarity; the maker suggests a 4-conductor cable, 6 m.
- Dual fuel and backup heat are set at the controller when the connected unit supports them.
- If you do not need Wi-Fi, the KJRSAALN1 has the same programming functions.
- Wired controller
- Installation manual
- 3 M3.9 × 25 screws and 3 wall plugs
- 2 M4 × 25 screws for an electrical box
- CR2032 battery
Manufacturer documents
You may also need
Élios Programmable Wired Controller – KJRSAALN1
Élios COMM 24 V Smart Thermostat – ST1S42RW1
Élios Heating Element for EAHM Air Handler
Élios Heating Element for GPHLA Extra-Slim Fan Coil
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Which app do I use?
The Élios KJRSAALW1 manual names the mobile app to use, on iOS 9.0 and up and Android 6.0 and up; we set it up with you. We pair it with your network during installation.
Which Élios units take it?
It is listed in the Élios submittals for GGHLA wall-mount air handlers, GPHLA units, EAHM air handlers, GKHRA, GQHRA and GQHLA cassettes and EMC and EBC wall units. Send us your indoor unit’s model number and we confirm before ordering.
Does it work without Internet?
Yes. The wall functions, schedule included, stay available; only remote control needs Wi-Fi.
Can you install it?
Yes. We mount the controller, connect it, join it to your Wi-Fi and program the schedule with you, everywhere in Greater Montréal.
Your Élios unit, adjusted from anywhere
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
