ELIOS · Parts and accessoriesThe ELIOS space at AirGreenSold and installed by AirGreen across Greater Montreal.
Find my part
Controls, interfaces, kits, grillesData checked Oct. 26, 2026

ELIOS parts and accessories · Greater Montreal

The right ELIOS part is found by the unit’s model number: enter it, the page sorts it out.

Controllers, thermostat, 24 V interfaces, Wi-Fi dongle, heater kits and cassette grilles. Compatibility comes from the ELIOS documents; when no document publishes it, the page says so.

Book my free estimateFind my part

Before you order

1full model number, read on the label
5part families
5 yearsST1S42RW1 thermostat warranty
Includedwired Wi-Fi with R-454B ducted and cassettes

ELIOS controller (05.26) and unit submittals.

15ELIOS parts on this page
5families: controls, interfaces, heater kits, grilles, tool
12parts with a compatibility list drawn from the ELIOS documents
AirGreen × ELIOSELIOS partsBy model numberELIOS compatibilitySold and installed by AirGreen

The essentials

What the ELIOS documents say about the parts, before you order one.

The facts that avoid a useless order or a part that does not fit.

Already included

The KJRSAALW1 Wi-Fi controller comes with the GDHRA ducted units and the GKHRA, GQHRA24 and GOHRA cassettes.

SE1 submittals; DYK_E_011526
Required grille

The 4-way cassettes need their grille, listed separately: K0918AGRL or Q2448AGRL.

SUB_E_KHRA; SUB_E_QHRA24
Coils only

The KJRKAALW1 is the Wi-Fi controller for GCHMA and GUHMA coils, which also need their interface.

SUB_G_CNTRLR_1_KJRKAALW1; SUB_E_CHMA30

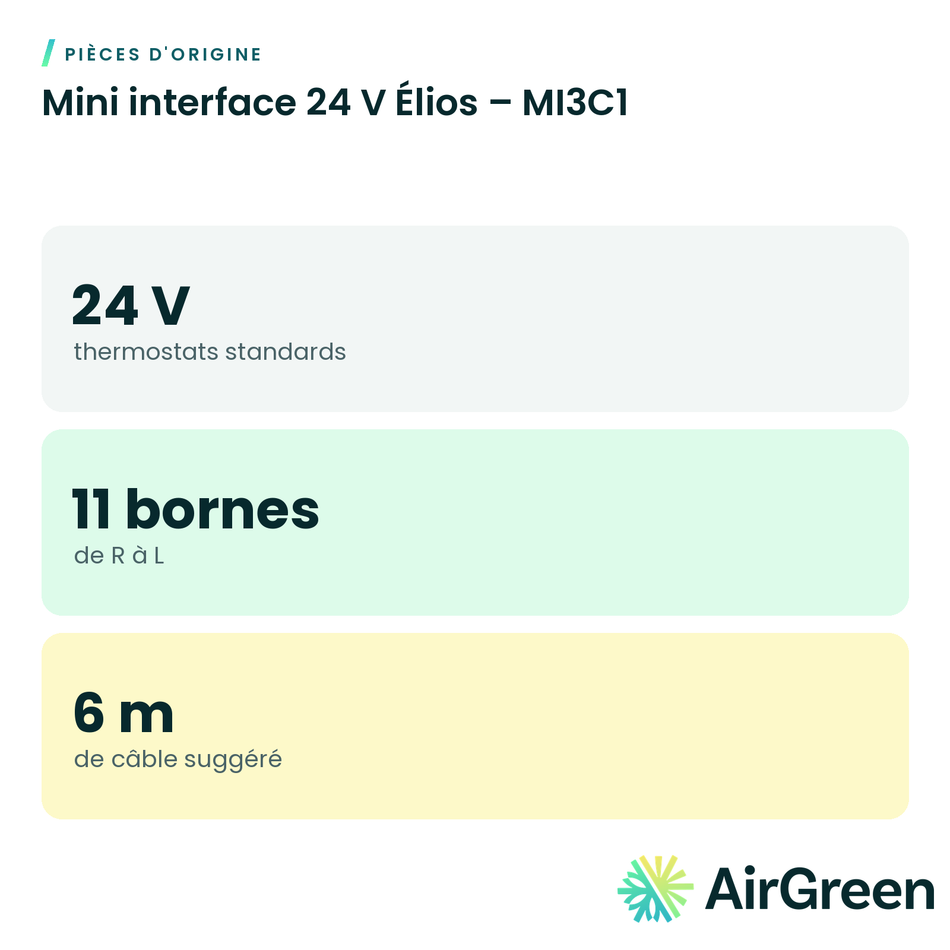

MI3C1

Preferred 24 V interface in single-zone; it links the ST1S42RW1 thermostat to an EMC or EBC wall unit.

TAB_G_ACCCTL_3; EMC and EBC brochures
LI2C1

Interface required to connect a GCHMA or GUHMA coil to a multi-zone system.

TAB_E_MZCBEX_3, p. 2

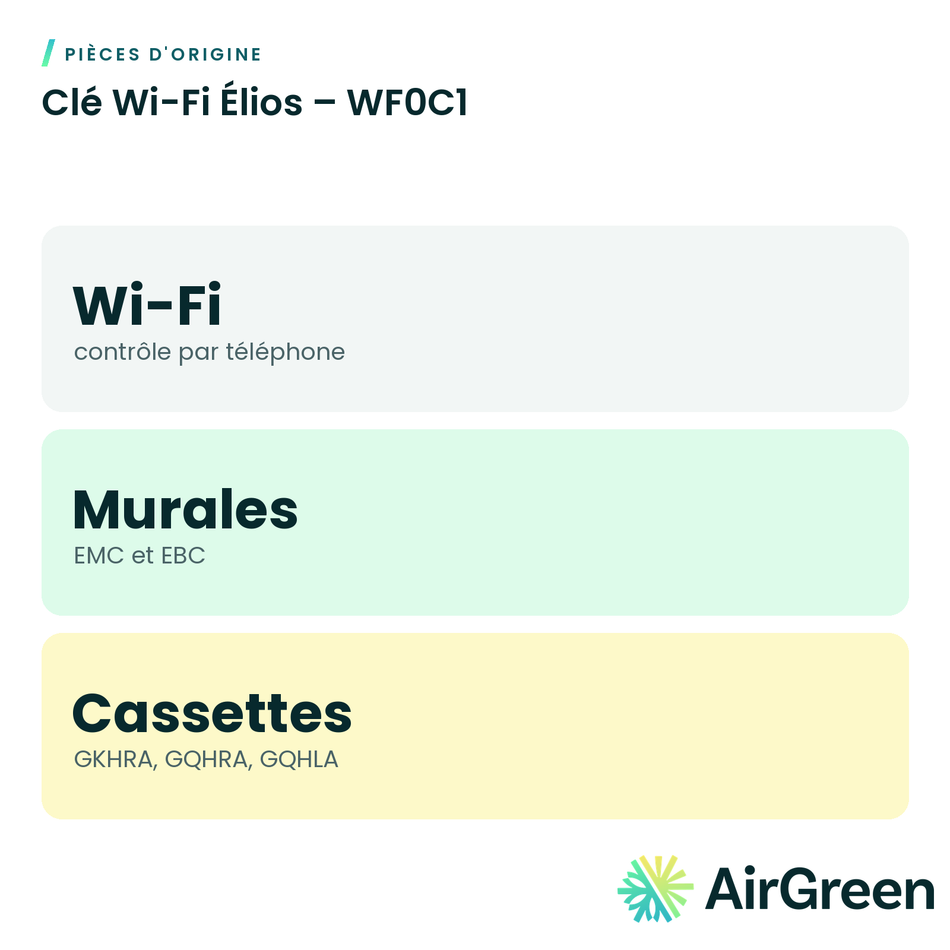

WF0C1

Optional Wi-Fi dongle on wall units, cassettes and the console; it is not listed on the GDHRA ducted units.

Unit submittals
5 years

Standard warranty of the ST1S42RW1 thermostat; 1 year on the KJR controllers.

SUB_G_CNTRLR_1
16 units

One wired controller can run up to 16 indoor units; one unit can have two controllers.

MAT_E_R454BX_1
2 or 3 circuits

The EAH15, 20 and 25EUL kits need two or three circuits; one stage up to 10 kW.

SUB_G_HTREUL_1
No 3 kW

No 3 kW kit is listed for the GPHLA24 or the GGHLA24.

SUB_E_PHLA24; SUB_E_GHLA24
K0918AGRL

Replaces the CASSETTEGRILL918A of the 9,000 to 18,000 R-410A cassettes.

TRS_E_410454_1
Installed by AirGreen

Controllers, interfaces and heater kits involve wiring: AirGreen installs them, RBQ 5645-9605-01, subclass 16.

Find the part for your unit

Enter your ELIOS unit’s model number.

It is on the indoor unit label (for example EWHMA12C2AS1 or EAHMA36R4AS1). The page lists the parts whose compatibility is published for that model.

The ELIOS parts shop

All our ELIOS parts, right below.

Each listing names the compatible models; confirm with the full number.

ELIOS

15 Products

Everything to know

ELIOS parts, family by family.

What each control, interface and kit does, and on which units.

Part families

Controls and thermostat: which one for which unit.

ELIOS SUB_G_CNTRLR_1 submittals (05.26) and TAB_G_ACCCTL_3 table. A dash means “not published in the documents read”.

ModelTypeWiringWarrantyGood to know

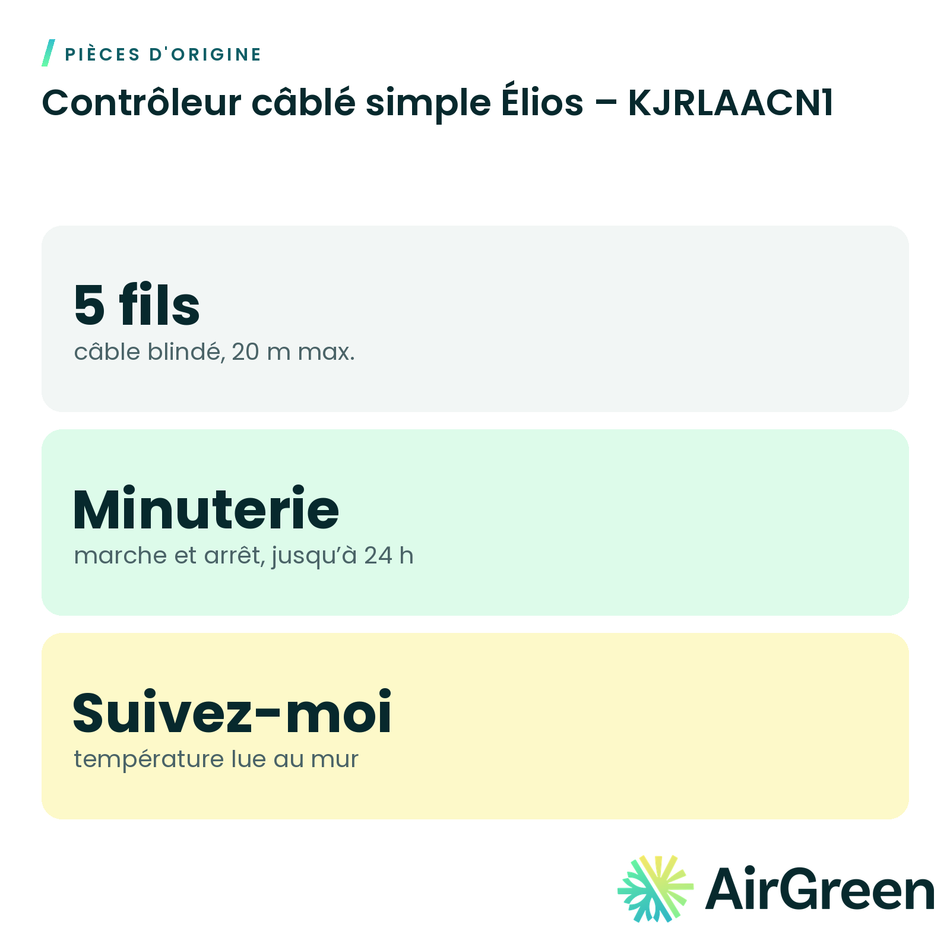

KJRLAACN1Simple wired controller5 wires, 5 V DC1 yearNot on the GGHLA, GPHLA, EAHMA or coil submittals.
KJRSAALN1Programmable, no Wi-Fi4 or 2 wires—Optional on wall units, e-Match, GPHLA and EAHMA.

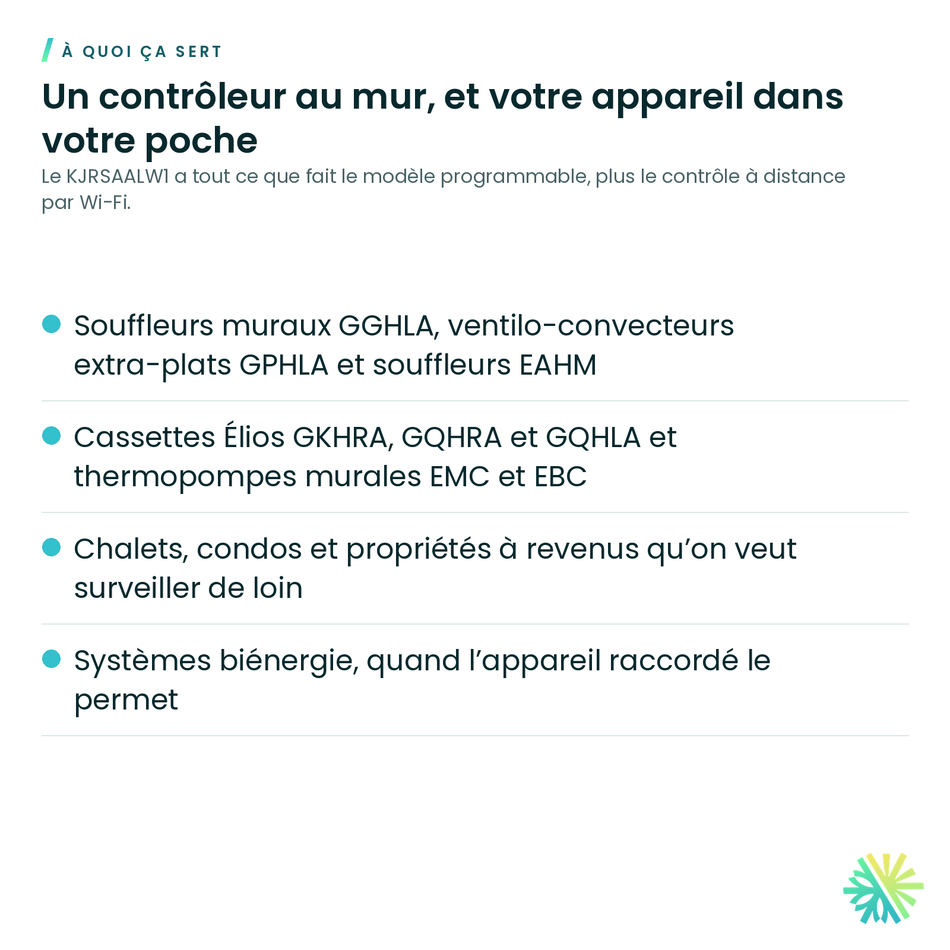

KJRSAALW1Programmable, Wi-Fi4 or 2 wires, 12 V DC1 yearIncluded with GDHRA, GKHRA, GQHRA24 and GOHRA.
KJRKAALW1Coils only, Wi-Fi2 wires, 12 V DC1 yearFor GCHMA and GUHMA coils, with the coil interface.

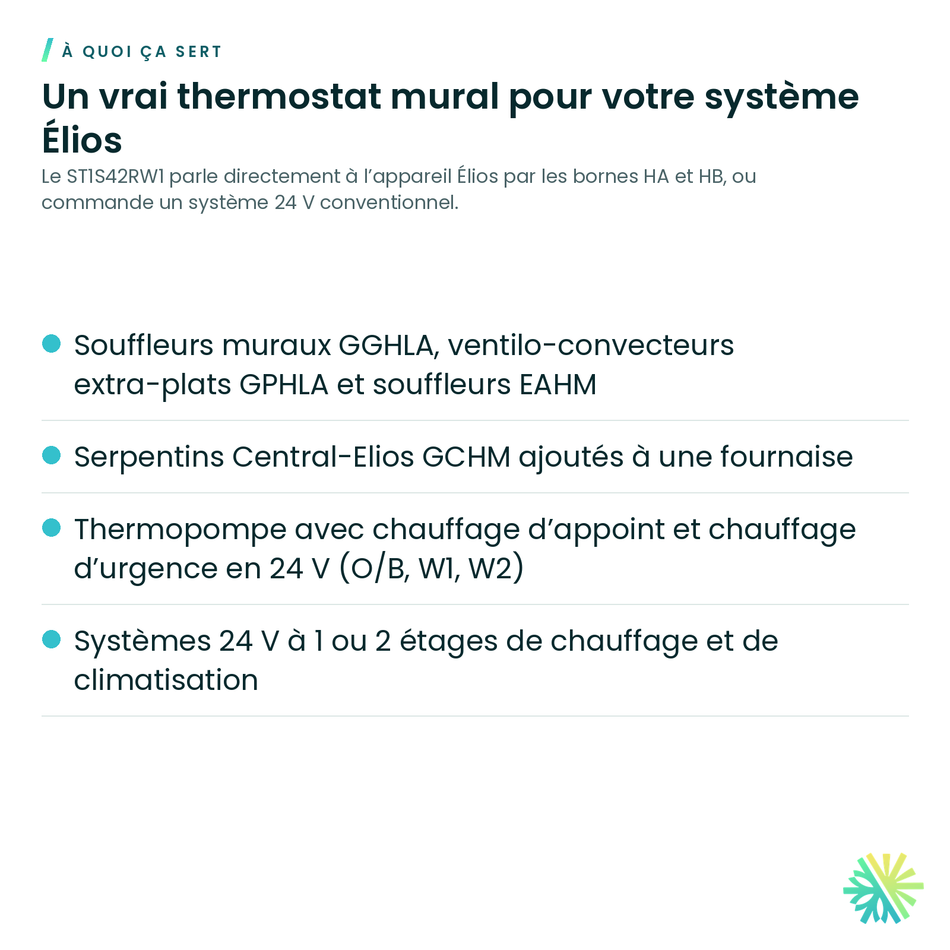

ST1S42RW1Smart touchscreen thermostat, Wi-Fi24 V AC, push-in terminals5 yearsOn EMC and EBC, with the MI3C1 mini interface and a 24 V supply; some functions are not available through this thermostat.

Heater kits

Three kit series, three units.

ELIOS SUB_G_HTREUL_1, HTRCUL_0 and HTRDUL_0 submittals, and unit submittals.

SeriesForSizesGood to know

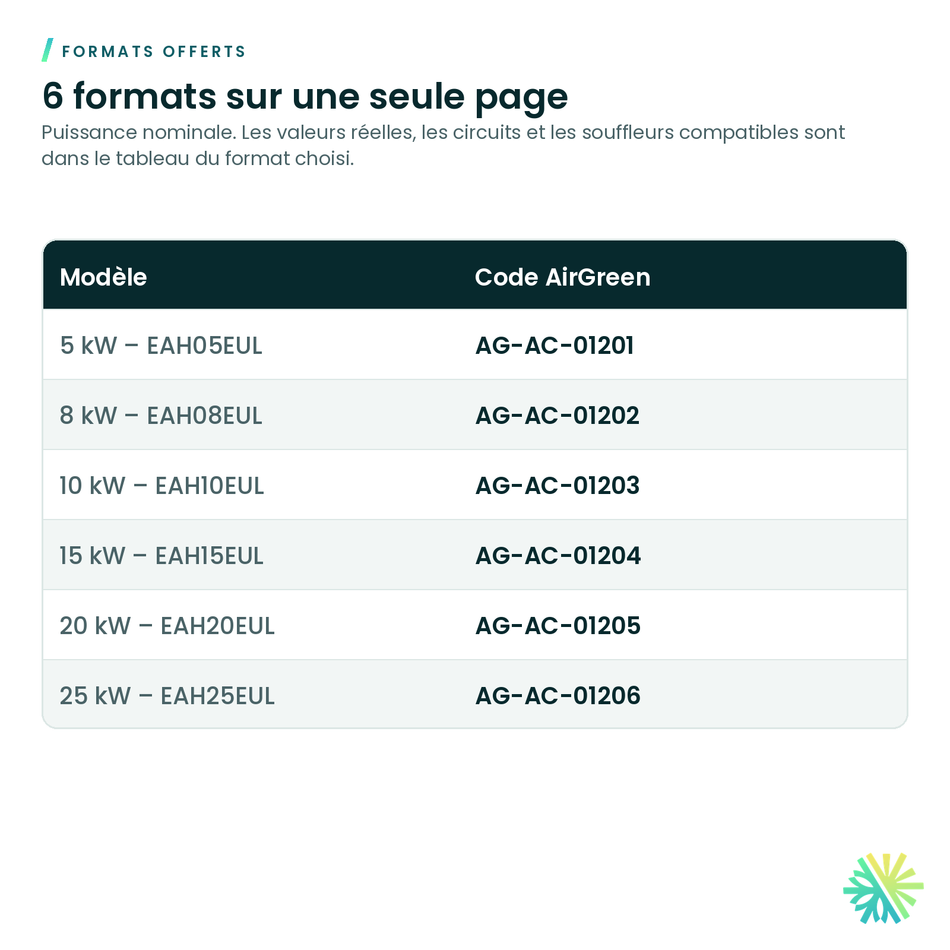

EAH05 to 25EULEAHMA air handlers (Central-Elios)5 · 8 · 10 · 15 · 20 · 25 kWOne stage up to 10 kW, two stages from 15 to 25 kW (2 or 3 circuits). Supersede EAHxxBUL.

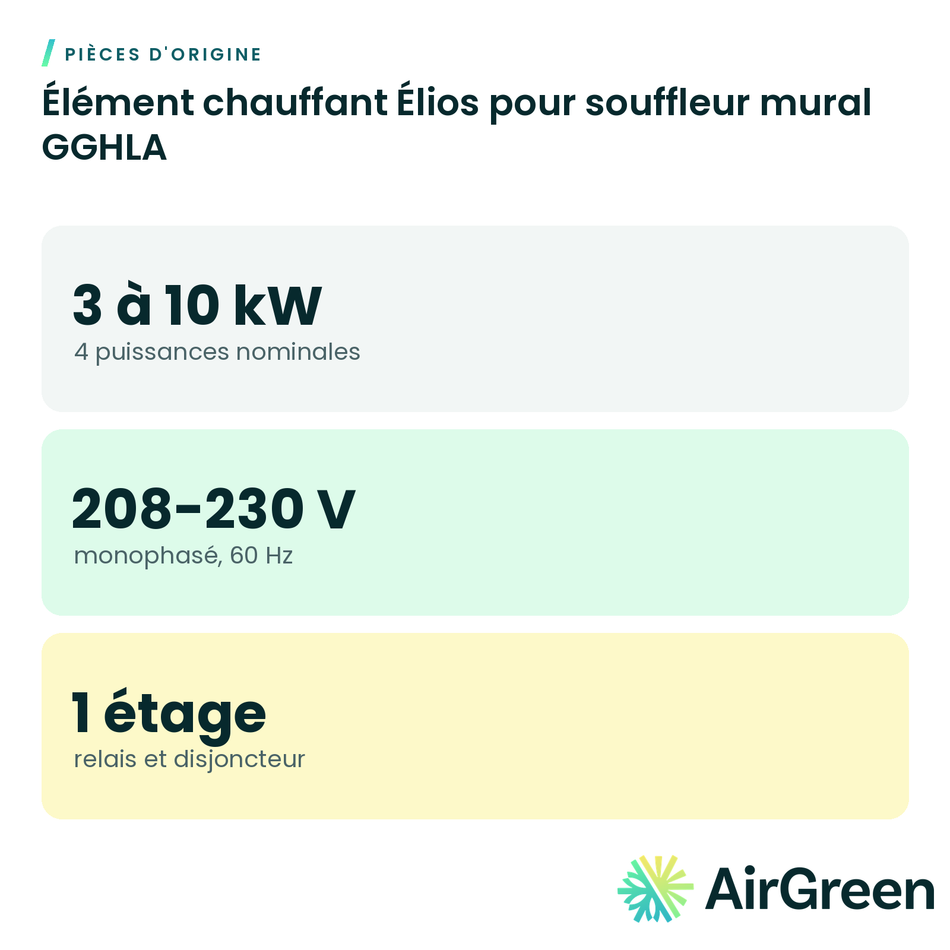

EAH03 to 10CULGGHLA wall-hung air handler3 · 5 · 8 · 10 kWNo 3 kW on the GGHLA24.

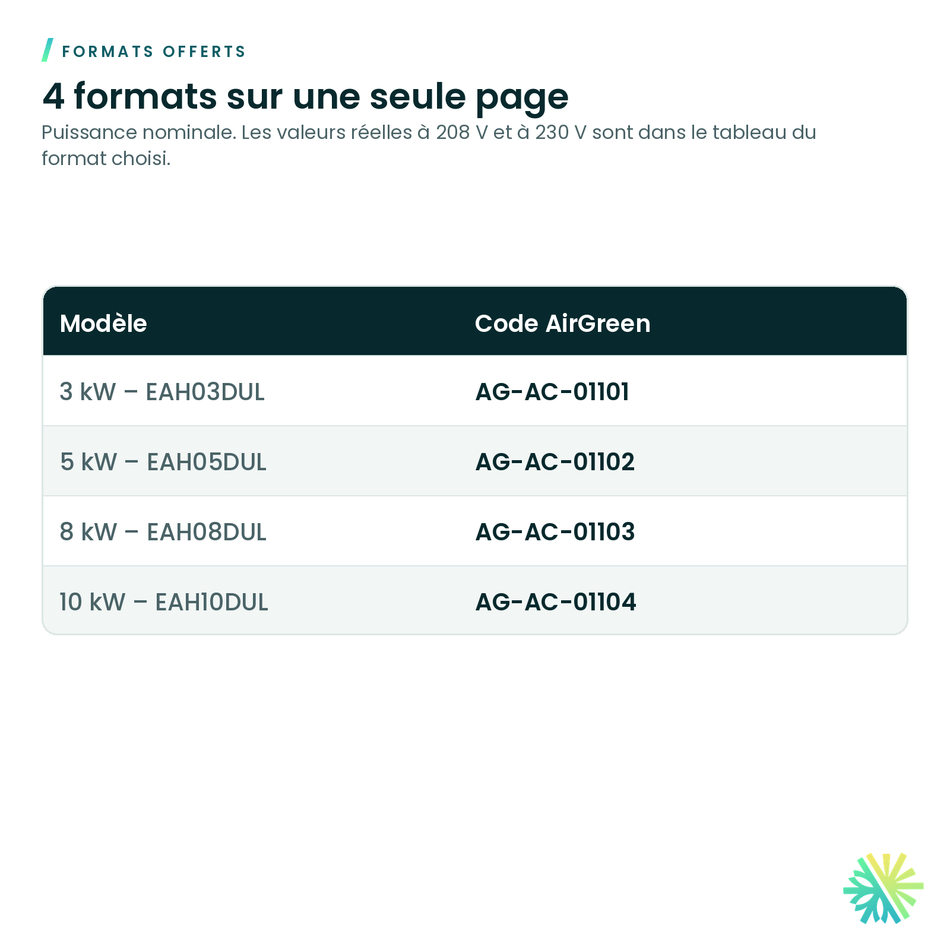

EAH03 to 10DULGPHLA slim fan coil3 · 5 · 8 · 10 kWNo 3 kW on the GPHLA24.
Jumper barPer the AirGreen listing: FEA R-410A air handlers—No ELIOS document read describes it: we confirm with the model number.

Did you know

Eight details that avoid a wrong order.

Tap a card to flip it.

Questions

Questions about ELIOS parts.

Where do I find the model number?

On the indoor unit’s rating label. Send us a photo if in doubt: we will find the right part.

Does my ducted unit or cassette need a Wi-Fi controller?

Not the R-454B ones: GDHRA ducted units and GKHRA, GQHRA24 and GOHRA cassettes already come with the KJRSAALW1 wired Wi-Fi controller.

Which thermostat for an ELIOS central heat pump?

ELIOS lists the KJRSAALN1, the KJRSAALW1 (Wi-Fi) and the ST1S42RW1 smart thermostat for EAHMA units; for coils, the KJRKAALW1 or the ST1S42RW1, with the coil interface.

Does the ST1S42RW1 thermostat work with a wall unit?

On an EMC or EBC, per the ELIOS brochures, with the MI3C1 mini interface and a 24 V supply. Some functions are not available through this thermostat.

Why are some parts “to confirm”?

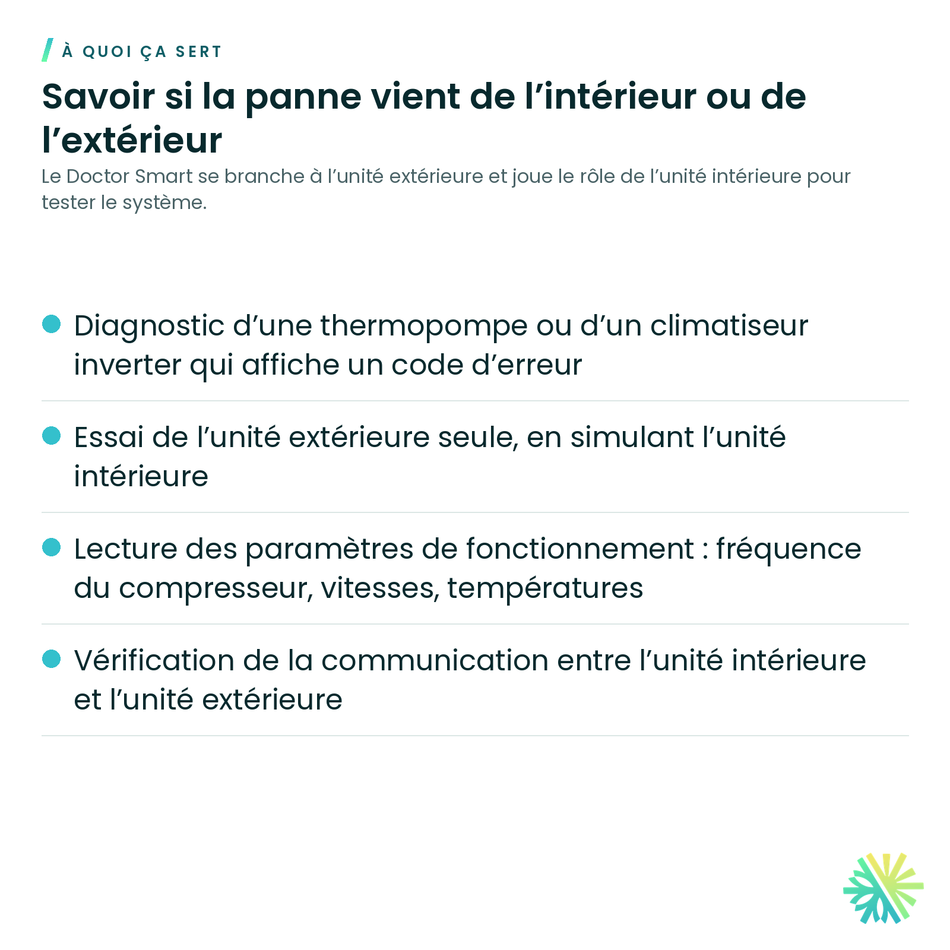

Because no ELIOS document read publishes their compatibility list (jumper bar, Doctor Smart tool, and the LI2C1 large interface outside multi-zone). We confirm with the full model number.

Can you install the part?

Yes. Controllers, interfaces and heater kits involve wiring: AirGreen installs them, RBQ licence 5645-9605-01, subclass 16 (electrical).
