Élios Large 4-Way Cassette Grille 24-48 – Q2448AGRL
The large original front panel required for Élios 4-way cassettes from 24,000 to 48,000 BTU.
AirGreen codeAG-AC-055
514 316-2973 · sales@airgreen.ca
Quick facts
The Élios Q2448AGRL grille is the large front panel for Élios 4-way cassettes from 24,000 to 48,000 BTU: the GQHRA24 in the EEC series and the GQHLA36 and GQHLA48 in the EUR series. It closes the ceiling opening, draws air in at the centre and distributes it through four louvres. The manufacturer's submittal sheets identify it as the required grille.
The panel for large cassettes, for large rooms
Cassettes of this size serve stores, offices, open-plan rooms and finished basements, where a wall-mounted unit would be too visible or too weak. The panel carries the louvre motor and connects to the unit's control box: it is part of commissioning.

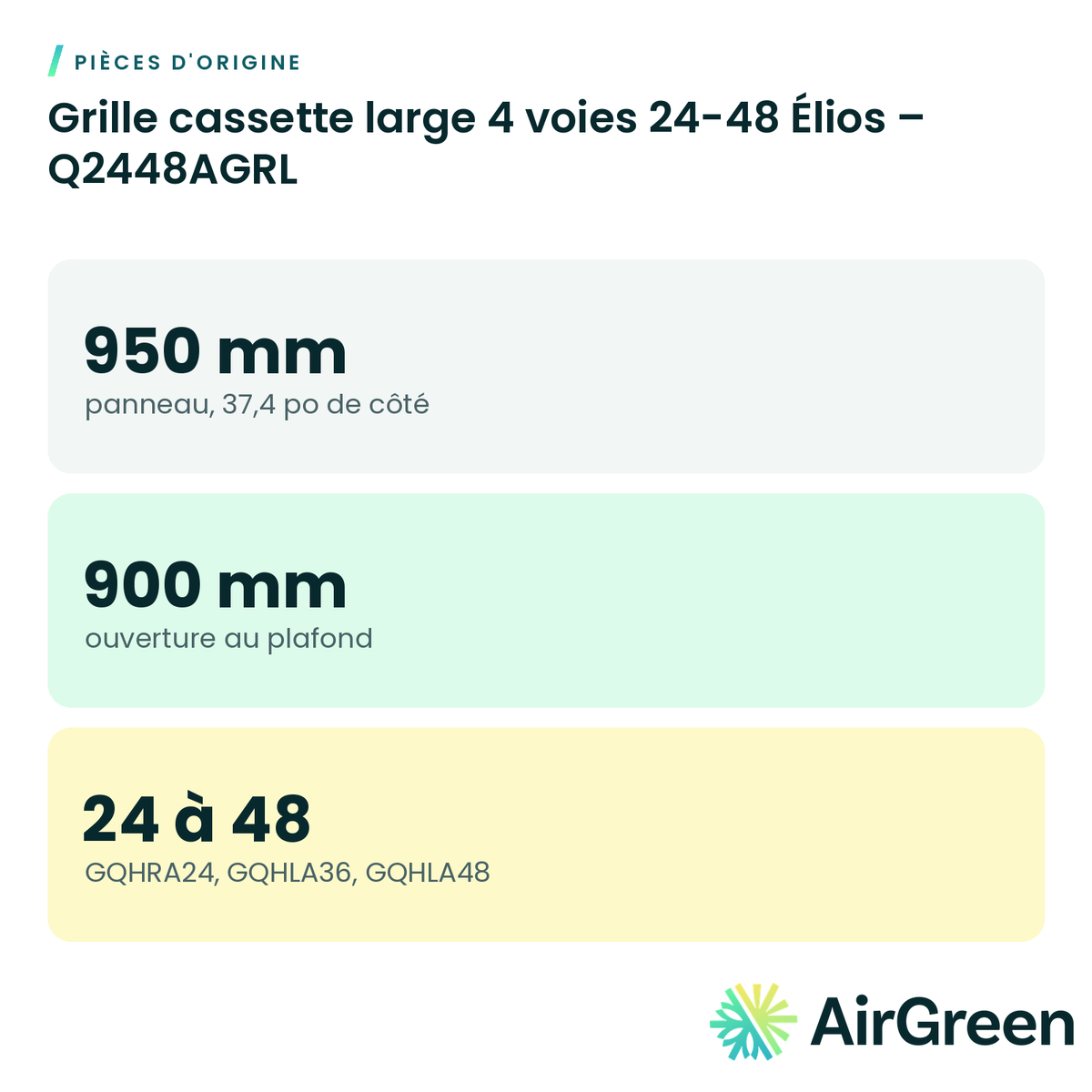

Dimensions from the installation guide
- Panel: 950 mm (37.4 in) square.
- Ceiling opening: 900 mm (35.4 in).
- Cassette body: 830 mm (32.7 in).
Before cutting into the ceiling
First check that the structure can carry the cassette, based on the weight shown on its submittal sheet, and that the hanger rods land in the right place. The panel attaches to the unit with four M5 screws and its height is adjusted through the corner openings, without touching the wiring or the drain. Compact cassettes from 9,000 to 18,000 BTU take the K0918AGRL grille instead.
Installed by AirGreen in Greater Montréal
We install Élios cassettes, their grille and their controls in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the cassette model and the quantity.

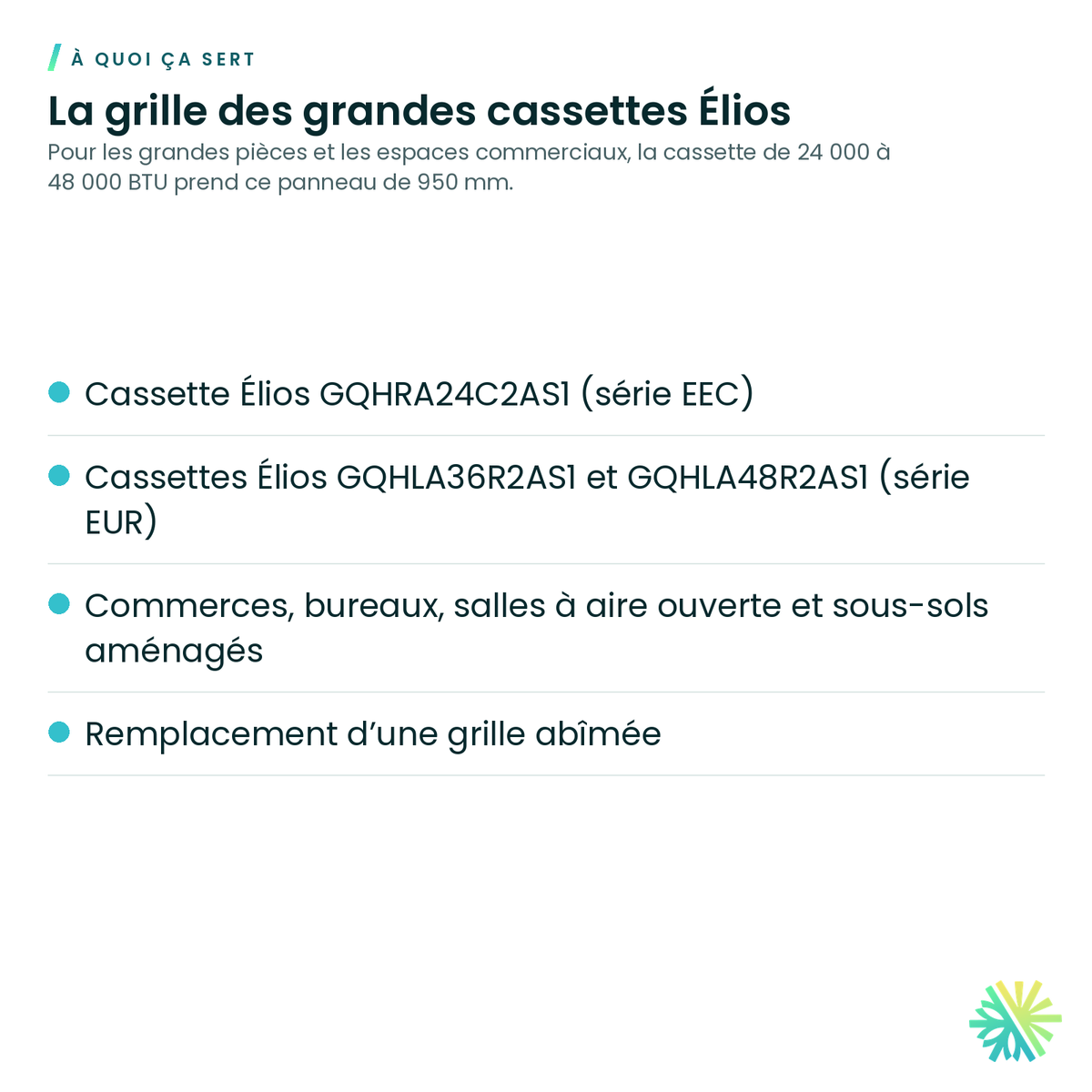

The grille for large Élios cassettes
For large rooms and commercial spaces, the 24,000 to 48,000 BTU cassette takes this 950 mm panel.
- Élios GQHRA24C2AS1 cassette (EEC series)
- Élios GQHLA36R2AS1 and GQHLA48R2AS1 cassettes (EUR series)
- Shops, offices, open-plan rooms and finished basements
- Replacing a damaged grille

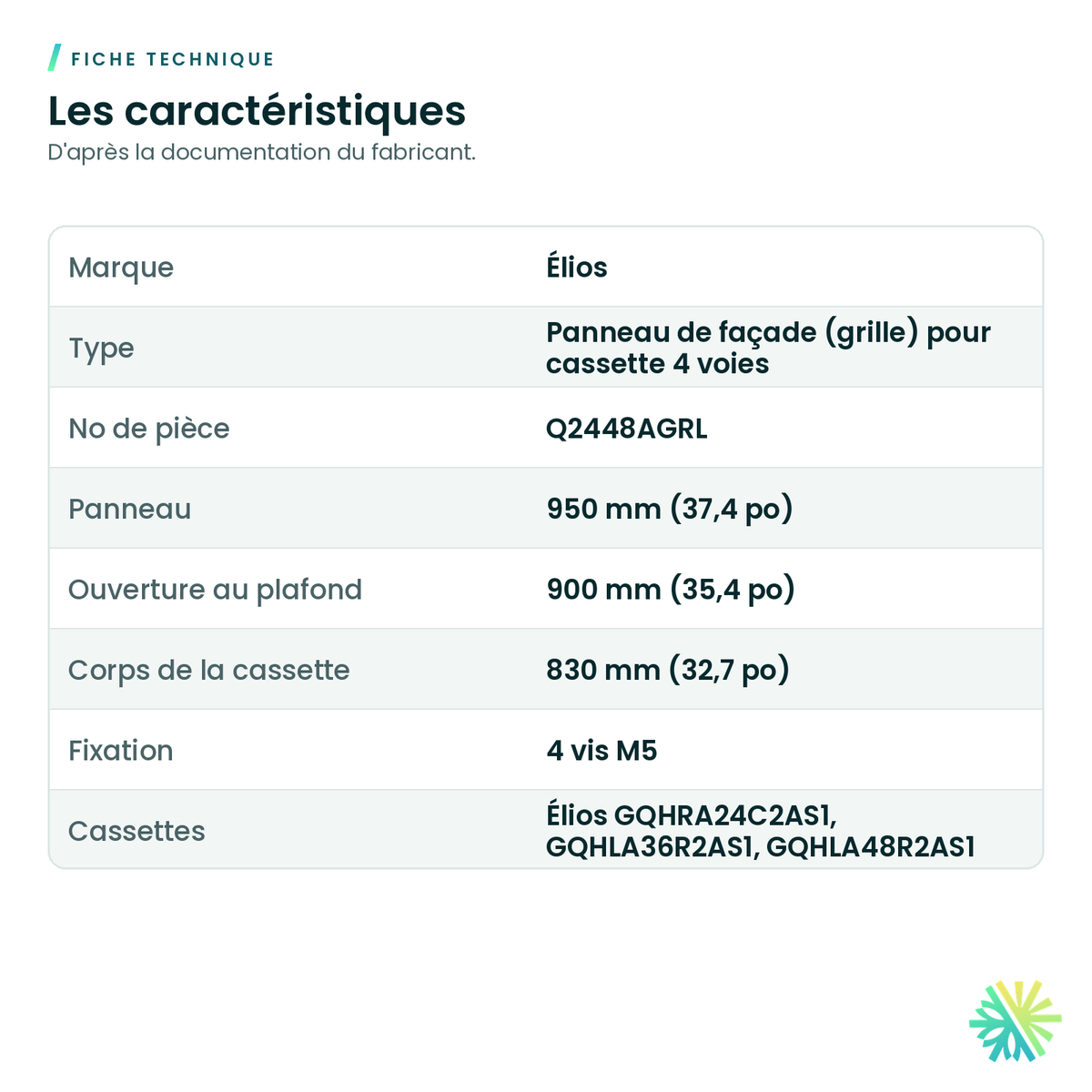

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

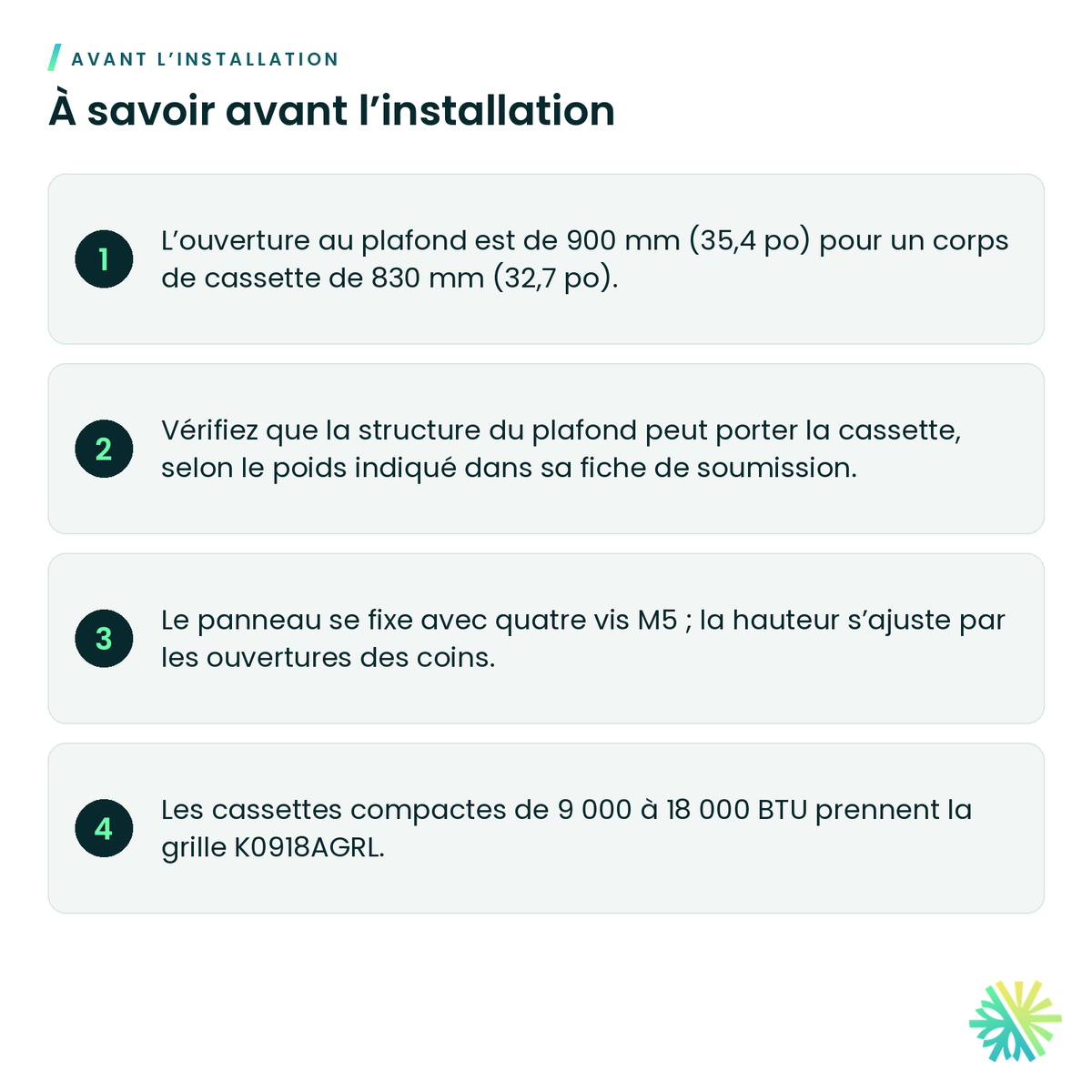

What to know before installing
- The ceiling opening is 900 mm (35.4 in) for an 830 mm (32.7 in) cassette body.
- Check that the ceiling structure can carry the cassette, per the weight on its submittal.
- The panel fastens with four M5 screws; height adjusts through the corner openings.
- Compact 9,000 to 18,000 BTU cassettes take the K0918AGRL grille.
Manufacturer documents
You may also need
Élios GKHRA 9-18 Compact Cassette Grille – K0918AGRL
Élios Programmable Wi-Fi Wired Controller – KJRSAALW1
Élios Simple Wired Controller – KJRLAACN1
Élios Wi-Fi Dongle – WF0C1
Élios 24 V Mini Interface – MI3C1
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)Original partsSee all
Frequently asked questions
Which cassettes use this grille?
Per the Élios submittals: the GQHRA24 in the EEC series and the GQHLA36 and GQHLA48 in the EUR series. All list it as a required grille.
Can I fit it on an 18,000 BTU cassette?
No. Compact 9,000 to 18,000 BTU GKHRA cassettes take the smaller K0918AGRL grille.
What ceiling opening is needed?
Per the Élios installation guide, 900 mm (35.4 in), with a 950 mm panel covering the edge.
Can you install it?
Yes. We install the cassette, the grille and the controls, then check the louvers, everywhere in Greater Montréal.
The original grille for your large Élios cassette
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
