Élios GKHRA 9-18 Compact Cassette Grille – K0918AGRL
The original front panel required to run an Élios GKHRA compact cassette, 9,000 to 18,000 BTU.
AirGreen codeAG-AC-054
514 316-2973 · sales@airgreen.ca
Quick facts
The Élios K0918AGRL grille is the front panel of the 9,000, 12,000 and 18,000 BTU GKHRA compact 4-way cassettes. It is the only part of the unit you see on the ceiling: it draws room air in at the centre and blows it out through four louvers. Élios designates it as the required grille in the submittal sheets for the GKHRA09, GKHRA12 and GKHRA18; it is ordered with the cassette.
A grille that is part of how the unit works
The panel is not just a cover. It carries the louver motor and plugs into the connectors in the indoor unit’s control box. Without it, the cassette cannot be commissioned properly.

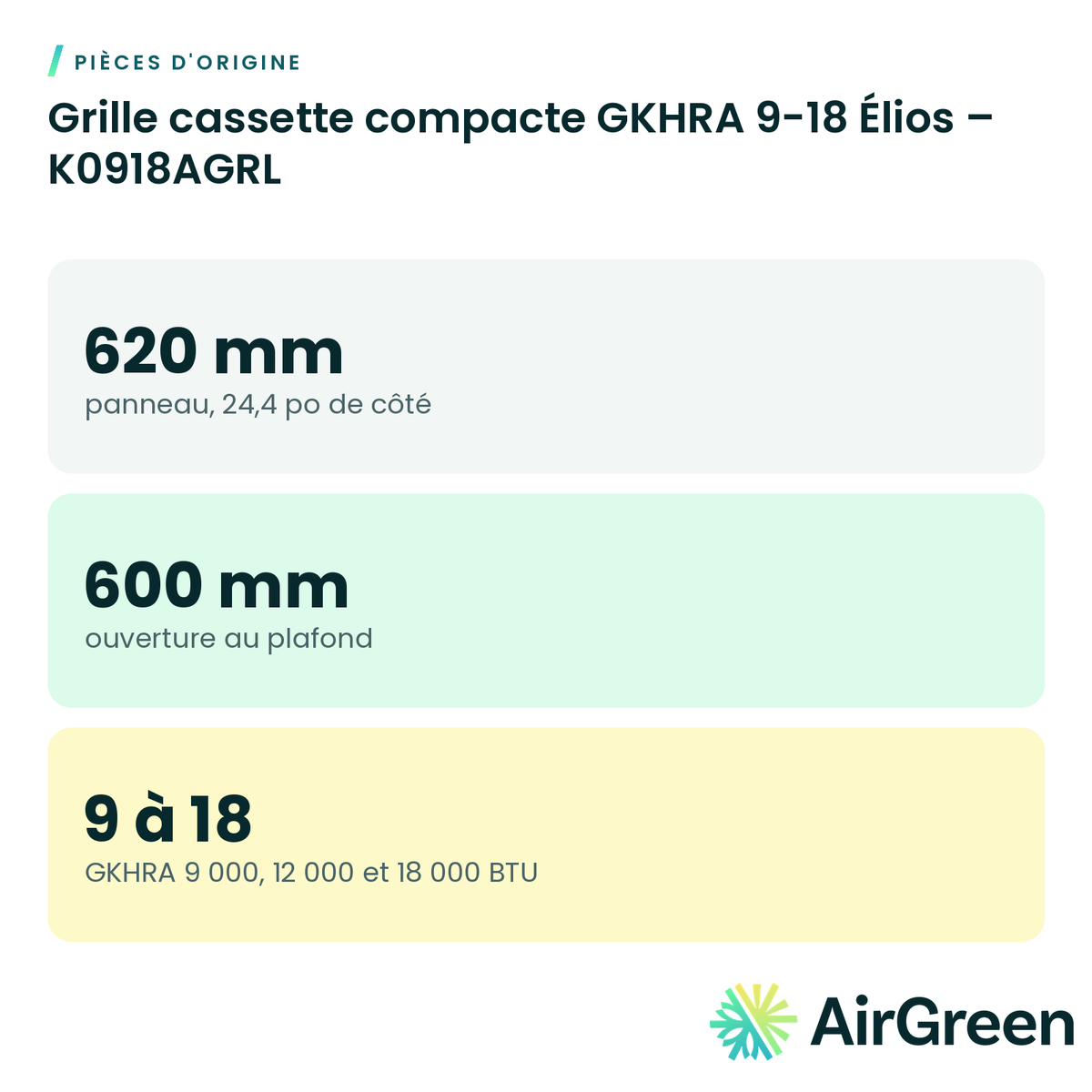

Dimensions from the installation guide
- Panel: 620 mm (24.4 in) per side.
- Ceiling opening: 600 mm (23.6 in).
- Cassette body: 570 mm (22.4 in).
Installing the panel
First remove the return grille, fasten the panel to the unit with four M5 screws, then reconnect the louver motor and the control box connectors. Height is adjusted through the openings at the four corners, without touching the wiring or the drain. For a cassette of 24,000 BTU and up, you need the large Q2448AGRL grille instead.
Installed by AirGreen across Greater Montréal
We install Élios cassettes and their grilles in Montréal, Laval, Longueuil, the South Shore and the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the cassette model and the quantity.

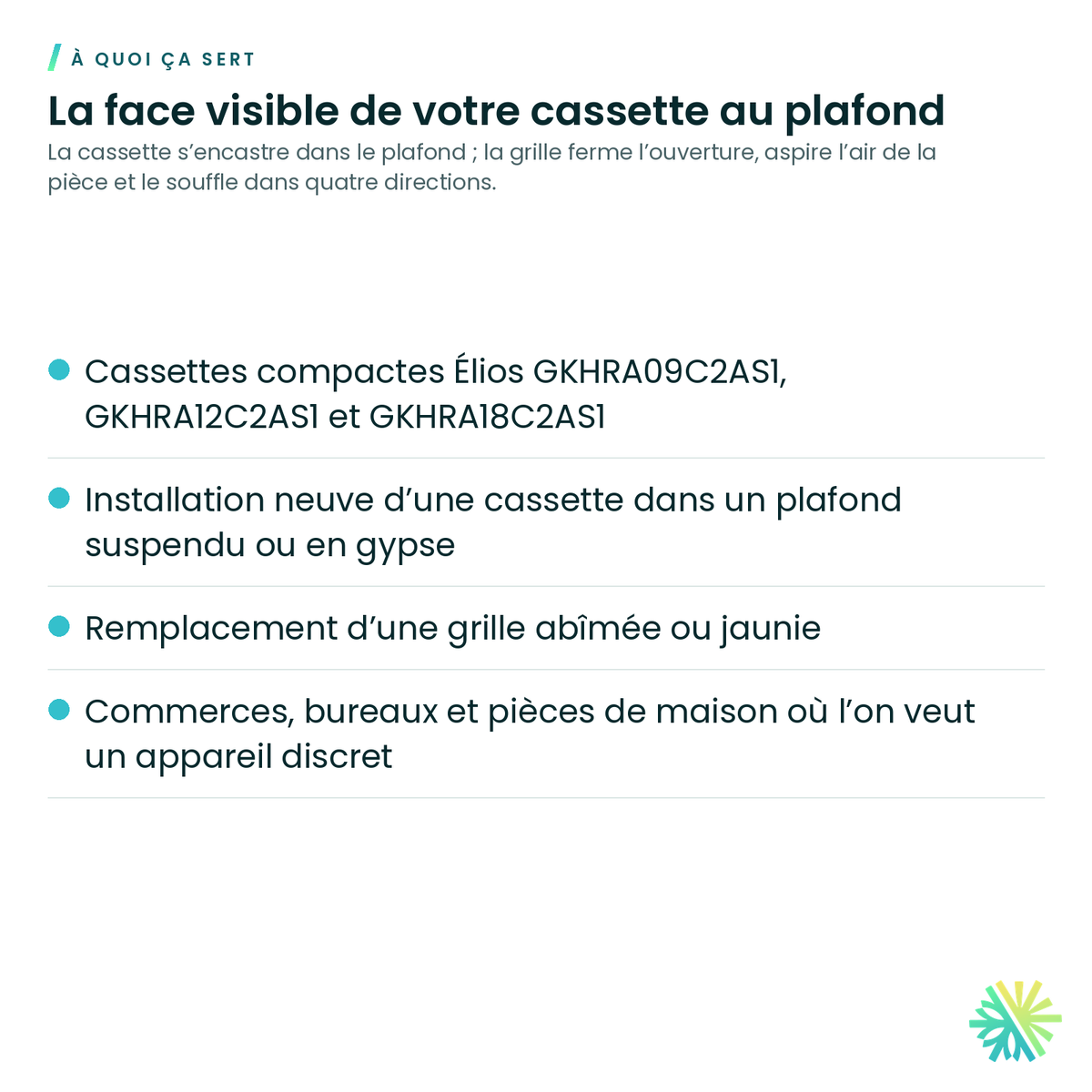

The visible face of your ceiling cassette
The cassette sits recessed in the ceiling; the grille closes the opening, draws room air in and blows it four ways.
- Élios GKHRA09C2AS1, GKHRA12C2AS1 and GKHRA18C2AS1 compact cassettes
- New cassette install in a suspended or drywall ceiling
- Replacing a damaged or yellowed grille
- Shops, offices and rooms where a discreet unit is wanted

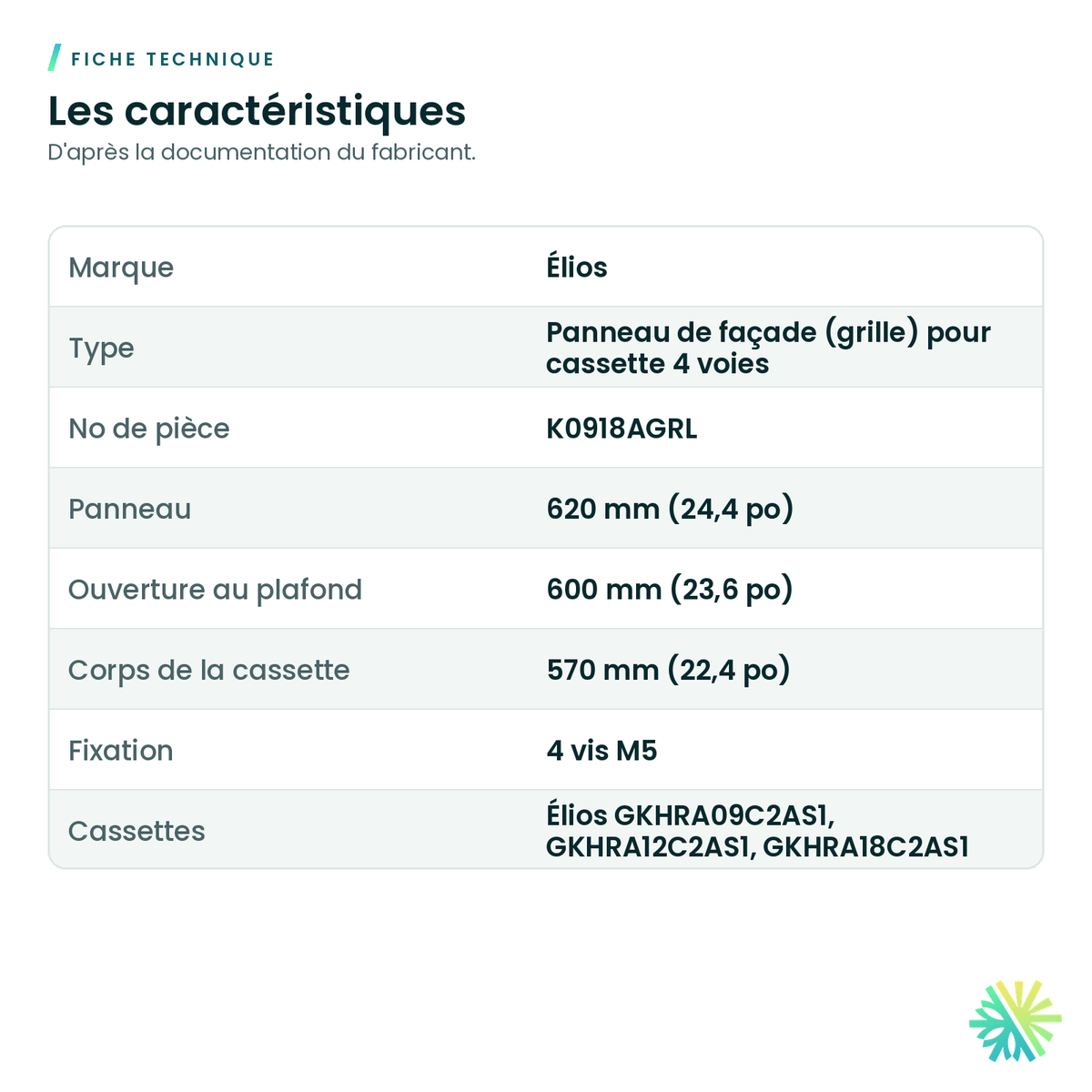

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

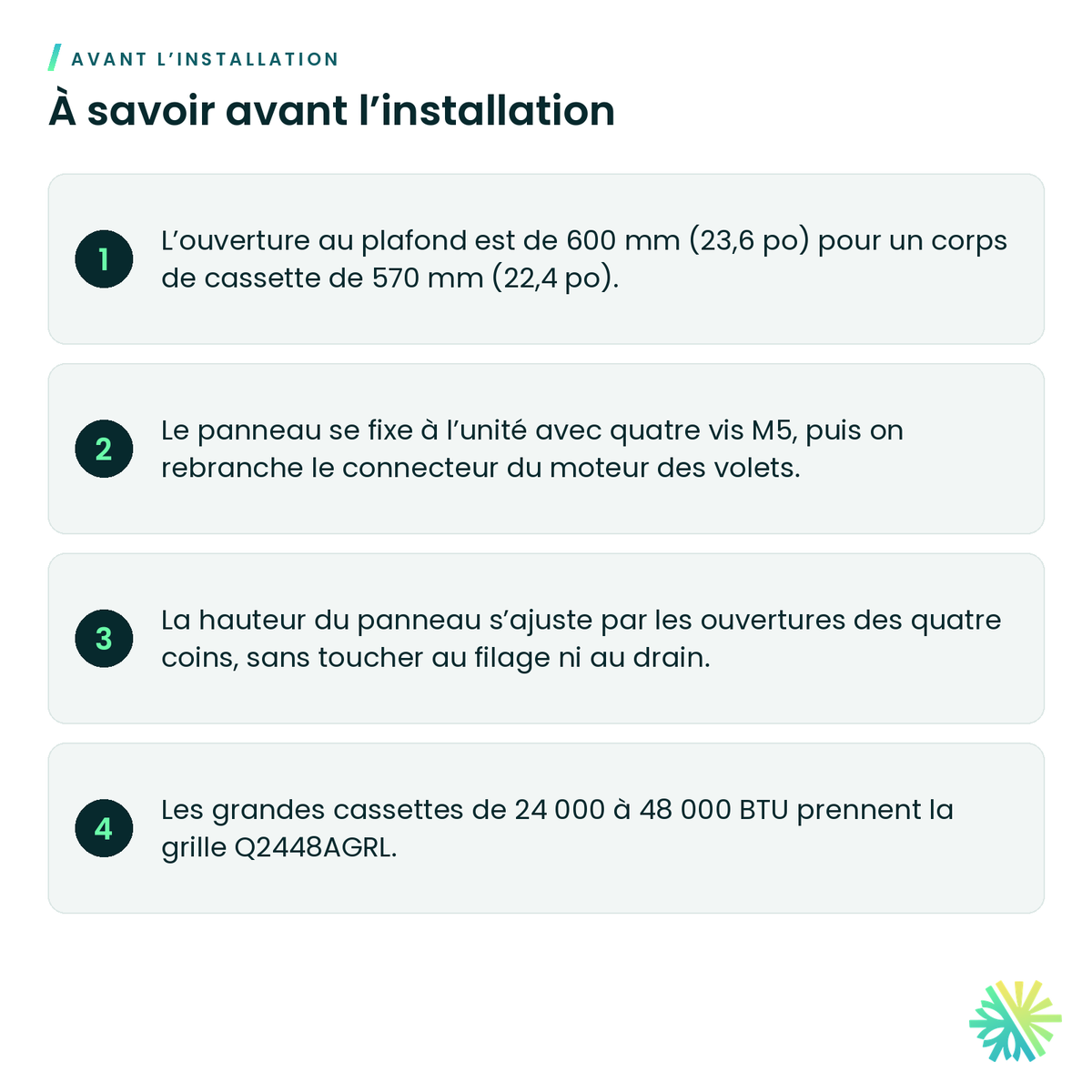

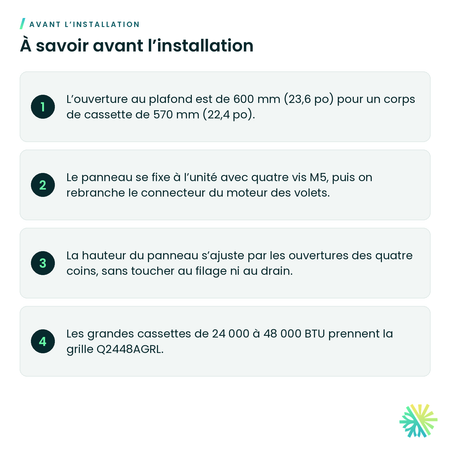

What to know before installing
- The ceiling opening is 600 mm (23.6 in) for a 570 mm (22.4 in) cassette body.
- The panel fastens to the unit with four M5 screws, then the louver motor connector is plugged back in.
- Panel height adjusts through the four corner openings, without touching the wiring or the drain.
- Large 24,000 to 48,000 BTU cassettes take the Q2448AGRL grille.
Manufacturer documents
You may also need
Élios Large 4-Way Cassette Grille 24-48 – Q2448AGRL
Élios Simple Wired Controller – KJRLAACN1
Élios Programmable Wi-Fi Wired Controller – KJRSAALW1
Élios Wi-Fi Dongle – WF0C1
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Does my Élios cassette run without the grille?
No. The Élios submittals list it as a required grille: it carries the louver motor and plugs into the unit’s control box.
Which grille for a 24,000 BTU cassette?
The large Q2448AGRL grille, used on the GQHRA24, GQHLA36 and GQHLA48. The K0918AGRL is only for 9,000 to 18,000 BTU GKHRA units.
What ceiling opening is needed?
Per the Élios installation guide, 600 mm (23.6 in) for compact cassettes, with a 620 mm panel covering the edge.
Can you install it?
Yes. We install the cassette and its grille, plug in the connectors and check the louvers, everywhere in Greater Montréal.
The original grille for your Élios compact cassette
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
