Élios Programmable Wired Wi-Fi Controller (Coils Only) – KJRKAALW1
The version of Élios’ programmable Wi-Fi controller reserved for Central-Elios cased and uncased coils.
AirGreen codeAG-AC-059
514 316-2973 · sales@airgreen.ca
Quick facts
The Élios KJRKAALW1 programmable wired Wi-Fi controller is the “coils only” version of Élios’s Wi-Fi controller. The manufacturer reserves it for Central-Elios coils GCHM, cased, and GUHM, uncased: the ones installed on a furnace or in an existing duct system to add a central heat pump.
Controlling a heat pump paired with a furnace
In a dual-energy installation, the heat pump does most of the heating through the winter and the furnace takes over in extreme cold. The KJRKAALW1 manual provides furnace and dual-energy modes on compatible units. It is listed on the submittal sheets for GCHMA coils, which also specify that a coil interface is required.
Functions
- Schedule of 4 settings per day, or a detailed schedule of up to 8 periods per day with mode, setpoint and fan.
- Remote control over 2.4 GHz Wi-Fi, WPA-PSK/WPA2-PSK network.
- Follow Me, child lock and group control.
Connection
Powered at 12 V DC, it connects to the HA and HB terminals, non-polarized, with 18 AWG shielded cable. It operates from 0 to 43 °C. For an air handler or a ductless unit, choose the KJRSAALW1 instead.
Installed by AirGreen across Greater Montréal
We install Central-Elios coils, their interface and this controller in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with your coil model and the quantity.
The controller for heat pumps added to a furnace
When the Élios heat pump is paired with a coil on a furnace, this is the controller the maker specifies.
- Central-Elios GCHMA24 to GCHMA60 cased coils
- Central-Elios GUHM uncased coils
- Central heat pump added to an existing furnace (dual fuel)
- Remote control of a house or cottage by app

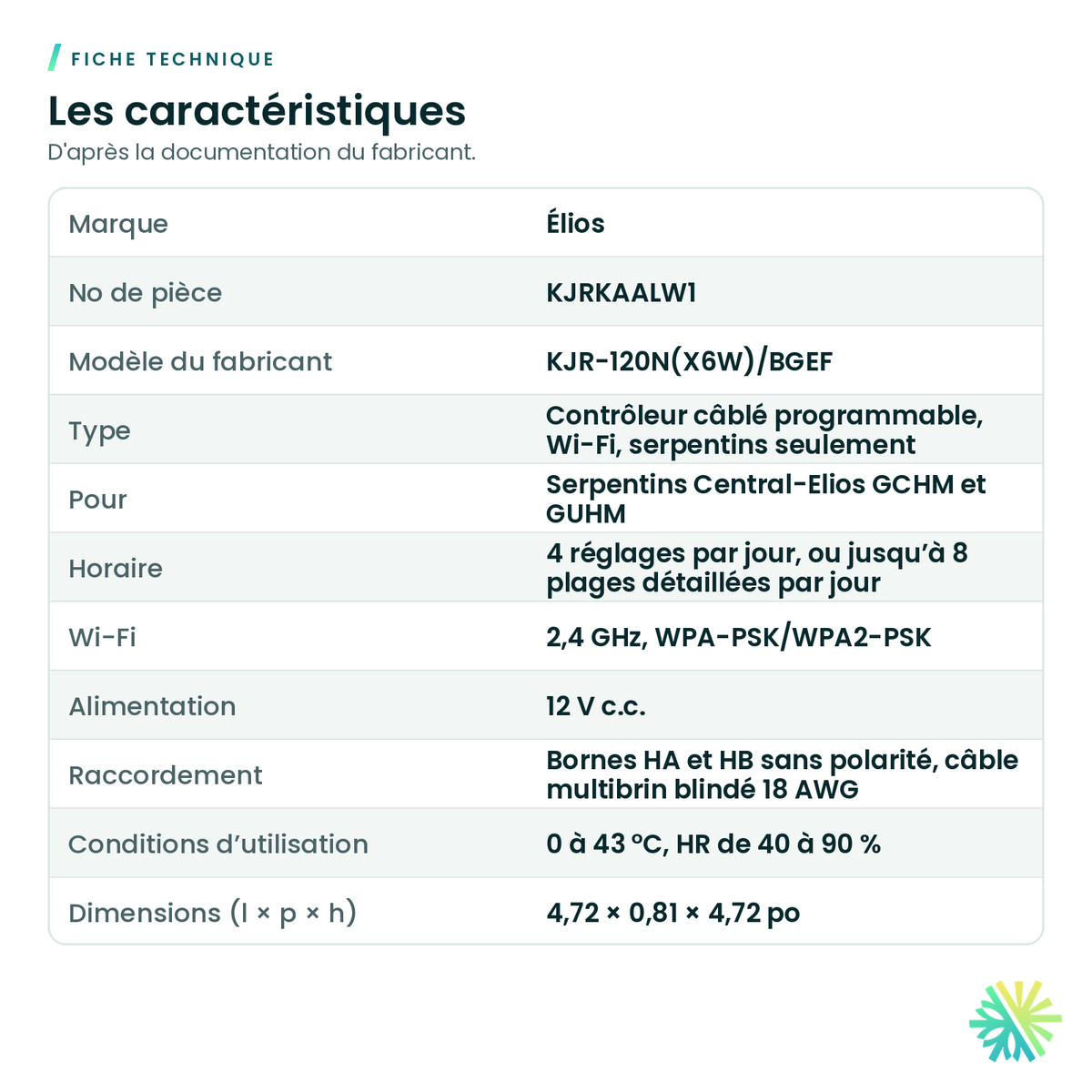

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- This model does not replace the KJRSAALW1 used on air handlers and ductless units: it is coil-specific.
- The GCHMA coil submittal states that a coil interface is required.
- You need a 2.4 GHz Wi-Fi network within reach of the controller.
- It connects to the HA and HB terminals, no polarity, with shielded cable.
- Wired controller
- Manual
- CR2032 battery
- Plastic mounting bar
- 3 M3.9 × 25 screws and 3 wall plugs
- 2 M4 × 25 screws
- Connection wire group
Manufacturer documents
You may also need
Élios Large 24 V Interface – LI2C1
Élios COMM 24 V Smart Thermostat – ST1S42RW1
Élios Programmable Wi-Fi Wired Controller – KJRSAALW1
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-Zone
Hitachi PSC-6RAD H-Link Adapter for airHome Indoor UnitOriginal partsSee all
Frequently asked questions
Why a “coils only” model?
Élios has a version of its programmable Wi-Fi controller specific to Central-Elios GCHM and GUHM coils, used on a furnace or in existing ductwork. Air handlers and ductless units take the KJRSAALW1.
Which app do I use?
The Élios manual names the mobile app to use, on iOS 9.0 and up and Android 6.0 and up; we set it up with you at start-up.
Does it handle dual fuel?
The manual provides furnace and dual-fuel modes on compatible units. We set the switchover point with you at start-up.
Can you install it?
Yes. We install the controller with the coil and the interface, join it to your Wi-Fi and commission the system, everywhere in Greater Montréal.
The controller for your Central-Elios coil
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
