Élios Large 24 V Interface – LI2C1

In stock

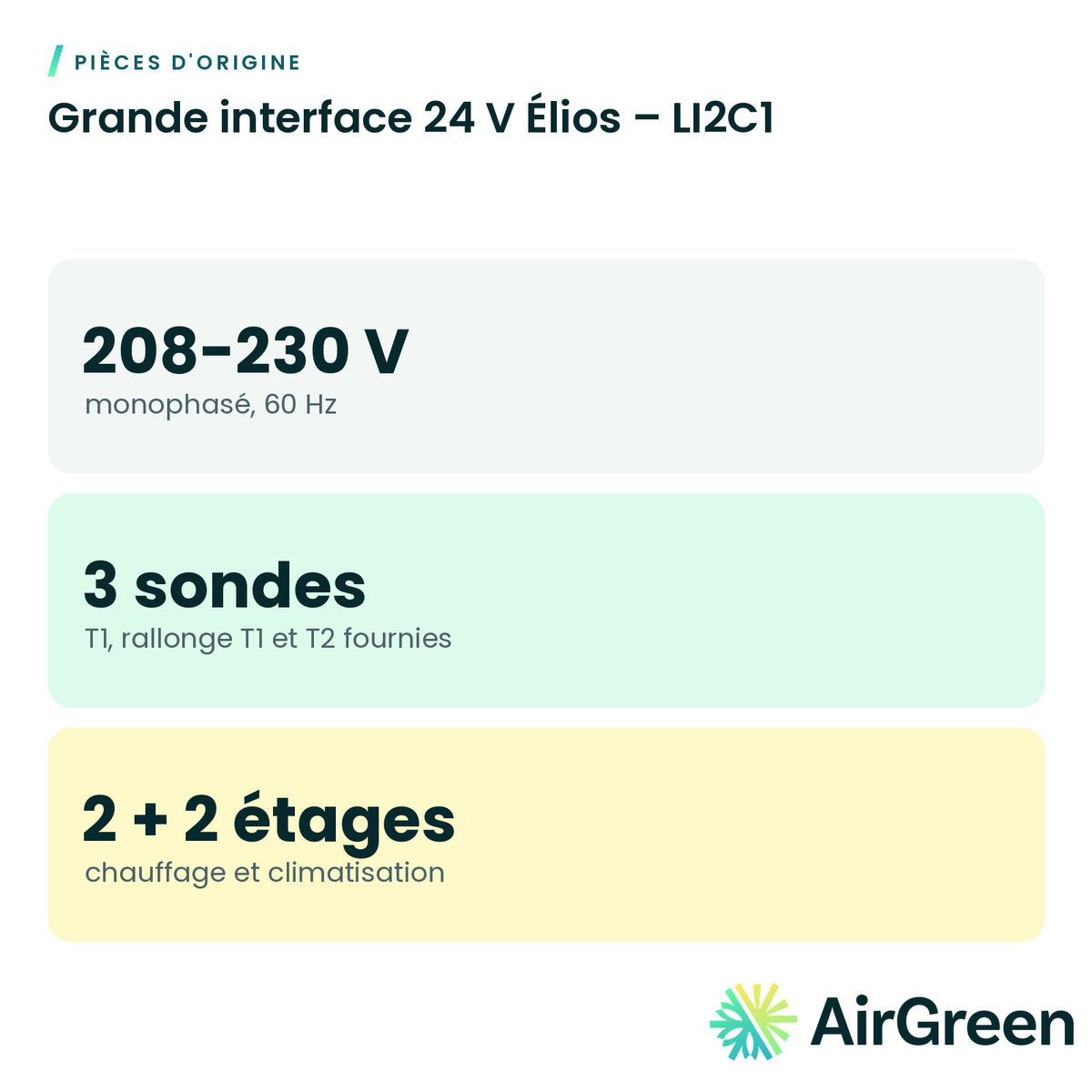

The original interface box that pairs a coil, furnace or air handler on a 24 V thermostat with an Élios outdoor unit.

AirGreen codeAG-AC-062

208-230 Vsingle phase, 60 Hz
3 sensorsT1, T1 extension and T2 supplied
2 + 2 stagesheating and cooling
24 V thermostatGenuine part
Ask for a quote

514 316-2973 · sales@airgreen.ca

Quick facts

AirGreen codeAG-AC-062
BrandÉlios
Part no.LI2C1
TypeLarge interface for 24 V thermostat
ForCoils, furnaces and air handlers paired with an Élios outdoor unit
Power208-230 V, 1 ph, 60 Hz

The Élios LI2C1 large 24 V interface is a wall-mounted box that lets you pair an inverter Élios outdoor unit with indoor equipment controlled by a 24 V thermostat: a coil installed on a furnace, an air handler or a unit from another brand. It is powered at 208-230 V single-phase.

Adding an Élios heat pump without changing everything indoors

When you replace a central air conditioner or add a heat pump to a home heated by a furnace, the indoor equipment does not have Élios’s original controls. The LI2C1 receives the thermostat signals, reads the room and coil temperatures, and communicates with the outdoor unit over a current loop or RS485. Élios presents it for its multi-zone outdoor units and some single-zone units.

What it handles

  • 2 cooling stages and 2 heating stages.
  • Dehumidification, electric auxiliary heat and emergency heat.
  • Sensors supplied: T1 for the room (0.8 m, with a 5 m extension) and T2 for the coil (1.6 m).

Installation

The box measures 16.07 × 2.95 × 10.24 in. It mounts on the wall, vertically, in a dry location, at least 150 mm above the floor, with 180 mm of clearance around it. The T1 sensor cable must not exceed 7 m. Depending on the thermostat, some functions are not available; Élios recommends the MI3C1 mini interface when it is suitable.

Installed by AirGreen in Greater Montréal

We install the interface, the sensors and the Élios outdoor unit in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with your indoor equipment, the outdoor unit and the quantity.

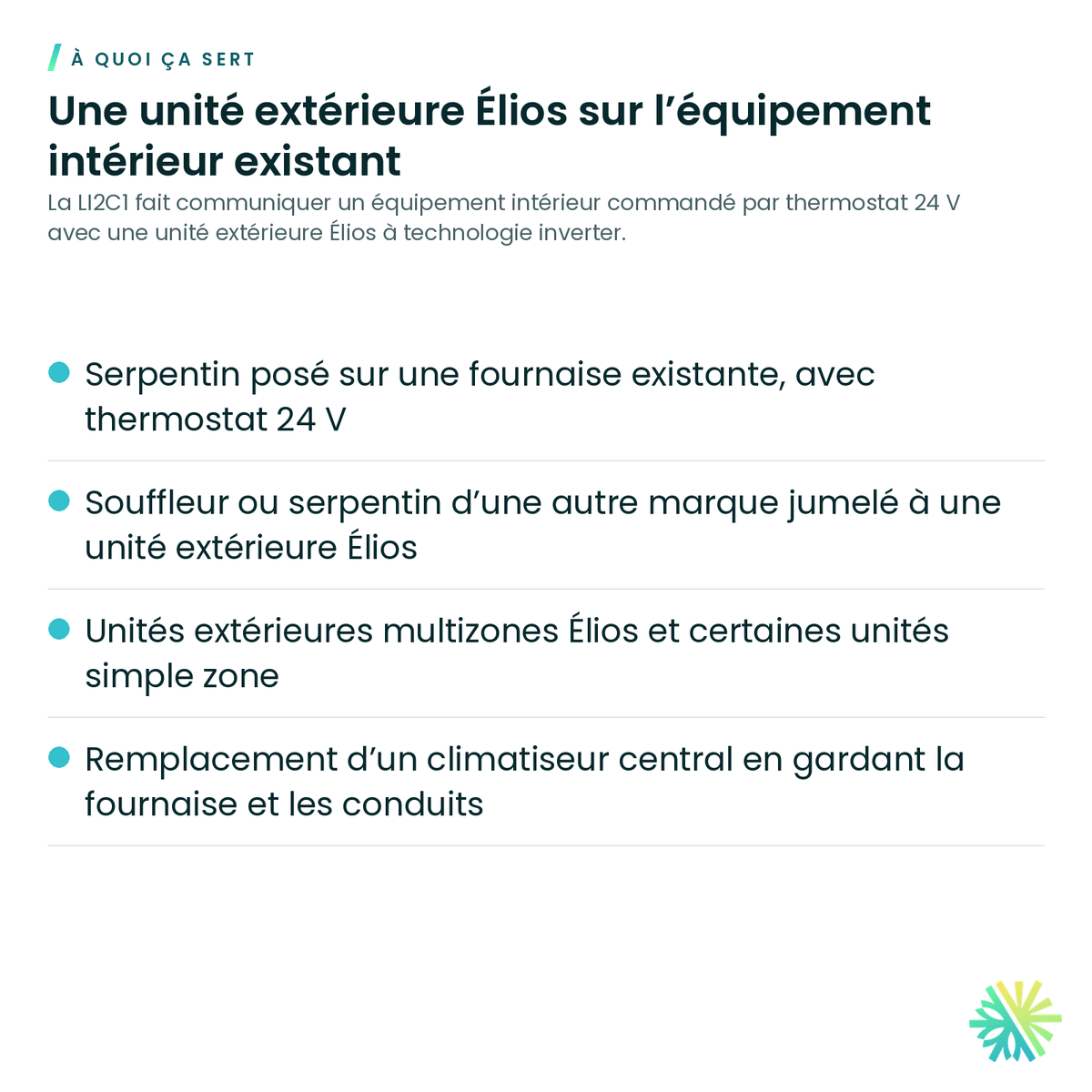

01 · What it is for

An Élios outdoor unit on existing indoor equipment

The LI2C1 lets indoor equipment run by a 24 V thermostat talk to an Élios inverter outdoor unit.

  • Coil on an existing furnace, with a 24 V thermostat
  • Another brand’s air handler or coil paired with an Élios outdoor unit
  • Élios multi-zone outdoor units and select single-zone units
  • Replacing a central air conditioner while keeping the furnace and ductwork
Talks to the outdoor unitIt links the indoor equipment to the outdoor unit by current loop or RS485, depending on the unit.
Full 24 V thermostat2 stages of cooling and heating, dehumidification, electric backup and emergency heat.
Sensors includedT1 room sensor (0.8 m), T1 extension (5 m) and T2 coil sensor (1.6 m).
02 · Specifications

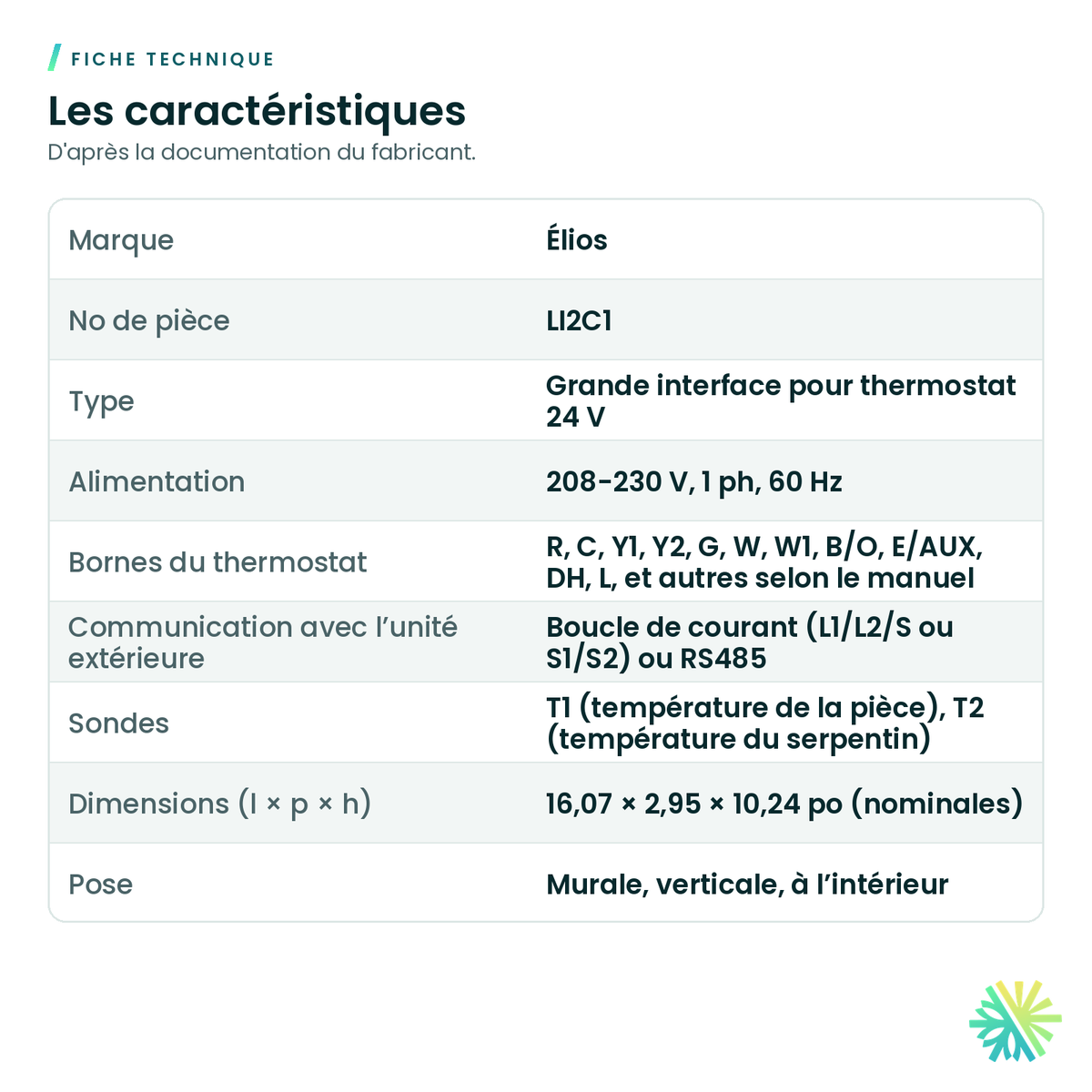

Specifications

From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

BrandÉlios
Part no.LI2C1
TypeLarge interface for 24 V thermostat
Power208-230 V, 1 ph, 60 Hz
Thermostat terminalsR, C, Y1, Y2, G, W, W1, B/O, E/AUX, DH, L, and others per the manual
Outdoor unit communicationCurrent loop (L1/L2/S or S1/S2) or RS485
SensorsT1 (room temperature), T2 (coil temperature)
Dimensions (W × D × H)16.07 × 2.95 × 10.24 in (nominal)
MountingWall, upright, indoors
AirGreen codeAG-AC-062
03 · Before installing

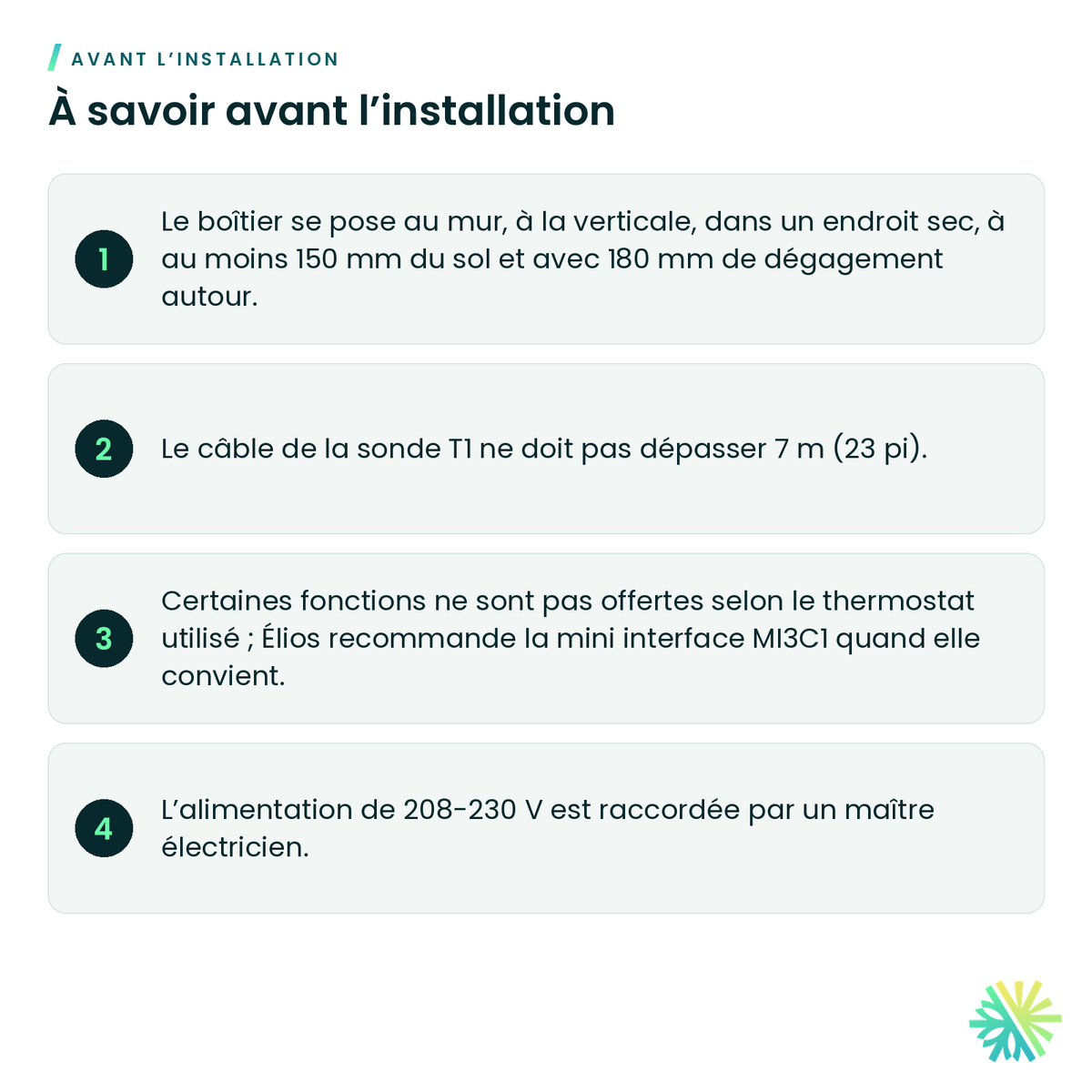

What to know before installing

  • The box mounts on the wall, upright, in a dry spot, at least 150 mm off the floor with 180 mm clearance around it.
  • The T1 sensor cable must not exceed 7 m (23 ft).
  • Some functions are unavailable depending on the thermostat; Élios recommends the MI3C1 mini interface when it fits.
  • The 208-230 V supply is connected by a licensed electrician.
In the package
  • Large interface
  • T1 sensor (0.8 m)
  • T1 sensor extension (5 m)
  • T2 sensor (1.6 m)
04 · Documents

Manufacturer documents

PDFSpec sheetÉliosPDFInstallation manualÉlios
05 · Goes with

You may also need

Mini interface 24 V Élios – MI3C1Élios 24 V Mini Interface – MI3C1Thermostat intelligent COMM 24 V Élios – ST1S42RW1Élios COMM 24 V Smart Thermostat – ST1S42RW1Contrôleur câblé programmable Wi-Fi (serpentins seulement) Élios – KJRKAALW1Élios Programmable Wired Wi-Fi Controller (Coils Only) – KJRKAALW1Câble de communication 14/4 pour thermopompe14/4 Communication Cable for Heat PumpsAccessoire du système de détection de fuites Fujitsu – UTYSGZUFujitsu Leak Detection System Accessory – UTYSGZUAdaptateur 5 fils pour thermostat 24 V Hitachi – C3STAT01Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01Adaptateur 5 fils pour thermostat Hitachi C1STAT01 (airHome)Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)Adaptateur de port Hitachi pour multizone airHome RAM-GHitachi Port Adapter for airHome RAM-G Multi-Zone
Same category
Original partsSee all
06 · Questions

Frequently asked questions

What does the large interface do?

It runs an Élios outdoor unit with indoor equipment controlled by a 24 V thermostat: a coil on a furnace, an air handler or another brand’s unit. It handles communication with the outdoor unit and reads the room and coil sensors.

Which outdoor units?

Élios presents it for its multi-zone outdoor units and select single-zone units. Send us your outdoor and indoor model numbers and we confirm before ordering.

MI3C1 or LI2C1?

The MI3C1 connects a 24 V thermostat to an Élios indoor unit. The LI2C1 is for indoor equipment that is not an Élios unit with native controls. Élios recommends the MI3C1 when it fits.

Can you install it?

Yes. We mount the interface and sensors, wire the thermostat and the outdoor unit, and commission the system; the supply is connected by a licensed electrician. Everywhere in Greater Montréal.
