CONFORTO MHAH Electric Furnace | 2 Tons - 24000 BTU - R410A
Conforto’s 2-ton MHAH air handler: 758 CFM maximum in the same footprint as the 1.5-ton size.
Model numberMHAH124DACFC
514 316-2973 · sales@airgreen.ca
Quick facts
Conforto’s 2-ton air handler, for the bungalow with ductwork
What the MHAH124DACFC does
In a central system, the outdoor unit produces the heat or cooling, and the air handler distributes it. The MHAH124DACFC is that air handler in the 2-ton (24,000 BTU/h) size of Conforto’s MHAH series. It belongs to the range presented in Conforto’s brochure on ducted central heat pump systems, and it pushes up to 758 CFM through the ductwork.
The bungalow, natural territory of the 2-ton
In Laval, Longueuil and on the South Shore, the bungalow with a basement and original ducts is very common. Owners often want the same thing: cooling in summer, heat pump heating in winter, without redoing the whole system. The 2-ton size comes up regularly in our calculations for this type of house, and the MHAH124DACFC makes it possible while keeping the ducts, after checking their capacity.
A useful detail: Conforto publishes exactly the same dimensions for this model as for the 1.5-ton size, namely 21.02 in wide, 17.52 in deep and 45.00 in high. If the final load calculation hesitates between the two sizes, the space to reserve stays the same.
Published data
- Maximum airflow: 758 CFM.
- Sound levels: 39, 36 and 33 dB at maximum, medium and minimum speed.
- Power supply: 208/230 V single phase, 60 Hz.
- Connections: 3/8 in liquid, 3/4 in suction.
At 33 dB at minimum speed, the air handler stays quiet even near living areas, provided the grilles and ducts are properly sized.
Conditions and installation
Three points before ordering. The outdoor unit is not part of the purchase: we choose the matching Conforto model with you. The LogisVert grant does not apply to an air handler bought alone; it covers the certified outdoor unit + air handler pair, and we check eligibility when the quote covers the complete system. Finally, our data mentions no heater kit for this model: if electric backup heat interests you, we validate the option with Conforto.
A Montreal family business active for more than fifteen years, AirGreen holds RBQ licence 5645-9605-01 in ventilation, refrigeration and electrical work. We start with a free on-site estimate and a written quote. Then our technicians remove the old unit, install the air handler, connect it to the plenum, the refrigerant piping, the condensate drain and the electrical supply, pull a vacuum and commission the system. We work in Montreal, on the North Shore and throughout Greater Montreal.
Your bungalow, cooled and heated through its ducts
Book a free estimate: a technician examines your ducts and basement, then we send you a written quote for the complete system. Financing is available.

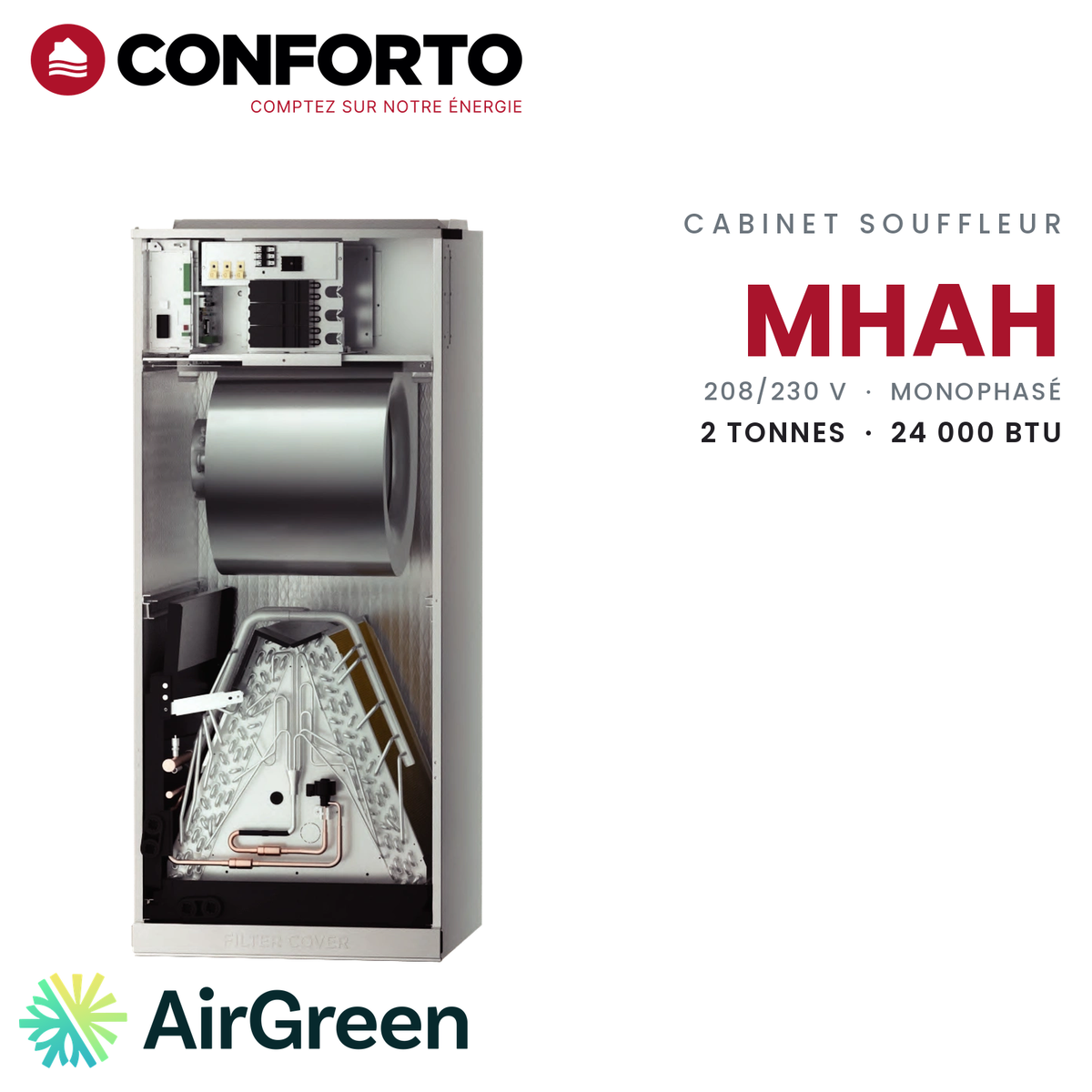

The indoor cabinet of a 2-ton Conforto central heat pump
The MHAH124DACFC moves air through the home’s ducts, up to 758 CFM, while the Conforto outdoor unit produces the heat or cooling. It belongs to the range presented in Conforto’s brochure on ducted central heat pump systems.
- Bungalows and single-storey houses with ductwork
- Moving to a central heat pump while keeping the existing ducts
- Replacing a 2-ton air handler in a closet or mechanical room
- Plex units with their own duct system

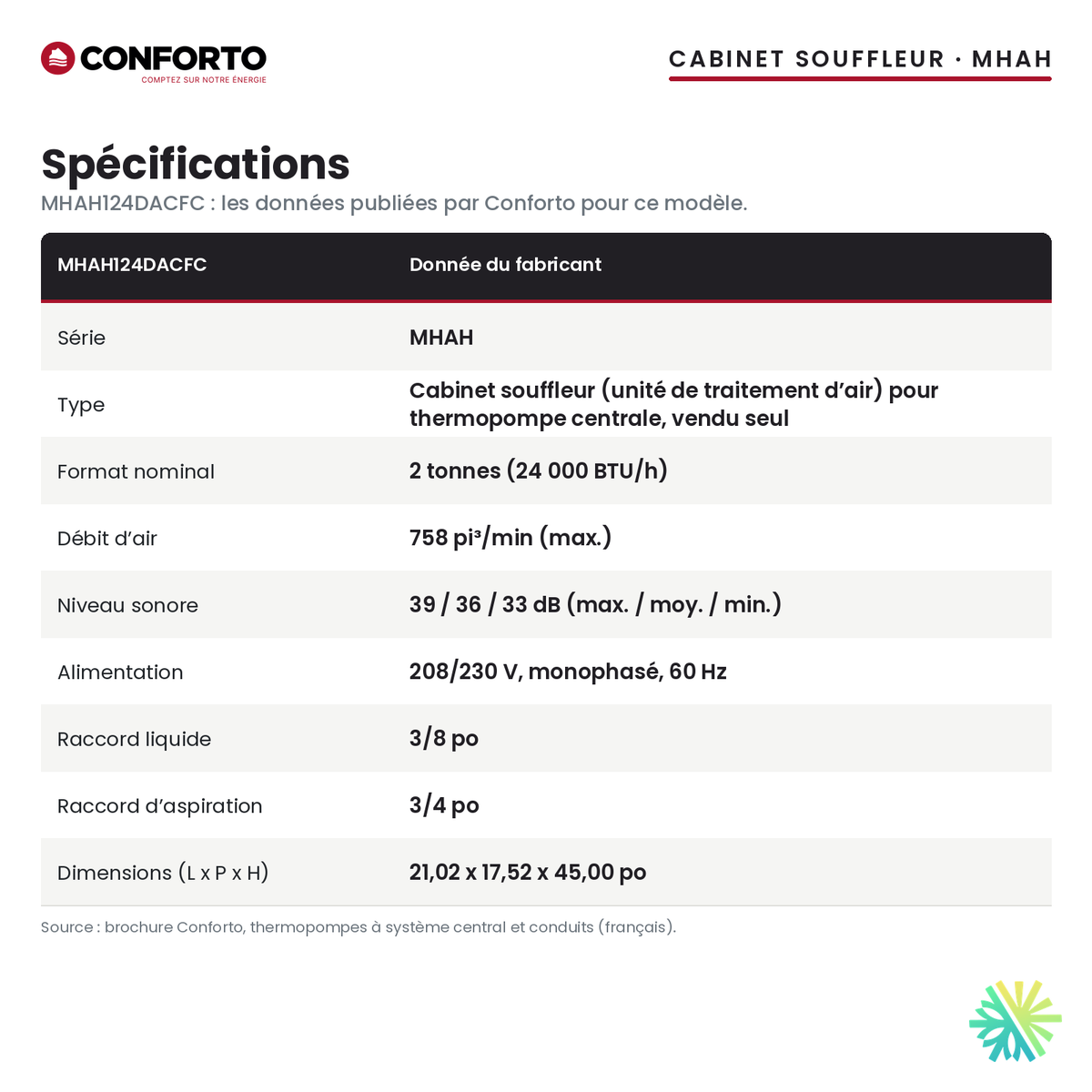

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Sold alone, the air handler does not qualify for the LogisVert grant: the grant follows the certified outdoor unit + air handler pair.
- Outdoor unit not included: we confirm the matched Conforto outdoor unit before ordering.
- No heater kit is listed for this model in the verified data; for electric backup heat, we confirm the compatible option before ordering.
- Footprint: 21.02 x 17.52 x 45.00 in (W x D x H), plus the plenum and the manufacturer’s service clearance.
- 208/230 V single-phase, 60 Hz power supply; 3/8 in (liquid) and 3/4 in (suction) lines.
Manufacturer documents
Explore the range
Electric furnaces – air handlersSee allSame brand
CONFORTOSee all
Frequently asked questions
Does the 2-ton take more room than the 1.5-ton?
No. Conforto publishes the same dimensions for both sizes: 21.02 in wide, 17.52 in deep and 45.00 in high. If the load calculation moves from 1.5 to 2 tons, the space needed does not change.
Can I keep my existing ducts?
Often, yes. During the estimate we check that the ducts and return air can handle up to 758 CFM, the maximum airflow published for this air handler.
How quiet is it?
Conforto publishes 39 dB at maximum speed, 36 dB at medium and 33 dB at minimum. Properly sized grilles help keep that quiet in the rooms.
Which outdoor unit does it work with?
With a Conforto outdoor unit from the same central heat pump range. We confirm the matched model before ordering.
Does it qualify for the LogisVert grant?
Not when sold alone. The grant follows a certified outdoor unit + air handler pair; for a complete system, we check eligibility in the quote.
A 2-ton Conforto air handler, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
