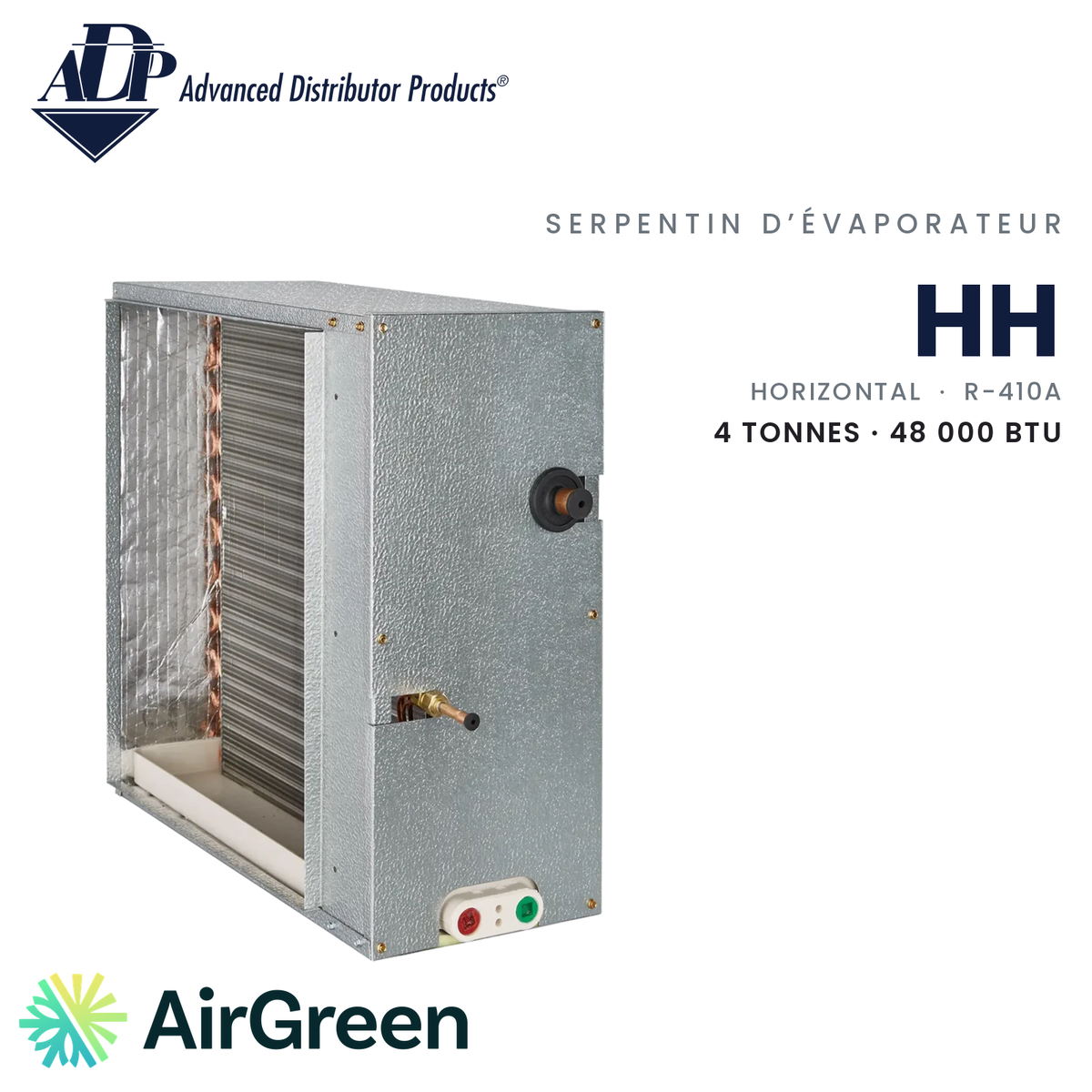

ADP HH61148A365A2102AP Horizontal Evaporator Coil | 4 Tons
ADP 4-ton cased R-410A horizontal evaporator coil with a factory piston and bi-directional airflow.
Model numberHH61148A365A2102AP
514 316-2973 · sales@airgreen.ca
Quick facts
A 4-ton horizontal coil for large houses and ceiling installations
The larger the house, the more generous the evaporator coil must be, and the more carefully its location must be planned. The ADP HH61148A365A2102AP horizontal coil offers 4 tons (48,000 BTU/h nominal) in a 10 in deep cabinet, designed to connect to an electric furnace or air handler installed lying down. It runs on R-410A and, according to ADP, suits an air conditioner as well as a heat pump.
A long, shallow format
The cabinet measures 22-3/4 in high, 41 in wide and 10 in deep, and weighs 57 lb. It houses an H61 slab, which covers 3.5 to 5 tons according to ADP; the factory-installed piston, sized for 48,000 BTU/h, sets this model’s size. Air can pass through the slab in either direction, and the drain pan is molded from a high-temperature polymer (450°F), UV resistant, with Microban. The refrigerant connections are 3/8 in for the liquid line and 7/8 in for the suction line.
Where it is used
This size is installed in large houses whose horizontal furnace serves several floors, but also in offices and small shops where the unit is placed in the ceiling to free up usable space. In every case, the coil does only part of the job: its performance depends on the outdoor unit and air handler it is matched with. Sold alone, it has no efficiency rating of its own and does not qualify for the LogisVert grant. ADP does not publish a matching list for this model, so we validate compatibility before ordering.
Planning access and support
A 41 in, 57 lb cabinet hung above a finished room requires planning. We provide solid supports, an access panel for service and a drain with a trap, and we recommend an auxiliary pan under the unit. These details are set out in the quote, before the work begins.
Installation by AirGreen
AirGreen is a family business established in Montreal for more than fifteen years. Our RBQ licence 5645-9605-01 covers ventilation, refrigeration and electrical work. After a free on-site estimate and a written quote, we recover the refrigerant from the old system if applicable, install the coil and the transition to the 36-5/8 x 21-1/4 in opening, braze the connections, pressure-test and pull a vacuum, then commission the system with the outdoor unit. We serve Montreal, Laval, Longueuil, the South Shore and the North Shore.
For a house or business that calls for a 4-ton coil, ask for your free estimate: you will receive a written quote, and financing is available.
For large duct systems served by a horizontal unit
The HH61148A365A2102AP sits at the outlet of an electric furnace or air handler installed horizontally. With an R-410A outdoor unit, it provides cooling; with a heat pump, it also serves for heating.
- Large houses where the horizontal furnace serves several floors
- Offices and small shops where the unit is installed in the ceiling
- Replacing a 4-ton R-410A horizontal coil
- 4-ton central heat pump on a horizontal electric furnace

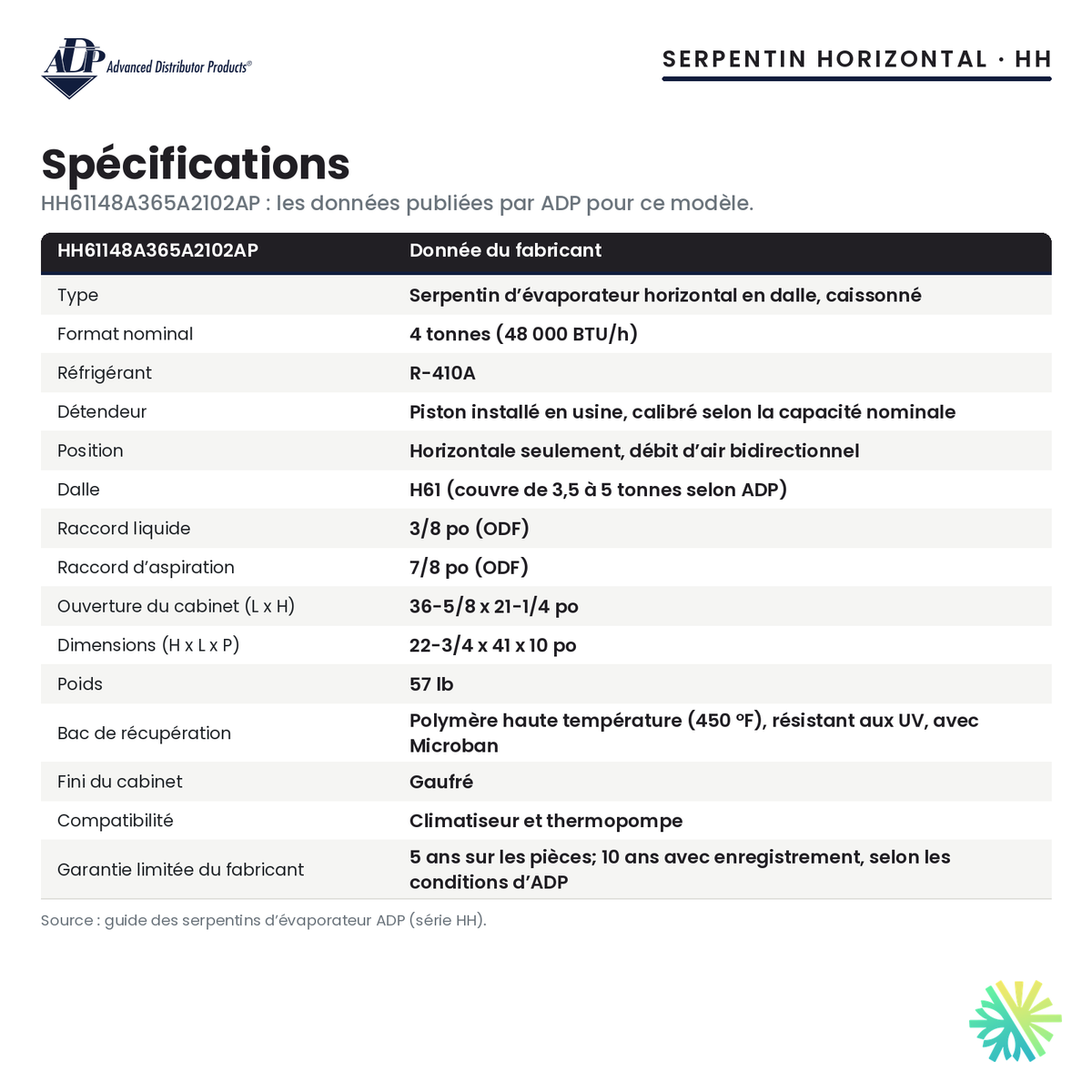

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Sold alone: does not qualify for the LogisVert grant. The coil has no efficiency rating of its own; performance depends on the matched outdoor unit and air handler.
- Horizontal position only: no vertical mounting.
- At 41 in long and 57 lb, the cabinet needs solid support and, in a finished ceiling, an access panel for service.
- R-410A: the factory-installed piston is sized for 48,000 BTU/h nominal; we validate it against the outdoor unit.
- ADP’s 10-year warranty extension applies to an owner-occupied single-family residence.
- ADP does not publish a matching list for this model: we check compatibility before ordering.
Manufacturer documents
Explore the range
Evaporator coilsSee allSame brand
ADPSee all
Frequently asked questions
Is this coil suitable for an office or a shop?
It can be installed wherever a horizontal electric furnace or air handler feeds a duct system, after checking the load and the outdoor unit. As for the warranty, ADP’s 10-year extension applies to an owner-occupied single-family residence.
How much space is needed?
The cabinet measures 22-3/4 x 41 x 10 in (H x W x D) and weighs 57 lb; its opening is 36-5/8 x 21-1/4 in (W x H). Also plan access for service and the drain.
Does it work with a heat pump?
Yes. ADP states that the HH series is compatible with an air conditioner or a heat pump. The outdoor unit must run on R-410A.
Does the piston suit my outdoor unit?
It is factory-sized for 48,000 BTU/h nominal. We check the requirements of the matched outdoor unit before start-up and adjust if needed.
Does it qualify for the LogisVert grant?
No, not when it is sold alone. If you are also replacing the outdoor unit, the quote states whether the complete proposed system qualifies.
A 4-ton ADP coil, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
