LG Multi F MAX LGRED R32 Heat Pump | 3 Zones + 42000 BTU | Montérégie

A multi-zone solution designed for demanding Quebec buildings

In Quebec's climate, choosing a multi-zone heat pump is not something to be taken lightly. The LG Multi F MAX LGRED R32 – 3 zones, 42,000 BTU heat pump was designed to meet the real-world needs of single-family homes, duplexes, and light commercial buildings in the Montérégie region , Montreal , Laval , Longueuil , and on the North and South Shores . At AirGreen , we install it in complex configurations where thermal stability, independent zone control, and winter reliability are paramount.

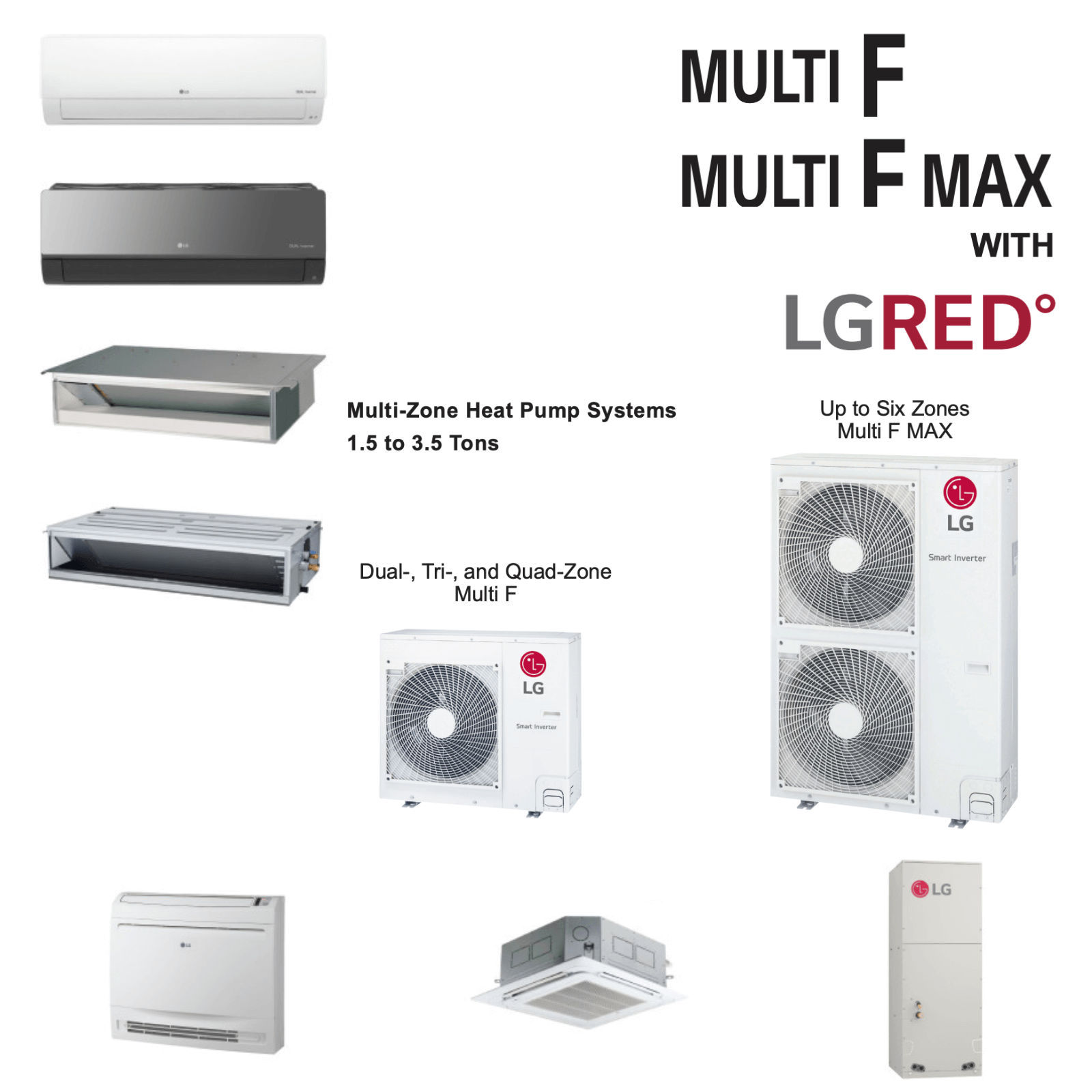

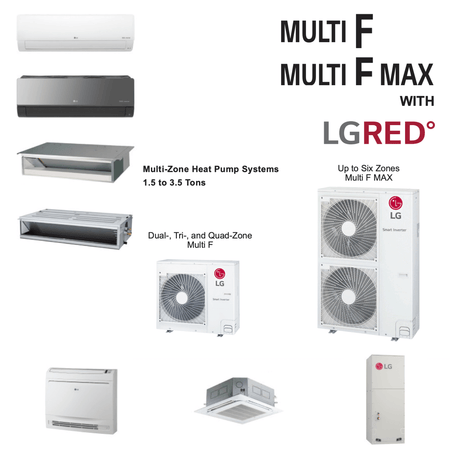

This system can power up to three indoor units (with a maximum capacity of up to six zones depending on the configuration) from a single outdoor unit. It's a practical approach when outdoor space is limited, aesthetics are important, or the distribution of heat loads varies significantly from one zone to another.

Technical architecture and operating logic

A compact VRF system using R-32 refrigerant

The LGRED Multi F MAX uses VRF (Variable Refrigerant Flow) technology, optimized here for small to medium-sized residential and commercial projects. The choice of R-32 refrigerant reduces environmental impact while improving heat transfer. Specifically, this translates to:

• fine-tuning of power according to actual demand,

• more stable electricity consumption

• improved performance in conditions of sustained cold.

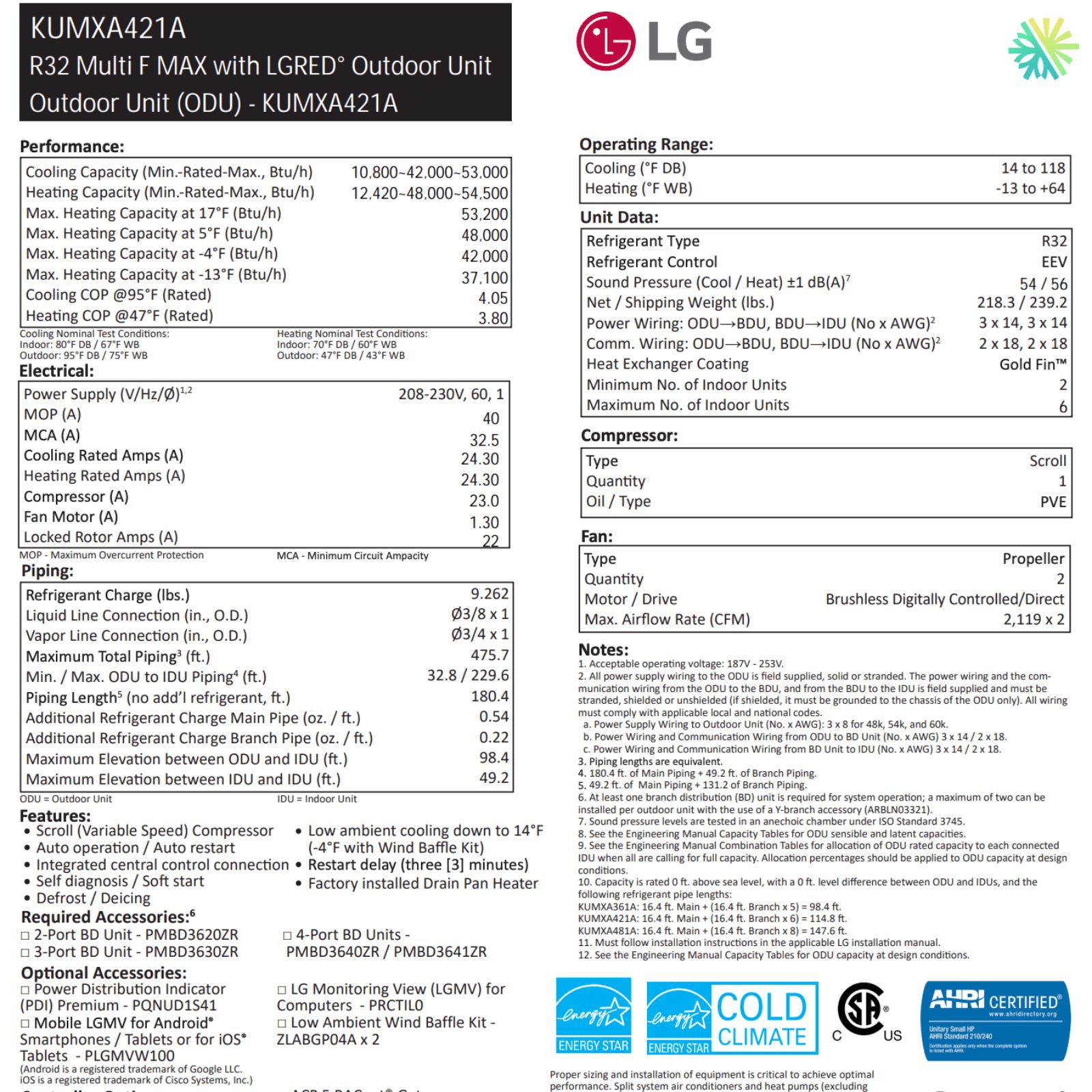

The KUMXA421A outdoor unit delivers a nominal power of 42,000 BTU , with a capacity maintained down to -25°C , which is a non-negotiable point for our installations in Montérégie and on the North Shore .

Independent management of areas

Each interior zone operates independently. In practice, this means that a north-facing office, a south-facing living room with windows, and an upstairs apartment no longer compete for the same heating requirements. This independence improves:

• the actual comfort of the occupants

• temperature stability,

• the overall efficiency of the system.

At AirGreen , we systematically configure these systems after a precise analysis of thermal loads per zone, and not on the basis of approximate rules.

Actual performance in heating and air conditioning

Heating in winter conditions

Unlike many marketing materials, we prioritize data that can be used in real-world situations . This heat pump offers:

• 31,600 BTU at -8 °C

• 44,000 BTU at -15°C

• an operating range in heating mode down to -25 °C

This ensures reliable primary heating in a majority of residential projects, including buildings poorly served by natural gas or undergoing complete electric conversion.

Balanced multi-zone air conditioning

In cooling mode, the total capacity of 42,000 BTU is intelligently distributed among the indoor units according to demand. This prevents the short cycling and uncomfortable fluctuations often seen in poorly sized multi-split systems.

Installation: what we do differently at AirGreen

Strict adherence to piping limits

The Multi F MAX imposes precise constraints on length and elevation gain . In practice:

• total piping length can reach nearly 475 equivalent feet

• strict boundaries between outdoor unit, distribution boxes and indoor units,

• clear requirements on diameters 3/8 in (liquid) and 3/4 in (gas) .

We regularly encounter projects where these rules have been ignored by other contractors, resulting in capacity losses, abnormal noise, or defrosting problems. At AirGreen , every layout is validated before installation, especially in multi-story buildings in Longueuil or Laval .

Electricity and circuit protection

This model operates on 220V , with:

• MCA: 33 A

• MOP: 40 A

We systematically adapt the protection and conductor gauge according to the Quebec Electrical Code, without compromise. This reduces nuisance tripping and protects the compressor in the long term.

Acoustic comfort and architectural integration

The outdoor unit has a noise level of approximately 56 dB(A) , making it suitable for dense residential environments. Indoors, depending on the model chosen (wall-mounted, console, ducted), noise levels can drop to around 29 dB(A) during normal operation.

In several projects in Montérégie , we have integrated this system into narrow backyards or on technical roofs, without complaints from neighbors or structural resonance.

Reliability, maintenance and durability

What we are observing on the ground

After several installations of Multi F MAX LGRED, we note the following:

• remarkable stability of the variable-speed compressor

• consistent defrosting cycles,

• robust electronics when properly protected against moisture.

HVAC maintenance remains simple, provided the initial installation was done correctly. We particularly emphasize the importance of accessibility to indoor units and distribution boxes to avoid unnecessary future costs.

Guarantees and long-term strategy

The standard warranty is 10 years on the compressor and parts , plus 6 years on labor, straight from the distributor. At AirGreen , we always clearly explain this distinction, as it affects the actual cost of ownership. An extended warranty may be considered depending on the customer's profile and the type of building.

Why this model is relevant in Montérégie and Greater Montreal

This system is for owners who want to:

• a reliable multi-zone heat pump , without the need for multiple outdoor units,

• a solution compatible with harsh winters,

• precise comfort control by zone

• a durable HVAC system, designed for 15 to 20 years.

This is typically the case for intergenerational homes, modernized triplexes, professional offices or local businesses in Montreal , Laval , Longueuil , on the South Shore and the North Shore .

The AirGreen approach: expertise, transparency and precision

At AirGreen , we don't sell a model off the shelf. We analyze the building, its uses, and the electrical and mechanical constraints, then we confirm whether the LG Multi F MAX LGRED R32 is truly the right choice. When it is, the installation is carried out by experienced refrigeration technicians, with particular attention to the invisible details that make all the difference after five or ten winters.

Need an estimate or technical validation?

For a project in the Montérégie region , including Montreal , Laval , Longueuil , the North Shore , or the South Shore , contact AirGreen Heat Pumps, Air Conditioning & Heating . We will provide you with a clear, tailored assessment, specific to your building and your objectives, without any approximations.

Warranty: 10 years on the compressor, 10 years on parts and 6 years on labor, straight from the distributor.
