LG Multi F MAX LGRED R32 Heat Pump | 5 Zones + 42000 BTU | Montérégie

BROCHURE

A multi-zone HVAC solution designed for complex buildings in Montérégie

In many residential and multi-unit projects in the Montérégie region , a single-zone heat pump quickly reaches its limits. Multi-storey houses, duplexes, large condos, renovations with architectural constraints: these configurations require a truly flexible, stable, and efficient multi-zone HVAC solution for cold climates.
It is precisely in this context that the LG Multi F MAX LGRED R32 Heat Pump – 5 zones, 42,000 BTU stands out as a serious technical reference, when it is correctly sized and installed by a specialized team like AirGreen .

At AirGreen , we install this type of system in projects where precision, thermal load management, and long-term reliability are non-negotiable. This LG model isn't for everyone: it's designed for buildings that require intelligent heating and cooling distribution without the need for multiple outdoor units.

Understanding the Multi F MAX logic: an HVAC architecture designed to last

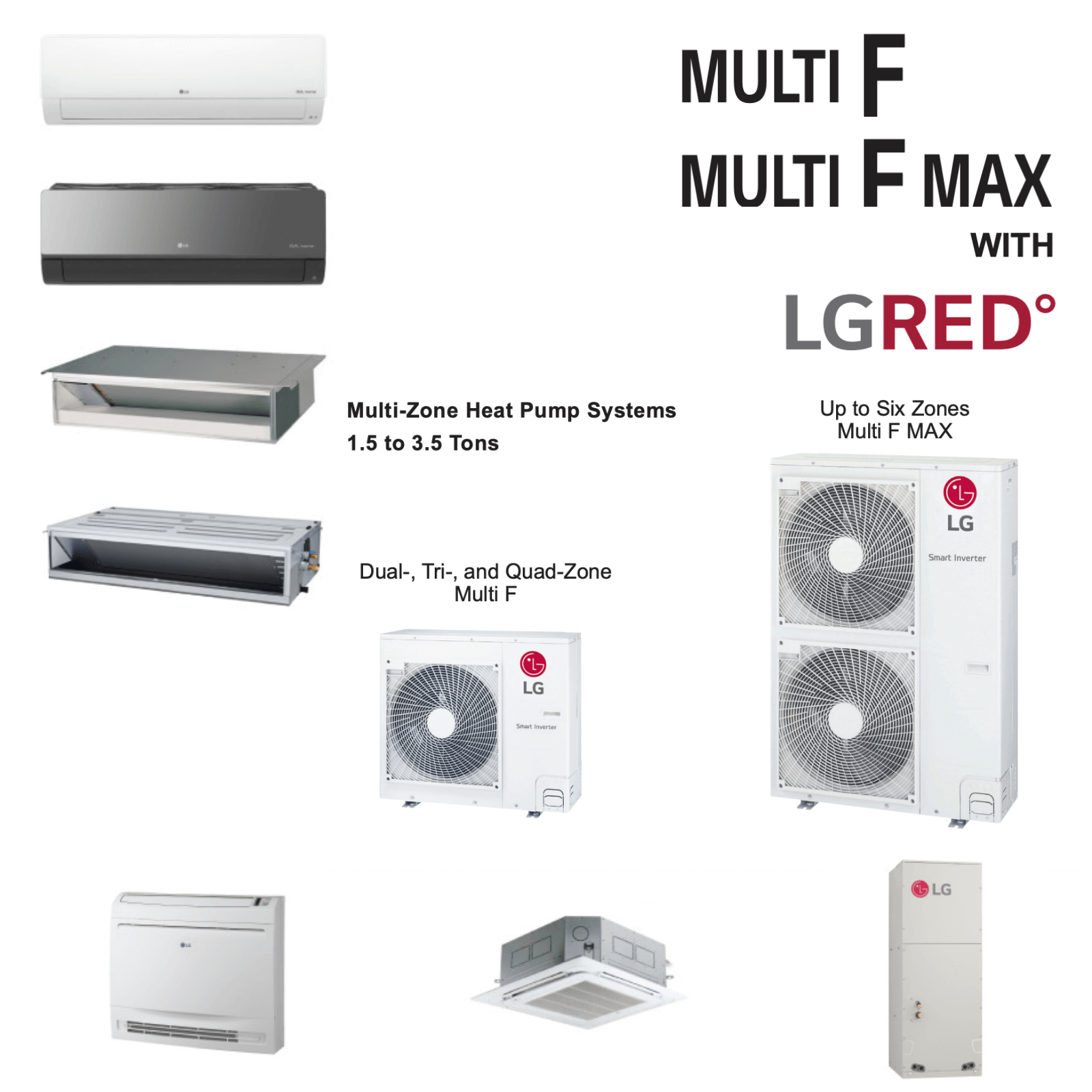

The LG Multi F MAX LGRED R32 series is based on an advanced architecture: a single outdoor unit powers up to 5 indoor units (with the technical possibility of up to 6 zones depending on the configuration). Each zone operates independently, both in terms of temperature and airflow, allowing for precise room-by-room comfort management .

In practice, this means:

• A north-facing room can be heated without unnecessary overconsumption elsewhere

• A south-facing glazed area can be independently air-conditioned.

• Short cycles, which cause premature wear, are avoided.

This flexibility is essential in the plexes of Longueuil , the intergenerational homes of Boucherville , or the renovated residences of Saint-Jean-sur-Richelieu , where thermal needs vary greatly from one area to another.

Actual capacity and behavior in cold climates

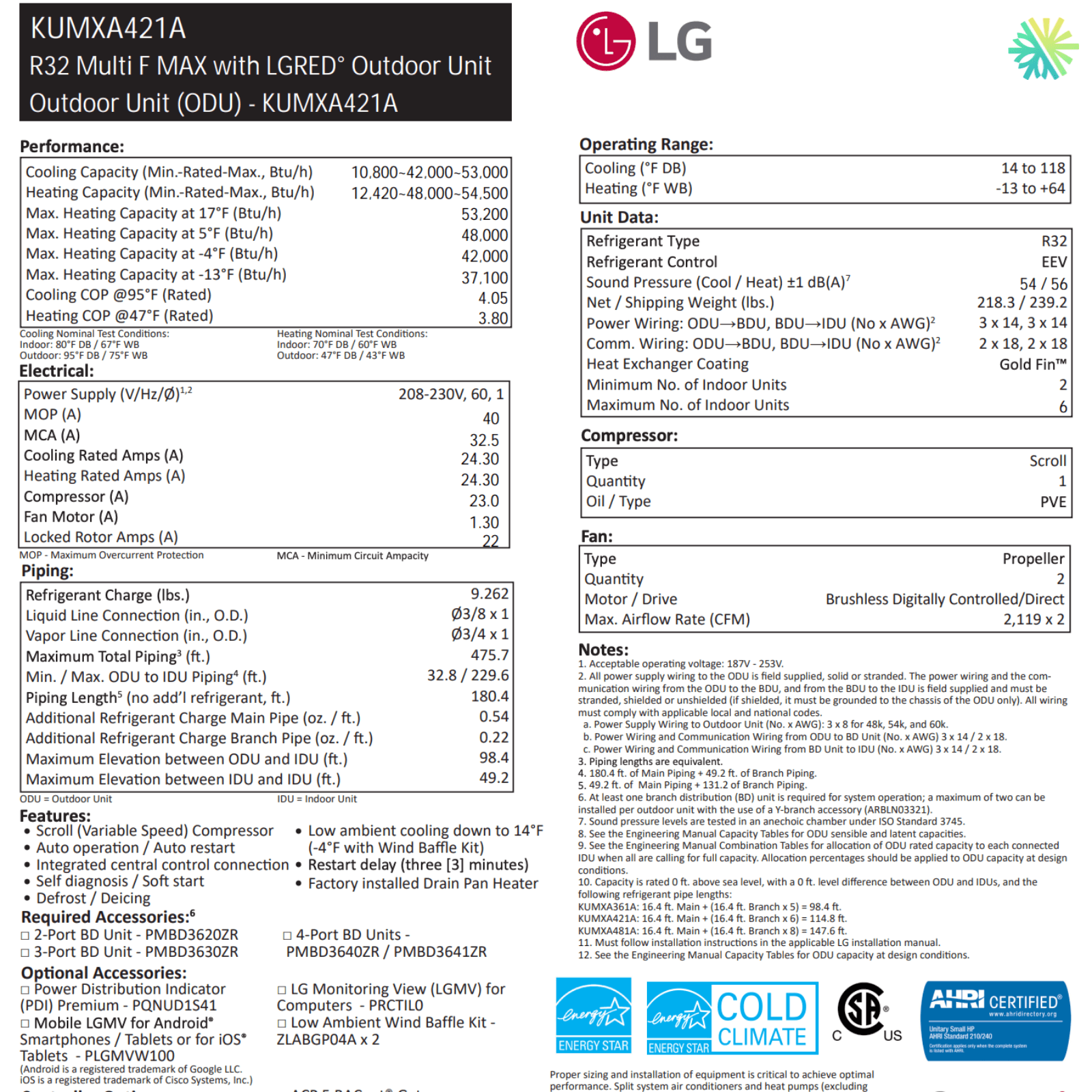

Unlike many systems that are oversized on paper but unstable in real-world conditions, the LG Multi F MAX KUMXA421A offers consistent and measurable capability:

• Nominal cooling capacity: 42,000 BTU

• Reliable operation down to -25°C in heating mode

• Output at -8°C: approximately 31,600 BTU

• Output at -15°C: approximately 44,000 BTU

These values ​​must always be interpreted correctly according to the actual configuration of the refrigeration network.

At AirGreen, we always emphasize one point: performance depends as much on the installation as on the machine itself . A poorly balanced Multi F MAX quickly loses its advantages.

The technical choices that make the difference on the field

R-32 refrigerant: efficiency and compliance

The R-32 gas used in this model has a lower global warming potential than previous generations. But beyond the environmental aspect, it also allows for:

• Improved heat transfer

• A reduced refrigeration load

• Increased stability at low temperatures

This translates into better real energy efficiency , particularly noticeable in the winters of Montreal , Laval and the South Shore .

Electrical and acoustic data to consider

Electrically, the outdoor unit operates on 220V , with:

• MCA: 33 A

• MOP: 40 A

These values ​​necessitate a thorough analysis of the electrical panel , a step systematically carried out by AirGreen before any installation.

In terms of noise, the external sound level of approximately 56 dB(A) remains very controlled for a unit of this capacity, which is essential in dense or regulated residential environments.

Real-life installation scenarios created by AirGreen

Case 1: Renovated duplex in Longueuil

Project with two superimposed dwellings, load-bearing walls retained, impossibility of installing two outdoor units.
Solution :

• 1 LG Multi F MAX LGRED R32 outdoor unit

• 5 wall-mounted indoor units of varying capacities

• Optimized distribution via branch units

Result :

• Major reduction in external footprint

• Independent comfort for each accommodation

• Stable energy consumption during periods of extreme cold

Case 2: Intergenerational home in Montérégie

Separate zones are needed for the floors and the annex accommodation.
Common problem: temperature conflicts and noise complaints with improperly sized systems.

Thanks to a detailed analysis of thermal loads , AirGreen configured the Multi F MAX to avoid any overallocation of capacity, ensuring constant thermal stability .

What to avoid with a multi-zone system

We regularly see the same errors in installations carried out without specific expertise:

• Pipe lengths not respected

• Poor zone balancing

• Lack of precise calculation of heat losses

• Poor selection of indoor units

With such a sophisticated system, these errors quickly negate the expected benefits. At AirGreen, every Multi F MAX project is treated as a custom project , never as a standard installation.

Why entrust your LG Multi F MAX project to AirGreen

Choosing AirGreen is not simply buying a heat pump:

• Over 15 years of HVAC experience in Greater Montreal

• Team of refrigeration technicians specializing in multi-zone systems

• Complete mastery of electrical and refrigeration standards

• Complete transparency regarding actual performance and technical limitations

We regularly work with residential, multi-unit residential and light commercial projects requiring a rigorous approach.

A solution eligible for provincial subsidies

This model is eligible for the LogisVert grant , with an amount of up to $3,792 depending on the configuration and criteria in effect at the time of installation. AirGreen will assist you with the eligibility analysis and application preparation.

Conclusion: A demanding, but remarkably efficient, multi-zone heat pump

The LG Multi F MAX LGRED R32 5-zone, 42,000 BTU heat pump is a high-performance solution. It doesn't tolerate improvisation, but when properly designed, installed, and balanced , it delivers outstanding comfort, consistent efficiency, and seamless integration into complex projects.

Take action with AirGreen

Are you planning a project in Montreal , Laval , Longueuil , the South Shore or the North Shore ?
Contact AirGreen now for a complete analysis, a detailed quote and an HVAC installation that meets the highest market standards .
