LG Multi F MAX LGRED R32 Heat Pump | 6 Zones + 42000 BTU | Montérégie

BROCHURE

A multi-zone solution designed for the demanding buildings of the Montérégie region

At AirGreen , we install HVAC systems in contexts where the needs far exceed those of a standard single-family home. The LG Multi F MAX LGRED R32 | 6 Zones + 42000 BTU Heat Pump is specifically designed for this type of project: large residences, multi-unit buildings, commercial spaces, offices, or mixed-use buildings located in the Montérégie region , Montreal , Laval , Longueuil , on the South Shore and the North Shore .

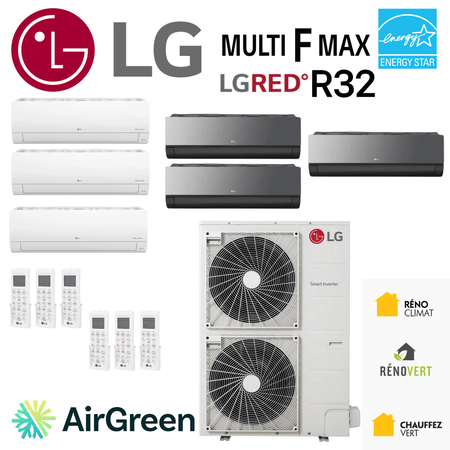

This outdoor system, model KUMXA421A , allows you to power up to six independent indoor units from a single outdoor unit, while maintaining precise, stable and reliable temperature control, even during periods of intense cold typical of the Quebec climate.

Understanding the Multi F MAX LGRED R32 architecture

One single outdoor unit, six completely independent zones

The principle of the Multi F MAX is based on a simple but technically advanced logic: a centralized outdoor unit that distributes heating or air conditioning to several indoor units, each of which can operate at its own setpoint.

In practical terms, this means:

• One room can be heated while another is in air conditioning mode.

• Each occupant benefits from personalized comfort.

• Energy management is optimized according to actual needs, zone by zone.

This flexibility is particularly appreciated in plexes , multi-unit residential buildings, clinics, professional offices or shops spread over several separate spaces.

LGRED technology and R-32 refrigerant

LGRED technology combined with R-32 refrigerant is a central element of this system. R-32 offers:

• Improved thermodynamic efficiency.

• A reduced refrigerant charge compared to previous generations.

• A lower global warming potential.

In an increasingly strict regulatory and environmental context, this technological choice fits perfectly with the current requirements of the HVAC market in Quebec.

The KUMXA421A system is designed to maintain stable performance over a wide temperature range, including severe winter conditions, which is essential for installations in Montérégie and on the South Shore .

Real-world performance and reliability in Quebec conditions

Heating and cooling capacity adapted to the local climate

With a nominal capacity of 42,000 BTU , the LG Multi F MAX LGRED R32 heat pump meets the needs of large buildings without requiring multiple outdoor units. This centralized system simplifies installation, reduces the outdoor footprint, and facilitates long-term maintenance.

During our installations in Longueuil and Boucherville , this type of configuration proved particularly effective for:

• Maintaining consistent comfort despite significant variations in outside temperature.

• Reducing excessive start-up cycles extends the lifespan of components.

• To provide a homogeneous distribution of air throughout the building.

Electrical stability and component protection

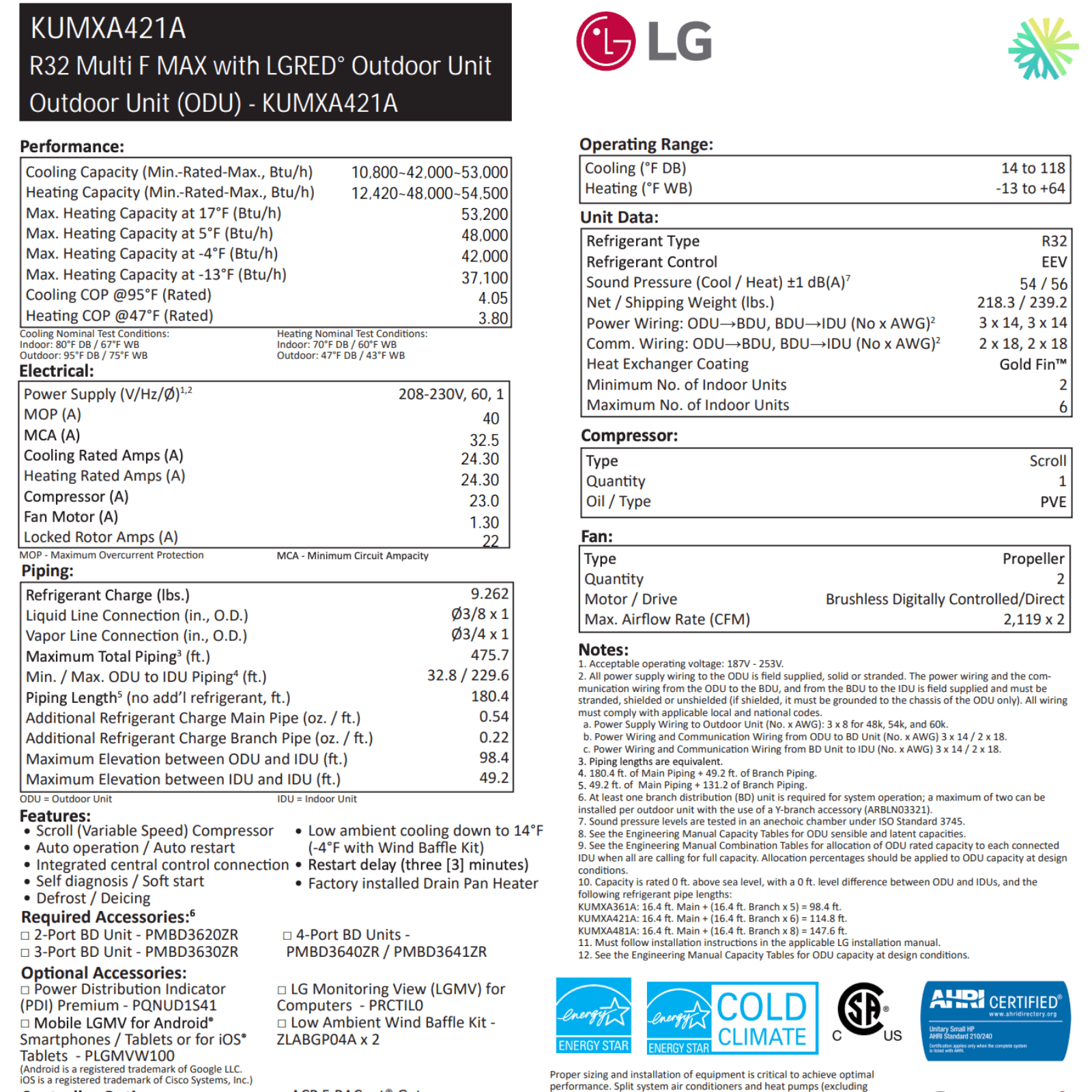

The KUMXA421A model operates on a 220V power supply, with clearly defined electrical parameters to ensure adequate system protection:

• MCA (minimum circuit ampacity) of 33 A.

• MOP (maximum overcurrent protection) of 40 A.

At AirGreen , we always insist on strict compliance with local electrical standards, whether in Montreal , Laval or Montérégie , in order to avoid long-term reliability problems.

Flexibility of interior units and architectural integration

Wide compatibility of interior models

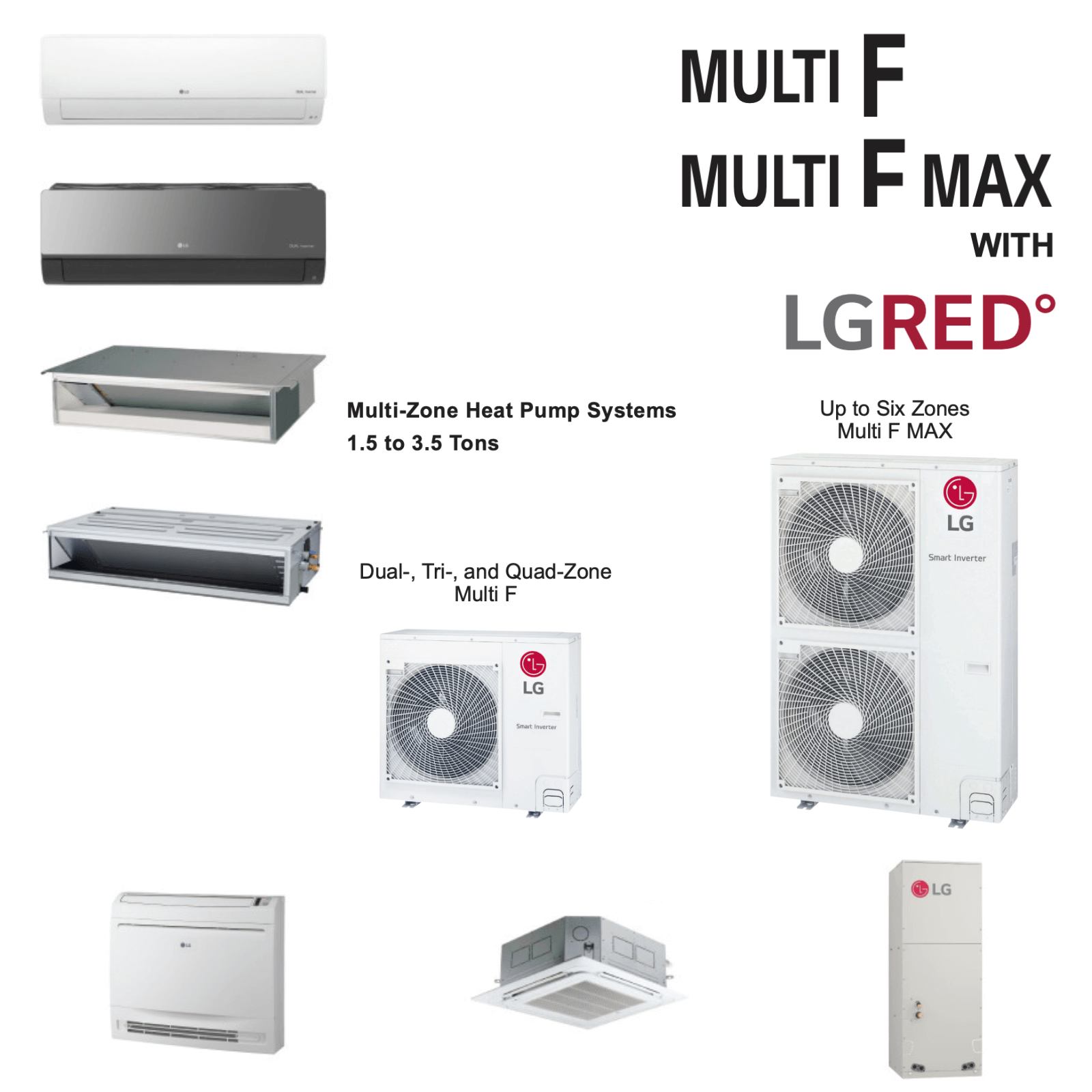

One of the great advantages of the Multi F MAX is its compatibility with several types of LG indoor units: wall-mounted, console, ducted or ceiling-mounted, depending on the building configuration.

This flexibility allows us, for example:

• To install discreet wall-mounted units in residential dwellings.

• To integrate ducted units into offices for a clean visual result.

• To optimize air distribution in open commercial spaces.

Each project is custom-designed, taking into account the building structure, architectural constraints and the usage habits of the occupants.

Noise management and acoustic comfort

With an outdoor noise level of approximately 56 dB(A) and indoor units capable of operating at very low levels depending on the model chosen, this system integrates well into dense residential environments, particularly on the South Shore and in Montreal , where regulations and the comfort of neighbors are real issues.

For certain wall installations, particularly with high-capacity indoor units, we always inform our customers that the perception of vibrations may vary depending on the wall structure. This transparency is part of our professional approach at AirGreen .

Multi-zone installation: what you absolutely need to master

Managing pipe lengths and elevation changes

A Multi F MAX system requires rigorous planning of the refrigeration piping. Total length, branch, and elevation limits must be respected to ensure system performance and reliability.

In our projects in Laval and on the North Shore , we systematically:

• A detailed analysis of the piping routes.

• A validation of the heights between the outdoor unit and the indoor units.

• Precise load balancing by zone.

This rigor prevents performance losses and unnecessary service calls.

Commissioning and fine-tuning

Once the installation is complete, commissioning is a crucial step. At AirGreen , it includes:

• A complete check of the compressor pressures and operation.

• The electronic controls and Wi-Fi setup are included .

• Functional tests in heating and air conditioning.

This step is often overlooked by less experienced installers, even though it directly affects customer satisfaction.

LogisVert subsidy and long-term value

The LG Multi F MAX LGRED R32 | 6 Zones + 42000 BTU Heat Pump is eligible for the LogisVert provincial subsidy , with an amount of up to $3,792 , depending on the conditions in effect.

In our recent projects in the Montérégie region , this subsidy has enabled several property owners to:

• Significantly reduce the initial cost of the project.

• Accelerate the transition to a fully electric solution.

• Improve the energy efficiency of their building.

We always support our clients in the preparation and validation of grant applications, in order to avoid rejections or delays.

Why entrust this type of project to AirGreen?

Installing a Multi F MAX system is not something to be done on a whim. At AirGreen , we provide:

• Field expertise acquired on hundreds of complex HVAC projects.

• Certified refrigeration technicians experienced with large-capacity multi-zone systems.

• $5 million in liability insurance , essential for large-scale projects.

• Transparent pricing , confirmed before work begins.

Our approach is based on technical precision, clear communication and respect for customer expectations, from the first quote to after-sales service.

Next Step

For a residential, commercial, or multi-unit project in the Montérégie region , Montreal , Laval , Longueuil , on the South Shore or North Shore , contact AirGreen today. We will analyze your building, your actual needs, and propose a sustainable, high-performance HVAC solution perfectly suited to your situation.

Request your personalized quote and benefit from AirGreen's expertise for your multi-zone heat pump installation.
