ExtremeLENNOX Varix · 460 V · cold climate

The Varix Extreme at 460 V: half the current, and a transformer to plan for.

Hydro-Québec supplies low-voltage three-phase power at 600 V, and notes itself that in the United States, 460 V equipment runs on a 480 V service. Between its grid and a 460 V nameplate you therefore need a step-down transformer; the electrician confirms it. Here is what each module asks for at 460 V: 25 to 38 A minimum circuit ampacity, half the 208-230 V figure.

10models in our catalogueFrom 6 to 24 tons
25/30 AMCA and max. protection, 6 tons at 460 VVPC072L4M-4G submittal, April 2026
600 VHydro-Québec low-voltage three-phaseHydro-Québec voltage bulletin
571 lb6-ton module at 460 V, heat pumpFlyer 38Y93; form 496105
The shop

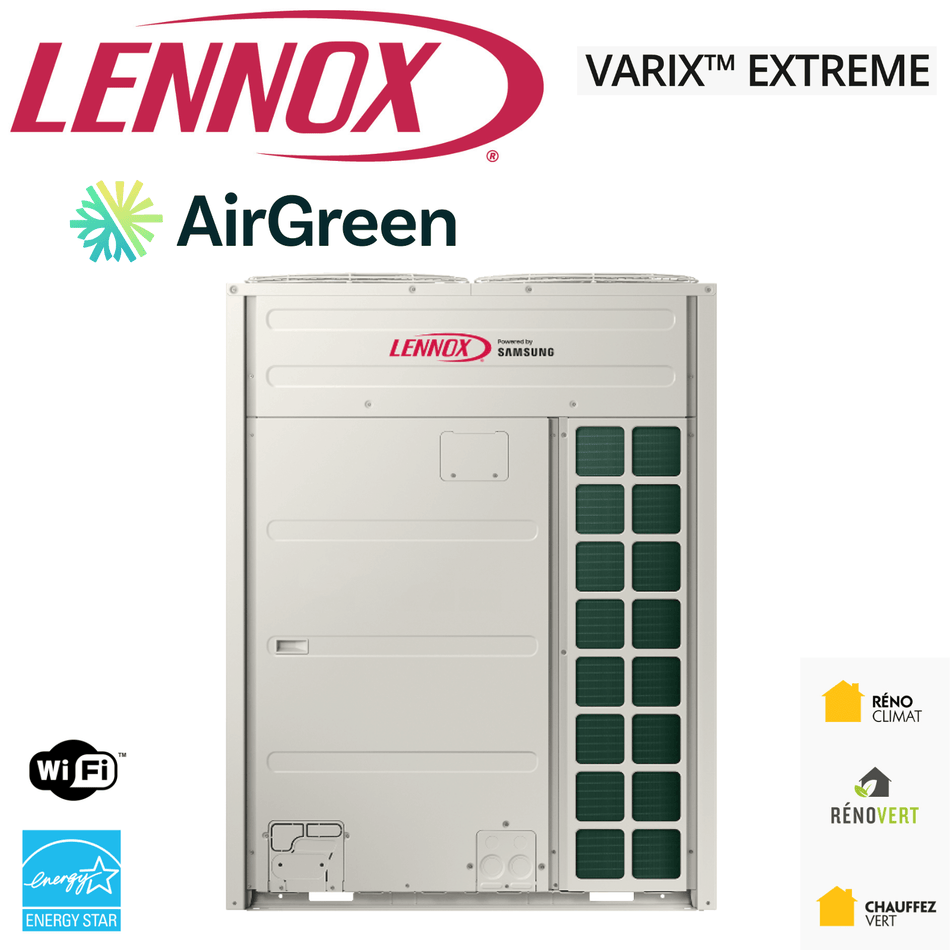

The 460 V Varix Extreme, right below

From 6 to 24 tons, in one, two or three modules. Price on quote, after we visit the building and its electrical service.

AirGreenLENNOX
01 · The 460 V sheet

One module, its 460 V nameplate: current, weight, connections

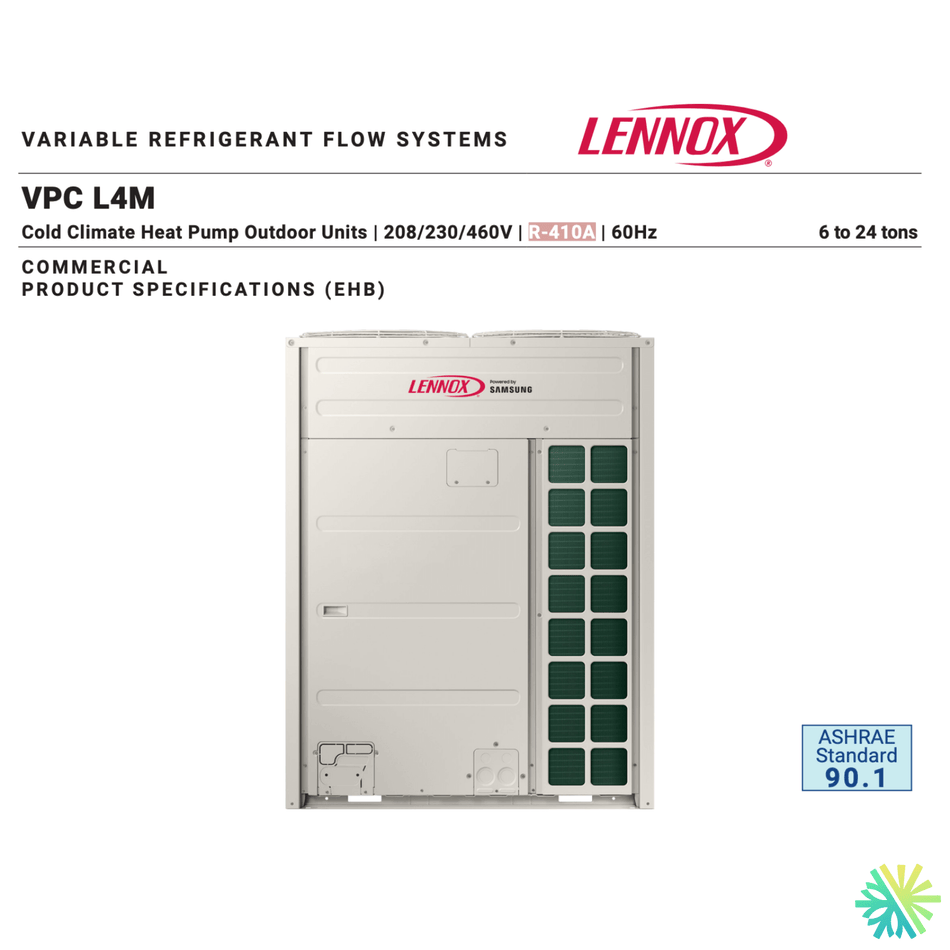

The LENNOX submittal for the 6-ton is a 460 V sheet (VPC072L4M-4G, April 2026). For the 8 and 10 tons, values come from flyer 38Y93 and the LENNOX guides; what is not there stays marked “not published”.

Module

MCA: minimum circuit ampacity. MOCP: maximum overcurrent protection. LENNOX nameplate values per module; sizing the transformer and conductors is the electrician’s job.

From 12 to 24 tons, LENNOX combines two or three of these modules. Its guides give no reliable values for the combinations: we take them from the project’s selection report.

6-ton module at 460 V · VPC072L4M-4G

25A · MCA

Minimum circuit ampacity, with a maximum overcurrent protection of 30 A. It is half of what the same module asks for at 208-230 V.

MCAMax. protection (MOCP)

Nameplate power460 V, three-phase, 60 Hz
Weight (heat pump, 460 V)571 lb
Dimensions (W × D × H)51 × 30-1/8 × 66-3/4 in.
Max. indoor units12 (460 V submittal)
Heat at 8.3 °C · at -30 °C81,000 · 78,000 BTU/h

In Québec, Hydro-Québec supplies low-voltage three-phase power at 600 V. Between that service and the 460 V nameplate you need a step-down transformer: the electrician confirms it and picks it.

Open the VPC072L4M-4G page

Reading the voltage on the nameplate

VPHeat pumpC3rd generation0726 tonsLCold climate4R-410AMMulti-circuit-4RevisionG460 V, 3 ph

The last letter gives the voltage: G = 460 V three-phase, Y = 208/230 V three-phase, J = 575 V three-phase. LENNOX, VRF nomenclature 38Z31 (April 2025).

02 · The transformer question

Hydro-Québec supplies 600 V. The nameplate says 460 V.

Three sentences from Hydro-Québec’s voltage bulletin, and what they mean for a 460 V Extreme.

“In the United States, the service voltage is 480 V for 460 V equipment.”
The 480 V that feeds 460 V equipment is a U.S. service. Here, it comes from a transformer.
“Hydro-Québec recommends a supply voltage at least equal to the nominal voltage of the equipment in its installation.”
A transformer delivering 480 V to a 460 V nameplate meets that rule.
“Some business customers have a 600 V service suited to loads with a nominal voltage of 575 V.”
575 V is the voltage that goes with 600 V. LENNOX makes no 575 V Extreme.

No transformer?

LENNOX offers the Extreme at 208-230 V or 460 V three-phase only. The standard Varix comes in 575 V, the voltage that goes with Hydro-Québec’s 600 V, but LENNOX publishes no deep-cold heat for it. And 208-230 V three-phase is not among the bulletin’s low voltages either.

The 575 V Varix · The 208-230 V Extreme and its coldest morning

Quotations: Hydro-Québec power quality bulletin on steady-state voltage (in French, undated, checked October 28, 2026), translated by AirGreen. Voltages offered: LENNOX, flyer 38Y93 and March 2025 guides.

03 · The closest sibling

Same capacity as the 460 V Varix. More current, and no 575 V version.

At the same tonnage, same nominal capacities. The Extreme publishes its heat at -30 °C; the standard Varix does not. At 460 V, the Extreme module needs 1.7 to 2 times the Varix’s minimum circuit ampacity. And only the Varix also comes in 575 V.

Module compared
Varix ExtremeCold climate · 6 tons
VarixStandard · 6 tons
Outdoor unitVPC072L4M-4G
Outdoor unitVPC072S4M-4G
Nominal cooling, 35 °C72,000 BTU/h
Nominal cooling, 35 °C72,000 BTU/h
Heating at 8.3 °C (47 °F)81,000 BTU/h
Heating at 8.3 °C (47 °F)81,000 BTU/h
Published heat at -30 °C (-22 °F)78,000 BTU/h
Published heat at -30 °C (-22 °F)Not published
MCA / max. protection at 460 V25 / 30 A
MCA / max. protection at 460 V15 / 20 A
Also made in 575 VNo
Also made in 575 VYes (VPC072S4M-4J)
Modules and range6, 8 or 10 tons; 24 tons at most
Modules and range6 to 20 tons; 38 tons at most
LENNOX warrantyW900015-01
LENNOX warrantyW900015-01

Pink rows are the differences. Extreme: flyer 38Y93 and VPC072L4M-4G submittal; Varix: “Varix VRF” and LC1178 guides (March 2025). The standard 460 V Varix units have their own page.

04 · Did you know

Three things the 460 V submittal says about the Extreme

100%

The 460 V submittal prints “100% capacity at -22°F”

The VPC072L4M-4G submittal prints it in so many words; it also says “Restrictions apply” and points to the VRF Engineering Handbook. The table in the LENNOX flyer gives 78,000 BTU/h at -22 °F against 81,000 at 47 °F, i.e. 96%.

LENNOX, form 496105 (April 2026); flyer 38Y93.
12

Twelve indoor units on a 6-ton module

The 460 V submittal for the 6-ton accepts 12; the one for the 8-ton heat recovery unit (VRC096L4M-4G), 16. A full system takes up to 64.

LENNOX, forms 496105 and 496109; flyer 38Y93.
2

Two compressors in the 6-ton module

The VPC072L4M-4G 460 V submittal lists two compressors, and 17.6 lb of R-410A charged at the factory.

LENNOX, VPC072L4M-4G submittal, form 496105 (April 2026).
05 · The models, one by one

Every model on this page, with its nameplate voltage

The voltage is read from each product’s number: G = 460 V three-phase, Y = 208/230 V three-phase (LENNOX nomenclature 38Z31). From 12 to 24 tons, the values depend on the modules chosen.

ModelCapacityNameplate voltageMCA / max. protectionHeat at -30 °C
VPC096L4M-4G8 tons · 1 module460 V, three-phase31 / 35 A104,500 BTU/h
VPC072L4M-4G6 tons · 1 module460 V, three-phase25 / 30 A78,000 BTU/h
VPC288L4M-4G24 tons · 3 modules460 V, three-phaseDepends on the modules chosen (project’s LENNOX selection)
VPC264L4M-4G22 tons · 3 modules460 V, three-phaseDepends on the modules chosen (project’s LENNOX selection)
VPC240L4M-4G20 tons · 3 modules460 V, three-phaseDepends on the modules chosen (project’s LENNOX selection)
VPC216L4M-4G18 tons · 3 modules460 V, three-phaseDepends on the modules chosen (project’s LENNOX selection)
VPC192L4M-4G16 tons · 2 modules460 V, three-phaseDepends on the modules chosen (project’s LENNOX selection)
VPC168L4M-4G14 tons · 2 modules460 V, three-phaseDepends on the modules chosen (project’s LENNOX selection)
VPC144L4M-4G12 tons · 2 modules460 V, three-phaseDepends on the modules chosen (project’s LENNOX selection)
VPC120L4M-4G10 tons · 1 module460 V, three-phase38 / 45 A130,600 BTU/h
06 · Questions

What people ask us about the 460 V Extreme

Does Hydro-Québec supply 460 V?

Not according to its voltage bulletin: at low voltage, Hydro-Québec’s three-phase service is 600 V (normal range 550 to 625 V), and the bulletin places the 480 V service for 460 V equipment in the United States. A 460 V Extreme on a Hydro-Québec service therefore goes through a step-down transformer, which the electrician confirms and picks.

460 V or 208-230 V: which one?

For the same module, 460 V draws half the current: 25 / 30 A against 50 / 60 A for the 6-ton. The heat is the same in the LENNOX table. The choice depends on the distribution the building already has, and the electrician settles it.

Is the Extreme made in 575 V?

No. LENNOX offers it at 208-230 V or 460 V three-phase only. The standard Varix comes in 575 V, the voltage Hydro-Québec says suits its 600 V service, but LENNOX publishes no deep-cold heat for it.

Can it heat and cool at the same time?

Not with these models. The P in VPC means heat pump. To heat one room and cool another at the same moment, LENNOX sells the heat recovery version (VRC…), with a mode selection box.

Which LENNOX warranty?

Ten years on covered components, only when the installation meets the conditions of the W900015-01 VRF certificate: a design approved by LENNOX before purchase, a contractor trained on the LENNOX VRF course, approved commissioning and maintenance plan. Otherwise, 7 years on the compressor and 1 year on the rest. Labour is not covered by LENNOX.

And the heat in deep cold?

The LENNOX table is the same at 460 V and 208-230 V: 78,000 BTU/h at -30 °C for the 6-ton, 104,500 for the 8-ton, 130,600 for the 10-ton. Our 208-230 V Extreme page goes through it, temperature by temperature.

Who handles the transformer?

An electrical contractor: the RBQ reserves electrical installation work for subclass 16, which AirGreen holds. The electrician confirms the building’s service, picks the transformer and connects it. We discuss it at the visit, before the quote.

Sold and installed by AirGreen

A 460 V Varix Extreme, sold and installed by AirGreen, with the transformer part of the conversation.

We come and see the building, its roof and its electrical service. The quote lists the exact LENNOX models, their nameplate voltage, what each module asks of the panel and what goes between Hydro-Québec’s 600 V and the 460 V.

RBQ 5645-9605-01Subclasses 15.8, 15.10 and 16. Gas and oil: a licensed partner.
Free estimateOn site, no obligation.
Showroom1370 Joliot-Curie Street, Suite 712, Boucherville.
AirGreenLENNOX

Sources checked October 28, 2026

  1. LENNOX, VPC072L4M-4G submittal, form 496105 (April 2026): 460/3/60, MCA 25, MOP 30, 2 compressors, 17.6 lb factory charge, 12 indoor units, heating range -22 to 75 °F, “100% capacity at -22°F”, “Restrictions apply”, 571 lb.
  2. LENNOX, VRC096L4M-4G submittal, form 496109 (December 2024): 16 indoor units.
  3. LENNOX, Varix Extreme flyer 38Y93 (April 2025): voltages offered, MCA / MOCP, weights, dimensions, heating table at 47, -13 and -22 °F, 64 indoor units.
  4. LENNOX, quick reference guides “VRF Outdoor Units” LC1178 and Varix Extreme 38Z73 (March 2025), “Varix VRF” (March 2025): capacities and MCA / MOP at 208-230, 460 and 575 V, mode selection box.
  5. LENNOX, “VARIX VRF Systems Model Number Identification”, 38Z31 (April 2025); “VRF Complete Product Guide”, 38V34 (April 2025), p. 10 and controls list.
  6. LENNOX, VRF Equipment Limited Warranty W900015-01 (October 1, 2024).
  7. Hydro-Québec, power quality bulletin on steady-state voltage (in French, undated), checked October 28, 2026; quotations translated by AirGreen.
  8. Régie du bâtiment du Québec, subclass 16.0 electrical contractor sheet (in French, undated), checked October 28, 2026.
