Heating Element for Novair EVOX Central Unit
The backup heater kit for the air handler of the Novair EVOX central heat pump.
AirGreen codeAG-AC-02201
514 316-2973 · sales@airgreen.ca
Quick facts
This heating element adds electric auxiliary heat to the air handler of the Novair EVOX central heat pump. It is available in 5, 8, 10 and 15 kW, chosen according to the air handler size and the heat your home needs in extreme cold.
Extra heat for the EVOX heat pump
Novair’s EVOX central series pairs an outdoor unit with an air handler, from LEA18-EVOX-30-I to LEA60-EVOX-30-I, powered at 208/230 V single-phase. The air handler distributes the heat pump’s heat through the home’s ducts; the element takes over when the heat pump can no longer keep up with demand.
Choosing the right output
- Note the model number on your EVOX air handler’s nameplate.
- The output is chosen according to the air handler size, your heating needs and the capacity of your electrical service.
- We confirm compatibility with Novair before ordering.
Manufacturer safety instructions
Novair’s owner’s manual requires that a unit fitted with an electric element be installed at least 1 m (3 ft) from any combustible material. Wire size and circuit protection are calculated from the element’s nameplate, and the circuit is done by a master electrician.
Installed by AirGreen in Greater Montréal
We install the element in your Novair EVOX air handler and check the auxiliary heat in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the air handler model, the output and the quantity.

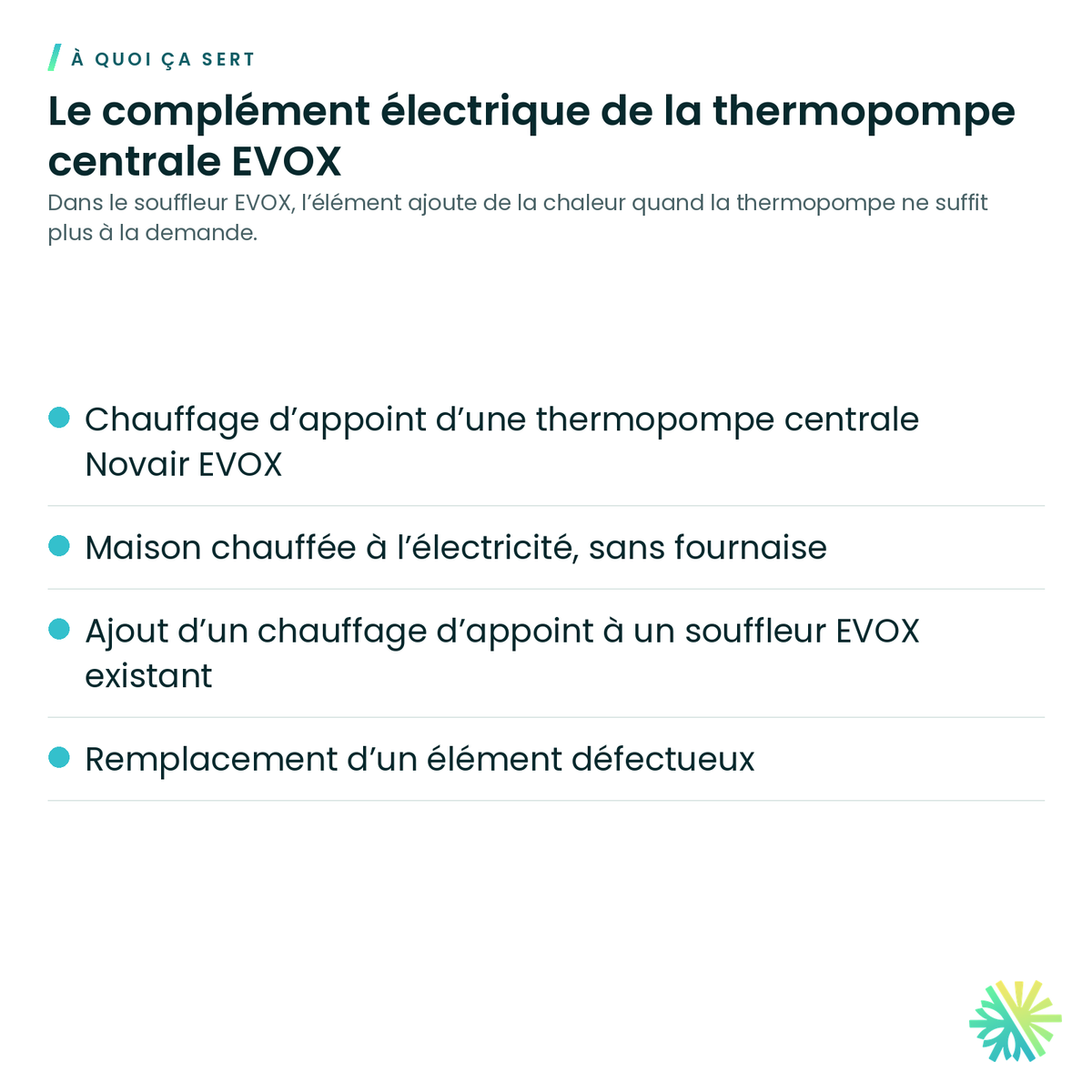

Electric backup for the EVOX central heat pump
In the EVOX air handler, the kit adds heat when the heat pump can no longer keep up with demand.
- Backup heat for a Novair EVOX central heat pump
- All-electric homes with no furnace
- Adding backup heat to an existing EVOX air handler
- Replacing a failed heater kit

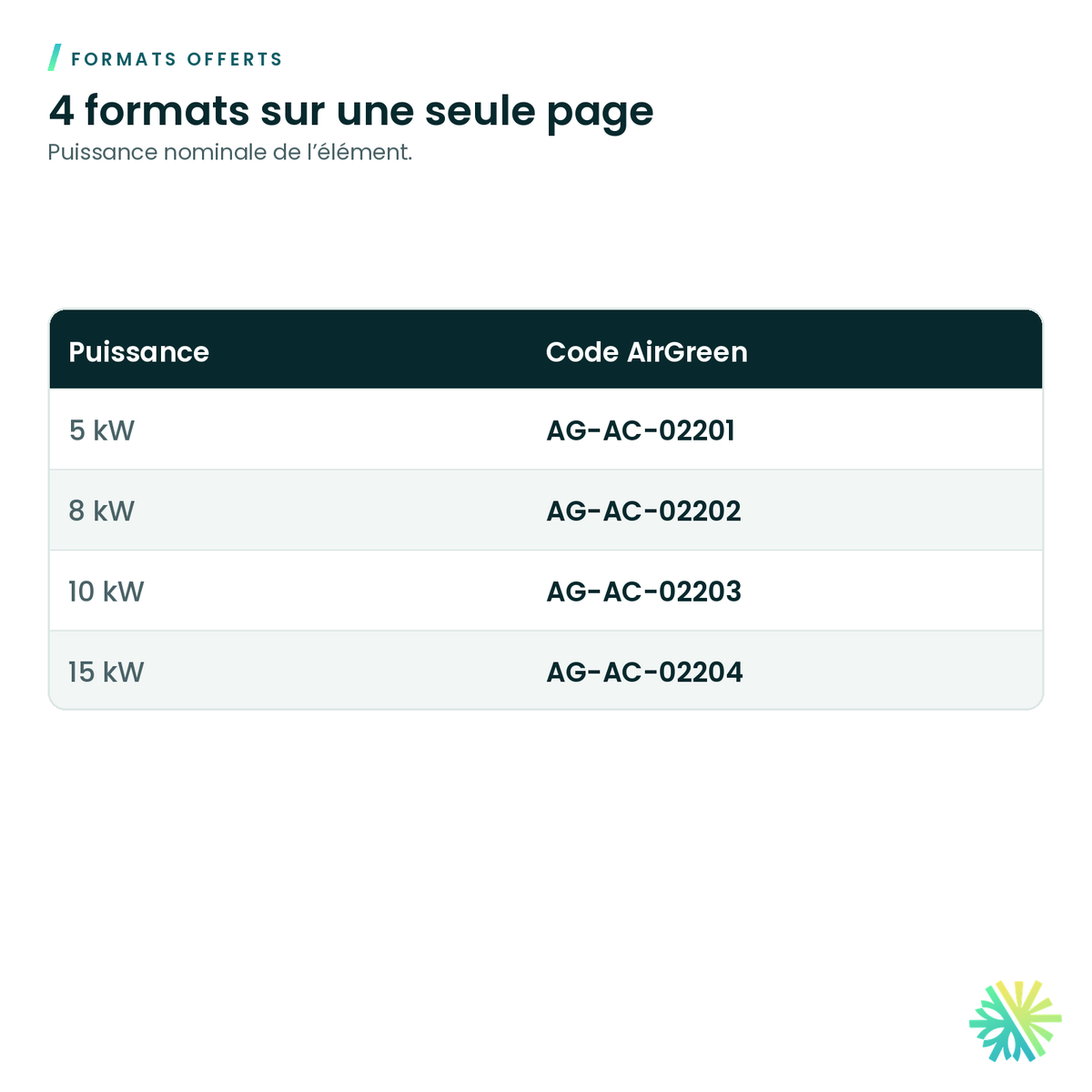

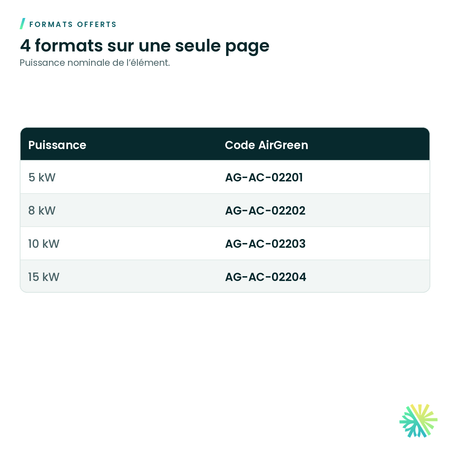

4 sizes, one page
Each size has its own AirGreen code. Tap a row to select it.
Nominal kit rating.

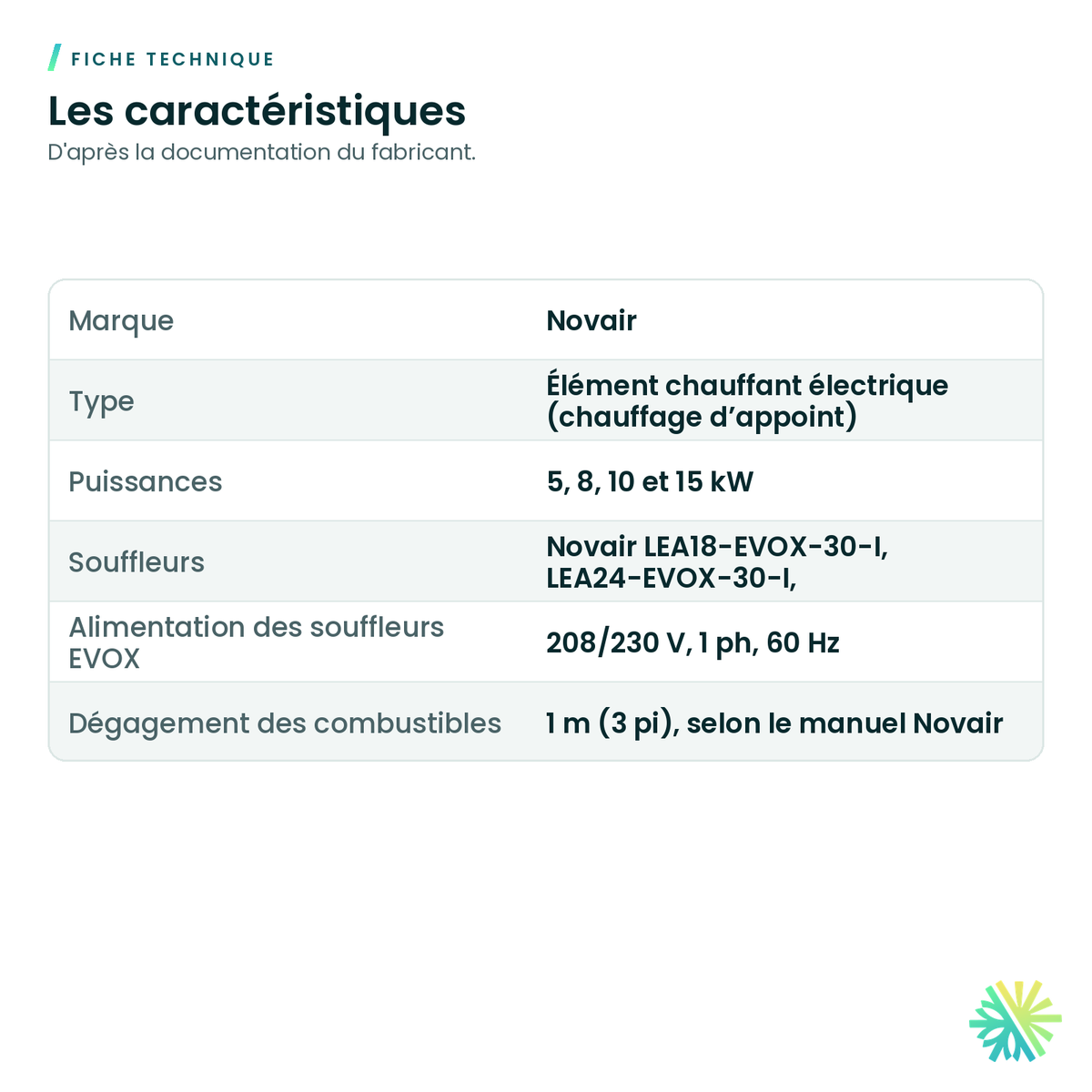

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

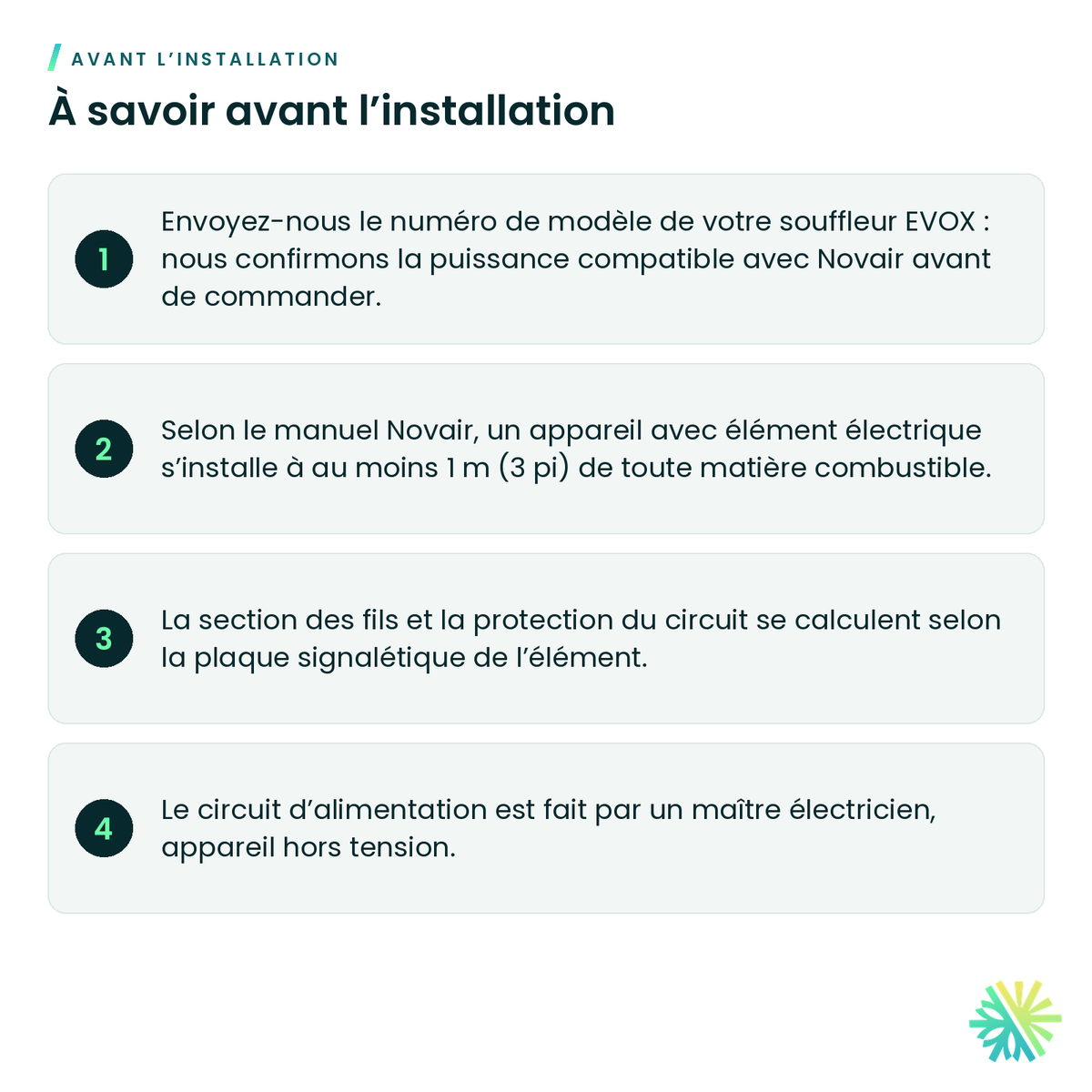

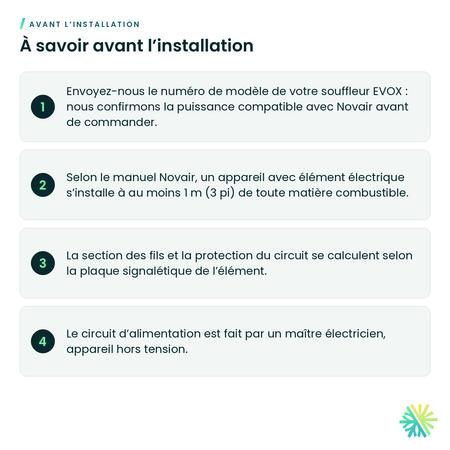

What to know before installing
- Send us your EVOX air handler model number: we confirm the compatible rating with Novair before ordering.
- Per the Novair manual, a unit with an electric heater goes at least 1 m (3 ft) from any combustible material.
- Wire size and circuit protection come from the kit’s rating plate.
- The supply circuit is done by a licensed electrician, with the unit powered off.
Manufacturer documents
You may also need
Copper Electrical Wire
14/4 Communication Cable for Heat Pumps
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-Zone
Hitachi PSC-6RAD H-Link Adapter for airHome Indoor Unit
Hitachi SPX-RAMHLK H-Link Adapter for airHome Multi-Zone Outdoor UnitOriginal partsSee all
Frequently asked questions
Which kit fits my EVOX air handler?
The rating depends on your air handler size, LEA18 to LEA60, and on your heating needs. Send us the model number from the air handler’s rating plate and we confirm the right part with Novair before ordering.
Are there clearance rules?
Yes. The Novair manual calls for a unit with an electric heater to be installed at least 1 m (3 ft) from any combustible material.
Can I use it in another air handler?
No. The heater kit must be the one specified for the air handler. This one is for Novair EVOX air handlers.
Can you install it?
Yes. We fit the kit in the EVOX air handler and check the backup heat; the supply circuit is run by a licensed electrician, everywhere in Greater Montréal.
Backup heat for your Novair central heat pump
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
