LG

LG SmartThinQ Wi-Fi Module PWFMDD200

In stock

LG’s genuine Wi-Fi module that connects an LG indoor unit to the SmartThinQ app on your phone.

AirGreen codeAG-AC-128

2.4 GHz Wi-FiIEEE 802.11 b/g/n
SmartThinQiOS and Android
1 moduleper indoor unit
Remote controlGenuine part
Ask for a quote

514 316-2973 · sales@airgreen.ca

Quick facts

AirGreen codeAG-AC-128
BrandLG
Part no.PWFMDD200
AppLG SmartThinQ
Network2.4 GHz, IEEE 802.11 b/g/n
IncludedUSB cable

The LG PWFMDD200 Wi-Fi module connects a compatible LG indoor unit to your wireless network and to the free LG SmartThinQ app for iOS and Android. LG Canada presents it as a module that, with the app, provides remote monitoring and control of certain LG ductless air conditioners and heat pumps.

Control your heat pump wherever you are

With SmartThinQ, you turn the unit on, change modes and set the schedule to suit your needs. The app tracks filter wear and offers Smart Diagnosis (Smart Diagnosis) to pinpoint the cause of a shutdown. LG states that an unlimited number of indoor units, spread across several systems, can be managed, with one module per unit.

Manufacturer specifications

  • Standard: IEEE 802.11 b/g/n
  • Frequency: 2,400 to 2,483 MHz
  • Maximum transmit power: 21 dBm (b), 18 dBm (g), 17 dBm (n)
  • USB cable included

Compatibility

LG limits this module to certain units; LG Canada lists it, for example, as an option for the LVN480HV single-zone vertical air handler. Send us the model number of your indoor unit: we confirm before ordering. Make sure a 2.4 GHz Wi-Fi network covers the unit’s location.

Installed by AirGreen in Greater Montréal

We install the module, connect it to your network and set up the app in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the indoor unit model.
01 · What it is for

Your LG heat pump on your phone

The module adds Wi-Fi to a compatible LG indoor unit and makes it reachable through the SmartThinQ app.

  • On/off, mode and schedule from anywhere
  • Filter usage monitoring
  • Smart Diagnosis when something is wrong
  • Several units across several systems in the same app
One module per unitLG requires a module in each indoor unit to be controlled with SmartThinQ.
Smart DiagnosisThe app helps pin down the cause of a shutdown with Smart Diagnosis.
No unit limitLG states an unlimited number of indoor units across multiple systems.
Compatible with
LVN480HV
Per the manufacturer. Send us your unit’s model number and we confirm before ordering.
02 · Specifications

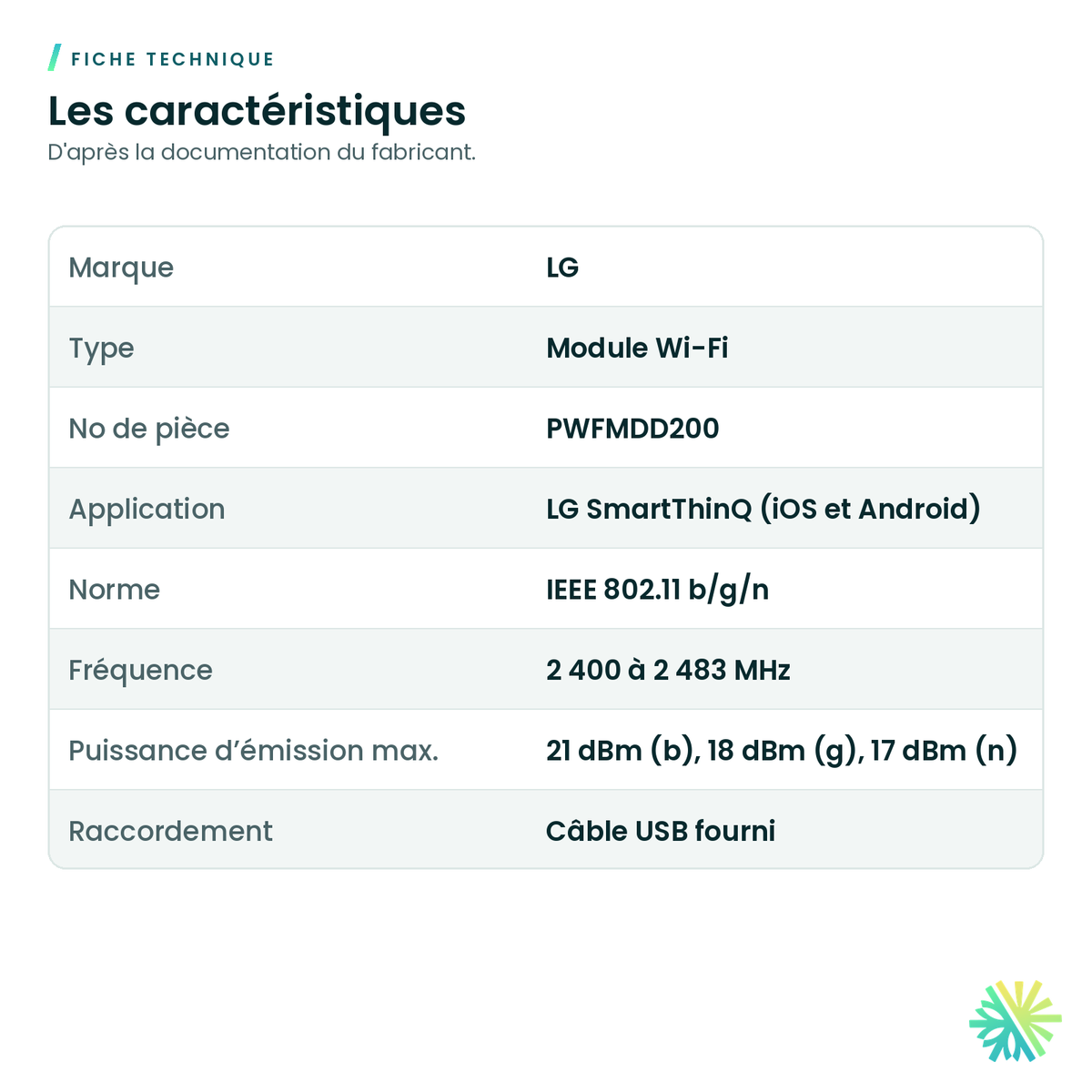

Specifications

From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

BrandLG
TypeWi-Fi module
Part no.PWFMDD200
AppLG SmartThinQ (iOS and Android)
StandardIEEE 802.11 b/g/n
Frequency2,400 to 2,483 MHz
Max. output power21 dBm (b), 18 dBm (g), 17 dBm (n)
ConnectionSupplied USB cable
AirGreen codeAG-AC-128
03 · Before installing

What to know before installing

  • A 2.4 GHz Wi-Fi network must reach the indoor unit location.
  • The module connects to the indoor unit with the supplied USB cable.
  • Check that your LG indoor unit accepts this module: LG reserves it for certain units.
  • Install the LG SmartThinQ app before commissioning.
In the package
  • PWFMDD200 Wi-Fi module
  • USB cable
04 · Documents

Manufacturer documents

PDFSpec sheetLG
05 · Goes with

You may also need

Contrôleur mural Deluxe LG – PREMTA201LG Deluxe Wall Controller – PREMTA201Contrôleur mural Standard III LG – PREMTB101LG Standard III Wall Controller – PREMTB101Élément électrique LG pour cabinet souffleurLG Electric Heater Element for Air Handler CabinetModule de diagnostic LGMV mobile LG – PLGMVW100LG Mobile LGMV Diagnostic Module – PLGMVW100Accessoire du système de détection de fuites Fujitsu – UTYSGZUFujitsu Leak Detection System Accessory – UTYSGZUAdaptateur 5 fils pour thermostat 24 V Hitachi – C3STAT01Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01Adaptateur 5 fils pour thermostat Hitachi C1STAT01 (airHome)Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)Adaptateur de port Hitachi pour multizone airHome RAM-GHitachi Port Adapter for airHome RAM-G Multi-Zone
Same category
Original partsSee all
06 · Questions

Frequently asked questions

Is my LG unit compatible?

LG designs it for select units of its duct-free line; LG Canada lists it, for example, for the LVN480HV vertical air handler. Send us your indoor unit model number and we confirm before ordering.

Do I need one module per unit?

Yes. LG requires a module in each indoor unit controlled by the app.

What network do I need?

A 2.4 GHz Wi-Fi network (IEEE 802.11 b/g/n) that reaches the indoor unit location.

Can you install it?

Yes. We install the module in the unit and connect it to your network and the app, everywhere in Greater Montréal.
