LG

LG Standard III Wall Controller – PREMTB101

In stock

LG’s Standard III wired wall controller: color screen, daily schedule and room temperature and humidity reading.

AirGreen codeAG-AC-123

Color screen4-5/16 in, touch buttons
16 unitsindoor units per controller
12 V DCpowered by the indoor unit
Wired controllerGenuine part
Ask for a quote

514 316-2973 · sales@airgreen.ca

Quick facts

AirGreen codeAG-AC-123
BrandLG
Part no.PREMTB101
SeriesStandard III
Power12 V DC from the indoor unit
Cable3 conductors, 22 AWG, up to 164 ft

The LG Standard III PREMTB101 wall controller is an original wired control for LG indoor units. It mounts on the wall, connects to the indoor unit with a three-conductor cable and draws its 12 V DC power from the unit itself. Its 4-5/16 in colour screen shows the time and operating status.

More control than a remote

The PREMTB101 reads the room’s temperature and humidity and offers a schedule of 5 events per day, automatic changeover with two set points, child lock, the AI Smart Care function and a filter cleaning reminder. One controller can operate up to 16 indoor units as a group, and one indoor unit can take two controllers.

Manufacturer specifications

  • Dimensions: 4-3/4 × 4-3/4 × 5/8 in
  • Operating range: 0 to 40 °C, 0 to 90% relative humidity
  • Cable: 3-conductor unshielded twisted, 22 AWG, up to 164 ft
  • LG options: PZCWRC1 33 ft extension cable, PZCWRCG3 group control kit

Compatibility

The controller connects to LG indoor units designed for a wired control; the available functions vary by unit. Send us the model number of your indoor unit: we confirm before ordering.

Installed by AirGreen in Greater Montréal

We install the controller, run the cable and program the schedule in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the indoor unit model.
01 · What it is for

A controller on the wall instead of a lost remote

Mounted on the wall and wired to the indoor unit, the PREMTB101 is always in the same place.

  • LG indoor units designed for a wired controller
  • Group control: up to 16 indoor units on one controller
  • Offices, stores and apartments where remotes go missing
  • Two controllers possible on the same indoor unit
Temperature and humidityThe controller senses room temperature and humidity.
ScheduleFive events per day and two-setpoint auto changeover.
Filter reminderIt shows the filter sign and lets you reset it.

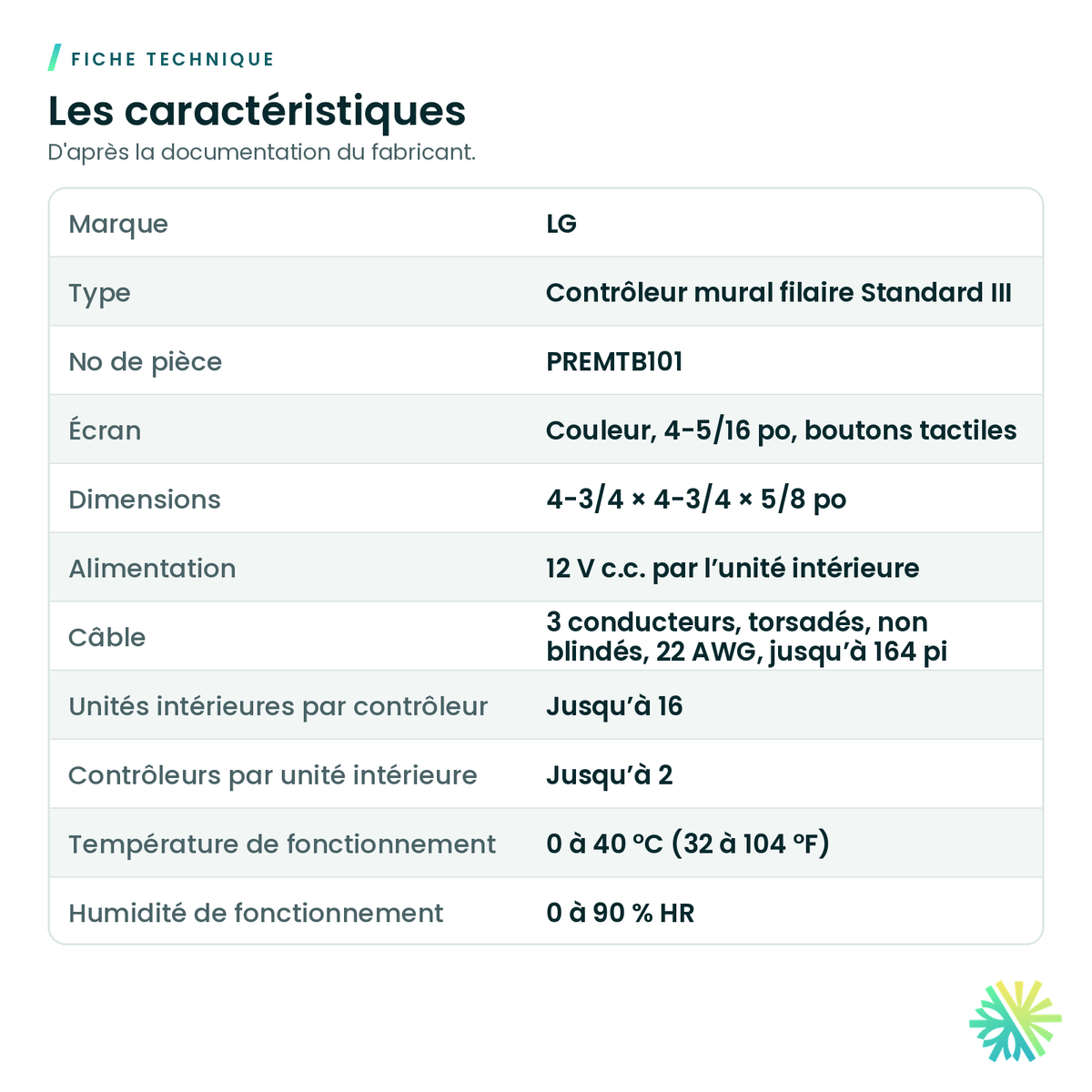

02 · Specifications

Specifications

From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

BrandLG
TypeStandard III wired wall controller
Part no.PREMTB101
ScreenColor, 4-5/16 in, touch buttons
Dimensions4-3/4 × 4-3/4 × 5/8 in
Power12 V DC from the indoor unit
Cable3 conductors, twisted, unshielded, 22 AWG, up to 164 ft
Indoor units per controllerUp to 16
Controllers per indoor unitUp to 2
Operating temperature0 to 40 °C (32 to 104 °F)
Operating humidity0 to 90% RH
AirGreen codeAG-AC-123
03 · Before installing

What to know before installing

  • The controller runs on 12 V DC from the indoor unit: no separate power supply.
  • Communication cable: 3-conductor twisted unshielded 22 AWG, up to 164 ft.
  • LG offers an optional 33 ft extension cable (PZCWRC1) and a group control cable kit (PZCWRCG3).
  • Available functions depend on the connected indoor unit.
04 · Documents

Manufacturer documents

PDFSpec sheetLG
05 · Goes with

You may also need

Contrôleur mural Deluxe LG – PREMTA201LG Deluxe Wall Controller – PREMTA201Contrôleur mural MultiSITE CRC2 LG – PREMTBVC2LG MultiSITE CRC2 Wall Controller – PREMTBVC2Module Wi-Fi LG SmartThinQ PWFMDD200LG SmartThinQ Wi-Fi Module PWFMDD200Grille pour cassette 3x3 LG – PT-AAGW0LG 3x3 Cassette Grille – PT-AAGW0Accessoire du système de détection de fuites Fujitsu – UTYSGZUFujitsu Leak Detection System Accessory – UTYSGZUAdaptateur 5 fils pour thermostat 24 V Hitachi – C3STAT01Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01Adaptateur 5 fils pour thermostat Hitachi C1STAT01 (airHome)Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)Adaptateur de port Hitachi pour multizone airHome RAM-GHitachi Port Adapter for airHome RAM-G Multi-Zone
Same category
Original partsSee all
06 · Questions

Frequently asked questions

Does this controller work with my LG unit?

It connects to LG indoor units designed for a wired controller. Available functions vary by unit. Send us the indoor unit model number and we confirm.

Can it run several units?

Yes, up to 16 indoor units as a group, with LG’s optional PZCWRCG3 group control cable kit.

Do I need an outlet near the controller?

No. It runs on 12 V DC from the indoor unit, over the same 3-conductor cable.

Can you install it?

Yes. We mount the controller, run the cable and set the schedule, everywhere in Greater Montréal.

AirGreen · Montréal, Laval, Longueuil, South Shore, North Shore

A simple, complete LG wall controller

Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.

Ask for a quote514 316-2973
RBQ 5645-9605-01Ventilation, refrigeration and electrical
Free estimateon site, for any installation
Quote in 24 hby phone or email
Bouchervilleshowroom

Specifications from the manufacturer’s documentation, checked on October 7, 2026.
