LG 3x3 Cassette Grille – PT-AAGW0
LG’s genuine standard panel for 3 × 3 four-way dual-vane cassettes, single-zone and Multi V.
AirGreen codeAG-AC-120
514 316-2973 · sales@airgreen.ca
Quick facts
The LG PT-AAGW0 panel is the OEM standard grille for 4-way dual-vane cassettes in the 3 × 3 size, in single-zone and Multi V versions. It covers the ceiling opening and carries everything the occupant sees: the return grille, the supply vanes, the operation indicator and the remote control receiver.
For large rooms cooled from the ceiling
3 × 3 cassettes serve open spaces: stores, meeting rooms, restaurants. The dual vane on each outlet directs the air more precisely than a single vane. The panel is 37-3/8 in square, 1-3/8 in thick, and weighs 16 lb.

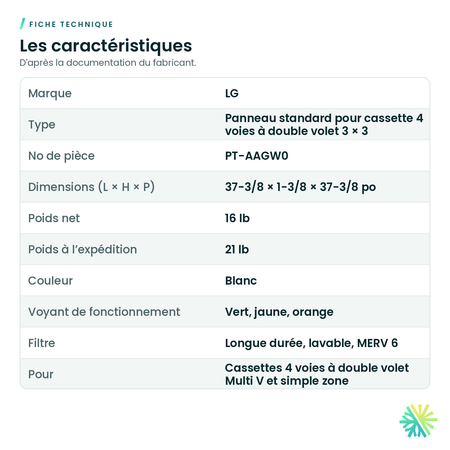

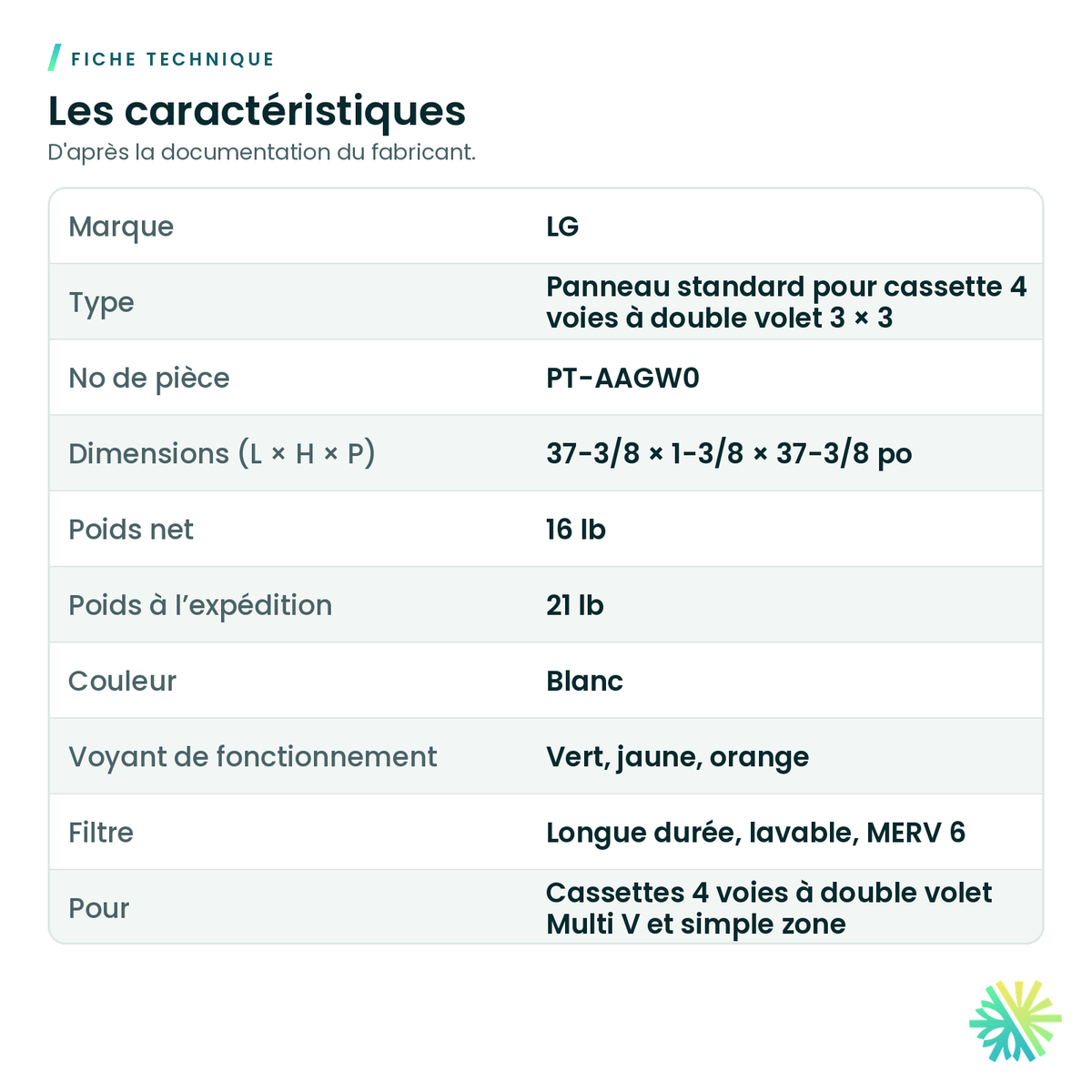

Manufacturer specifications
- Dimensions: 37-3/8 × 1-3/8 × 37-3/8 in
- Net weight: 16 lb (21 lb shipping)
- Colour: white
- Operation indicator: green, yellow and orange
- Filter: long-life, washable, MERV 6
Before ordering
Note the cassette model from its nameplate and check that it is a 3 × 3 dual-vane model. LG 2 × 2 cassettes use a different panel. Plan for two people to hang the panel, and cut the power before plugging in its connectors.
Installed by AirGreen across Greater Montréal
We install LG cassettes and replace their panels in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the cassette model and quantity.
The face of LG’s larger cassettes
The panel carries the discharge vanes, the return grille, the filter and the remote receiver.
- LG 3 × 3 four-way dual-vane single-zone cassettes
- Multi V 3 × 3 four-way dual-vane cassettes
- Large open rooms: stores, meeting rooms, restaurants
- Replacing a damaged panel
Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Make sure your cassette is a 3 × 3 four-way dual-vane model.
- 2 × 2 cassettes use a different panel.
- Plan two people to lift and hang a 16 lb panel overhead.
- Turn off power before plugging in the vane and LED connectors.
You may also need
LG 2x2 Cassette Grille – PT-QAGW0
LG Standard III Wall Controller – PREMTB101
LG MultiSITE CRC2 Wall Controller – PREMTBVC2
High-Capacity Condensate Pump
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Does this panel fit my LG cassette?
LG designs it for 3 × 3 four-way dual-vane cassettes, single-zone and Multi V. Send us the cassette model number and we confirm before ordering.
Is the filter washable?
Yes. LG lists a long-life, washable MERV 6 filter.
What do the LED colors mean?
The panel shows operation in green, yellow or orange; the cassette manual explains each color.
Can you install it?
Yes. We install the cassette and its panel, or replace an existing panel, everywhere in Greater Montréal.
The genuine panel for your LG 3 × 3 cassette
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
