LG 2x2 Cassette Grille – PT-QAGW0
The genuine LG panel that caps R-32 Multi F 2 × 2 four-way cassettes and finishes the ceiling opening.
AirGreen codeAG-AC-119
514 316-2973 · sales@airgreen.ca
Quick facts
The LG PT-QAGW0 grille is the genuine panel for LG Multi F R-32 2 × 2 4-way cassettes. The cassette sits above the ceiling; the panel covers the opening, takes in return air at the centre and blows it out on its four sides. LG pairs it with the KNUDB091A (9,000 BTU/h), KNUDB121A (12,000 BTU/h) and KNUDB181A (18,000 BTU/h) cassettes.
A clean finish at the ceiling
At 24-13/32 in square, it fits the 2 × 2 ft tile suspended ceilings found in offices, clinics and stores. The panel is white RAL 9003 ABS and weighs 6.3 lb. It is also the part to replace when a panel is cracked, yellowed or damaged during work.

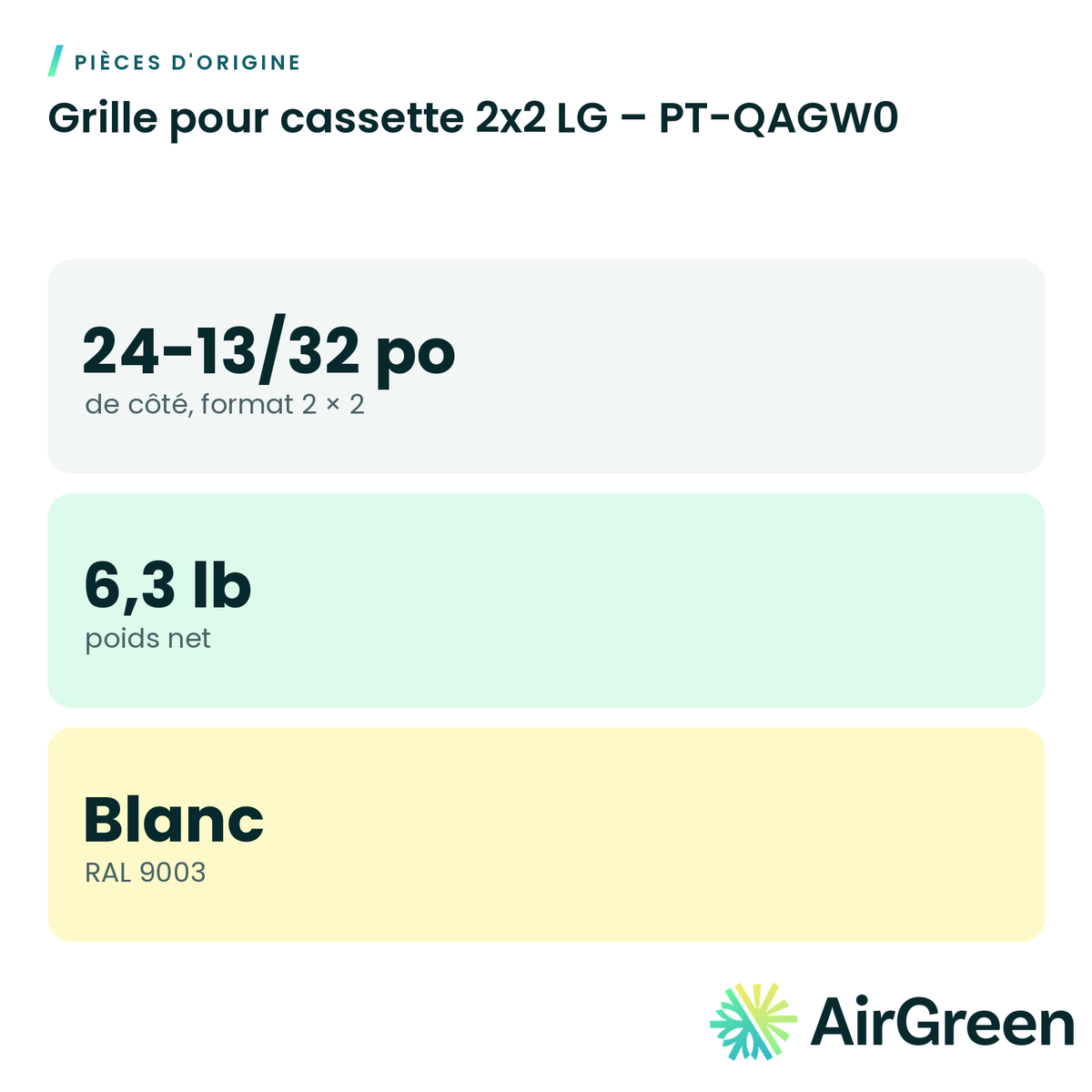

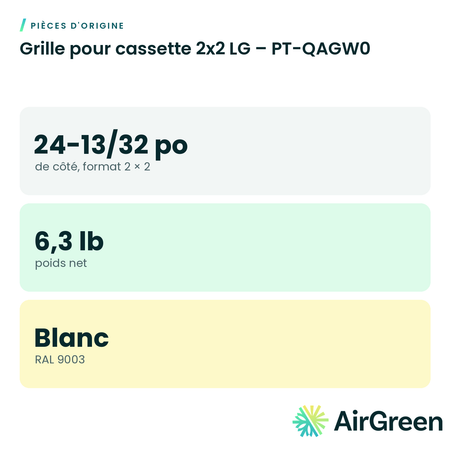

Manufacturer specifications
- Dimensions: 24-13/32 × 24-13/32 in
- Net weight: 6.3 lb (8.6 lb shipping)
- Colour: white, RAL 9003
- Material: ABS
The right panel for your cassette
Note the model number on the cassette's nameplate. LG 3 × 3 cassettes use a different panel, the PT-AAGW0. We confirm compatibility before ordering.
Installed by AirGreen in Greater Montréal
We install LG cassettes and their panels in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the cassette model and the quantity.

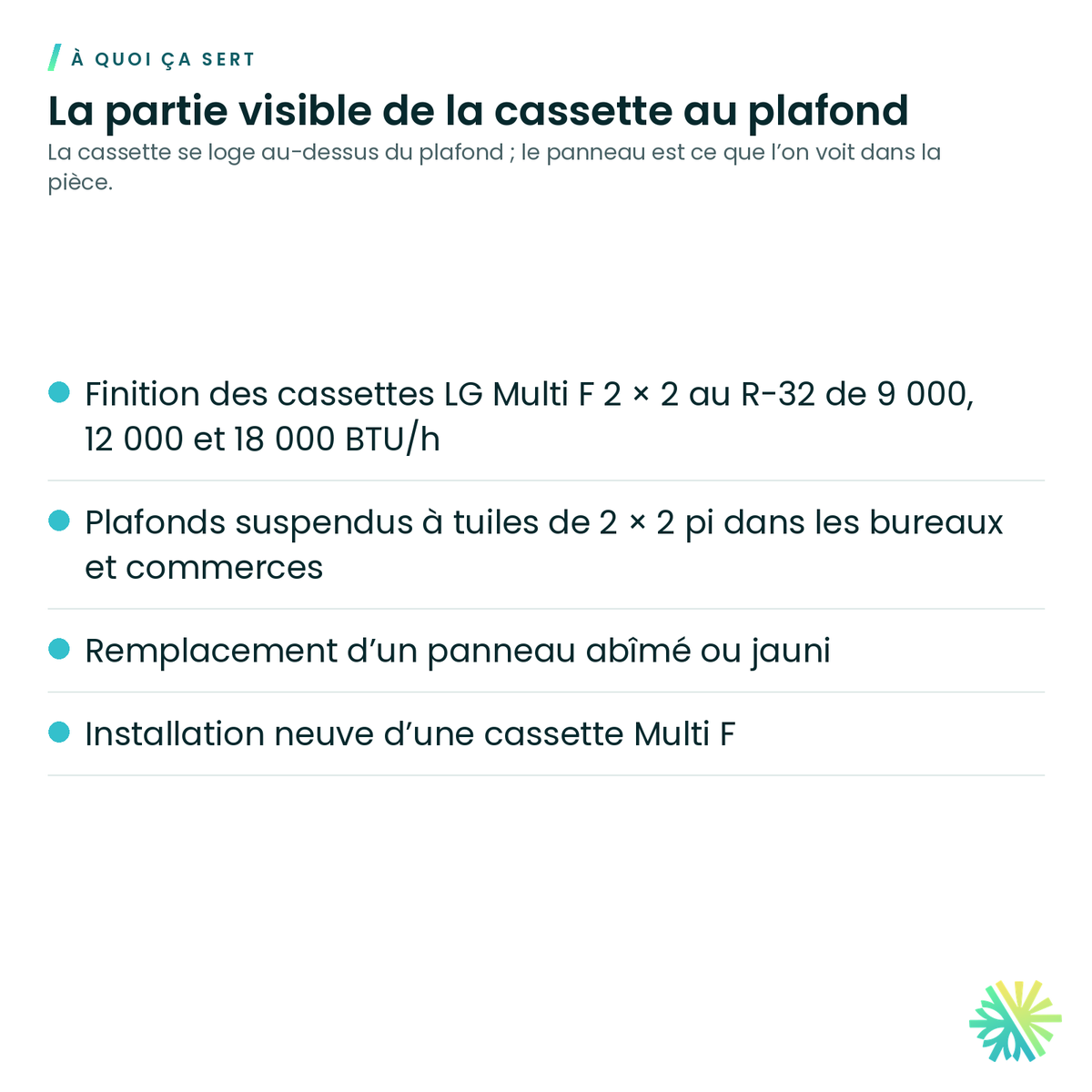

The visible part of the cassette
The cassette sits above the ceiling; the panel is what you see in the room.
- Finish for 9,000, 12,000 and 18,000 Btu/h R-32 LG Multi F 2 × 2 cassettes
- 2 × 2 ft suspended ceiling grids in offices and stores
- Replacing a damaged or yellowed panel
- New Multi F cassette installations

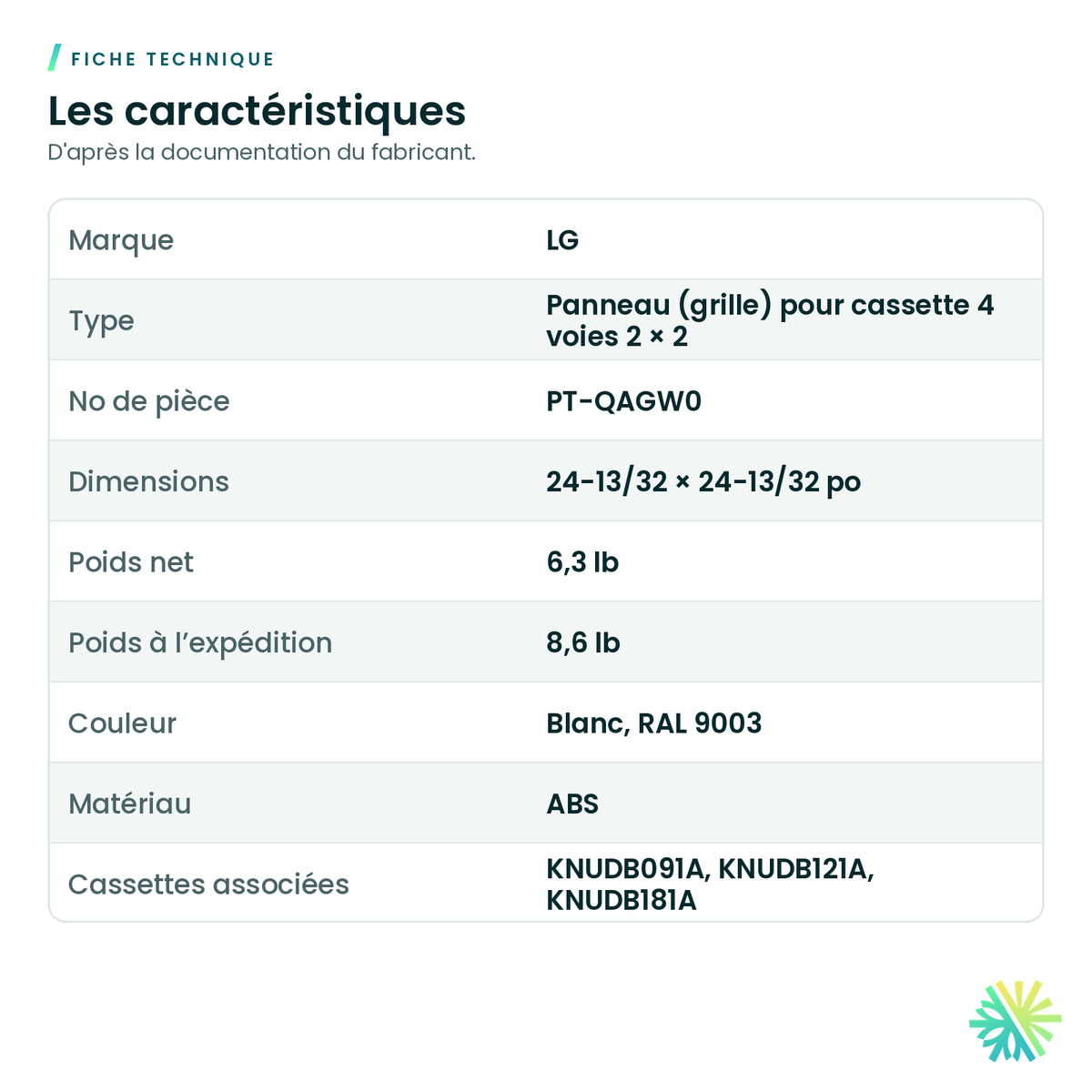

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

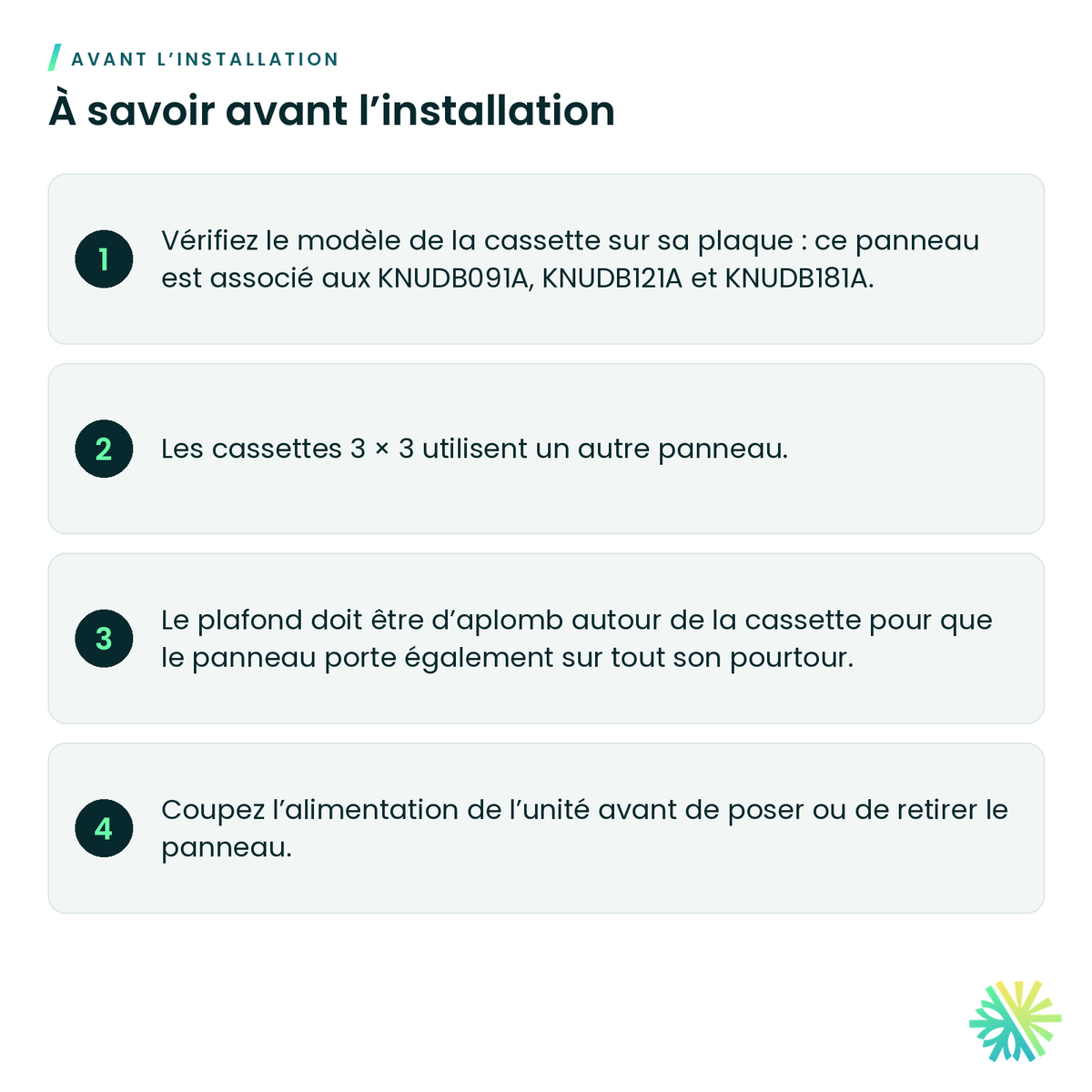

What to know before installing
- Check the cassette model on its nameplate: this panel matches the KNUDB091A, KNUDB121A and KNUDB181A.
- 3 × 3 cassettes use a different panel.
- The ceiling around the cassette must be level so the panel seats evenly all around.
- Turn off power to the unit before fitting or removing the panel.
You may also need
LG 3x3 Cassette Grille – PT-AAGW0
LG Standard III Wall Controller – PREMTB101

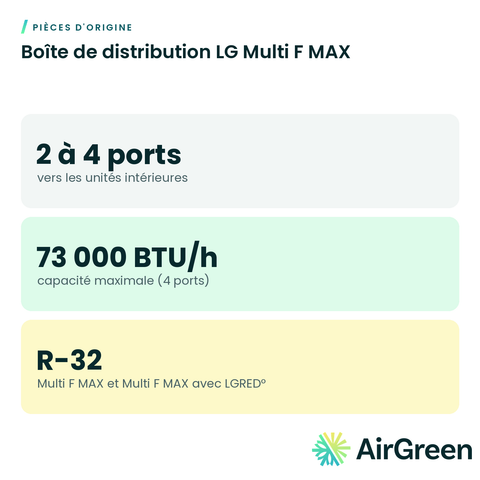

LG Multi F MAX Distribution Box
Condensate Pump for Wall-Mounted Heat Pump
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Does this panel fit my LG cassette?
LG matches it to the R-32 Multi F four-way 2 × 2 cassettes KNUDB091A, KNUDB121A and KNUDB181A. Send us your cassette model number and we confirm before ordering.
Does it come with the cassette?
LG lists the panel under its own part number. We include it in the cassette quote.
Will it fit a 3 × 3 cassette?
No. The 3 × 3 size uses panel PT-AAGW0, about 37-3/8 in square.
Can you install it?
Yes. We install the cassette and its panel, or replace an existing panel, everywhere in Greater Montréal.
The genuine panel for your LG 2 × 2 cassette
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
