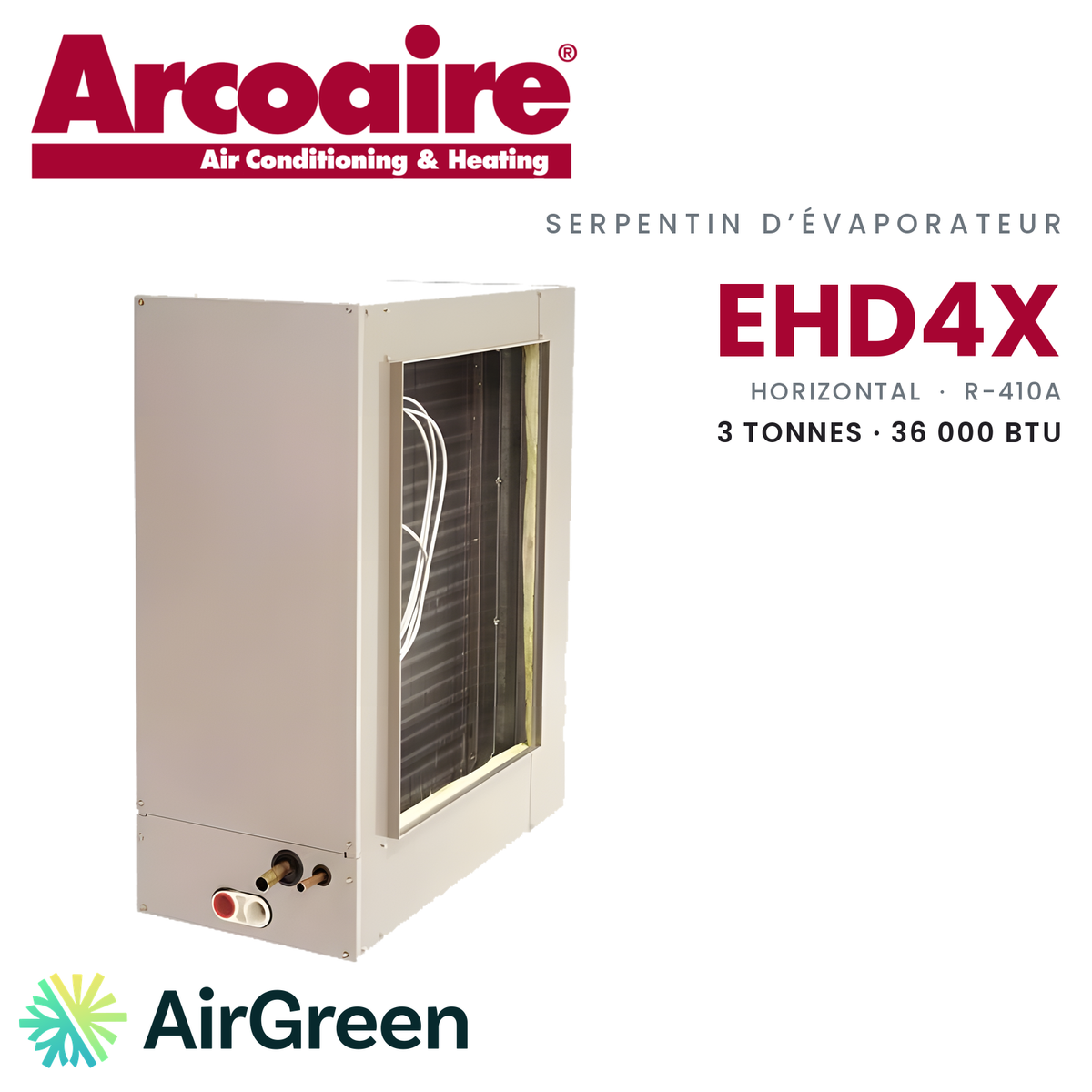

ARCOAIRE EHD4X36AAL Horizontal Evaporator Coil | 3 Tons
Arcoaire 3-ton horizontal cased coil, all aluminum: its slide-out coil comes out of the cabinet for cleaning.
Model numberEHD4X36AAL
514 316-2973 · sales@airgreen.ca
Quick facts
A 3-ton aluminum coil, designed for simple maintenance
A coil that slides out of its cabinet
Over the years, the fine dust that gets past the filter settles on the evaporator coil fins and slows the airflow. The system then works harder for the same comfort. On Arcoaire’s EHD4X36AAL, the coil slides out of the cabinet: the technician reaches the fins easily and cleaning is more thorough.
The manufacturer also chose an all-aluminum coil, which it presents as corrosion resistant. For a component that sits in condensation moisture every summer, that choice matters.
What the EHD4X36AAL is
It is a horizontal cased evaporator coil, R-410A, in a 3-ton size (36,000 BTU/h). It attaches to an air handler or an electric furnace installed on its side and connects to an outdoor unit using the same refrigerant. Its bi-flow TXV lets it serve with a central air conditioner or with a heat pump, which also heats the house in winter.
In a local home
The 3-ton size sits in the middle of the EHD4X series, between the EHD4X30AAL and the EHD4X42AAL. It is found in single-family homes and two-storey houses whose central system is installed horizontally: crawl space, attic, basement ceiling. Because air can pass through the coil in either direction, it adapts to the side the blower is on.
In summer, the coil also removes moisture from the air. That water must drain to a floor drain or a condensate pump, something we plan from the first visit.
What our installation covers
We provide a free on-site estimate and a written quote. Before ordering, we check the matched outdoor unit, the space around the cabinet for future maintenance and the exact cabinet dimensions. On the day, our technicians set the coil, connect the refrigerant lines and the drain, run the leak test and the evacuation, then commission the system. When the work is done, we show you where the indoor unit’s filter is: changing it regularly remains the best way to keep the coil clean between two cleanings.
AirGreen is a family business established in Montreal for more than fifteen years. We hold RBQ licence 5645-9605-01 in ventilation, refrigeration and electrical work.
Warranty, stock and grant
Arcoaire offers a 10-year limited parts warranty when the product is registered within 90 days of installation, and 5 years without registration. This size is available while supplies last. Sold alone, the coil is not eligible for the LogisVert grant.
Ask for a free estimate for your home in Montreal, Laval, Longueuil, on the North Shore or on the South Shore; financing is available.
A horizontal coil that is easy to maintain
The EHD4X36AAL is the indoor cooling section of a horizontal central system: it attaches to a horizontal air handler or electric furnace and connects to an R-410A outdoor unit, air conditioner or heat pump.
- Replacing a 3-ton horizontal R-410A coil
- New 3-ton central air conditioner or heat pump on a horizontal indoor unit
- Systems in an attic or a crawl space, where maintenance has to stay simple
- Homeowners who want a coil that is easy to clean

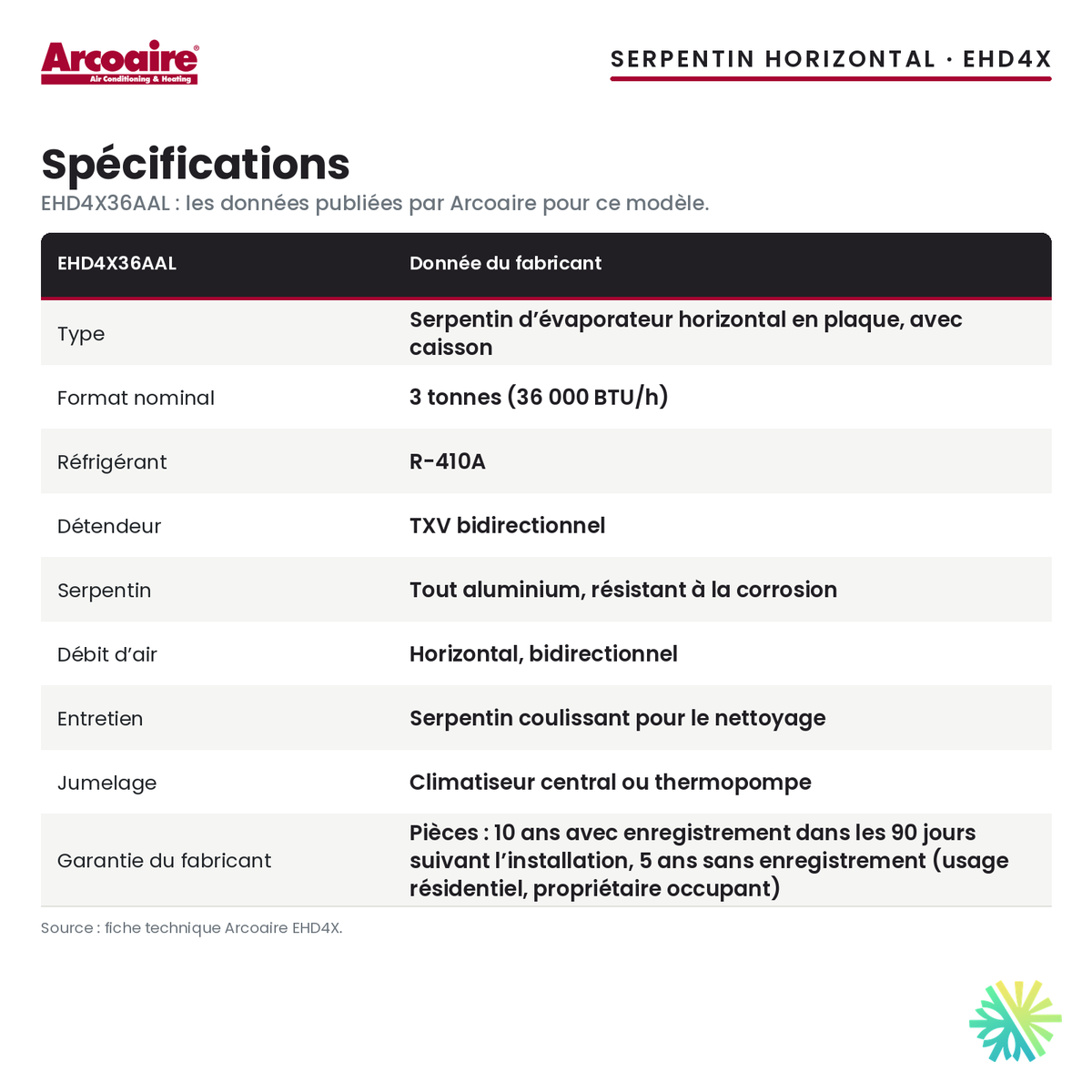

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Available while supplies last.
- Sold alone: not eligible for the LogisVert grant.
- No SEER2 rating applies to the coil alone: efficiency is that of the matched system (outdoor unit, coil and indoor unit).
- Plan clear access to the cabinet so the coil can be slid out for cleaning.
- Cabinet dimensions are not in the manufacturer documentation validated for this size: we confirm them before ordering.
- Register the product within 90 days of installation to get the 10-year parts warranty (5 years otherwise).
Manufacturer documents
Explore the range
Evaporator coilsSee allSame brand
ARCOAIRESee all
Frequently asked questions
How is this coil cleaned?
The coil slides out of its cabinet, which gives access to the fins. We recommend having it cleaned by a technician, who also checks the condensate drain.
Why an all-aluminum coil?
Arcoaire chose aluminum for the whole coil and presents it as corrosion resistant.
Can I pair it with a heat pump?
Yes. Arcoaire presents it for an air conditioner or a heat pump, and its bi-flow TXV accepts refrigerant flow in both directions.
Do I need to register the warranty?
Yes. Arcoaire’s limited warranty is 10 years on parts if the product is registered within 90 days of installation, and 5 years otherwise. It covers owner-occupied homes.
Does this coil have a SEER2 rating?
Not on its own. An efficiency rating applies to a complete system: outdoor unit, coil and indoor unit. We check the combination with you before ordering.
A 3-ton Arcoaire coil, installed and commissioned by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
