ARCOAIRE EHD4X42AAL Horizontal Evaporator Coil | 3.5 Tons
Arcoaire 3.5-ton horizontal R-410A evaporator coil, to replace or complete a central system installed horizontally.
Model numberEHD4X42AAL
514 316-2973 · sales@airgreen.ca
Quick facts
Replace the coil without changing the whole system
When only the coil needs replacing
A still-young outdoor unit can end up paired with a damaged or poorly matched indoor coil. In that case, replacing everything is not always necessary: a new coil using the same refrigerant and of matching capacity brings the system back to normal operation. Arcoaire’s EHD4X42AAL meets that need for 3.5-ton (42,000 BTU/h) R-410A systems whose indoor unit is installed horizontally.
This model is available while supplies last. It is an opportunity for homeowners and contractors looking specifically for a horizontal coil in this size.
The EHD4X42AAL at a glance
It is a slab evaporator coil in a cabinet, designed for horizontal airflow in either direction. The coil is all aluminum, corrosion resistant according to the manufacturer, and it slides out of the cabinet for cleaning. On the spec sheet from ICP, Arcoaire’s manufacturer, it carries the reference EHD4X42AAL1. The bi-flow TXV meters refrigerant in both flow directions, so Arcoaire presents this coil for a central air conditioner or a heat pump.
It attaches to an air handler or an electric furnace installed on its side. This kind of setup is found under a finished basement ceiling, in a crawl space or in a utility room short on height, a common configuration in homes and plexes in Laval as well as on the South Shore.
How we work
It all starts with a free on-site estimate. We note your outdoor unit model, check that it runs on R-410A and that its capacity fits, then confirm the cabinet dimensions and the available space. You receive a written quote before anything is ordered.
At installation, our technicians remove the old coil, set the new one, braze the refrigerant lines and connect the condensate drain. Then come the leak test, the evacuation and commissioning, in cooling and, where applicable, in heat pump heating. A family business established in Montreal for more than fifteen years, AirGreen holds RBQ licence 5645-9605-01 in ventilation, refrigeration and electrical work.
Before you reserve your coil
Arcoaire grants a 10-year limited parts warranty when the product is registered within 90 days of installation, and 5 years without registration. Sold alone, the coil is not eligible for the LogisVert grant. If your outdoor unit is also nearing the end of its life, we compare with you replacing the coil alone and replacing the complete system.
Book your free estimate in Montreal, Laval, Longueuil, on the North Shore or on the South Shore, and ask about financing.
To replace or complete a horizontal central system
The EHD4X42AAL cools the air leaving an air handler or an electric furnace installed horizontally. It pairs with an R-410A outdoor unit, air conditioner or heat pump, of matching capacity.
- A 3.5-ton horizontal R-410A coil to replace on a system still in good condition
- New 3.5-ton central heat pump with a horizontal indoor unit
- Adding air conditioning to a horizontal electric furnace
- Contractors who need a horizontal coil in this size

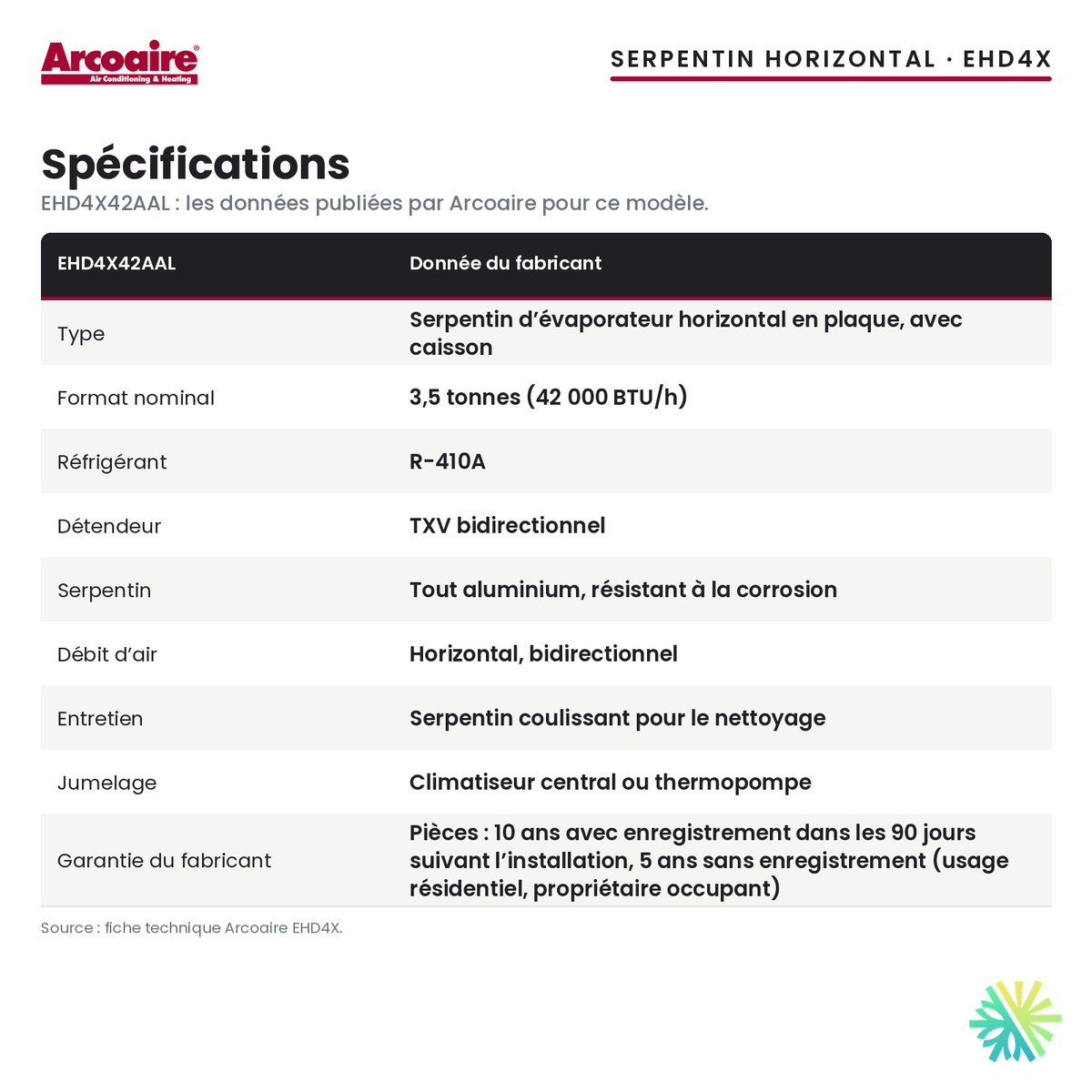

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Available while supplies last.
- Sold alone: not eligible for the LogisVert grant.
- The outdoor unit must run on R-410A; we check its model and capacity before ordering.
- Cabinet dimensions are not in the manufacturer documentation validated for this size: we confirm them before ordering.
- The 10-year parts warranty requires registration within 90 days of installation (5 years without registration).
Manufacturer documents
Explore the range
Evaporator coilsSee allSame brand
ARCOAIRESee all
Frequently asked questions
My outdoor unit is recent but the coil needs replacing: can I replace only the coil?
Often, yes, if the outdoor unit runs on R-410A and its capacity matches the 3.5-ton size. We check its model and the condition of the system before confirming.
What does "while supplies last" mean?
The quantity available for this model is limited. Once the stock is sold, we offer you another coil compatible with your system.
Is the coil compatible with a heat pump?
Yes. Arcoaire presents it for an air conditioner or a heat pump, and its bi-flow TXV works in both flow directions.
What is the full manufacturer reference?
In the spec sheet from ICP, Arcoaire’s manufacturer, this size is listed as EHD4X42AAL1; the last digit is the revision of the aluminum model.
Do I qualify for the LogisVert grant?
No, not for a coil sold alone. If you are replacing the whole system, ask us for a quote on a complete system.
A 3.5-ton horizontal coil, installed and commissioned by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
