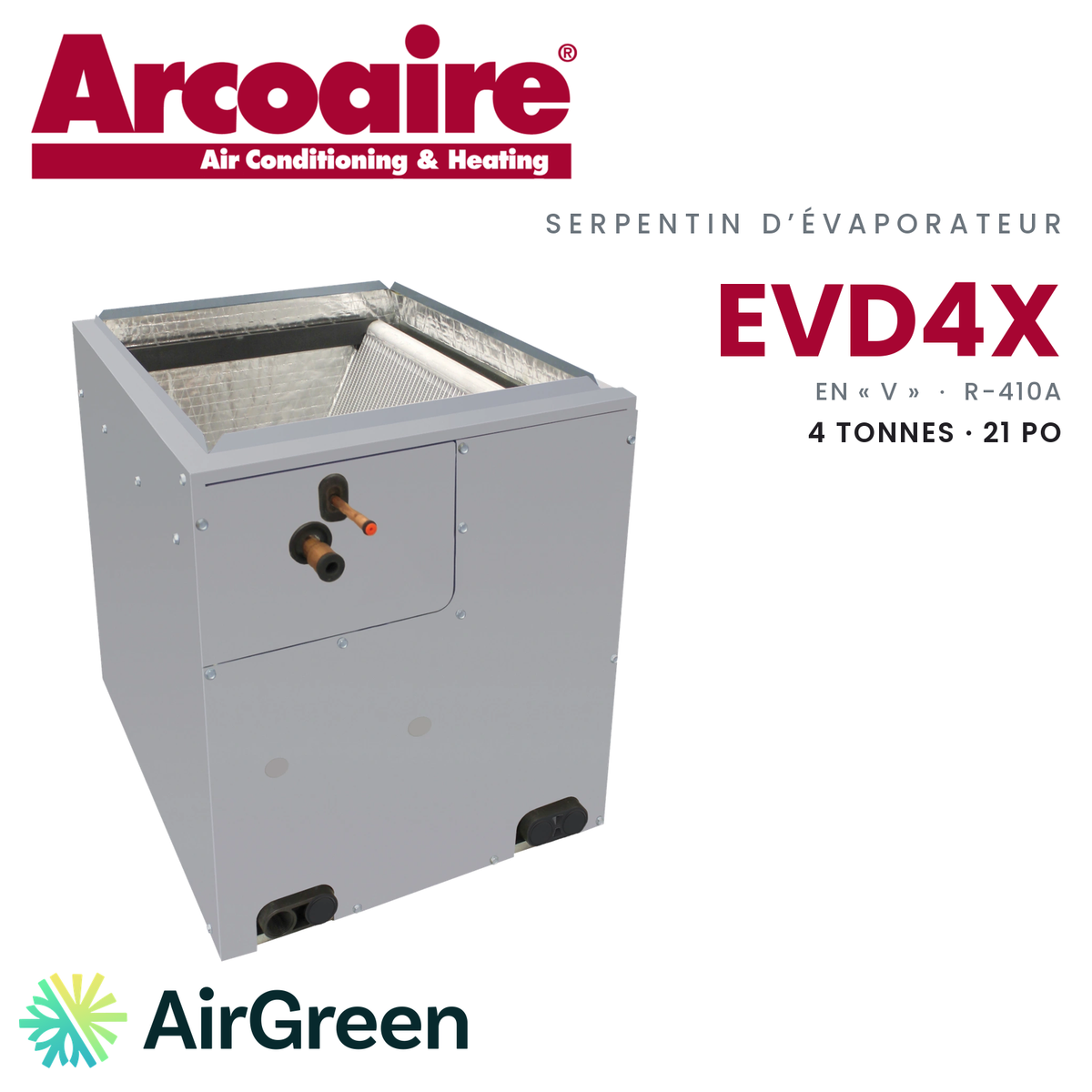

ARCOAIRE EVD4X48M21A “V” Evaporator Coil | 4 Tons
The Arcoaire EVD4X48M21A V-coil: a 4-ton R-410A evaporator with a 21 in cabinet, for central air conditioning in large homes.
Model numberEVD4X48M21A
514 316-2973 · sales@airgreen.ca
Quick facts
Cooling a large home from a single 21 in furnace
In a large home heated by an electric furnace, a single duct system can also deliver summer comfort, provided the coil keeps up. The Arcoaire EVD4X48M21A evaporator coil is the 4-ton size of the EVD4X series: an R-410A evaporator with a 21 in insulated cabinet and a factory-installed thermostatic expansion valve. AirGreen installs it in Montreal, Laval, Longueuil and across the South Shore and the North Shore.
A size for high cooling needs
The EVD4X48M21A is aimed at homes where the cooling demand is high: several floors, large windows, a finished basement, or a combination of all of these. It pairs with a 4-ton R-410A central air conditioner and connects with a 3/8 in liquid line and a 7/8 in suction line. Its Power-V style V-coil is made of corrosion-resistant aluminum microchannel. Arcoaire places the headers at the top of the coil and states that this design delivers the same or better SEER without resorting to a larger coil. The condensate drain pan is PBT and the 24-gauge cabinet is fully insulated.
Airflow, the key to a 4-ton system
The bigger the system, the more air it has to move. Arcoaire publishes this coil’s performance between 1,200 and 2,000 CFM. Before proposing this size, we check that the furnace blower can deliver that airflow and that the supply and return ducts are large enough to carry it without excessive noise. If not, we tell you clearly and include the corrections in the quote.
This coil is designed for air conditioning only: it does not pair with a heat pump. It installs vertically, upflow or downflow, on a 21 in wide furnace. Sold alone, it does not qualify for the LogisVert grant. This model is available while supplies last.
What our installation includes
AirGreen is a family business established in Montreal for more than fifteen years, holding RBQ licence 5645-9605-01 in ventilation, refrigeration and electrical work. We measure the furnace, assess the blower and ductwork, set the coil in the plenum, connect and braze the refrigerant lines, perform the leak test and evacuation, connect the condensate drain and commission the system. Arcoaire offers a 10-year parts limited warranty with timely registration, or 5 years without registration within 90 days of installation.
A properly sized cooling project
Ask for your free on-site estimate and receive a detailed written quote. For a project of this size, financing lets you spread out the payments.
The largest EVD4X coil in our lineup
The EVD4X48M21A sits vertically on a 21 in electric furnace or air handler. Paired with a 4-ton R-410A central air conditioner, it cools a large home from a single duct system.
- Large multi-storey homes with a single 21 in electric furnace
- 4-ton R-410A central air conditioner
- Replacing a 4-ton coil at the end of its life
- Upflow or downflow

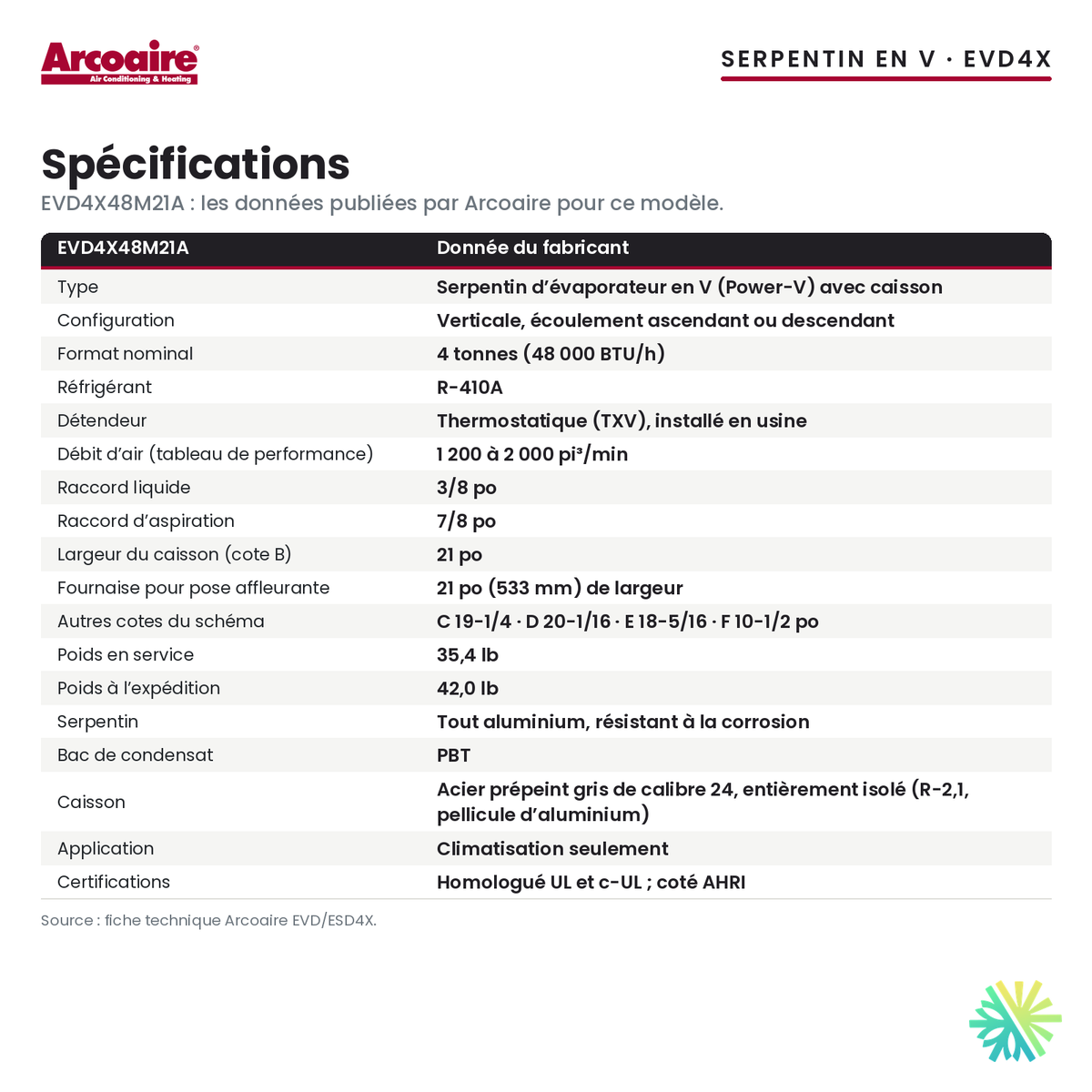

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Air conditioning only: this model does not pair with a heat pump, according to Arcoaire.
- Sold alone: not eligible for the LogisVert grant; no efficiency rating of its own.
- The blower and ductwork must be able to move 1,200 to 2,000 CFM.
- 3/8 in (liquid) and 7/8 in (suction) connections; vertical installation only.
- Available while supplies last.
Manufacturer documents
Explore the range
Evaporator coilsSee allSame brand
ARCOAIRESee all
Frequently asked questions
Can my ductwork handle 4 tons?
That is the first thing we check. The manufacturer publishes this coil’s performance between 1,200 and 2,000 CFM; if the blower or the ducts cannot move that airflow, we tell you in the quote.
What furnace is needed?
An electric furnace or air handler 21 in (533 mm) wide, upflow or downflow, whose blower delivers the required airflow.
Which refrigerant lines are needed?
A 3/8 in liquid line and a 7/8 in suction line, connected to a 4-ton R-410A air conditioner.
Can I use it with a heat pump?
No. Arcoaire states this model is designed for air conditioning only.
Does it qualify for the LogisVert grant?
No. Sold alone and limited to air conditioning, it does not qualify.
A 4-ton coil, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
