GENERAL AIRSTAGE RLXFZ 4-Head Heat Pump | 45,000 BTU Compressor | Montreal, Laval, Longueuil, South Shore and North Shore

In stock
SKU: AOU45RLXFZ-9999
45,000BTU/h · 4 heads
−15 °Cheats down to
Optional Wi-FiR-410AUp to 5 heads
Talk to a technician · 514 316-2973
Outdoor unit AOU45RLXFZPossible indoor models ASU7RLF1, ASU9RLF1, ASU12RLF1, ASU15RF1, ASU18RLFAHRI 8908617
In short

The GENERAL AIRSTAGE RLXFZ 45 000 multi-zone heat pump heats and cools 4 rooms with a single outdoor unit. it delivers 28,200 BTU/h at −8 °C, heats down to −15 °C. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.

01 · The verdict in 10 seconds

4 rooms, one outdoor unit.

Compared with the 8 multi-zone systems of 45,000 BTU we sell. Figures come from the manufacturer’s data and the AHRI certification.

AHRI 8908617
+Only 55 dB(A) outdoorsRank 1 (tied) of 8. Class median: 55.5 dB(A).
!Good to know: 28,200 BTU/h at −8 °CRank 5 of 8; class median: 29,600 BTU/h.
28,200BTU/h at −8 °C
−15 °Cstill heating
4 → 5heads, on the same unit
02 · Videos

Before the numbers, watch it run.

03 · How it works

Turn rooms on and off. Watch the power being shared.

One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.

04 · My plan

Tell us your rooms. We tell you if this size is enough.

Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.

05 · The series

The whole series at a glance: find the box that fits you.

Each box is a product: the outdoor unit’s size, and the number of heads.

Outdoor2 zones3 zones4 zones5 zones
18,000BTU
2
24,000BTU
23
36,000BTU
234
45,000BTU
23Here5

GENERAL AIRSTAGE RLXFZ 45 000 · 4 zones

28,200 BTU/h
at −8 °C

Up to 5 heads on this outdoor unit. Tap another box to see that size.

06 · Deep cold

At −15 °C, it still delivers 69 % of its rated capacity.

Tap a temperature: capacity, efficiency and the cost of one hour of heating.

07 · The bill

At every temperature, cheaper than baseboards.

Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.

08 · Efficiency

The official ratings, on the same scales as before.

SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.

SEER2 · seasonal cooling20.0
Scale 1 – 30Median: 21
Rank 5 (tied) of 8 in its class.
HSPF2 · seasonal heating9.2
Scale 1 – 15Median: 9.6
Rank 5 (tied) of 8 in its class.
EER2 · cooling in peak heat10.5
Scale 1 – 20Median: 11.3
Rank 5 (tied) of 8 in its class.
COP at −15 °C1.88
Scale 0 – 4Median: 2.01
Rank 5 (tied) of 8 in its class.
09 · Report card

Where it ranks among same-size multi-zone systems.

Compared with the 8 multi-zone systems of 45,000 BTU we sell, using the LogisVert list figures. Weaknesses too, said plainly.

10 · Multi-zone or wall units

One multi-zone or several wall units? Both sides, honestly.

This multi-zone4 wall units
On the wall1 outdoor unit4 outdoor units
Electrical1 dedicated circuitOne circuit per unit
CapacityShared between roomsReserved for each room
If the outdoor unit stopsEvery zone stopsOnly one room
ModesSame mode everywhereEach room chooses
LogisVertPer the listDepends on each model

We compare both options on your floor plan during the estimate.

11 · Installation

What to know before installing a multi-zone system.

Dimensions, wiring and lines, drawn. Then our six steps.

The outdoor unit, dimensioned

38.19 in
AOU45RLXFZDepth 14.56 in
39.31 in
Dimensions: product sheet (W × D × H).

One circuit for the whole house

Electrical panel
Load calculation before the quote
29 A max. breaker
MCA 24 A · 220 V
Outdoor unit
Head 1
Head 2
Head 3
Head 4
Our RBQ licence covers electrical work (subclass 16).
01Room-by-room visit and surveyWe measure each zone and note insulation and windows. The on-site estimate is free.
02Heads and line layoutOne pair of lines per head.
03Outdoor unit baseAbove the snow line, away from the neighbours’ bedroom windows.
04Exposed, finished linesLines 1/4 - 3/8 in under line covers, no work inside the walls.
05Dedicated circuit220 V, MCA 24 A, 29 A protection. The panel load calculation is done before the quote.
06Commissioning, zone by zoneEach head is tested and the controls set up.
12 · Sound

Published sound levels, on one scale.

We use the outdoor figure to choose where the unit goes.

21
40
55
20
56
20 dB(A)3040506070
21 Reference head, lowest speed40 Reference head, highest speed20 Class indoor median55 Outdoor unit56 Class outdoor median
Values in dB(A). Indoor values are those of the sheet’s reference head; each head has its own, confirmed for the chosen model. Municipal noise by-laws vary by borough.

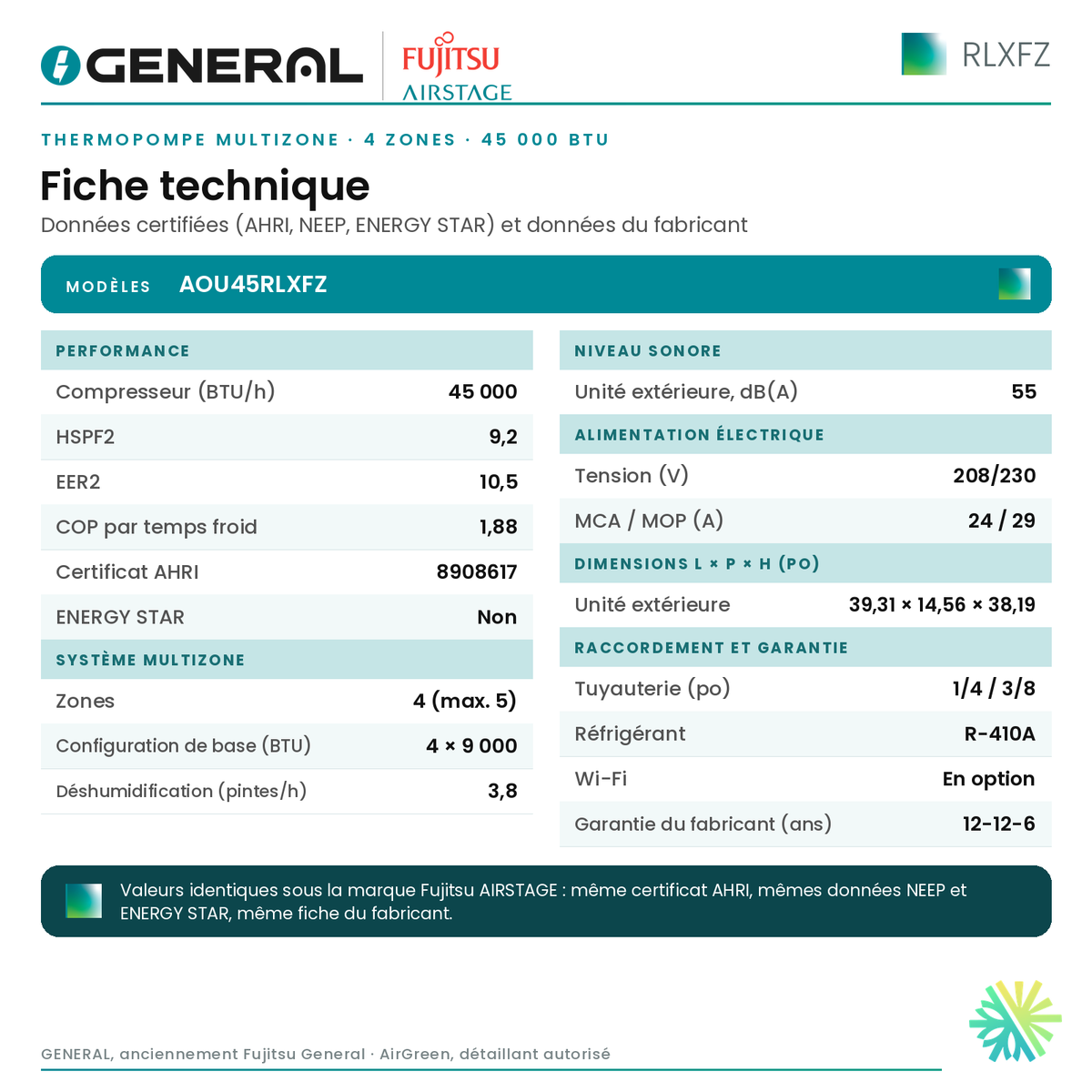

13 · Specifications

Every number, and where it comes from.

Each line carries its source; a line with no published value is not shown.

Performance
Cooling capacity (size)45,000 BTUSheet
SEER2 (seasonal cooling efficiency)20.0AHRI
EER2 (instant cooling efficiency)10.5AHRI
HSPF2 (seasonal heating efficiency, region IV)9.2AHRI
Dehumidification3.8 pints/hSheet
Heating
Capacity at −8 °C28,200 BTU/hSheet
Capacity at −15 °C31,400 BTU/h · COP 1.88Sheet
Heats down to−15 °CSheet
Zones and heads
Zones on this product4 Zones (Quad Zone)Sheet
Maximum zones5 ZonesSheet

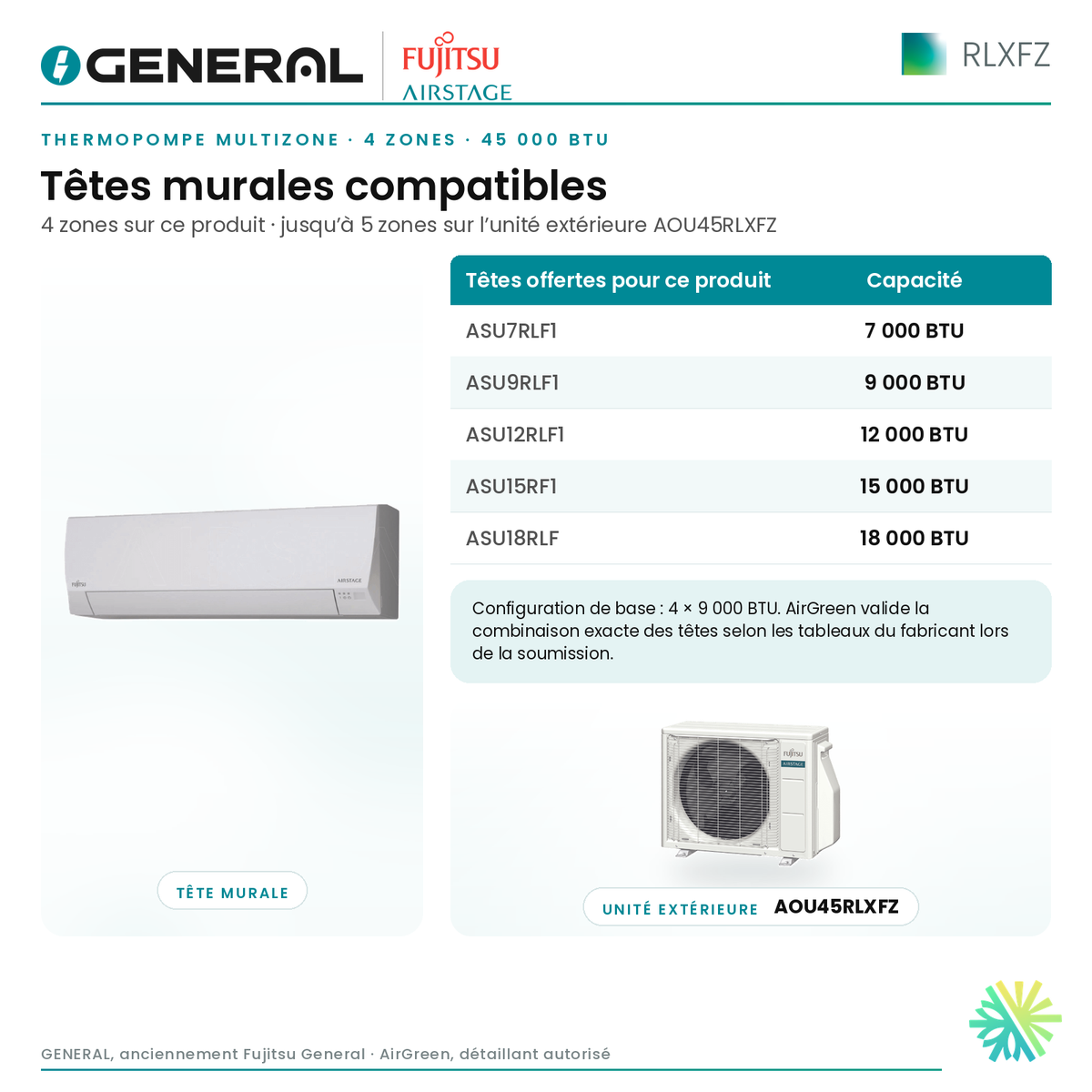

Possible indoor modelsASU7RLF1, ASU9RLF1, ASU12RLF1, ASU15RF1, ASU18RLFSheet
Indoor dimensions (W × D × H)33.06 × 8 × 10.5 inSheet
Vertical louversAutoSheet
Horizontal louversManuel / ManualSheet
Airflow (reference head)388 CFMSheet
Indoor sound (reference head)21 – 40 dB(A)Sheet
Installation
Outdoor unit (W × D × H)39.31 x 14.56 x 38.19 inSheet
Line sizes1/4 - 3/8 inSheet
Outdoor sound55 dB(A)Sheet
Electrical
Voltage220 VSheet
MCA (minimum circuit ampacity)24 ASheet
MOP (maximum overcurrent protection)29 ASheet
RefrigerantR-410ASheet
Wi-FiEn OptionSheet
Certifications and warranty
AHRI8908617AHRI
Warranty (compressor · parts · labour)12 yrs · 12 yrs · 6 yrsSheet
AirGreen extended warrantyPossibleSheet
14 · Official brochures

The manufacturer’s documentation, as PDF.

15 · Description

Everything we have written about this system.

GENERAL AIRSTAGE RLXFZ 4-Zone 45,000 BTU Heat Pump: four 9,000 BTU heads for a fourplex, the Fujitsu AIRSTAGE multi-zone under its new name, installed by AirGreen

This GENERAL AIRSTAGE multi-zone system is, part for part, the Fujitsu AIRSTAGE system built around the AOU45RLXFZ outdoor unit: the same 45,000 BTU Inverter compressor, the same 4 zones, the same page configuration (9,000 + 9,000 + 9,000 + 9,000 BTU), the same AHRI certificate 8908617, the same performance values and the same warranty of 12 years on the compressor, 12 years on parts and 6 years on labour. What changed is the manufacturer's name: Fujitsu General Limited became GENERAL Inc. on January 1, 2026.

We built this page around a case we see often in Longueuil and Saint-Hubert: the fourplex whose owner wants to cool and heat four units without lining up four compressors along the back wall. Four 9,000 BTU wall-mounted heads, one per unit, tied to a single outdoor unit: that is the configuration on this page, and it is the leanest way to give every tenant their own setpoint.

Budget matters in a rental building, and a multi-zone respects it without taking anything away from comfort. One outdoor unit to set, one base, one electrical circuit, one outdoor machine to maintain, instead of four separate machines each aging on its own schedule. The heads, for their part, stay independent: every tenant sets their own temperature, airflow and schedule with their own remote. The mode, heating or cooling, is shared by the outdoor unit, as with any multi-zone (multi-split); in a building, it follows the season anyway.

GENERAL or Fujitsu AIRSTAGE: the same machine

In August 2025, Paloma Rheem Holdings, owner of Rheem since 1988, acquired Fujitsu General Limited. On January 1, 2026, the company took the name GENERAL Inc. The head office and the R&D centre stayed in Kawasaki, Japan; the factories, the AIRSTAGE products, the model numbers and the warranty program did not move. The Fujitsu brand is being phased out and, during the transition, the same machine is sold under both names. In Canada, Rheem Canada has handled sales since February 2026, and Groupe Master remains our distributor.

That is why we keep both pages online. An owner who shopped for a "Fujitsu 4-zone" and another who read GENERAL AIRSTAGE on a box must find the same AOU45RLXFZ outdoor unit, the same list of compatible heads and the same numbers. The table below puts them side by side.

SpecificationGENERAL AIRSTAGEFujitsu AIRSTAGE
Outdoor unitAOU45RLXFZAOU45RLXFZ
Zones4 (maximum 5)4 (maximum 5)
Heads in this configuration9,000 + 9,000 + 9,000 + 9,000 BTU9,000 + 9,000 + 9,000 + 9,000 BTU
Compatible indoor unitsASU7RLF1, ASU9RLF1, ASU12RLF1, ASU15RF1, ASU18RLFASU7RLF1, ASU9RLF1, ASU12RLF1, ASU15RF1, ASU18RLF
AHRI certificate89086178908617
Compressor capacity45,000 BTU45,000 BTU
RefrigerantR-410AR-410A
Power supply208/230 V208/230 V
SEER220.020.0
HSPF29.29.2
EER210.510.5
Heating capacity at −8 °C28,200 BTU28,200 BTU
Heating capacity at −15 °C31,400 BTU31,400 BTU
COP at −15 °C1.881.88
Heats down to−15 °C−15 °C
ENERGY STARNoNo
Outdoor unit dimensions (W × D × H, in)39.31 x 14.56 x 38.1939.31 x 14.56 x 38.19
Outdoor sound level55.0 dB(A)55.0 dB(A)
Dehumidification3.8 pints/h3.8 pints/h
Wi-FiOptionalOptional
LogisVert grant (Hydro-Québec, list of October 27, 2026)Not listedNot listed
Warranty (compressor · parts · labour, years)12 · 12 · 612 · 12 · 6
ManufacturerGENERAL Inc. (Kawasaki, Japan)GENERAL Inc. (Kawasaki, Japan)
Product pageThis pageFujitsu AIRSTAGE RLXFZ 4-zone 45,000 BTU

The Fujitsu AIRSTAGE RLXFZ 4-zone 45,000 BTU page remains available for a line-by-line comparison; you will find exactly the same values there.

The figures on this page are the values published by the manufacturer. The 45,000 BTU Inverter compressor posts a SEER2 of 20.0 in cooling, an EER2 of 10.5 and an HSPF2 of 9.2 in heating. The HSPF2 sums up the whole heating season: the higher it is, the more heat is delivered per kilowatt-hour consumed. The COP, on the other hand, is a snapshot taken at one precise temperature. At −8 °C, the manufacturer publishes 28,200 BTU/h; at −15 °C, it publishes 31,400 BTU/h with a COP of 1.88, which means almost twice the heat of an electric baseboard for the same electricity. Guaranteed heating goes down to −15 °C, which covers most of the winter in Longueuil; below that point, each unit's baseboards take over.

Concretely, for a fourplex, here is what that gives you:

  • One setpoint per zone: every unit has its own remote, its own temperature and its own schedule, without going through the neighbour.
  • Four 9,000 BTU heads on a 45,000 BTU compressor: there is margin left for the cold mornings when all four units call at the same time.
  • Dehumidification of 3.8 pints per hour in cooling, for units that stay dry in July.
  • An outdoor sound level of 55 dB(A): a single source of noise in the yard, instead of four.
  • Optional Wi-Fi, handy for the owner who wants to keep an eye on a vacant unit between two tenants.

The 9,000 + 9,000 + 9,000 + 9,000 BTU configuration is the one on this page; it is not set in stone. This compressor accepts up to 5 zones and five models of wall-mounted heads: ASU7RLF1 (7,000 BTU), ASU9RLF1 (9,000 BTU), ASU12RLF1 (12,000 BTU), ASU15RF1 (15,000 BTU) and ASU18RLF (18,000 BTU). A corner unit, more exposed to the wind, can receive a 12,000 BTU head while the other three keep 9,000 BTU; a fifth head can serve an owner's room in the basement or a common area. We choose each head with you, unit by unit, after the visit.

Installation by AirGreen on a fourplex follows a simple logic:

  • A single outdoor unit, the AOU45RLXFZ, set on a base or a clear bracket at the back of the building, where it gets in the way of neither a balcony nor a bedroom window.
  • One refrigerant line per head: four identified lines, grouped in a raceway along the back wall, with a single wall penetration per unit.
  • Each head mounted high on a wall of the unit's main room, with the clearance needed for the air to circulate through the whole space.
  • Gravity drainage for each head, to the outside or to a drain, without a pump when the slope allows it.
  • A single dedicated electrical circuit for the outdoor unit, instead of four.

Maintenance comes down to two things. The indoor filters of each head come out without tools and rinse under water; in a rental building, we show the move to each tenant at commissioning. After that, a regular visit by our refrigeration technician for the outdoor unit, the pressures and the drains is enough. A single outdoor unit to inspect also means a single visit for the whole building.

A frank word about grants: the AOU45RLXFZ outdoor unit is not listed on Hydro-Québec's LogisVert list and does not carry the ENERGY STAR certification. So we promise you no amount for this model. Its argument lies elsewhere: the proven R-410A platform of the RLXFZ series, a single compressor for four units and a warranty of 12 years on the compressor and parts, 6 years on labour, identical to the one offered under the Fujitsu name.

This 4-zone is made for the owner-occupant or the small investor in Longueuil, in Saint-Hubert or elsewhere on the South Shore who wants a single system to manage, a clean yard and four tenants who set their own comfort. It also suits a triplex with a commercial space on the ground floor, or a large house divided into two units that each have two living areas. If the building is heated with electricity and you insist on a heat pump that keeps its full capacity well below −15 °C, ask us about the same manufacturer's certified cold-climate series; we will tell you frankly which one fits your building.

A GENERAL AIRSTAGE multi-zone for your fourplex in Longueuil, in Saint-Hubert and everywhere on the South Shore

AirGreen is an AIRSTAGE Elite Plus installer and an HVAC contractor holding an RBQ licence. We install this 4-zone in Montreal, in Laval, in Longueuil, on the North Shore and on the South Shore. The quote is free: a refrigeration technician comes by, measures each unit, looks at where the four refrigerant lines will run and where the outdoor unit will sit, then hands you a written proposal with the chosen heads.

Call us at 514 316-2973 or request your quote online. The GENERAL brand has existed since 1946 and the company, founded in 1936, marks its 90th year in 2026; the machine we set up at your place is the one Fujitsu installers know by heart, under a name that finally says where it comes from.

16 · Questions

What people ask us about multi-zone systems.

Can I heat one room and cool another at the same time?

No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.

What happens when every room calls for heat?

They share the outdoor unit’s capacity: 28,200 BTU/h at −8 °C, 31,400 at −15 °C.

How many heads can I connect?

Up to 5 on this outdoor unit. This product is configured for 4 heads.

Down to what temperature does it heat?

Down to −15 °C.

Is it noisy?

Indoors, the reference head goes down to 21 dB(A). Outdoors, 55 dB(A): we place the unit away from bedroom windows.

Why a multi-zone instead of several wall units?

One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.

What does the warranty cover?

Our sheet lists 12 years on the compressor and 12 years on parts. AirGreen extended warranty: possible.

AirGreen

A multi-zone system is planned room by room. At your home.

We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.

RBQ 5645-9605-01Ventilation 15.8, refrigeration 15.10, electrical 16
We handle the circuitOur licence covers the electrical work
Beware of scamsHydro-Québec does no phone or door-to-door solicitation for LogisVert
Sources checked on October 1, 2026.Hydro-Québec, LogisVert eligible heat pump list (owner, existing home), file of October 27, 2026; participation guide, version 1.10.Costs: Hydro-Québec Rate D, 11.142 ¢/kWh (second tier, since 1 April 2026). Amounts shown are estimates; only the responsible bodies confirm the grant awarded.
