Arcoaire Single-Point Wiring Kit for EHK Heater Kits
The genuine kit that lets a 15 or 20 kW Arcoaire heater kit be fed from a single connection point.
AirGreen codeAG-AC-13601
514 316-2973 · sales@airgreen.ca
Quick facts
The Arcoaire single-point wiring kit lets a 15 or 20 kW EHK electric heater kit be fed from a single connection point in the fan coil. Arcoaire lists two, depending on the kit’s protection: EBAC01SPK for fused kits and QOU14100JBAF, a Square D jumper bar assembly, for breaker kits.
One supply to the fan coil
A 15 or 20 kW kit can be fed by two separate circuits. The single-point wiring kit lets it be connected to one instead. The Arcoaire FVM4X and FCM4X fan coil specifications list each kit’s electrical values for one circuit and for two.
Which kit to choose
- EBAC01SPK: 15 and 20 kW fused kits, EHK15AKF and EHK20AKF
- QOU14100JBAF: 15 and 20 kW breaker kits, EHK15AKB and EHK20AKB
Good to know
Arcoaire lists these kits for the 15 and 20 kW heater kits only. Note the part number of the installed heater kit: it determines the kit. Wiring is done with the power off, following the manufacturer’s diagram.
Installed by AirGreen in Greater Montréal
We install the kit with the heater kit in Montréal, Laval, Longueuil, on the South Shore and on the North Shore; the supply is connected by a licensed electrician. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the fan coil model, the heater kit model and the quantity.
One connection instead of two
A 15 or 20 kW kit can take two circuits; the kit lets it be fed by one.
- Single-point wiring of a 15 or 20 kW EHK kit
- Fused kits EHK15AKF and EHK20AKF: EBAC01SPK
- Breaker kits EHK15AKB and EHK20AKB: QOU14100JBAF
- Installs where one supply is run to the fan coil

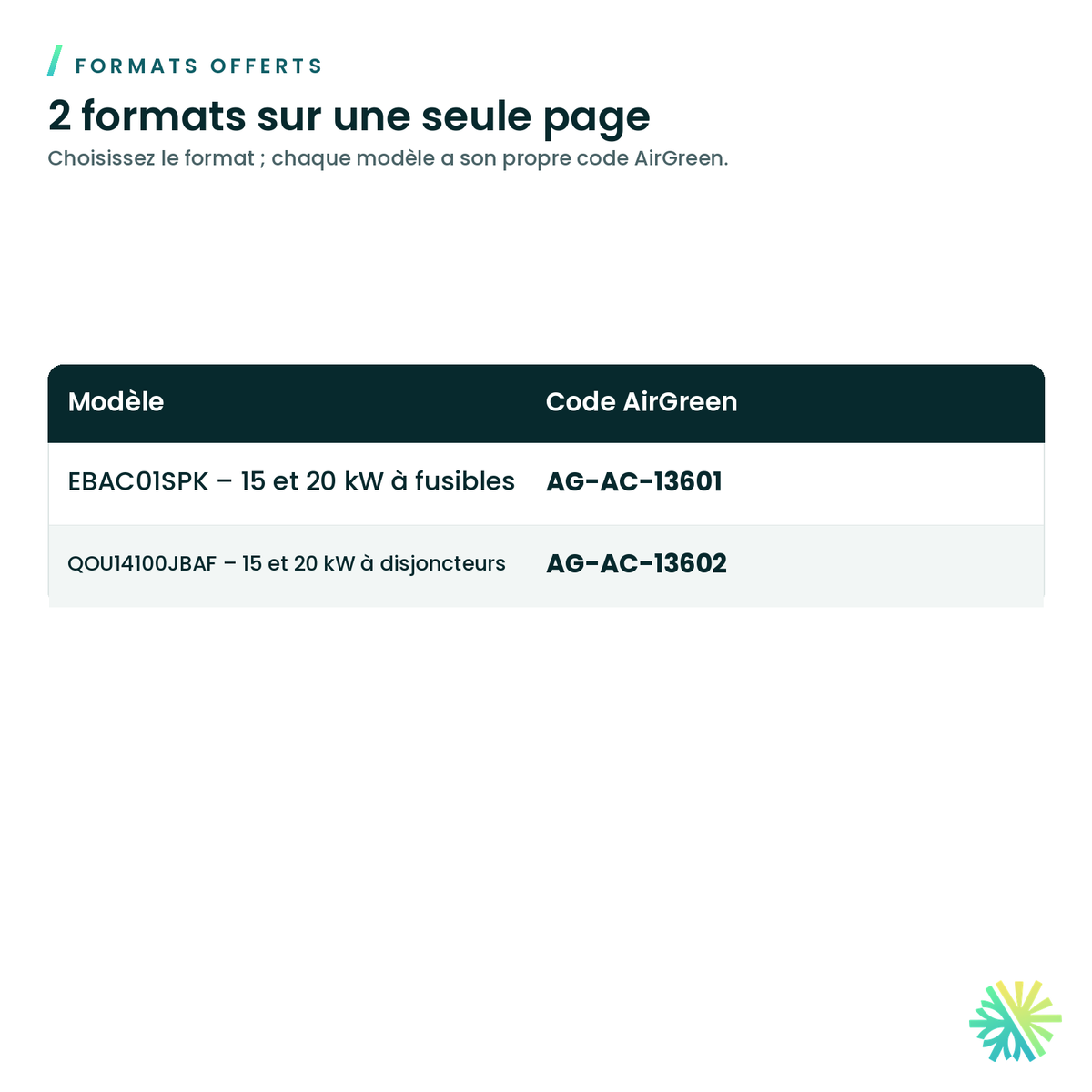

2 sizes, one page
Each size has its own AirGreen code. Tap a row to select it.
| Model | Type | For heater kits | Part no. | AirGreen code |
|---|---|---|---|---|
| EBAC01SPK – 15 and 20 kW fused kits | Single-point wiring kit | EHK15AKF and EHK20AKF (15 and 20 kW fused kits) | EBAC01SPK | AG-AC-13601 |
| QOU14100JBAF – 15 and 20 kW breaker kits | Single-point wiring kit, Square D jumper bar assembly | EHK15AKB and EHK20AKB (15 and 20 kW breaker kits) | QOU14100JBAF | AG-AC-13602 |
Pick the kit from the heater kit’s protection: fuses or circuit breakers.

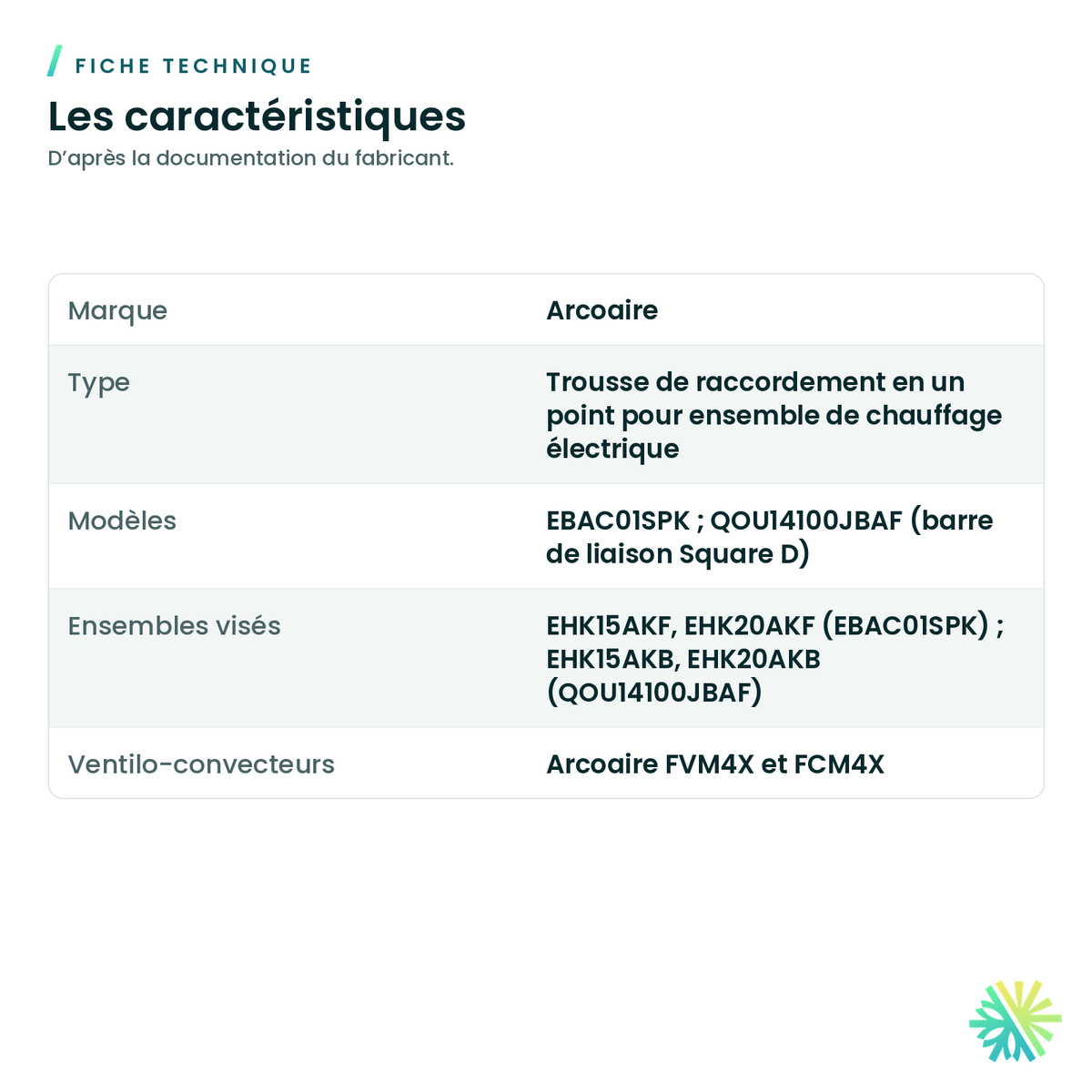

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- EBAC01SPK is only for the 15 and 20 kW fused kits (EHK15AKF, EHK20AKF).
- QOU14100JBAF is only for the 15 and 20 kW breaker kits (EHK15AKB, EHK20AKB).
- Arcoaire does not list these kits for the 5, 10, 24 or 30 kW heater kits.
- Electrical work is done with the power off, by a licensed electrician.
Manufacturer documents
You may also need
Arcoaire Electric Heater Kit for FVM4X and FCM4X Fan Coils
Copper Electrical Wire
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-Zone
Hitachi PSC-6RAD H-Link Adapter for airHome Indoor Unit
Hitachi SPX-RAMHLK H-Link Adapter for airHome Multi-Zone Outdoor UnitOriginal partsSee all
Frequently asked questions
Which kit for my heater kit?
Per Arcoaire: EBAC01SPK for the 15 and 20 kW fused kits (EHK15AKF, EHK20AKF), QOU14100JBAF for the breaker kits (EHK15AKB, EHK20AKB).
Does it fit a 5 or 10 kW kit?
No. Arcoaire lists these kits for the 15 and 20 kW heater kits only.
Does it come with the heater kit?
No, it is ordered separately. Send us your heater kit and fan coil model numbers and we confirm before ordering.
Can you install it?
Yes. We fit it with the heater kit; the supply is connected by a licensed electrician, everywhere in Greater Montréal.
A simpler connection for your Arcoaire heater kit
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
