Each heat kit fits specific units. We start from the number on your rating plate.
The manufacturer lists each kit for specific unit sizes: the EHK25AHCF only fits the 4 and 5 tons, the EHKMC25KN only the D5FUAA 60K. Pick your unit and its size: you see what fits, and the single-point wiring kit when it applies.
Your unit, its size, then the kit that fits.
The matches come from the accessory table printed for each family. Only the part numbers that fit stay on screen; a red label calls for a check.
Your indoor unit
Its size
The full number is on the indoor unit’s rating plate: FVM4X4800BL, D5FUAAH36XAK… The family comes first; the next two digits give the size (48 = 4 tons).
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
† The manufacturer does not recommend 15 and 20 kW for some heat pump applications: its airflow table decides.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5104 03, ed. 11/21, p. 15
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
† The manufacturer does not recommend 15 and 20 kW for some heat pump applications: its airflow table decides.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5104 03, ed. 11/21, p. 15
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
† The manufacturer does not recommend 15 and 20 kW for some heat pump applications: its airflow table decides.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5104 03, ed. 11/21, p. 15
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
† The manufacturer does not recommend 15 and 20 kW for some heat pump applications: its airflow table decides.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5104 03, ed. 11/21, p. 15
The FVM4X does not come in this size. Sizes printed: 2 · 3 · 4 · 5 tons.
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
† The manufacturer does not recommend 15 and 20 kW for some heat pump applications: its airflow table decides.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 4202 02, 5/2018, p. 12
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
† The manufacturer does not recommend 15 and 20 kW for some heat pump applications: its airflow table decides.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 4202 02, 5/2018, p. 12
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
† The manufacturer does not recommend 15 and 20 kW for some heat pump applications: its airflow table decides.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 4202 02, 5/2018, p. 12
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
† The manufacturer does not recommend 15 and 20 kW for some heat pump applications: its airflow table decides.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 4202 02, 5/2018, p. 12
The FCM4X does not come in this size. Sizes printed: 2 · 3 · 4 · 5 tons.
No single-point wiring kit: the manufacturer keeps them for the 15 and 20 kW kits.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5402 05, ed. 09/20, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5402 05, ed. 09/20, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5402 05, ed. 09/20, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5402 05, ed. 09/20, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5402 05, ed. 09/20, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5402 05, ed. 09/20, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5402 05, ed. 09/20, p. 11
No single-point wiring kit: the manufacturer keeps them for the 15 and 20 kW kits.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5601 03, ed. 04/21, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5601 03, ed. 04/21, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5601 03, ed. 04/21, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5601 03, ed. 04/21, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5601 03, ed. 04/21, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5601 03, ed. 04/21, p. 11
Single-point connection, optional: EBAC01SPK kit with the EHK15AKF or EHK20AKF.
The table allows others, such as the 8 kW (EHK07AKB), which is not on our site. 496 31 5601 03, ed. 04/21, p. 11
No single-point wiring kit: the D5FUAA needs a separate power supply for electric heat.
The EHKMC15KN is not in the D5FUAA table: we confirm it before ordering. D5FUAA31-01PD, ed. 03/25, p. 6
No single-point wiring kit: the D5FUAA needs a separate power supply for electric heat.
The EHKMC15KN is not in the D5FUAA table: we confirm it before ordering. D5FUAA31-01PD, ed. 03/25, p. 6
No single-point wiring kit: the D5FUAA needs a separate power supply for electric heat.
The EHKMC15KN is not in the D5FUAA table: we confirm it before ordering. D5FUAA31-01PD, ed. 03/25, p. 6
No single-point wiring kit: the D5FUAA needs a separate power supply for electric heat.
The EHKMC15KN is not in the D5FUAA table: we confirm it before ordering. D5FUAA31-01PD, ed. 03/25, p. 6
No single-point wiring kit: the D5FUAA needs a separate power supply for electric heat.
The EHKMC15KN is not in the D5FUAA table: we confirm it before ordering. D5FUAA31-01PD, ed. 03/25, p. 6
No single-point wiring kit: the D5FUAA needs a separate power supply for electric heat.
The EHKMC15KN is not in the D5FUAA table: we confirm it before ordering. D5FUAA31-01PD, ed. 03/25, p. 6
The D5FUAA does not come in this size. Sizes printed: 1.5 · 2 · 2.5 · 3 · 4 · 5 tons.
The D5FUHA takes EHKMD kits, listed in its own table (D5FUHA31-01PD, ed. 03/25, p. 4). EHKMD kits are not on our site, and no kit sold here is in that table.
Send us the full number from the plate: we check before offering anything.
The FJMA4X takes EHC kits, listed in its own table (FJM-31-01PD, ed. 06/25, p. 15). EHC kits are not on our site.
Send us the full number from the plate: we check before offering anything.
We do not have the manufacturer’s data sheet for the DLFUAA: we confirm no kit without the full model number. Our EHKMC kits are listed for the D5FUAA, not for the DLFUAA.
Send us the full number from the plate: we check before offering anything.
EHK25AHCF
24 kW, fuses; ships three-phase, convertible to single phase.
FVM4X, FCM4X, FXM4X and FEM4X: 4 and 5 tons
EHK30AHCF
30 kW, fuses; ships three-phase, convertible to single phase.
FVM4X, FCM4X, FXM4X and FEM4X: 4 and 5 tons
EBAC01SPK
Single-point wiring kit, only for the 15 and 20 kW fused kits (EHK15AKF, EHK20AKF).
See the product →QOU14100JBAF
Jumper bar for a single-point connection, only for the EHK15AKB and EHK20AKB breaker kits. Those two kits are not on our site.
See the product →EHKMC15KN
15 kW. On our EHKMC product (24K to 60K), but missing from the D5FUAA kit table: we confirm with the full model number before ordering.
See the product →The 3 ARCOAIRE parts products, right below.
Each product groups several part numbers. Pricing by quote, once your unit’s full model number is confirmed.
Every part number, and the units the manufacturer lists it for.
Three products on our site, fourteen part numbers. The matches are those of the printed tables, family by family.

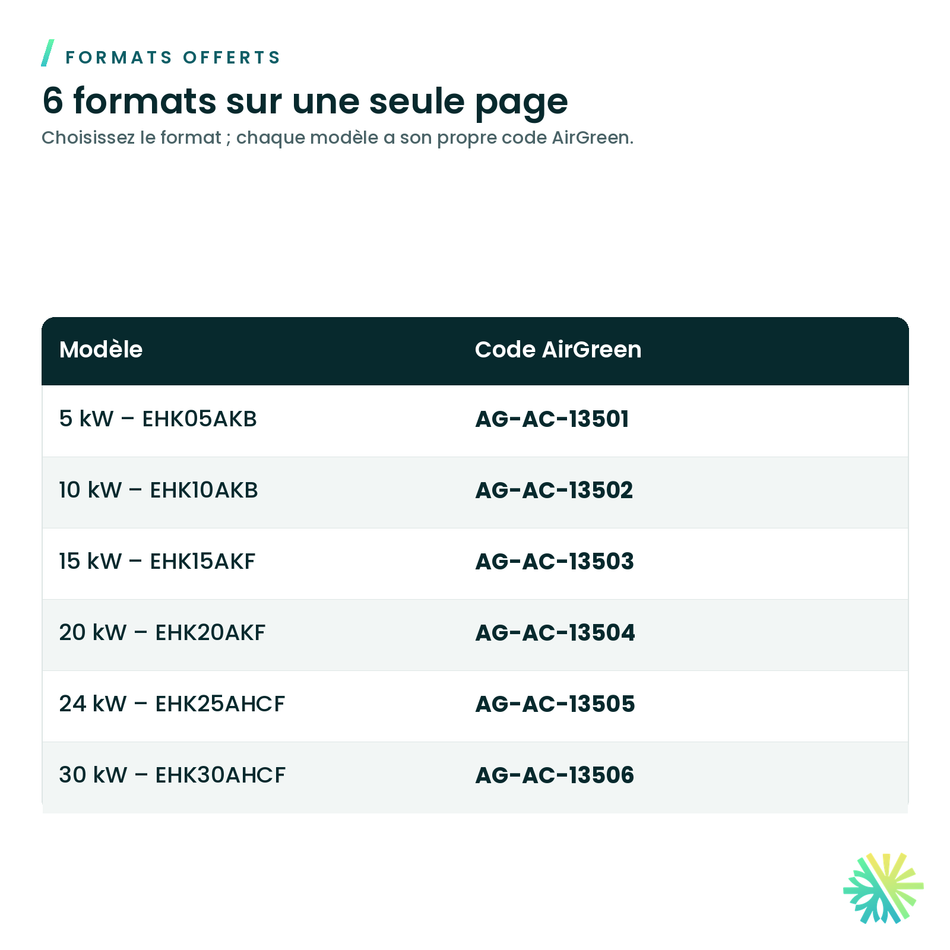

| Part number | Output | Protection | Fits | |
|---|---|---|---|---|
| EHK kits · fan coils | ||||
| EHK05AKB | 5 kW | breakers | FVM4X, FCM4X, FXM4X and FEM4X: all sizes | |
| EHK10AKB | 10 kW | breakers | FVM4X, FCM4X, FXM4X and FEM4X: all sizes | |
| EHK15AKF | 15 kW | fuses | FVM4X and FCM4X: all sizes FXM4X and FEM4X: 2 to 5 tons | |
| EHK20AKF | 20 kW | fuses | FVM4X and FCM4X: all sizes FXM4X and FEM4X: 2.5 to 5 tons | |
| EHK25AHCF | 24 kW | fuses, three-phase | FVM4X, FCM4X, FXM4X and FEM4X: 4 and 5 tons | |
| EHK30AHCF | 30 kW | fuses, three-phase | FVM4X, FCM4X, FXM4X and FEM4X: 4 and 5 tons | |

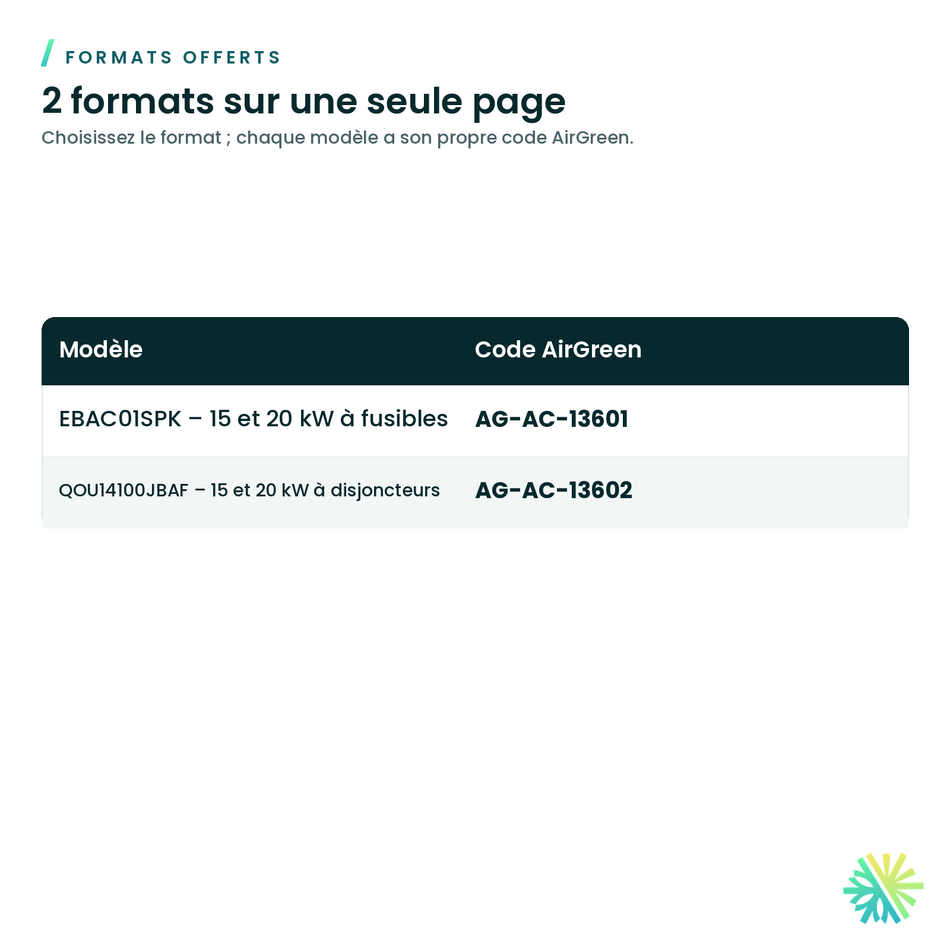

| Single-point wiring kits | ||||
| EBAC01SPK | — | fused kits | EHK15AKF, EHK20AKF | |
| QOU14100JBAF | — | breaker kits | EHK15AKB, EHK20AKB (not on our site) | |
| EHKMC kits · D5FUAA | ||||
| EHKMC05KN | 5 kW | not specified | D5FUAA 18K to 36K | |
| EHKMC08KN | 8 kW | not specified | D5FUAA 18K to 48K | |
| EHKMC10KN | 10 kW | not specified | D5FUAA 18K to 60K | |
| EHKMC15KN | 15 kW | not specified | missing from the D5FUAA table | |
| EHKMC20KN | 20 kW | not specified | D5FUAA 36K to 60K | |
| EHKMC25KN | 25 kW | not specified | D5FUAA 60K | |
Tables: FVM4X p. 15, FCM4X p. 12, FXM4X and FEM4X p. 11, D5FUAA p. 6. The EHK25AHCF and EHK30AHCF arrive three-phase and convert to single phase on site. Our EHK product names the FVM4X and FCM4X; the FXM4X and FEM4X tables list the same kits. The EHKMC15KN is on our EHKMC product, but not in the D5FUAA table: we confirm it before any order.
Three checks, and you get the right part.
This is what we do before every parts quote.
The full number
Take a photo of the indoor unit’s rating plate. We check the full number (FEM4X2400C, FVM4X4800BL…) against the manufacturer’s table, not just the family and size.
496 31 5601 03, p. 11
The manufacturer’s table
We look up your size in your family’s accessory table. An output missing from the table is not installed, even if it exists elsewhere.
FVM p. 15 · FCM p. 12 · FXM, FEM p. 11 · D5FUAA p. 6
The power supply
At 15 or 20 kW on a fan coil, a kit allows a single-point connection. The D5FUAA needs a separate power supply for its electric heat.
FVM p. 15; D5FUAA31-01PD, p. 6
Three things the accessory tables tell you.
The EHK25AHCF gives 24 kW, not 25.
Its number says 25, but every manufacturer table prints 24 kW for this kit. The EHK30AHCF does give 30 kW.
496 31 5104 03, ed. 11/21, p. 15A caution comes with the 20 kW on the FVM4X and FCM4X.
In these two tables, the manufacturer flags the EHK20AKF and other 15 and 20 kW kits with a dagger (†): not recommended for some heat pump applications. Its airflow table decides.
496 31 5104 03, p. 15; 496 31 4202 02, p. 12On the D5FUAA 60K, the smallest kit is 10 kW.
The 5 kW stops at the 36K and the 8 kW at the 48K. At the other end, the 25 kW only fits the 60K.
D5FUAA31-01PD, ed. 03/25, p. 6What people ask us about these parts.
Where do I find my unit’s full model number?
On the indoor unit’s rating plate. Send us a photo: we check the full number against the manufacturer’s table before ordering.
Why is the EHKMC15KN “to be confirmed”?
It is on our EHKMC product, but the D5FUAA kit table lists 5, 8, 10, 20 and 25 kW, with no 15. So we confirm it before any order.
Do I need a single-point wiring kit?
Only to connect a 15 or 20 kW kit at a single point on a fan coil: EBAC01SPK for the fused EHK15AKF and EHK20AKF; QOU14100JBAF only for the EHK15AKB and EHK20AKB breaker kits, which are not on our site. The D5FUAA takes none: its electric heat has its own power supply.
Which output should I choose?
It is chosen at the visit, based on the house and the electrical panel, among the outputs the manufacturer’s table allows for your unit.
My unit is not in the tool.
Send us the full number. We look up the manufacturer’s kit series for that family before offering anything.
Can you install it?
Yes. AirGreen installs the kit in the indoor unit and sets the backup heat with the heat pump. Pricing by quote.
The right part, installed by AirGreen.
Send us your indoor unit’s full model number. We check the manufacturer’s table, then give you a quote with the kit, the wiring kit if one is needed, and the installation.
Sources checked on October 29, 2026
- ARCOAIRE, product specifications FVM4X 496 31 5104 03 (ed. 11/21), p. 15: EHK kits, single-point wiring kits, † footnote.
- ARCOAIRE, product specifications FCM4X 496 31 4202 02 (5/2018), pp. 2, 5 and 12: sizes, EHK kits, wiring kits, † footnote.
- ARCOAIRE, product specifications FXM4X 496 31 5402 05 (ed. 09/20) and FEM4X 496 31 5601 03 (ed. 04/21), pp. 2 and 11: sizes, EHK kits, wiring kits.
- ARCOAIRE, product data D5FUAA31-01PD (ed. 03/25), p. 6: EHKMC kits by size, separate power supply.
- ARCOAIRE, product data D5FUHA31-01PD (ed. 03/25), p. 4, and FJM-31-01PD (ed. 06/25), p. 15: EHKMD and EHC series.
- airgreen.ca product sheets, re-read October 29, 2026.
Pricing by quote.
