Galvanized Ventilation Ducts
A forced-air or air exchanger network is built one piece at a time, from the trunk to the grille. These are the galvanized steel parts that we use to add a branch or redo the outlets in a basement.
The parts of the network

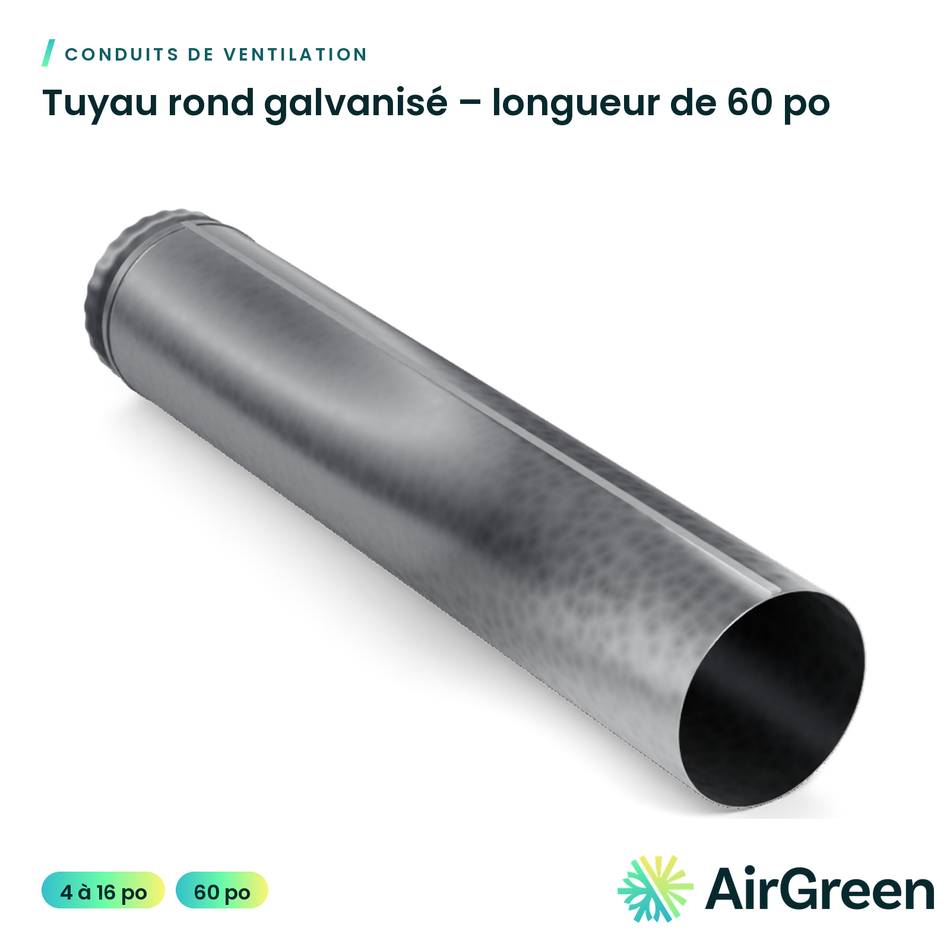

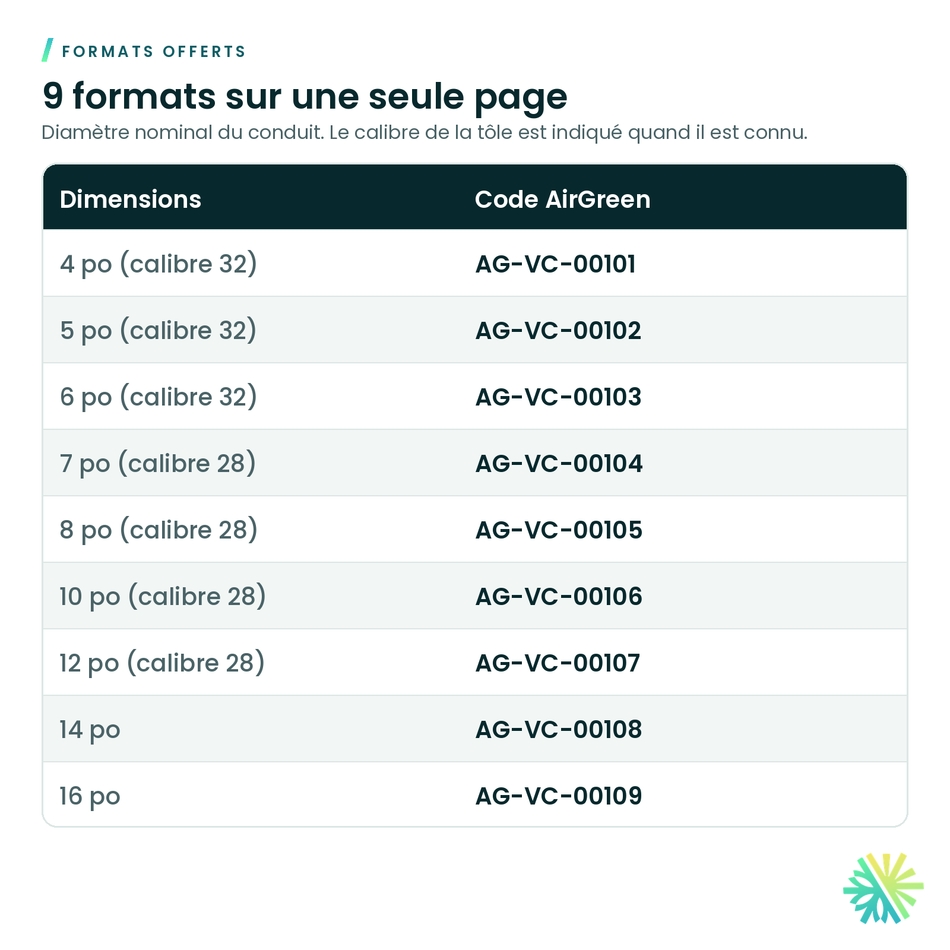

- 60 in round pipe: 4 to 16 in; 32 gauge sheet up to 6 in, 28 gauge from 7 to 12 in.
- Elbows and reducers: adjustable elbow from 4 to 16 in; tapered and straight reducers from 4 × 3 to 12 × 10 in.
- Branch take-offs: side take-offs with or without damper, 90° top take-off, tee, wye and centred wye fittings.
- Balancing and closing: round damper with quadrant key, backdraft damper, end cap, C and S cleats.
- Floor boots: angled, universal or extended; 2-1/4, 3-1/4 or 4 × 10 in opening, 4, 5 or 6 in collar.
- Oval family: duct, elbows, oval-to-round transitions and ceiling outlet, in 5 and 6 in.
Reading the sizes
A round part is sized by the nominal duct diameter: measure the actual collar of the unit or the existing duct. On a boot, the opening follows the grille and the collar follows the branch. Oval is for places where round will not fit: measure the cavity depth. Every joint is screwed, then sealed with aluminum tape or mastic.
Installed and balanced by AirGreen
We install these parts and balance networks in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01, subclass 15.8 Ventilation. To check availability or get a quote, call us at 514 316-2973 or email sales@airgreen.ca with the part, the diameter and the quantity.
