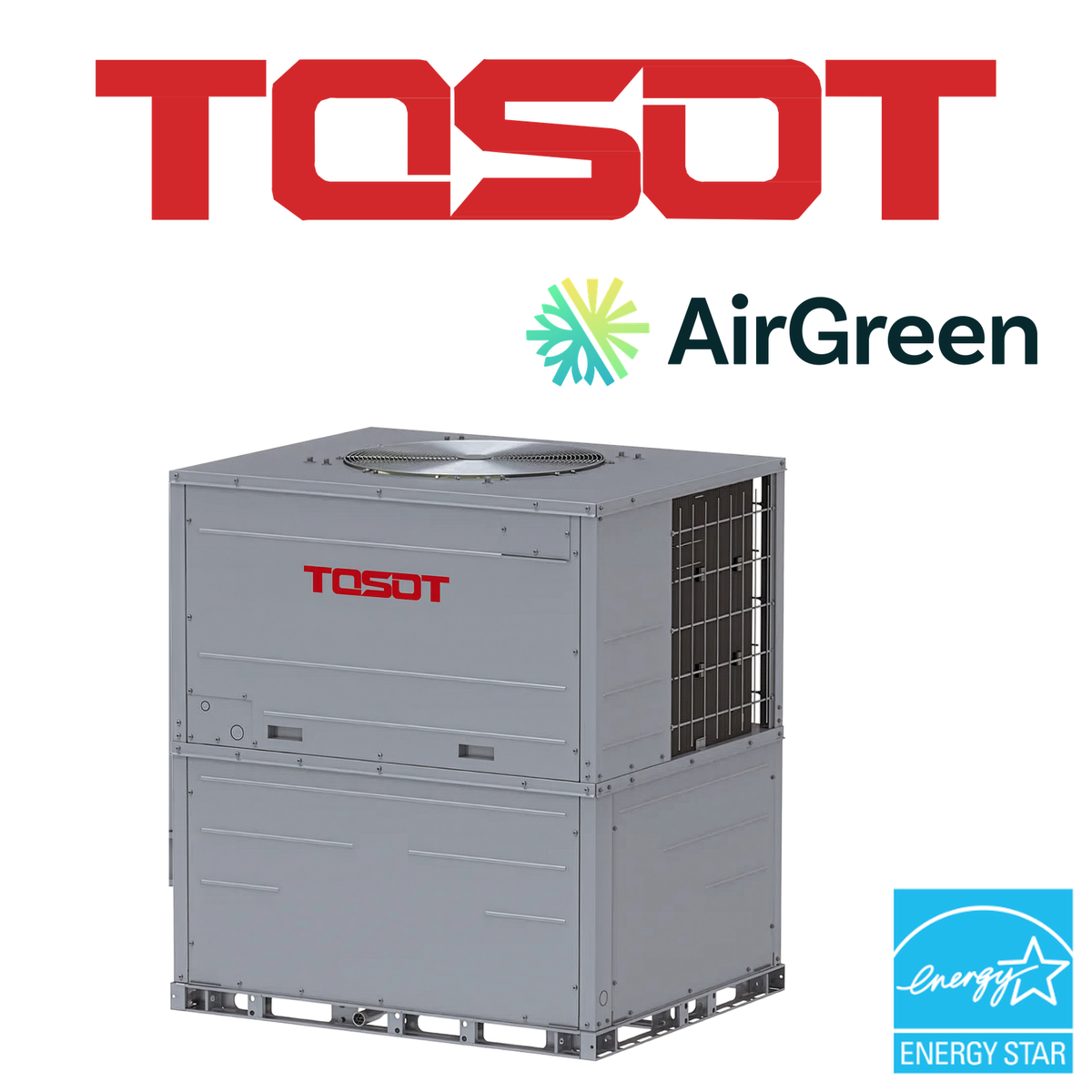

AirGreen × TOSOT · Sold and installed by AirGreenThe TOSOT packaged unit at AirGreenFour R-32 sizes, from 2 to 5 tons, all electric.
The full TOSOT range
TOSOT · Packaged · updated November 5, 2026

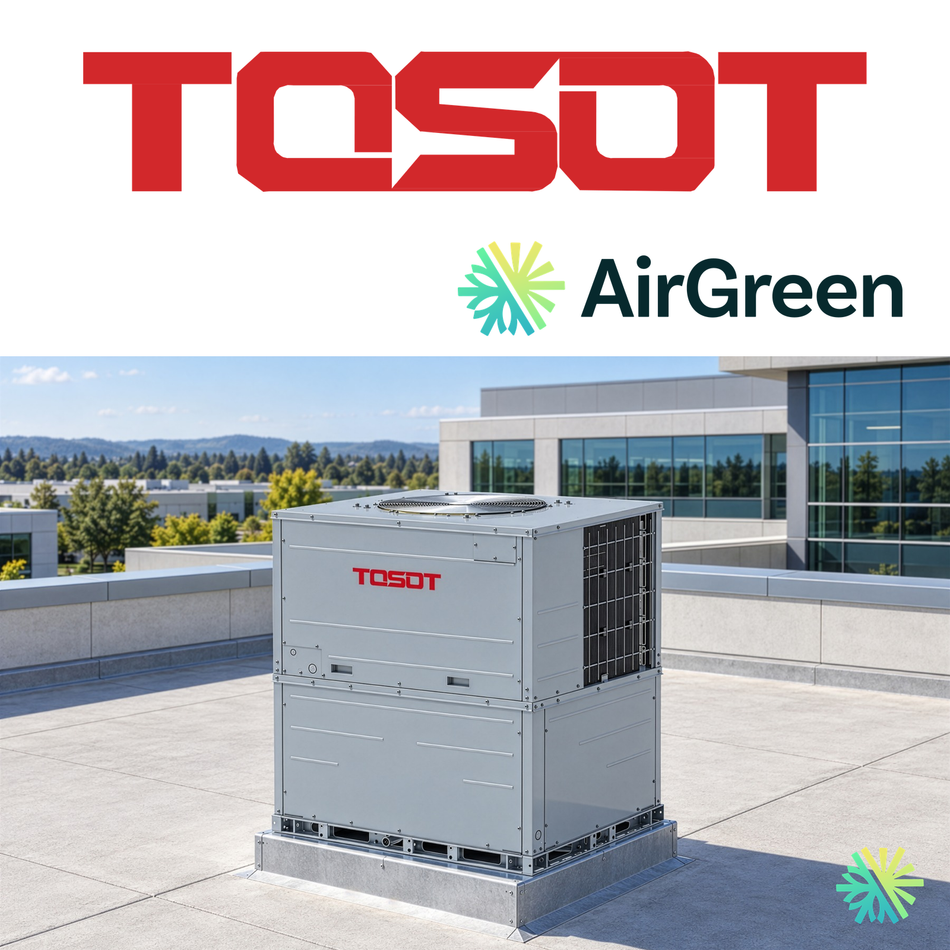

TOSOT packaged unit on the roof: weight, curb and backup heat

One unit on the roof, no gas, heating down to -30 °C per TOSOT. It weighs 523 lb (2 and 3 tons) or 629 lb (4 and 5 tons), and the TOSOT sheet draws a 14 in. high roof curb.

Open the toolBook my free estimate
  • 4TOSOT packaged units online
  • -30 °Cheating, per TOSOT
  • 523–629 lbnet weight, by size
  • SEER2 18.0all four sizes, ENERGY STAR
01 · On the roof

Pick the size and what you want to see

The four TOSOT R-32 packaged units, from their technical sheets and ENERGY STAR: what the roof carries, what the electrical panel must supply, the air in the ducts and the heat in the cold.

Size

What you want to see

TK-H03TC: 523 lb net, on a 29 × 38 7/16 in. roof curb, 14 in. high.

3 tonsTK-H03TC/NhA-D(U) · AHRI 218471411
44 in. × 35 7/16 in.unit, top view38 7/16 in. × 29 in.roof curb, 14 in. high
To scale, side by side. Where the curb sits under the unit is on the TOSOT sheet drawing.
Unit (W × D × H)
44 × 35 7/16 × 49 1/4 in.1,120 × 900 × 1,250 mm
Roof curb (A × B × height)
29 × 38 7/16 × 14 in.736 × 976 × 356 mm
Net / shipping weight
523 / 545 lb
Refrigerant
R-32, 150 oz pre-charged

TOSOT sheet SB_TK-H03TCNhA-D(U), file of August 19, 2026, read on November 5, 2026.

TOSOT sheets SB_TK-H02TC to H05TC, files of August 19, 2026; -8 °C and -15 °C values: ENERGY STAR, read again on November 5, 2026. The TOSOT sheet publishes no roof installation instructions.

AirGreen × TOSOT

TOSOT packaged units, live

Each product page: model, AHRI number and technical details.
02 · Did you know

Three things the sheets say

01

All electric, no gas

TOSOT presents its packaged unit as an all-electric heat pump, no gas, heating down to -30 °C; backup, if wanted, is a 5 to 20 kW electric kit.

TOSOT “Rooftop Unit (R32)” page; SB_TK-H0xTC sheets.

02

One terminal for leaks, one for fresh air

The thermostat terminal strip has an L terminal for refrigerant leak detection and an OCC terminal for fresh-air control.

TOSOT sheets, wiring diagram.

03

The “5-ton” gives 56,000 BTU/h

The 5-ton sheet is titled 60,000 BTU, but TOSOT and ENERGY STAR rate it at 56,000 BTU/h in cooling; the 4-ton, at 47,000.

TOSOT sheets SB_TK-H04TC and H05TC; ENERGY STAR 4706809 and 4624790.

03 · Side by side

The four sizes, side by side

What each packaged unit gives, and what it asks of the roof and the panel.

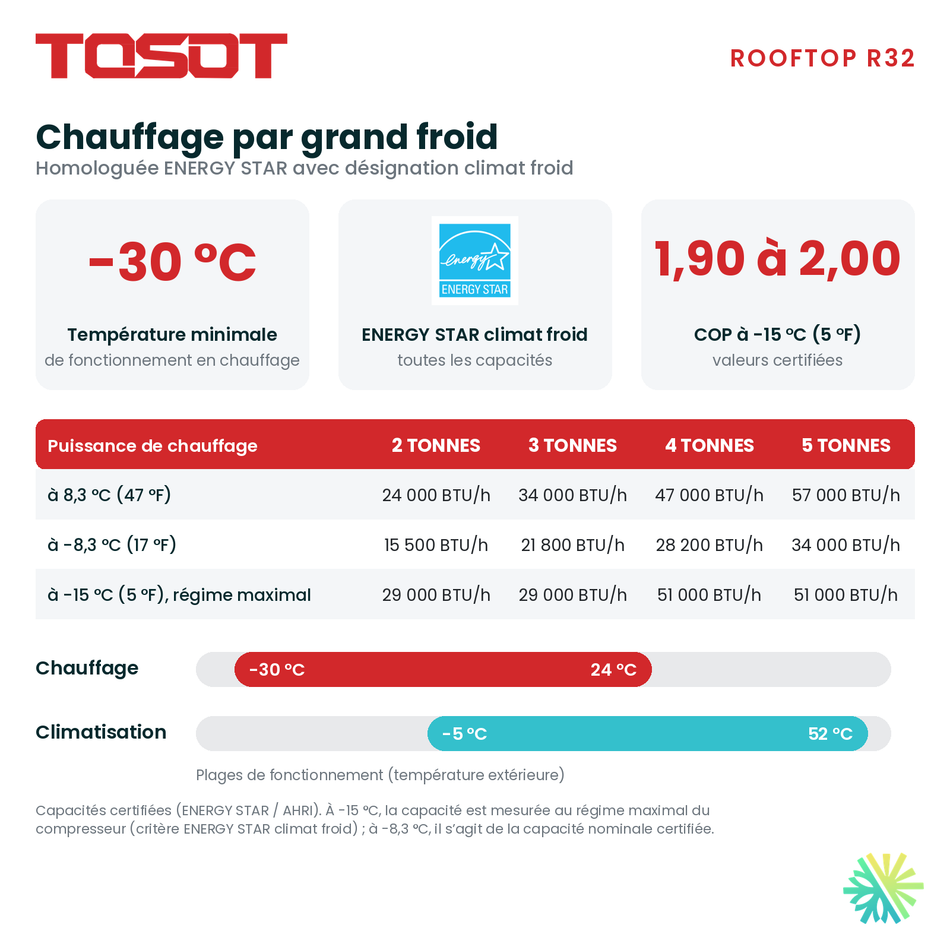

SizeCoolingCertified at -8 °CMaximum at -15 °CSEER2 / HSPF2Net weightMCA / MOCP
2 tonsTK-H02TC/NhA-D(U)24,000 BTU/h15,500 BTU/h29,000 BTU/h18.0 / 8.8*523 lb35.0 / 40.0 A
3 tonsTK-H03TC/NhA-D(U)34,000 BTU/h21,800 BTU/h29,000 BTU/h18.0 / 8.5523 lb35.0 / 40.0 A
4 tonsTK-H04TC/NhA-D(U)47,000 BTU/h28,200 BTU/h51,000 BTU/h18.0 / 8.5629 lb39.1 / 45.0 A
5 tonsTK-H05TC/NhA-D(U)56,000 BTU/h34,000 BTU/h51,000 BTU/h18.0 / 8.3629 lb39.1 / 45.0 A

Cooling and weight: TOSOT sheets. -8 °C, -15 °C, SEER2 and HSPF2 (region IV): ENERGY STAR, read again on November 5, 2026. * The TOSOT 2-ton sheet prints an HSPF2 of 8.5; ENERGY STAR certifies 8.8.

04 · Elsewhere at TOSOT

The other ways to heat with TOSOT

TOSOTCentralAn outdoor unit and an indoor air handler.R-410AMulti-zoneOne compressor, 2 to 5 rooms.TOSOTWall unitsNine wall series on one grid.
AirGreen × TOSOT

The right model is chosen at your place, not on a grid

We look at the room, the insulation and the electrical panel, then we propose the model, the quote and the LogisVert amount that applies.

Book my free estimate514 316-2973
  • Sold and installed by AirGreenMontreal, Laval, Longueuil, South Shore and North Shore.
  • RBQ 5645-9605-01Subclasses 15.8 Ventilation, 15.10 Refrigeration and 16 Electricity.
  • LogisVertHydro-Québec never solicits by phone or door to door for LogisVert.
Sources

Sources and reading dates

  1. TOSOT, submittals SB_TK-H02TCNhA-D(U), SB_TK-H03TCNhA-D(U), SB_TK-H04TCNhA-D(U) and SB_TK-H05TCNhA-D(U), files of August 19, 2026, tosot.com, read on November 5, 2026; none carries a printed date.
  2. TOSOT, “Rooftop Unit (R32)” product page (tosot.com), modified September 18, 2026, read on November 5, 2026.
  3. ENERGY STAR, “Certified Air-Source Heat Pumps” dataset (w7cv-9xjt), records 4706810, 4624791, 4706809 and 4624790 (AHRI 218795633, 218471411, 218795634 and 218471412), read again on November 5, 2026.

AHRI numbers are those on our product pages, unchanged. The TOSOT sheet prints the AHRI number of the 3- and 5-ton only.
