Midea KJR-120C/TF-E wall controller: a fixed wall control for your mini split.
A wired controller, connected by cable to the indoor unit. For a cassette or a ducted unit hidden in the ceiling, a shop, a rental, or to replace a broken wall controller. We check your unit’s model before ordering it.

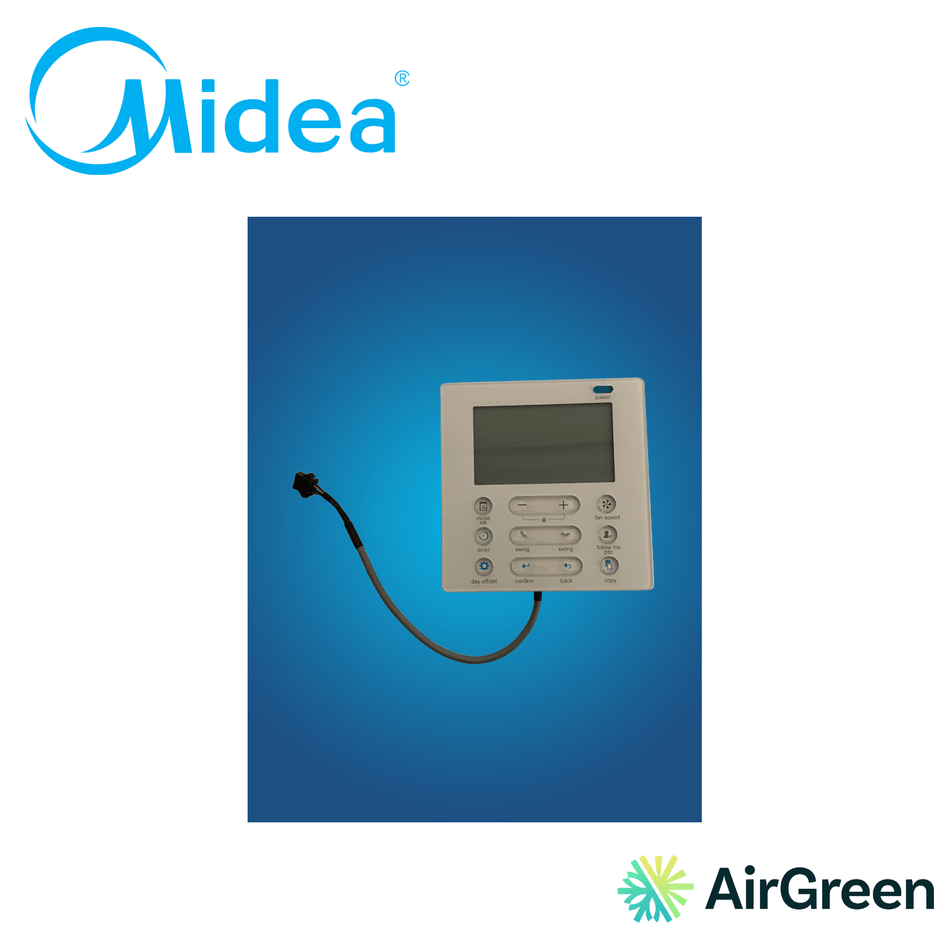

Wired controllerKJR-120C/TF-E
A fixed wall control, wired to the indoor unit.
We check compatibility with your indoor unit model before ordering.
A remote gets lost. A wall controller stays put.
The KJR-120C/TF-E sends the indoor unit the settings it can carry out: modes and speeds vary from model to model. It is not a programmable thermostat.
A cassette or ducted unit in the ceiling is easier to control from a fixed point on the wall.
The control stays in place and staff find it easily.
No remote to replace at every tenant change.
When the existing wall controller stops working or was damaged during work.
Four paths for the same setpoint.
Pick a way to control, then tap a step to see it on the diagram.
AirGreen principle diagram. 120N wiring, 24 V interfaces and app: Midea indoor-unit brochures.
Four ways to control a Midea.
The right choice depends on the unit and the room. We show you the options possible with your system.
The KJR-120C/TF-E, or a newer Midea controller depending on the unit: Midea shows the 120N, 120L and MTL04-1 models in its recent brochures.
The infrared remote supplied with the unit (RG10 in Midea’s brochures).
With an optional Wi-Fi module, the Midea SmartHome app, Alexa or Google Home, according to Midea.
On a replacement, an existing 24 V thermostat can be used with a Midea 24 V interface, according to Midea.
Source: recent Midea indoor unit brochures (cassettes, ducted, floor-ceiling, console): controllers, SmartHome app, 24 V interfaces; airgreen.ca KJR-120C/TF-E product page.
Three questions, one suggestion.
Answer, and we tell you where to start. We always confirm with your unit’s exact model.
1. Is your indoor unit in sight?
2. Do you want to control it from your phone?
3. Do you have a 24 V thermostat you want to keep?
Answer the three questions.
The suggestion shows here once all three answers are in.
A Midea 24 V interface
Midea offers the 24 V Mini interface and the 24 V Full Function kit to keep a 24 V thermostat. Compatibility depends on the model: we check it before ordering.
Have my model checkedWi-Fi and the SmartHome app
The Midea SmartHome app controls the unit from anywhere, and works with Alexa and Google Home, according to Midea. The Wi-Fi module is optional depending on the model: we check yours.
Have my model checkedThe KJR-120C/TF-E wall controller
Fixed on the wall, wired: the right control when the unit is hidden. It is not programmable and has no Wi-Fi.
See the controllerThe included remote is enough
Your unit is in sight: the infrared remote does the job. A wall controller still helps in a rental or a shop, where a remote gets lost.
See the wall controllerKeeping your 24 V thermostat: Midea’s four scenarios.
Pick a scenario: see what Midea installs, what stays in place and what links the two.
- ThermostatMidea controlsApp, wired controller, remote
- WiringTo checkWe look at it at the visit
- Indoor unitNew Midea
- PipingCan stayPer Midea; we check at the visit
- Outdoor unitNew Midea
A complete Midea system, with its controls
Midea outdoor and indoor units, controlled by the SmartHome app, a wired controller and the remote, according to Midea.
- ThermostatStaysYour 24 V thermostat
- WiringCan stayPer Midea; we check at the visit+ 24 V Mini interface
- Indoor unitNew Midea
- PipingCan stayPer Midea; we check at the visit
- Outdoor unitNew Midea
All Midea, and your 24 V thermostat stays
Both units are replaced with Midea and the 24 V thermostat stays: the 24 V Mini interface links them, according to Midea.
- ThermostatStaysYour 24 V thermostat
- WiringCan stayPer Midea; we check at the visit+ 24 V Full Function kit
- Indoor unitNew Midea
- PipingCan stayPer Midea; we check at the visit
- Outdoor unitNew Midea
All Midea, with the 24 V Full Function kit
Same idea, with Midea’s 24 V Full Function kit. Choosing between the Mini interface and the kit depends on your unit and your thermostat: we make that call with you, before ordering.
- ThermostatStaysYour 24 V thermostat
- WiringStays+ 24 V Full Function kit
- Indoor unitStaysYour current unit, even another brand
- PipingStays
- Outdoor unitNew Midea
Only the outdoor unit changes
Midea also shows a Midea outdoor unit paired with the existing indoor unit, even another brand’s: the indoor unit, piping, wiring and 24 V thermostat stay, with the 24 V Full Function kit. Midea notes that communication between the indoor and outdoor units must remain consistent: we check compatibility before ordering.
- New Midea Midea equipment installed
- Stays what stays in place
- Midea controls app, controller, remote
- To check we look at it at the visit
Midea indoor-unit brochures (1-way and 4-way cassettes, low- and high-static ducted, floor-ceiling, console): “Old Unit Replacement” and “Outdoor Unit ONLY Replacement” scenarios. According to Midea, when both units are replaced, the existing piping, wiring and 24 V thermostat can be used (with the 24 V Mini interface or the 24 V Full Function kit), and the indoor unit’s air outlet must be adapted to the model’s size. We check the condition and compatibility of each part at the visit.
Eight things to know about Midea controls.
Tap a card to flip it: each number’s source is on the back.
- 01120N controller6 / 20mThe cable lengthTap for the explanation01
For its 4-wire 120N wall controller, Midea provides 6 m of standard cable and allows up to 20 m of wiring.
Midea “One-Way Cassette” brochure, p. 4.
- 02120N controller2wiresA two-wire, non-polarized versionTap for the explanation02
The 120N also comes in a 2-wire version, connected to the HA-HB terminals without polarity, with a shielded cable supplied by the installer, according to Midea.
Midea “One-Way Cassette” brochure, p. 4.
- 03On the wall4controllersFour wall controllers at MideaTap for the explanation03
Recent Midea brochures show the 120N, 120L and MTL04-1 wall controllers, and announce the MTR03-1, “coming soon”.
Midea indoor-unit brochures (cassettes, ducted, floor-ceiling, console).
- 0424 V2interfacesTo keep a 24 V thermostatTap for the explanation04
Midea offers two interfaces to keep a 24 V thermostat: the 24 V “Mini” interface and the 24 V “Full Function” kit.
Midea indoor-unit brochures (cassettes, ducted, floor-ceiling, console).
- 05Replacement1 + 1Midea outdoor, another brand indoorsTap for the explanation05
With the 24 V Full Function kit, Midea shows a Midea outdoor unit paired with another brand’s indoor unit, or replacing the outdoor unit only. Compatibility is checked case by case.
Midea indoor-unit brochures (cassettes, ducted, floor-ceiling, console).
- 06BuildingsBACnet· ModbusFor a building management systemTap for the explanation06
For a building or a shop, Midea shows a BACnet or Modbus gateway that links its units to a building management system.
Midea indoor-unit brochures (cassettes, ducted, floor-ceiling, console).
- 07Setpoint0.5°CTo the half degreeTap for the explanation07
On the 4-way cassette, floor-ceiling unit and console, the setpoint adjusts in 0.5 °C steps; on the 1-way cassette, in 1 °C steps, according to Midea.
Midea indoor-unit brochures (cassettes, ducted, floor-ceiling, console).
- 08Communicating thermostatEVOX G3The EVOX G3 smart thermostatTap for the explanation08
For the EVOX G3, Midea offers a communicating thermostat: humidity control, sleep curve, iECO mode, schedules for each family member, energy tracking and remote updates.
Midea EVOX G³ homeowner brochure, p. 4 ; Midea EVOX G³ leaflet, p. 8.
Swipe to see the other cards, tap a card to flip it.
AirGreen — MIDEA PRO dealer
MIDEA PRO dealer: recognized expertise across the whole residential and commercial range.
Warranty given in writing with the quote, before you sign.
Specialized MIDEA technical training completed: installation to the manufacturer’s standards, advanced diagnostics and certified service.
Full command of MIDEA systems, from selection to start-up, including preventive maintenance and specialized repairs.
Priority access to original parts for after-sales service, cutting response times.
Privileged access to PRO programs and new technology, in Montreal, Laval, Longueuil, the North Shore, the South Shore and Montérégie.
Brand, model and serial number of the indoor and outdoor units, to confirm compatibility.
Interior wall of the room served, away from direct sun, an outside door or a heat source.
Communication cable to the indoor unit board, per the manufacturer’s instructions.
Communication, heating and cooling, then a walkthrough of your system’s functions.
Five questions about controls.
Answer, then read why.
“The KJR-120C/TF-E is programmable.”
False. It sets mode, temperature and speed, without schedules.
airgreen.ca KJR-120C/TF-E product page.
“You can keep a 24 V thermostat with a Midea heat pump.”
True. With the 24 V Mini interface or the Full Function kit, depending on the model.
Midea indoor-unit brochures (cassettes, ducted, floor-ceiling, console).
“The Midea 120N controller cable can run up to 20 m.”
True. 6 m supplied, 20 m maximum, according to Midea. For another controller, we check its own limit.
Midea “One-Way Cassette” brochure, p. 4.
“The SmartHome app works with Alexa and Google Home.”
True. That is what Midea states for its SmartHome app.
Midea indoor-unit brochures (cassettes, ducted, floor-ceiling, console).
“An infrared remote controls the unit through a wall.”
False. Infrared travels in a straight line: the unit must be in sight. For another room, it is the wall controller or the app.
Basic physics of infrared.
What people ask us about Midea controls.
No question matches. Write to us or call 514 316-2973.
It is meant for Midea-built mini splits, and some units of other brands built by Midea. It depends on the exact indoor unit model: we check it before ordering.
No. If scheduling matters to you, we show you the options possible with your unit.
No. To control from your phone, Midea offers the SmartHome app with an optional Wi-Fi module, depending on the unit.
According to Midea, on a replacement, an existing 24 V thermostat can be used with a Midea 24 V interface. We check with your system.
One year, manufacturer warranty, per our product page.
Your Midea control, checked and installed by AirGreen.
Send us your indoor unit model: we confirm compatibility and schedule the installation.
Hydro-Québec does not solicit anyone by phone or door to door for LogisVert. A call “from Hydro-Québec” selling a heat pump? Hang up.
Sources checked on October 8, 2026

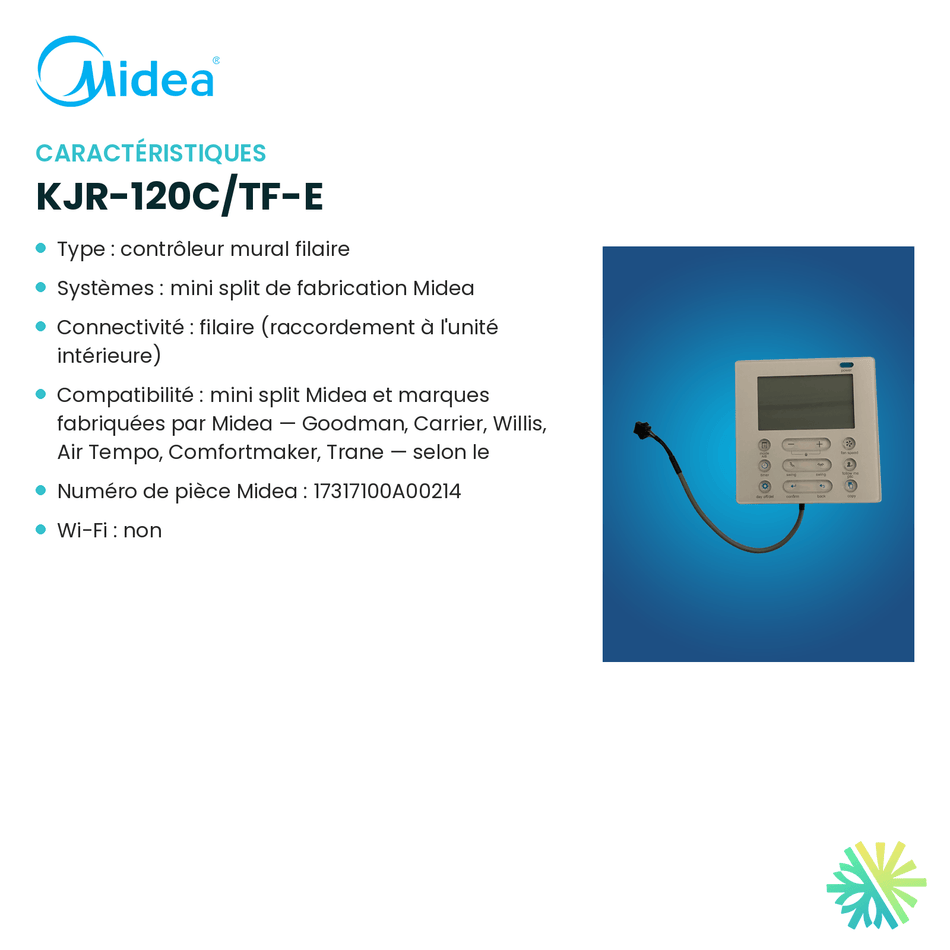

- airgreen.ca product page for the KJR-120C/TF-E controller (Midea part 17317100A00214), Oct. 8, 2026.
