MIDEA PROMIDEA electric furnaces at AirGreenMIDEA PRO dealer, specialized Midea technical training completed.
MIDEA PROMon. to Thu. 8 a.m. to 6 p.m. · Fri. 8 a.m. to 4 p.m.
Midea electric furnaces · updated October 8, 2026
Midea electric furnace: the EVOX G3 or Atom X indoor unit, paired with its heat pump.
It takes your furnace’s place on your ducts. Outside, the heat pump heats down to -30 °C according to Midea; inside, electric backup takes over when needed. 1.5 to 5 tons, LogisVert $1,764 to $5,400 depending on the system.
Electric furnaces · R-454BYour size, two series
Pick the size of your current system, then the series: the indoor unit, its heat pump and the LogisVert amount.
Size
Series
EVOX G3 · 1.5 tons1.5 tons EVOX G3 central unitMO1HE-H18B-2A + MAUSE-H18B-2A
14,700 BTU/hHeat at -8 °C
11,800 BTU/hMax. at -30 °C
19.0SEER2
$1,764LogisVert
AHRI 215471339 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
EVOX G3 · 2 tons2 tons EVOX G3 central unitMO1HE-H24B-2A + MAUSE-H24B-2A
20,800 BTU/hHeat at -8 °C
12,100 BTU/hMax. at -30 °C
18.6SEER2
$2,496LogisVert
AHRI 215471340 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
EVOX G3 · 2.5 tons2.5 tons EVOX G3 central unitMO1HE-H30B-2A + MAUSE-H30B-2A
24,000 BTU/hHeat at -8 °C
17,900 BTU/hMax. at -30 °C
17.2SEER2
$2,880LogisVert
AHRI 215471341 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
EVOX G3 · 3 tons3 tons EVOX G3 central unitMO1SE-H36B-2A + MAUSE-H36B-2A
33,000 BTU/hHeat at -8 °C
27,600 BTU/hMax. at -30 °C
18.0SEER2
$3,960LogisVert
AHRI 215471343 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
EVOX G3 · 4 tons4 tons EVOX G3 central unitMO1HE-H48B-2A + MAUSE-H48B-2A
39,500 BTU/hHeat at -8 °C
27,200 BTU/hMax. at -30 °C
17.5SEER2
$4,740LogisVert
AHRI 215471344 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
EVOX G3 · 5 tons5 tons EVOX G3 central unitMO1HE-H60B-2A + MAUSE-H60B-2A
45,000 BTU/hHeat at -8 °C
37,300 BTU/hMax. at -30 °C
17.5SEER2
$5,400LogisVert
AHRI 215471345 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
Atom X · 1.5 tons1.5 tons Atom X central unitMDV-V18WMN10T + MIH18VMN10
15,600 BTU/hHeat at -8 °C
8,270 BTU/hMax. at -30 °C
17.0SEER2
$1,872LogisVert
AHRI 216441714 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
Atom X · 2 tons2 tons Atom X central unitMDV-V24WMN10T + MIH24VMN10
18,000 BTU/hHeat at -8 °C
8,610 BTU/hMax. at -30 °C
17.0SEER2
$2,160LogisVert
AHRI 216441715 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
Atom X · 2.5 tons2.5 tons Atom X central unitMDV-V30WMN10T + MIH30VMN10
26,000 BTU/hHeat at -8 °C
16,330 BTU/hMax. at -30 °C
18.0SEER2
$3,120LogisVert
AHRI 216441716 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
Atom X · 3 tons3 tons Atom X central unitMDV-V36WMN10T + MIH36VMN10
31,200 BTU/hHeat at -8 °C
16,000 BTU/hMax. at -30 °C
17.0SEER2
$3,744LogisVert
AHRI 216441717 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
Atom X · 4 tons4 tons Atom X central unitMDV-V48WMN10T + MIH48VMN10
36,800 BTU/hHeat at -8 °C
17,700 BTU/hMax. at -30 °C
17.0SEER2
$4,416LogisVert
AHRI 216441718 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
Atom X · 5 tons5 tons Atom X central unitMDV-V60WMN10T + MIH54VMN10
40,000 BTU/hHeat at -8 °C
18,500 BTU/hMax. at -30 °C
17.0SEER2
$4,800LogisVert
AHRI 216441719 · ENERGY STAR cold climate · maximum heat at -30 °C published by the NEEP list.
12Midea electric furnaces in our catalogue
6installation positions, EVOX G3 according to Midea
$5,400Highest LogisVert (EVOX G3 5 t)
98Midea furnace installs published
AirGreen × MIDEAMIDEA PRO dealerMidea electric furnacesDown to -30 °CLogisVert checked by AHRIUp to 12 years on parts and compressorMontreal · Laval · Longueuil · South Shore · North Shore
01 · What it is
A Midea electric furnace is the indoor unit of a central heat pump.
It takes your furnace’s place, blows air into your ducts and works with the heat pump outside. Electric backup heat takes over when needed.
In your ducts
The indoor unit: MAUSE for the EVOX G3, modular in three blocks; MIH for the Atom X, multi-position. It connects to your existing ducts.
Outside, the heat pump
The EVOX G3 or Atom X outdoor unit heats in winter and cools in summer, down to -30 °C according to Midea.
Electric backup
For the EVOX G3, Midea electric kit up to 25 kW, optional; we size it at the visit. For the Atom X, backup heat is confirmed with the quote.
The combinations on this page are the same as our Midea central heat pumps, shown here from the indoor unit’s side. See the Midea central units
02 · How it works
The heat pump heats, the heat kit helps.
Switch to “With the heat kit” to see the electric element light up in the air handler.
MIDEA AirGreen diagram
AirGreen principle diagram: unit positions and line lengths vary from house to house.
03 · The indoor unit

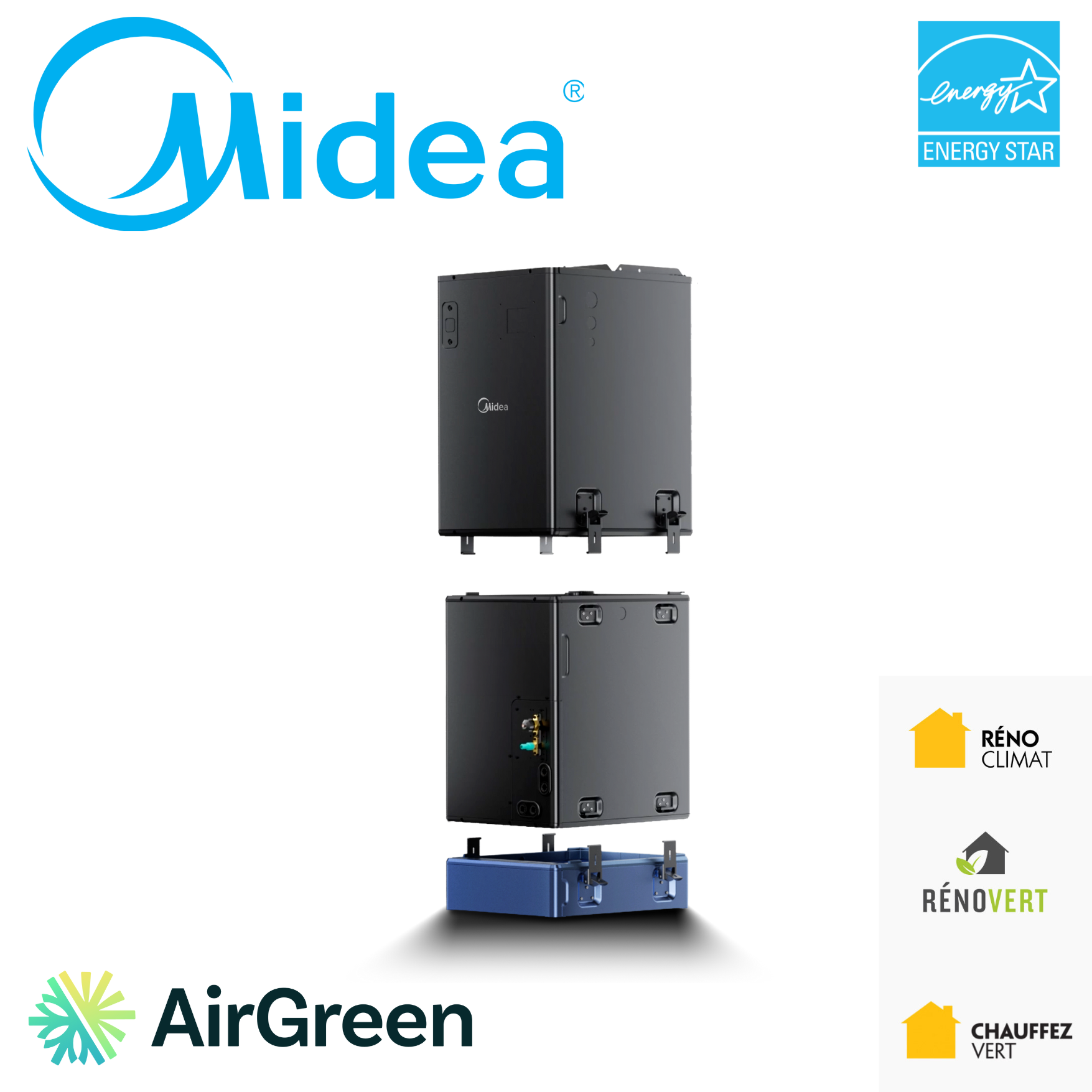

The EVOX G3 indoor unit comes in three blocks. Does it fit in your home?
Pick the size and enter the free space where your furnace sits: we tell you whether the EVOX G3 indoor unit fits.
EVOX G3 indoor unit
Block by block: does it fit in your home?
Size
53 7/8 in.
Serpentin
Ventilateur
Filtration
- SerpentinL’échange de chaleur avec le réfrigérant R-454B : il chauffe l’air l’hiver et le refroidit l’été.
- VentilateurDébit d’air constant jusqu’à 1,2 po de pression statique totale (essai sans appoint électrique), selon Midea, pour vos conduits existants.
- FiltrationAccepte des filtres de 1 à 4 po. Les trois modules s’emboîtent sans vis (« Block N Lock »).
53 7/8 in.height
14 1/2 in.width
21 1/2 in.depth
58 1/8 in.
Serpentin
Ventilateur
Filtration
- SerpentinL’échange de chaleur avec le réfrigérant R-454B : il chauffe l’air l’hiver et le refroidit l’été.
- VentilateurDébit d’air constant jusqu’à 1,2 po de pression statique totale (essai sans appoint électrique), selon Midea, pour vos conduits existants.
- FiltrationAccepte des filtres de 1 à 4 po. Les trois modules s’emboîtent sans vis (« Block N Lock »).
58 1/8 in.height
17 1/2 in.width
21 1/2 in.depth
60 1/8 in.
Serpentin
Ventilateur
Filtration
- SerpentinL’échange de chaleur avec le réfrigérant R-454B : il chauffe l’air l’hiver et le refroidit l’été.
- VentilateurDébit d’air constant jusqu’à 1,2 po de pression statique totale (essai sans appoint électrique), selon Midea, pour vos conduits existants.
- FiltrationAccepte des filtres de 1 à 4 po. Les trois modules s’emboîtent sans vis (« Block N Lock »).
60 1/8 in.height
21 1/2 in.width
21 1/2 in.depth
The unit (58 1/8 × 17 1/2 in.) fits in this space. Clearances still need checking: we measure at the visit.
Midea dimensions, filtration module included, without service clearances: we measure those at the visit. The split into three modules is illustrative.
Six positions
According to Midea, the EVOX G3 indoor unit installs six ways: upflow, downflow, horizontal left or right, and low-boy. We match it to your ducts.
A furnace’s footprint
Midea compares its width to a gas furnace: the old furnace comes out and the unit goes in the same spot.
Optional backup heat
Midea electric kit up to 25 kW, sized at the visit for the house.
Quiet indoors
Midea states an indoor unit from 31.5 dB(A).

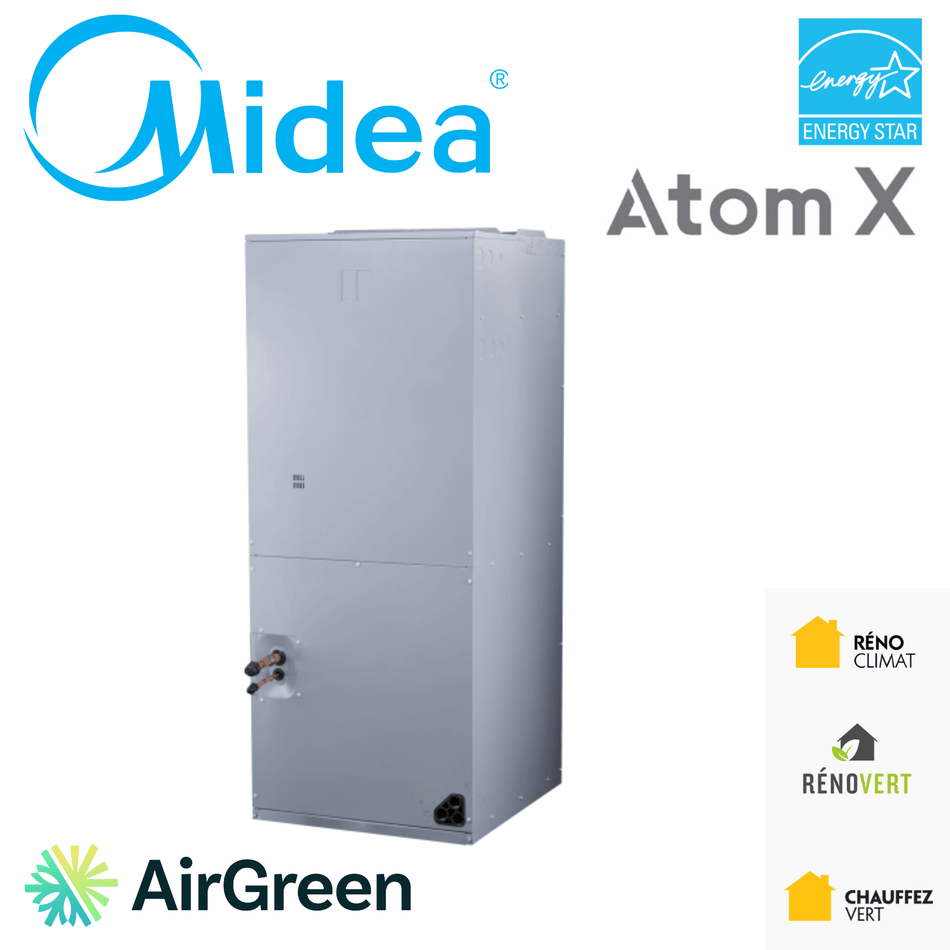

Atom X: a different indoor unit.

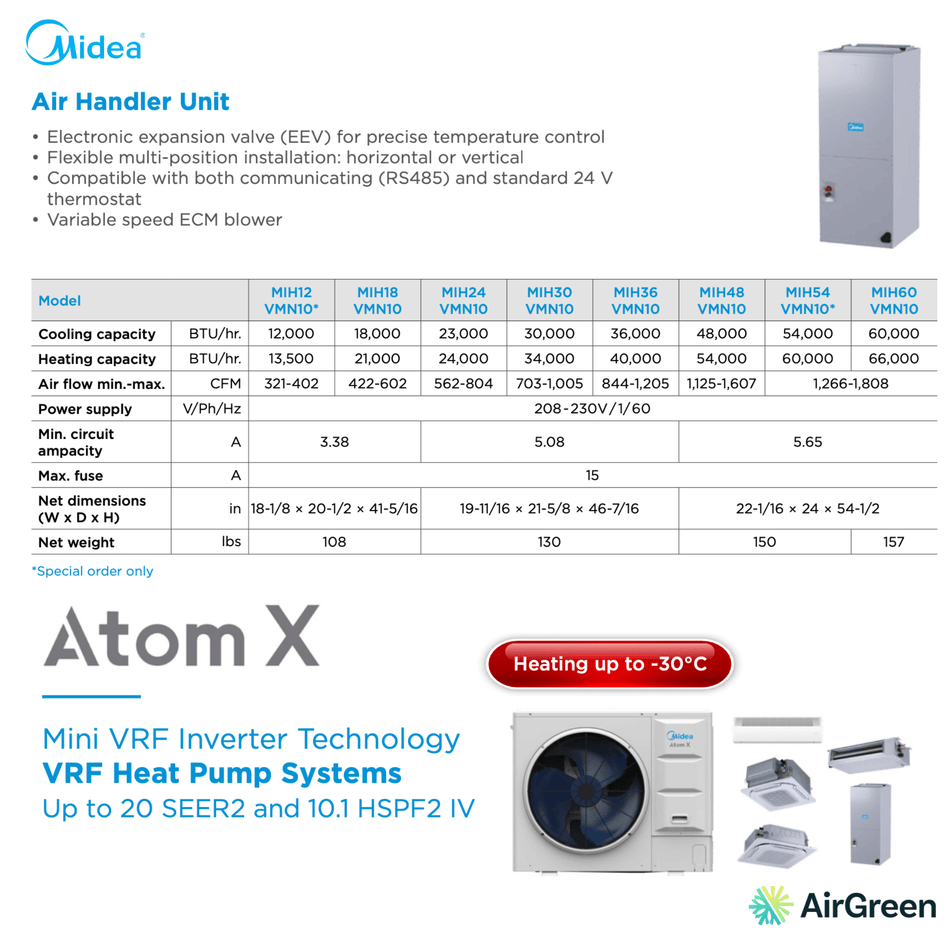

The Atom X pairs with the MIH unit, a multi-position air handler from Midea’s VRF range. Its dimensions are on each product page.
The indoor units are also in the Midea electric furnace collection
Source: Midea documents for the MAUSE indoor unit (submittal sheets and service manual, as used on our MIDEA page on Oct. 6, 2026) and Midea’s EVOX G³ brochure (positions, width, 31.5 dB(A)).
04 · Size by size
Twelve systems, all ENERGY STAR cold climate.
Pick a series: each row leads to the electric furnace product page, with its heat pump, certified heat and LogisVert amount.
Series
| Size and combination | Heat at 8 °C | Heat at -8 °C | Kept at -8 °C | Max. at -15 °C | Max. at -30 °C | SEER2 | HSPF2 | LogisVert | AHRI |
|---|---|---|---|---|---|---|---|---|---|
| EVOX G3 1.5 tonsMO1HE-H18B-2A + MAUSE-H18B-2A | 18,000 BTU/h | 14,700 BTU/h | 82% | 18,600 BTU/h | 11,800 BTU/h | 19.0 | 10.1 | $1,764 | 215471339 |
| EVOX G3 2 tonsMO1HE-H24B-2A + MAUSE-H24B-2A | 24,000 BTU/h | 20,800 BTU/h | 87% | 20,600 BTU/h | 12,100 BTU/h | 18.6 | 10.0 | $2,496 | 215471340 |
| EVOX G3 2.5 tonsMO1HE-H30B-2A + MAUSE-H30B-2A | 33,000 BTU/h | 24,000 BTU/h | 73% | 33,200 BTU/h | 17,900 BTU/h | 17.2 | 10.8 | $2,880 | 215471341 |
| EVOX G3 3 tonsMO1SE-H36B-2A + MAUSE-H36B-2A | 37,000 BTU/h | 33,000 BTU/h | 89% | 37,400 BTU/h | 27,600 BTU/h | 18.0 | 10.0 | $3,960 | 215471343 |
| EVOX G3 4 tonsMO1HE-H48B-2A + MAUSE-H48B-2A | 48,000 BTU/h | 39,500 BTU/h | 82% | 48,000 BTU/h | 27,200 BTU/h | 17.5 | 9.5 | $4,740 | 215471344 |
| EVOX G3 5 tonsMO1HE-H60B-2A + MAUSE-H60B-2A | 55,000 BTU/h | 45,000 BTU/h | 82% | 54,000 BTU/h | 37,300 BTU/h | 17.5 | 9.5 | $5,400 | 215471345 |
| Size and combination | Heat at 8 °C | Heat at -8 °C | Kept at -8 °C | Max. at -15 °C | Max. at -30 °C | SEER2 | HSPF2 | LogisVert | AHRI |
|---|---|---|---|---|---|---|---|---|---|
| Atom X 1.5 tonsMDV-V18WMN10T + MIH18VMN10 | 18,000 BTU/h | 15,600 BTU/h | 87% | 19,100 BTU/h | 8,270 BTU/h | 17.0 | 9.25 | $1,872 | 216441714 |
| Atom X 2 tonsMDV-V24WMN10T + MIH24VMN10 | 24,000 BTU/h | 18,000 BTU/h | 75% | 20,200 BTU/h | 8,610 BTU/h | 17.0 | 9.2 | $2,160 | 216441715 |
| Atom X 2.5 tonsMDV-V30WMN10T + MIH30VMN10 | 30,000 BTU/h | 26,000 BTU/h | 87% | 30,000 BTU/h | 16,330 BTU/h | 18.0 | 10.0 | $3,120 | 216441716 |
| Atom X 3 tonsMDV-V36WMN10T + MIH36VMN10 | 36,000 BTU/h | 31,200 BTU/h | 87% | 36,000 BTU/h | 16,000 BTU/h | 17.0 | 9.4 | $3,744 | 216441717 |
| Atom X 4 tonsMDV-V48WMN10T + MIH48VMN10 | 48,000 BTU/h | 36,800 BTU/h | 77% | 42,000 BTU/h | 17,700 BTU/h | 17.0 | 9.4 | $4,416 | 216441718 |
| Atom X 5 tonsMDV-V60WMN10T + MIH54VMN10 | 54,000 BTU/h | 40,000 BTU/h | 74% | 46,000 BTU/h | 18,500 BTU/h | 17.0 | 9.3 | $4,800 | 216441719 |
ENERGY STAR (heat at 8 °C, at -8 °C and maximum at -15 °C, SEER2, HSPF2) and NEEP (maximum heat at -30 °C), data by AHRI number, Oct. 8, 2026. Blue marks the best value in each column. LogisVert: Hydro-Québec formula, ENERGY STAR cold climate for all twelve combinations.
Keeping your furnace?
See the Midea add-onsThe add-on is the EVOX G3 outdoor unit and a Midea coil set on your existing furnace. LogisVert from $1,824 to $4,536 depending on the combination, per Hydro-Québec.
05 · In deep cold
At -30 °C, the 5-ton EVOX G3 still gives 37,300 BTU/h.
Both series run down to -30 °C according to Midea. What changes is the heat left: pick a size, both cards share the same scale.
Size
EVOX G3 · 1.5 tons
MO1HE-H18B-2A11,800 BTU/hmaximum heat at -30 °C (NEEP)
8 °C18,000 BTU/h
-8 °C14,700 BTU/h
-15 °C18,600 BTU/h
-30 °C11,800 BTU/h
Runs down to -30 °C and gives 100% of its heat down to -25 °C, according to Midea
Atom X · 1.5 tons
MDV-V18WMN10T8,270 BTU/hmaximum heat at -30 °C (NEEP)
8 °C18,000 BTU/h
-8 °C15,600 BTU/h
-15 °C19,100 BTU/h
-30 °C8,270 BTU/h
Runs down to -30 °C (-22 °F), according to Midea
EVOX G3 · 2 tons
MO1HE-H24B-2A12,100 BTU/hmaximum heat at -30 °C (NEEP)
8 °C24,000 BTU/h
-8 °C20,800 BTU/h
-15 °C20,600 BTU/h
-30 °C12,100 BTU/h
Runs down to -30 °C and gives 100% of its heat down to -25 °C, according to Midea
Atom X · 2 tons
MDV-V24WMN10T8,610 BTU/hmaximum heat at -30 °C (NEEP)
8 °C24,000 BTU/h
-8 °C18,000 BTU/h
-15 °C20,200 BTU/h
-30 °C8,610 BTU/h
Runs down to -30 °C (-22 °F), according to Midea
EVOX G3 · 2.5 tons
MO1HE-H30B-2A17,900 BTU/hmaximum heat at -30 °C (NEEP)
8 °C33,000 BTU/h
-8 °C24,000 BTU/h
-15 °C33,200 BTU/h
-30 °C17,900 BTU/h
Runs down to -30 °C and gives 100% of its heat down to -25 °C, according to Midea
Atom X · 2.5 tons
MDV-V30WMN10T16,330 BTU/hmaximum heat at -30 °C (NEEP)
8 °C30,000 BTU/h
-8 °C26,000 BTU/h
-15 °C30,000 BTU/h
-30 °C16,330 BTU/h
Runs down to -30 °C (-22 °F), according to Midea
EVOX G3 · 3 tons
MO1SE-H36B-2A27,600 BTU/hmaximum heat at -30 °C (NEEP)
8 °C37,000 BTU/h
-8 °C33,000 BTU/h
-15 °C37,400 BTU/h
-30 °C27,600 BTU/h
Runs down to -30 °C and gives 100% of its heat down to -25 °C, according to Midea
Atom X · 3 tons
MDV-V36WMN10T16,000 BTU/hmaximum heat at -30 °C (NEEP)
8 °C36,000 BTU/h
-8 °C31,200 BTU/h
-15 °C36,000 BTU/h
-30 °C16,000 BTU/h
Runs down to -30 °C (-22 °F), according to Midea
EVOX G3 · 4 tons
MO1HE-H48B-2A27,200 BTU/hmaximum heat at -30 °C (NEEP)
8 °C48,000 BTU/h
-8 °C39,500 BTU/h
-15 °C48,000 BTU/h
-30 °C27,200 BTU/h
Runs down to -30 °C and gives 100% of its heat down to -25 °C, according to Midea
Atom X · 4 tons
MDV-V48WMN10T17,700 BTU/hmaximum heat at -30 °C (NEEP)
8 °C48,000 BTU/h
-8 °C36,800 BTU/h
-15 °C42,000 BTU/h
-30 °C17,700 BTU/h
Runs down to -30 °C (-22 °F), according to Midea
EVOX G3 · 5 tons
MO1HE-H60B-2A37,300 BTU/hmaximum heat at -30 °C (NEEP)
8 °C55,000 BTU/h
-8 °C45,000 BTU/h
-15 °C54,000 BTU/h
-30 °C37,300 BTU/h
Runs down to -30 °C and gives 100% of its heat down to -25 °C, according to Midea
Atom X · 5 tons
MDV-V60WMN10T18,500 BTU/hmaximum heat at -30 °C (NEEP)
8 °C54,000 BTU/h
-8 °C40,000 BTU/h
-15 °C46,000 BTU/h
-30 °C18,500 BTU/h
Runs down to -30 °C (-22 °F), according to Midea
ENERGY STAR (8 °C, -8 °C, maximum at -15 °C) and NEEP (maximum at -30 °C), data by AHRI number, Oct. 8, 2026.
06 · 1 kWh, how much heat?
What 1 kWh gives, size by size.
Pick a model and a temperature: here is how many kWh of heat come out per kWh of electricity, from the NEEP list COPs, and what a kWh of heat costs at Rate D.
Model
Outside
Heat delivered× 2.40kWh of heat per kWh of electricity
Cost of one kWh of heat, Rate D
2.94 ¢1st tier (straight electric: 7.065 ¢)
4.64 ¢2nd tier (straight electric: 11.142 ¢)
At -8 °C, heat of 20,800 BTU/h at the rated point (NEEP list).
COPs published by the NEEP list (ashp.neep.org, data by AHRI number, Oct. 8, 2026): rated at 8, -8 and -15 °C; at the coldest point, at maximum output, as reported by the manufacturer. Electric baseboard: about 100% efficient (NRCan, “Heating with Electricity”). Hydro-Québec Rate D in force April 1, 2026: 7.065¢/kWh up to 40 kWh per day, 11.142¢/kWh beyond, plus the access charge. A lab COP is not a bill: real use depends on the house and how it is used.
07 · Hydro-Québec LogisVert
From $1,764 to $5,400 per Midea system.
The amount follows the certified heat at -8 °C of the full combination, indoor unit and heat pump. Tap a system to see the calculation and your application deadline.
ENERGY STAR cold climate: $120 / 1,000 BTU/h
Your calculation
EVOX G3 · 5 tons
$5,400
CombinationMO1HE-H60B-2A + MAUSE-H60B-2A
Heat at -8 °C45,000 BTU/h
CertificationENERGY STAR cold climate
Formula45.0 × $120 = $5,400
AHRI number215471345
Your calculation
Atom X · 5 tons
$4,800
CombinationMDV-V60WMN10T + MIH54VMN10
Heat at -8 °C40,000 BTU/h
CertificationENERGY STAR cold climate
Formula40.0 × $120 = $4,800
AHRI number216441719
Your calculation
EVOX G3 · 4 tons
$4,740
CombinationMO1HE-H48B-2A + MAUSE-H48B-2A
Heat at -8 °C39,500 BTU/h
CertificationENERGY STAR cold climate
Formula39.5 × $120 = $4,740
AHRI number215471344
Your calculation
Atom X · 4 tons
$4,416
CombinationMDV-V48WMN10T + MIH48VMN10
Heat at -8 °C36,800 BTU/h
CertificationENERGY STAR cold climate
Formula36.8 × $120 = $4,416
AHRI number216441718
Your calculation
EVOX G3 · 3 tons
$3,960
CombinationMO1SE-H36B-2A + MAUSE-H36B-2A
Heat at -8 °C33,000 BTU/h
CertificationENERGY STAR cold climate
Formula33.0 × $120 = $3,960
AHRI number215471343
Your calculation
Atom X · 3 tons
$3,744
CombinationMDV-V36WMN10T + MIH36VMN10
Heat at -8 °C31,200 BTU/h
CertificationENERGY STAR cold climate
Formula31.2 × $120 = $3,744
AHRI number216441717
Your calculation
Atom X · 2.5 tons
$3,120
CombinationMDV-V30WMN10T + MIH30VMN10
Heat at -8 °C26,000 BTU/h
CertificationENERGY STAR cold climate
Formula26.0 × $120 = $3,120
AHRI number216441716
Your calculation
EVOX G3 · 2.5 tons
$2,880
CombinationMO1HE-H30B-2A + MAUSE-H30B-2A
Heat at -8 °C24,000 BTU/h
CertificationENERGY STAR cold climate
Formula24.0 × $120 = $2,880
AHRI number215471341
Your calculation
EVOX G3 · 2 tons
$2,496
CombinationMO1HE-H24B-2A + MAUSE-H24B-2A
Heat at -8 °C20,800 BTU/h
CertificationENERGY STAR cold climate
Formula20.8 × $120 = $2,496
AHRI number215471340
Your calculation
Atom X · 2 tons
$2,160
CombinationMDV-V24WMN10T + MIH24VMN10
Heat at -8 °C18,000 BTU/h
CertificationENERGY STAR cold climate
Formula18.0 × $120 = $2,160
AHRI number216441715
Your calculation
Atom X · 1.5 tons
$1,872
CombinationMDV-V18WMN10T + MIH18VMN10
Heat at -8 °C15,600 BTU/h
CertificationENERGY STAR cold climate
Formula15.6 × $120 = $1,872
AHRI number216441714
Your calculation
EVOX G3 · 1.5 tons
$1,764
CombinationMO1HE-H18B-2A + MAUSE-H18B-2A
Heat at -8 °C14,700 BTU/h
CertificationENERGY STAR cold climate
Formula14.7 × $120 = $1,764
AHRI number215471339
Apply no later than —
Heat at -8 °C counts
The amount follows the certified heat at -8 °C of the exact combination, hence the AHRI number on the quote.
ENERGY STAR required
Since November 26, 2025, only ENERGY STAR certified units qualify.
Nine months to apply
You apply no later than 9 months after installation.
Capped at cost
The rebate never exceeds 100% of the purchase and installation cost before taxes.
Source: Hydro-Québec, LogisVert residential participation guide v1.10 (Sept. 15, 2026) and eligible heat pump search tool, consulted Oct. 6, 2026; heat at -8 °C: ENERGY STAR, Oct. 8, 2026. Indicative amounts, confirmed by Hydro-Québec when you apply. Our LogisVert page
08 · What Midea puts inside
What Midea built into its systems.
The features Midea states for the EVOX G3 and the Atom X.
EVOX G3
EVOX G3Enhanced vapor injection (EVI)
In deep cold, the compressor gets medium-temperature vapor to raise the refrigerant flow and heat harder, according to Midea.
EVOX G3100% down to -25 °C
Midea states 100% of the heat down to -25 °C and operation down to -30 °C. The certified figures for each size are in the table above.
EVOX G3Cooling in a heat wave
The ICE circuit cools the control board: Midea states cooling operation up to 50 °C, and 100% capacity up to 43 °C.
EVOX G3No on-off cycling
The variable-speed compressor adjusts its speed instead of stopping and restarting: steadier temperature and less noise, according to Midea.
EVOX G3Screwless assembly
The indoor unit modules lock with latches: they come apart to go down a narrow staircase and go back together on site.
ENERGY STARCold climate, six sizes
All six EVOX G3 combinations in our catalogue are ENERGY STAR cold climate certified, up to 19.0 SEER2 at 1.5 tons.
Atom X
Atom XVariable-speed mini VRF
The Atom X comes from Midea Building Technologies’ VRF range: a variable-speed outdoor unit, from 1.5 to 5 tons.
Atom XFrom -30 °C to 52 °C
Midea states heating down to -30 °C (-22 °F) and cooling up to 52 °C (125 °F).
Atom XAutomatic refrigerant charging
The system does its own R-454B refrigerant charge at start-up, according to Midea.
Atom XLong line sets
According to Midea: up to 90 m for the longest run, 300 m of piping in total and 50 m of height difference between the outdoor and indoor units.
Atom XR-454B refrigerant
According to Midea, the Atom X’s R-454B has a global warming potential of 466, versus 2,088 for the R-410A of earlier generations.
ENERGY STARCold climate, six sizes
All six Atom X combinations in our catalogue are ENERGY STAR cold climate certified, up to 18.0 SEER2 at 2.5 tons.
Source: Midea EVOX G³ homeowner brochure and Midea Comfort Canada EVOX G3 page; Midea Building Technologies AtomX brochure (hvac.midea.com, file of March 7, 2025); certifications: ENERGY STAR, Oct. 8, 2026.
09 · Did you know?
Eight things to know about the Midea electric furnace.
Tap a card to flip it: each number’s source is on the back.
- 01EVOX G310 · 15 · 25kWA heat kit in three sizesTap for the explanation01
The optional EVOX G3 electric kit comes in 10, 15 and 25 kW; it turns on and adjusts itself with the temperature, according to Midea.
Midea EVOX G³ leaflet, p. 5.
- 02EVOX G3115 / 230VThe unit finds its voltage on its ownTap for the explanation02
The EVOX G3 air handler detects on its own whether it is fed 115 V or 208-230 V, without rewiring, according to Midea.
Midea EVOX G³ leaflet, p. 5.
- 03EVOX G314 1/2in.As narrow as a gas furnaceTap for the explanation03
At 1.5 and 2 tons, the EVOX G3 is 14 1/2 in. wide, versus 17 1/2 in. for the EVOX 2; Midea matches it to a gas furnace of the same capacity (14 1/2 to 21 1/2 in.). It is taller, though.
Midea EVOX G³ leaflet, p. 5.
- 04EVOX G3123–188lbWhy it comes in modulesTap for the explanation04
The air handler weighs 55.8 kg (123 lb) at 1.5 and 2 tons, 67.7 kg (149 lb) at 2.5 and 3 tons, and up to 85.3 kg (188 lb) at 5 tons, according to Midea: hence the modules, which go up a staircase or into an attic.
Midea EVOX G³ homeowner brochure, p. 5 ; Midea EVOX G³ leaflet, p. 6.
- 05EVOX G32stepsChange position in two movesTap for the explanation05
To change installation position, the EVOX G3 takes 2 steps (reconfigure the screwless modules, reconnect them), versus at least 5 for a conventional unit, according to Midea.
Midea EVOX G³ leaflet, p. 6.
- 06EVOX G3MERV 13A real filter, without losing airflowTap for the explanation06
The filter module takes a 1, 2 or 4 in. MERV 13 filter. In Midea’s test, airflow stays at 1,200 CFM at 0.4 and at 1.2 in. of static pressure.
Midea EVOX G³ leaflet, p. 7 et 8.
- 07EVOX G32%The M-coilTap for the explanation07
The EVOX G3 air handler has an M-coil and a symmetric blower: according to Midea, airflow splits within 2% between the two sides of the coil, versus 30% for a classic A-coil.
Midea EVOX G³ leaflet, p. 4.
- 08EVOX G360levelsWhole-home airflowTap for the explanation08
In “Engineer Mode”, from the remote or the wired controller, the home’s airflow is set over 60 levels, according to Midea.
Midea EVOX G³ leaflet, p. 7.
Swipe to see the other cards, tap a card to flip it.
10 · Midea warranty
EVOX G3: 12 years on parts and compressor, if the system is registered in time.
Midea’s limited warranty for the first owner of a single-family home, registration within 60 days of installation. Pick your case.
12 years
on the compressor and on parts: first owner, single-family home, unit registered within 60 days.
Compressor
12 years
Parts
12 years
Labour
Not covered by Midea
7 years
on the compressor, and 5 years on parts, without registration.
Compressor
7 years
Parts
5 years
Labour
Not covered by Midea
5 years
on the compressor, and 1 year on parts, for any other use.
Compressor
5 years
Parts
1 year
Labour
Not covered by Midea
5 years
on the compressor and on parts, for the next owner.
Compressor
5 years
Parts
5 years
Labour
Not covered by Midea
Registration within 60 days
On mideacomfortna.ca, within 60 days of installation. We show you how at start-up.
Licensed installer
Midea requires installation by a licensed contractor. AirGreen: RBQ 5645-9605-01.
What Midea does not cover
Labour and refrigerant are excluded from the Midea warranty, in plain words.
Source: Midea limited warranty for Canada (rev. 12.2024, September 2026 edition), linked from mideacomfortna.ca, consulted Oct. 6, 2026.
Atom X: it comes from Midea’s VRF range, whose warranty is not in the document above. We confirm it in writing with the quote.
11 · Dealer
AirGreen — MIDEA PRO dealer
MIDEA PRO dealer: recognized expertise across the whole residential and commercial range.
Up to 12 years of Midea warranty on parts and compressor for systems registered within 60 days.
Specialized MIDEA technical training completed: installation to the manufacturer’s standards, advanced diagnostics and certified service.
Full command of MIDEA systems, from selection to start-up, including preventive maintenance and specialized repairs.
Priority access to original parts for after-sales service, cutting response times.
Privileged access to PRO programs and new technology, in Montreal, Laval, Longueuil, the North Shore, the South Shore and Montérégie.
1Free visit
We look at your ducts, the electrical panel, the room for the indoor unit and the spot for the outdoor unit.
2Clear quote
The series, the size, backup heat if needed, the AHRI number and the indicative LogisVert amount.
3Installation and start-up
Duct connection, vacuum, refrigerant charge, airflow setting, heating and cooling tests.
4Warranty and LogisVert
We give you the AHRI number and the papers for your Hydro-Québec application.
12 · Videos
The EVOX G3 and the Atom X, on video.
MIDEA · AIRGREENEVOX G3, the overviewOutdoor unit and indoor unit · 0:53
Worth watching before the visit
We go over it again at the visit, in front of your furnace and electrical panel.
MIDEA · AIRGREENThe EVOX G3 in 44 secondsMidea’s modular central unit · 0:44
Worth watching before the visit
We go over it again at the visit, in front of your furnace and electrical panel.
MIDEA · AIRGREENAtom XThe central unit from Midea’s VRF range · 2:57
Worth watching before the visit
We go over it again at the visit, in front of your furnace and electrical panel.
13 · Our Midea installs
98 Midea electric furnaces installed and published. Here are the latest six.
Each article on our blog shows a real install: the indoor unit, the duct connection, the outdoor unit.
Midea EVOX G3 electric furnace (air handler) · LorrainePublished Oct. 5, 2026
Midea EVOX G3 electric furnace (air handler) · OkaPublished Oct. 2, 2026
Midea EVOX G3 electric furnace (air handler) · Sainte-RosePublished Sept. 30, 2026
Midea EVOX G3 electric furnace (air handler) · Pointe-CalumetPublished Sept. 30, 2026
Midea EVOX G3 electric furnace (air handler) · Deux-MontagnesPublished Sept. 29, 2026
Midea EVOX G3 electric furnace (air handler) · Sainte-Marie-MadeleinePublished Sept. 28, 2026
14 · Our installs by region
98 Midea furnaces published: here is where.
Tap a region to see the cities.
Montreal 37 published installs
- Montréal (unspecified)4
- Pierrefonds-Roxboro2
- Ville-Marie2
- Ahuntsic-Cartierville
- Anjou
- Baie-D’Urfé
- Beaconsfield
- Côte Saint-Luc
- Côte-des-Neiges–Notre-Dame-de-Grâce
- Dollard-des-Ormeaux
- Dorval
- Kirkland
- LaSalle
- Lachine
- Montréal-Est
- Montréal-Nord
- Outremont
- Plateau-Mont-Royal
- Pointe-Claire
- Rivière-des-Prairies–Pointe-aux-Trembles
- Saint-Laurent
- Saint-Léonard
- Sainte-Anne-de-Bellevue
- Senneville
- Verdun
- Vieux-Port
- Ville Mont-Royal
- Villeray–Saint-Michel–Parc-Extension
- West Island
- Westmount
- Île-Bizard–Sainte-Geneviève
- Île-des-Sœurs
Laval 12 published installs
- Auteuil
- Chomedey
- Duvernay
- Fabreville
- Laval-Ouest
- Laval-des-Rapides
- Pont-Viau
- Saint-François
- Saint-Vincent-de-Paul
- Sainte-Dorothée
- Sainte-Rose
- Vimont
South Shore 23 published installs
- Brossard3
- Rive-Sud (unspecified)3
- Saint-Lambert3
- Boucherville2
- Saint-Bruno2
- Varennes2
- Candiac
- Châteauguay
- Delson
- La Prairie
- Longueuil
- Saint-Constant
- Sainte-Catherine
- Sainte-Julie
North Shore 19 published installs
- Lorraine2
- Pointe-Calumet2
- Repentigny2
- Saint-Eustache2
- Sainte-Thérèse2
- Terrebonne2
- Blainville
- Bois-des-Filion
- Charlemagne
- Deux-Montagnes
- Oka
- Rosemère
- Sainte-Marthe-sur-le-Lac
Montérégie and Vaudreuil 7 published installs
- Ange-Gardien
- Béthanie
- Henryville
- Roxton Falls
- Saint-Marcel-de-Richelieu
- Sainte-Marie-Madeleine
- Vaudreuil-Dorion
AirGreen’s Nos réalisations blog, as of Oct. 8, 2026: of 98 “Midea electric furnaces” articles, 98 name a place (municipality, borough, area or shore), and those are the ones counted here. One article = one published install.
15 · True or false?
Five questions about the electric furnace.
Answer, then read why.
Question 1 / 5Score 0
“A Midea electric furnace is just heating elements.”
False. It is the air handler of a central heat pump: the electric heating elements are only its backup.
Midea EVOX G³ leaflet, p. 5.
“On the EVOX G3, the heat kit turns on by itself with the temperature.”
True. According to Midea, it turns on and adjusts itself.
Midea EVOX G³ leaflet, p. 5.
“The EVOX G3 is wider than a gas furnace of the same capacity.”
False. Same width, according to Midea: 14 1/2 to 21 1/2 in.
Midea EVOX G³ leaflet, p. 5.
“The EVOX G3 can go up to the attic in pieces.”
True. It comes in light modules, made for stairs and attics, according to Midea.
Midea EVOX G³ leaflet, p. 6.
“The filter must be 1 in.”
False. 1, 2 or 4 in., up to MERV 13, according to Midea.
Midea EVOX G³ leaflet, p. 8.
0 / 5
16 · Frequently asked questions
What people ask us about Midea electric furnaces.
No question matches. Write to us or call 514 316-2973.
The indoor unit of a Midea central heat pump, with its electric backup heat: MAUSE for the EVOX G3, MIH for the Atom X. It takes your furnace’s place and connects to your ducts.
On our site, they are the same systems seen from two sides: the “electric furnace” page starts from the indoor unit, the “central heat pump” page from the outdoor unit. The combination and AHRI number decide the rest. See the Midea central units.
$1,764 to $5,400 for the EVOX G3 and $1,872 to $4,800 for the Atom X, depending on size. All twelve combinations are ENERGY STAR cold climate: $120 per 1,000 BTU/h of certified heat at -8 °C.
It is 53 7/8 to 60 1/8 in. high and 14 1/2 to 21 1/2 in. wide depending on size, 21 1/2 in. deep, and it comes in three modules. Try the tool in “The indoor unit” section, then we measure at the visit.
We check it at the visit: the heat pump and the backup heat each have their own needs. The quote says whether the panel is enough.
We decide at the visit, based on the house and the electrical panel: it takes over on the coldest days. For the EVOX G3, Midea offers an electric kit up to 25 kW.
Yes: the EVOX G3 add-on adds the outdoor unit and a Midea coil on your furnace. Per Hydro-Québec, LogisVert gives $1,824 to $4,536 depending on the combination. See the Midea add-ons.
At Midea, Wi-Fi control of the EVOX G3 goes through the 120N(X6W) wired controller, with the Midea SmartHome app; it is optional. For the Atom X, the control is chosen with the quote. The quote says what is included.
EVOX G3: Midea’s limited warranty, up to 12 years on parts and compressor for the first owner of a single-family home if the system is registered within 60 days (otherwise 7 years compressor and 5 years parts). Atom X: confirmed in writing with the quote. Midea excludes labour and refrigerant.
AirGreen × MIDEAMIDEA PRO dealerMidea electric furnacesDown to -30 °CLogisVert checked by AHRIUp to 12 years on parts and compressorMontreal · Laval · Longueuil · South Shore · North Shore
AirGreen · Heating & cooling
Your Midea electric furnace, picked with you and installed by AirGreen.
We come and see your furnace, ducts and panel, pick the series and size with you, then you get a clear quote: the system, the AHRI number and the indicative LogisVert amount.
Hydro-Québec does not solicit anyone by phone or door to door for LogisVert. A call “from Hydro-Québec” selling a heat pump? Hang up.
RBQ 5645-9605-01Subclasses 15.8, 15.10 and 16
Free estimateAt home, no commitment
MIDEA PRO dealerWall, multi-zone, central
Showroom1370, rue Joliot-Curie, local 712, Boucherville
Sources checked on October 8, 2026
- ENERGY STAR, Certified Air-Source Heat Pumps (dataset w7cv-9xjt): twelve EVOX G3 and Atom X combinations by AHRI number, data of Oct. 8, 2026.
- NEEP, Cold Climate Air Source Heat Pump List (ashp.neep.org): maximum heat at -30 °C, consulted Oct. 8, 2026.
- Midea Comfort Canada (mideacomfortna.ca): EVOX G3 page; MAUSE / MO1HE / MO1SE submittal sheets and EVOX G3 indoor unit service manual, as used on our MIDEA page (Oct. 6, 2026).
- Midea, EVOX G³ homeowner brochure: EVI, ICE circuit, six positions, screwless latches, 31.5 dB(A) indoors.
- Midea Building Technologies, AtomX brochure (hvac.midea.com, file of March 7, 2025): mini VRF, -30 °C to 52 °C, automatic charging, piping lengths, R-454B.
- Midea limited warranty for Canada (rev. 12.2024, September 2026 edition), consulted Oct. 6, 2026.
- Hydro-Québec, LogisVert residential participation guide, version 1.10, Sept. 15, 2026; eligible heat pump search tool, consulted Oct. 6, 2026.
- AirGreen, “Nos réalisations” blog: 98 Midea electric furnace installs published as of Oct. 8, 2026.
- airgreen.ca product pages (combinations, AHRI numbers), Oct. 8, 2026.
LogisVert amounts are indicative: Hydro-Québec confirms them when you apply. Prices on quote.
Prices on quote. Free home estimate.
The MIDEA electric furnace shop
All 12 Midea electric furnaces, right below.
Filter by series or size, then open the product page: the combination, the dimensions, the AHRI number and the indicative LogisVert amount.
