Hitachi AIRCOREAHUKIT1 Control Box for airCore 700 Air Handler
The genuine control box that links the airCore 700 JPE air handler to its control and refrigerant detection.
AirGreen codeAG-AC-023
514 316-2973 · sales@airgreen.ca
Quick facts
The AIRCOREAHUKIT1 control box is the genuine Hitachi part that provides control and the RDS interface for the JPE air handlers of the airCore 700 central heat pump. It links the air handler, its control and the refrigerant detection system.
An air handler designed for A2L refrigerant
The airCore 700 runs on R-32, an A2L-class refrigerant. The JPE air handler installation manual describes a refrigerant sensor and an RDS mitigation board: if refrigerant is detected, the system applies the measures set out by the manufacturer, and an indicator light shows the sensor's status with a series of flashes.
Air handlers covered
- JPE18B3XB2HS1A and JPE24B3XC2HS1A
- JPE30B3XD2HS1A and JPE36B3XD2HS1A
- JPE48C3XG2HS1A
Before ordering
Send us the model numbers of the air handler and the outdoor unit: we confirm the part before ordering it. The connection is made with all power sources shut off, and the manufacturer requires an on-site sensor test once the wiring is done.
Installed by AirGreen in Greater Montréal
We install, connect and commission airCore 700 systems in Montréal, Laval, Longueuil, on the South Shore and the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with your air handler model.

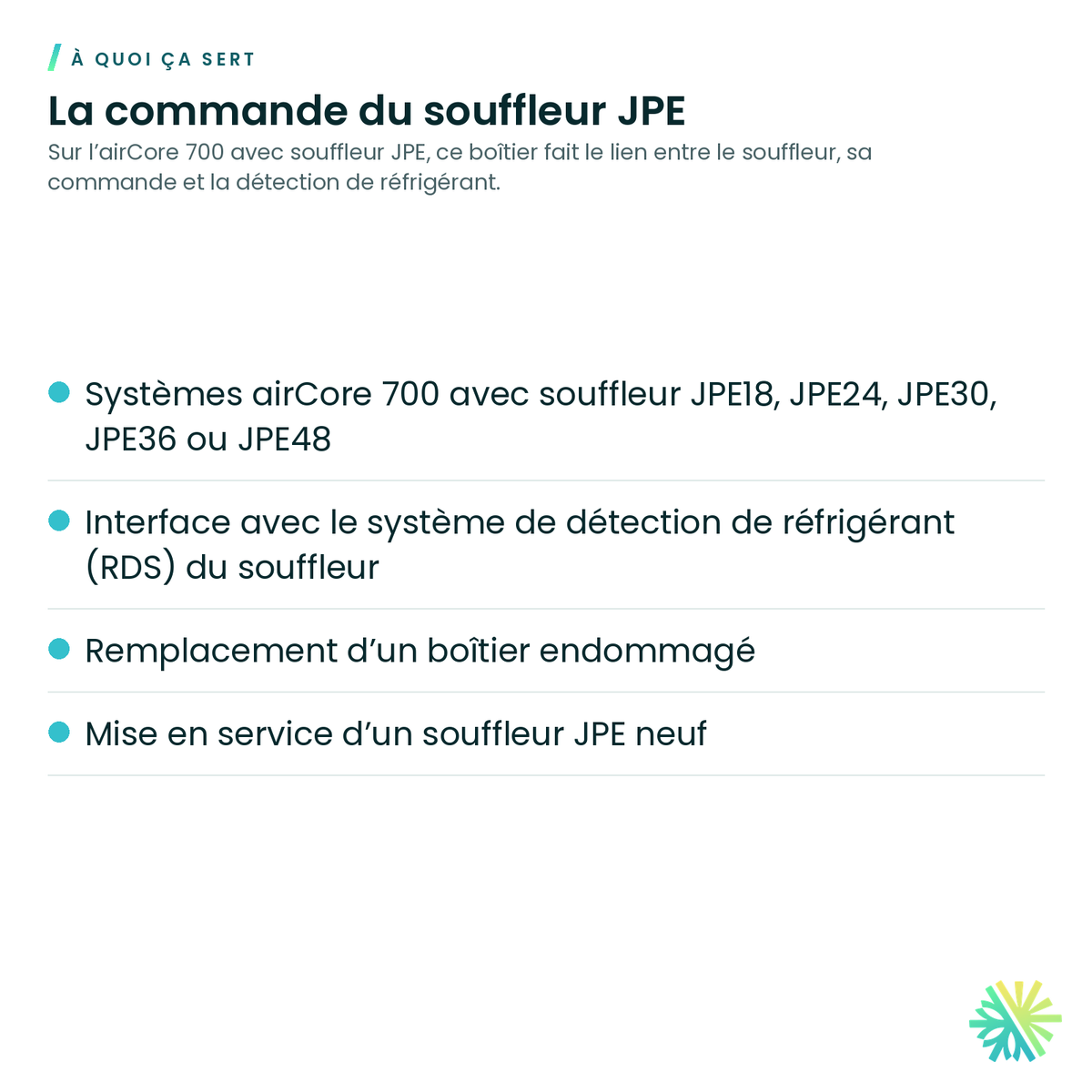

Control for the JPE air handler
On an airCore 700 with a JPE air handler, this box links the air handler, its control and refrigerant detection.
- airCore 700 systems with a JPE18, JPE24, JPE30, JPE36 or JPE48 air handler
- Interface with the air handler’s refrigerant detection system (RDS)
- Replacing a damaged control box
- Commissioning a new JPE air handler

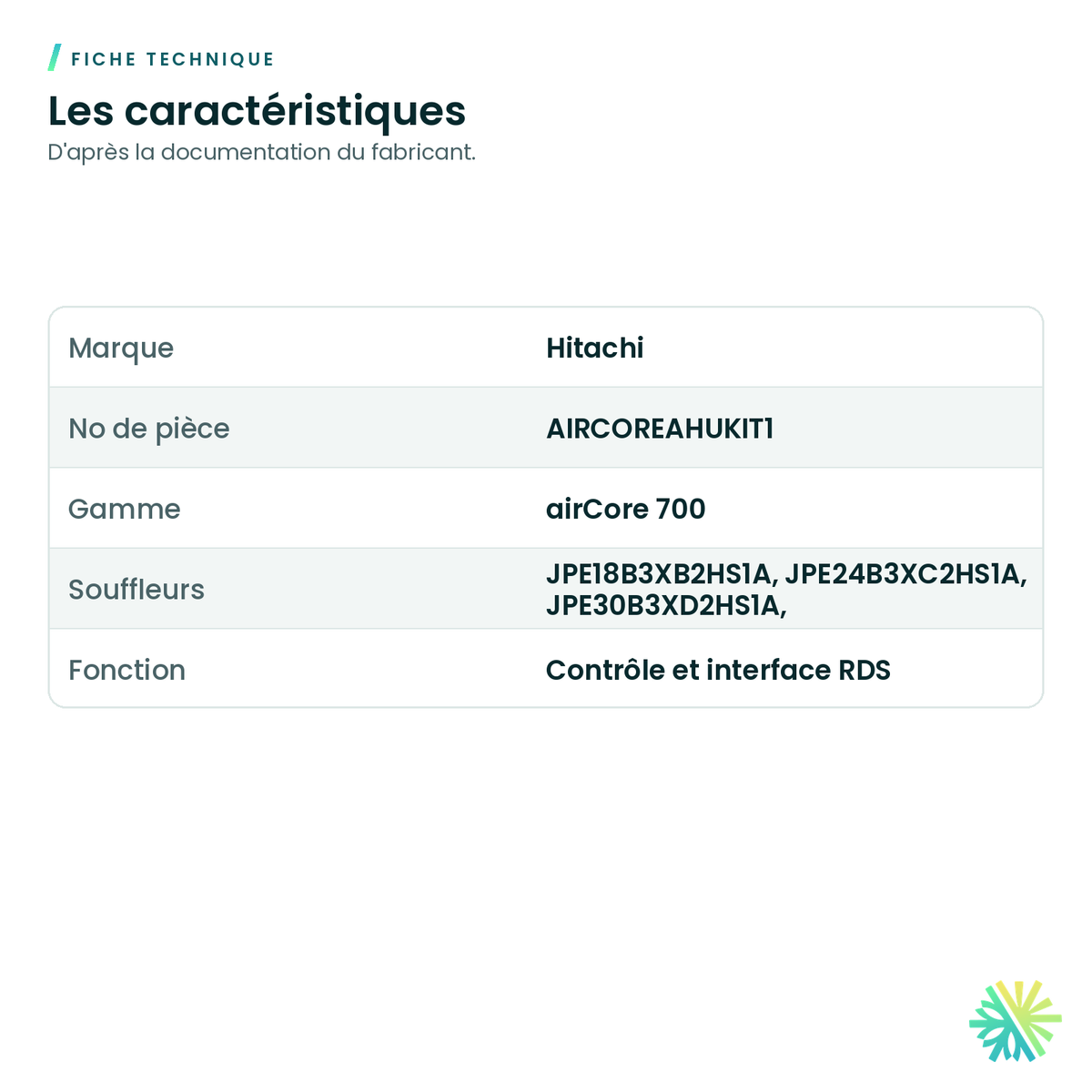

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

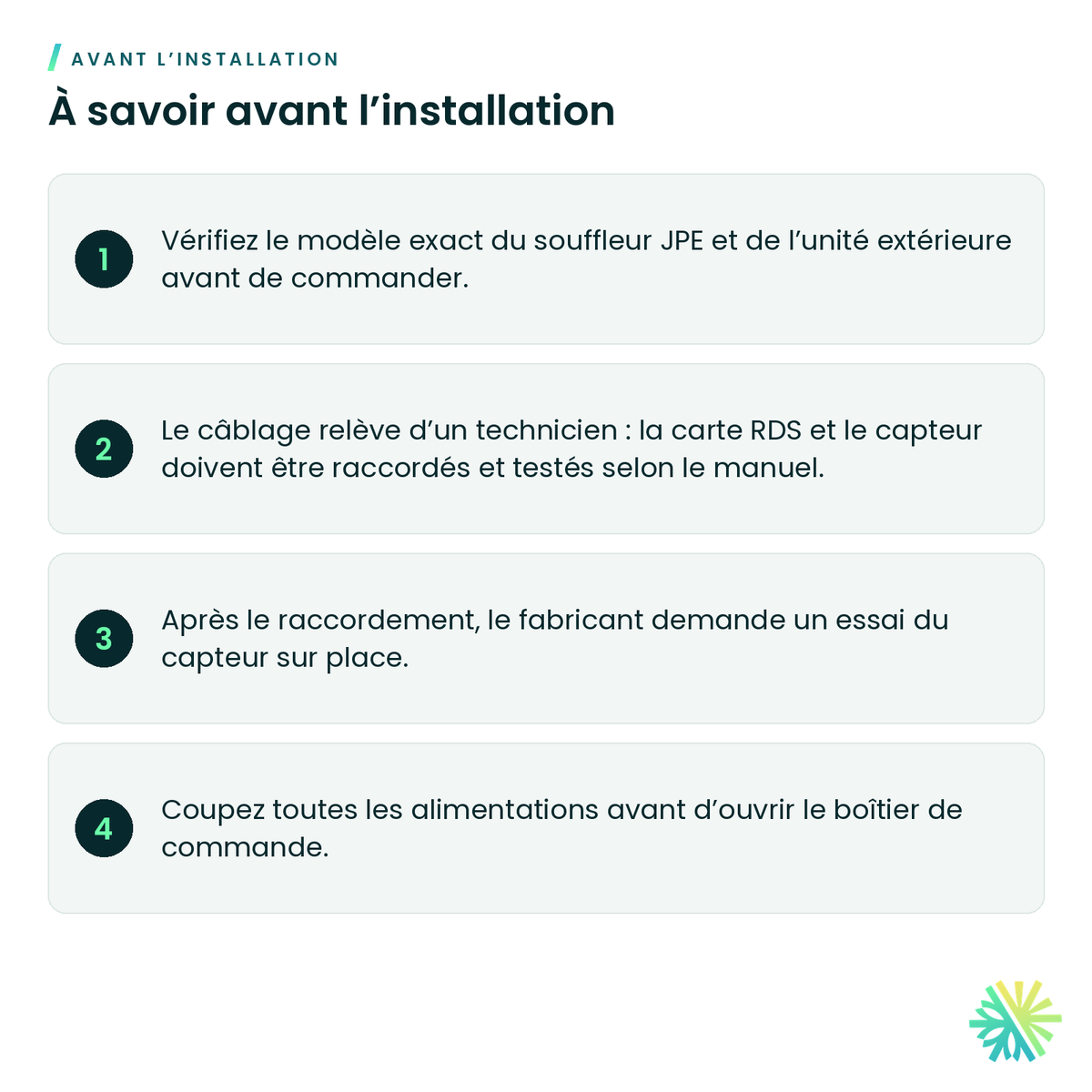

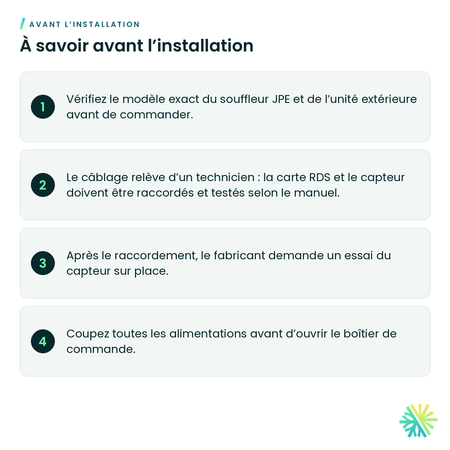

What to know before installing
- Check the exact JPE air handler and outdoor unit models before ordering.
- Wiring is technician work: the RDS board and sensor must be connected and tested per the manual.
- After wiring, the manufacturer calls for a field test of the sensor.
- Shut off all power before opening the control box.
Manufacturer documents
You may also need
Hitachi 8HK Electric Heating Element for airCore 700 Air Handler
Hitachi CIW04H Wired Remote for airCore
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
14/4 Communication Cable for Heat Pumps
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-Zone
Hitachi PSC-6RAD H-Link Adapter for airHome Indoor UnitOriginal partsSee all
Frequently asked questions
Does my system need it?
This box is for airCore 700 systems built with a JPE air handler. Send us the air handler and outdoor unit model numbers and we confirm before ordering.
What is RDS?
The refrigerant detection system. The JPE air handler has a sensor that watches for A2L refrigerant and a board that triggers the manufacturer’s mitigation steps.
Can it go on another air handler?
It is designed for the airCore 700 line. For other equipment, ask us.
Can you install it?
Yes. We wire it, test the sensor and commission the system, everywhere in Greater Montréal.
Genuine control for your airCore air handler
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
