Fujitsu UTY-XCSXZ2 External Input and Output Board for Wall Unit
The genuine board that adds external inputs and outputs to Fujitsu Altair 500 and Orion XLTH wall-mount heat pumps.
AirGreen codeAG-AC-090
514 316-2973 · sales@airgreen.ca
Quick facts
The Fujitsu UTY-XCSXZ2 external input and output board is the genuine part that adds external inputs and outputs to Fujitsu AIRSTAGE Altair 500 and Orion XLTH wall-mounted heat pumps. Fujitsu describes it as the board used "to connect external devices to the air conditioner's board".
Connecting the wall unit to a management system
A dry-contact kit is enough to start and stop a unit. When a project calls for more, for example connecting the heat pump to a building management system, a controller or several external devices, the UTY-XCSXZ2 board provides additional connection points. The function of each input and output is set at installation, following the indoor unit manual.
Units listed by Fujitsu
- Altair 500 wall units: ASUH**KPAS
- Orion XLTH wall units: ASUH**KZAS
What to plan with the board
Fujitsu specifies that an external connection kit is required for installation; we include it in the same order. The Orion XLTH+ wall unit uses a different board, the UTY-XCSXZ3, and cassettes and ducted units use the UTY-XCSX.
Installed by AirGreen in Greater Montréal
Our technicians install the board, set the functions and wire your external devices in Montréal, Laval, Longueuil, on the South Shore and the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the model number of your indoor unit.

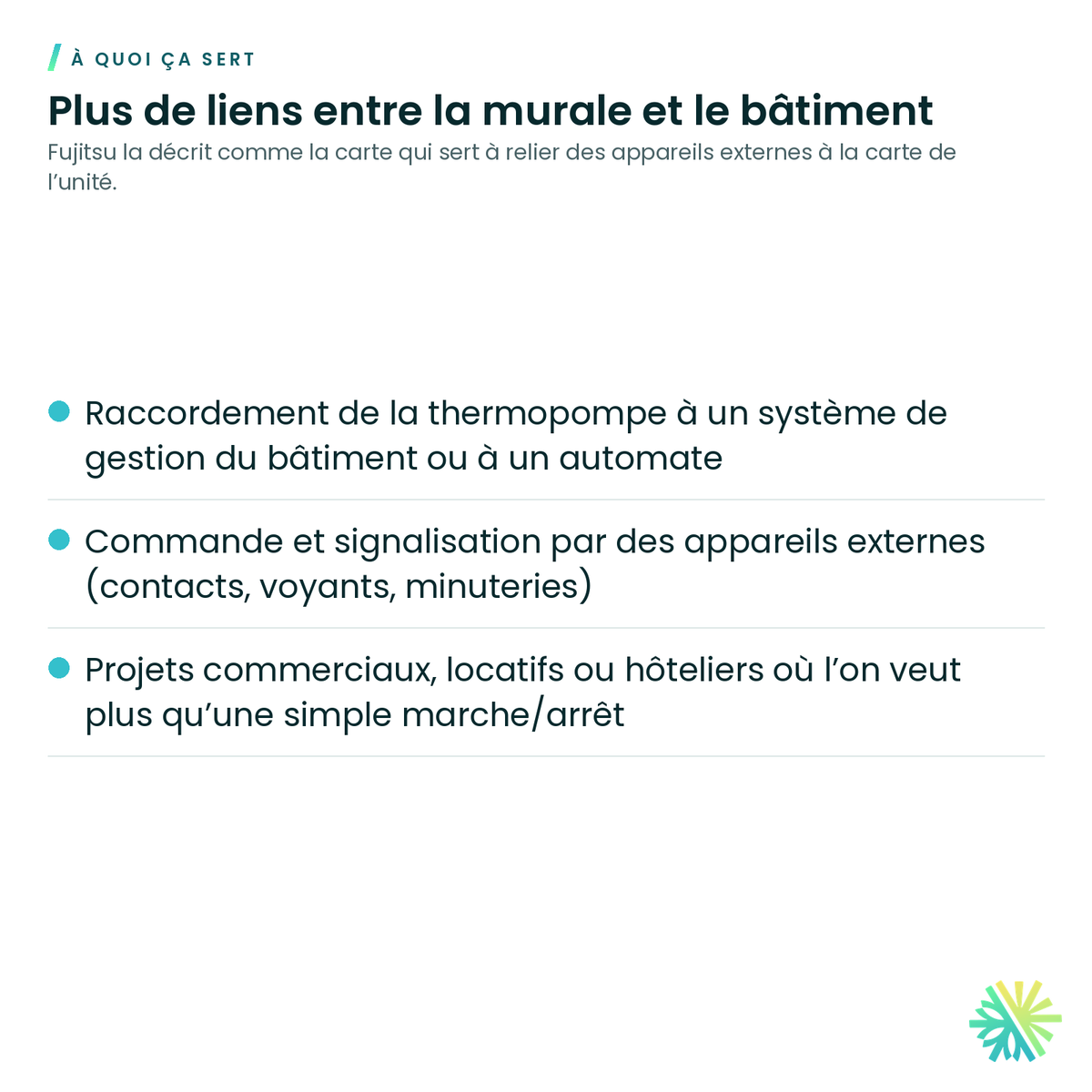

More links between the wall unit and the building
Fujitsu describes it as the board used to connect external devices to the unit’s board.
- Connecting the heat pump to a building management system or controller
- Control and signalling through external devices (contacts, pilot lights, timers)
- Commercial, rental or hotel projects that need more than basic on/off

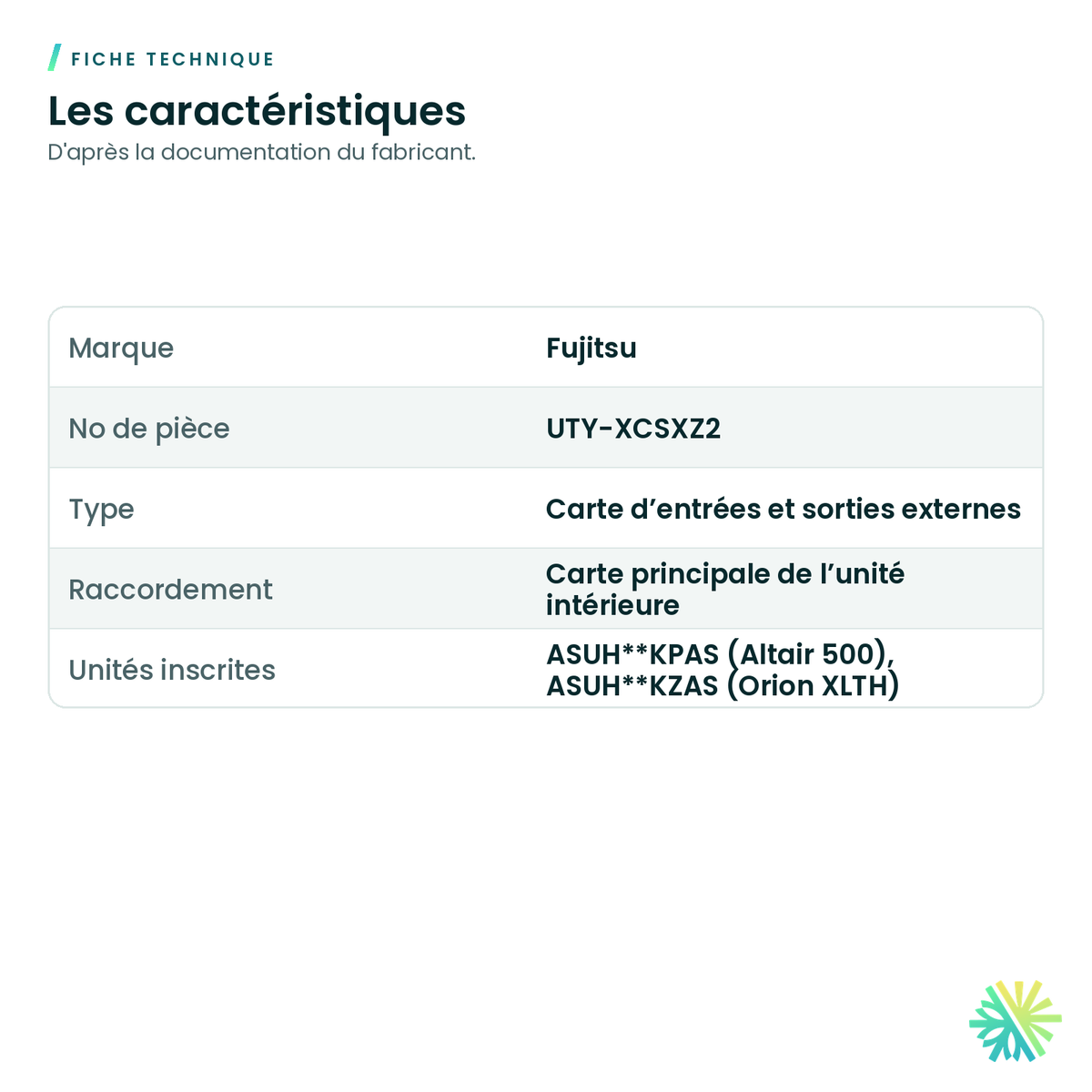

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

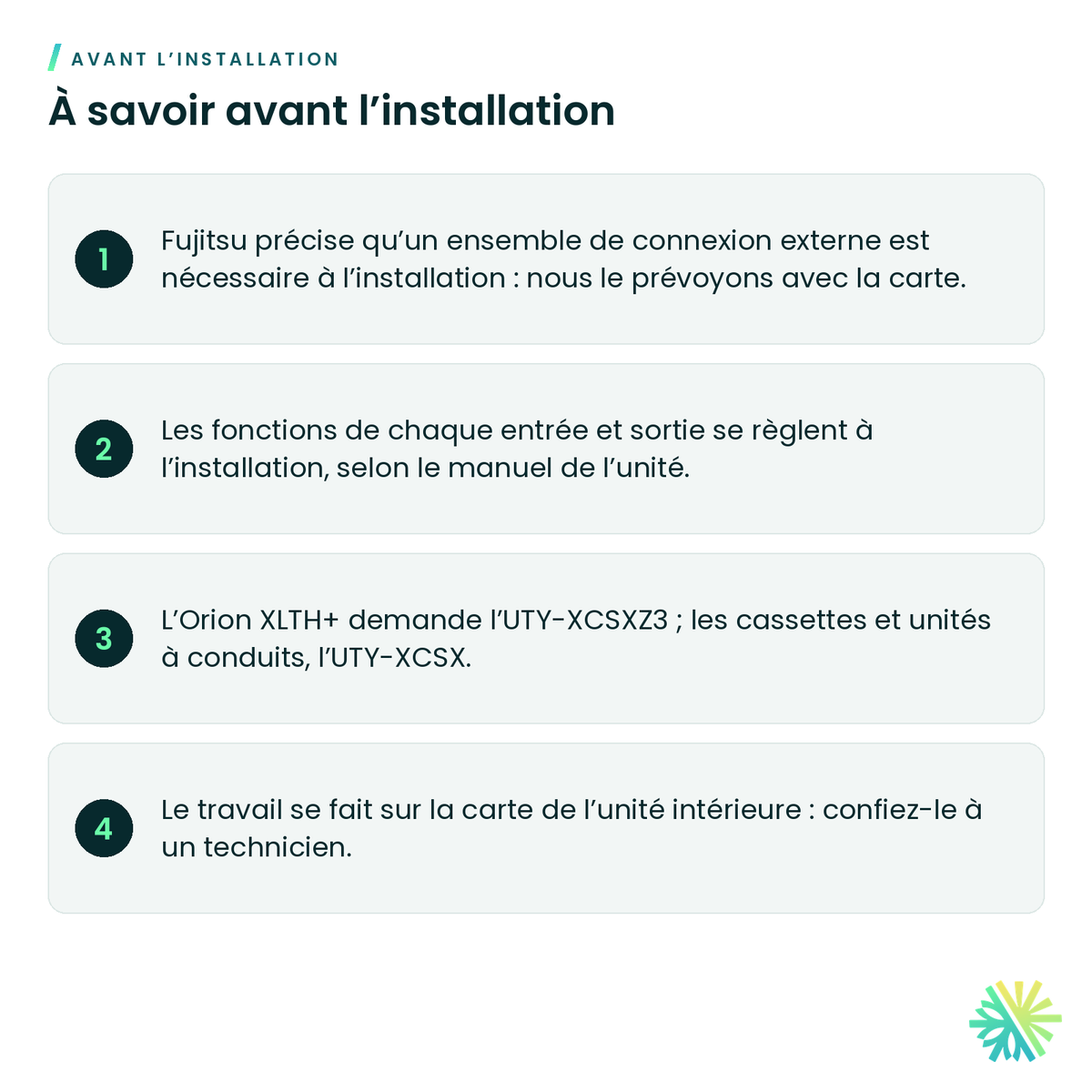

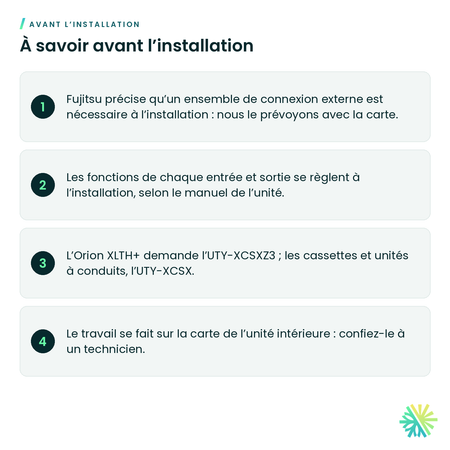

What to know before installing
- Fujitsu states that an external connect kit is required for installation: we plan it with the board.
- Each input and output function is set at installation, per the unit’s manual.
- The Orion XLTH+ needs the UTY-XCSXZ3; cassettes and ducted units, the UTY-XCSX.
- The work is done on the indoor unit’s board: have a technician do it.
You may also need
Fujitsu UTY-XWZXZ5 Dry Contact Kit (with Error Output)
Fujitsu UTY-XWZX Dry Contact Kit (On/Off and Run Status)
Fujitsu UTY-XCSXZ3 External Input and Output Board for Orion XLTH+ Wall Unit
Fujitsu UTY-VMSX Modbus Converter
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Is my unit compatible?
Fujitsu lists the UTY-XCSXZ2 for its Altair 500 (ASUH**KPAS) and Orion XLTH (ASUH**KZAS) wall units. Send us your indoor unit’s model number and we confirm.
How is it different from a dry contact kit?
The UTY-XWZX or UTY-XWZXZ5 is a harness with basic functions. The UTY-XCSXZ2 is a board that adds inputs and outputs to the unit; Fujitsu states it installs with an external connect kit.
UTY-XCSXZ2, UTY-XCSXZ3 or UTY-XCSX?
UTY-XCSXZ2 for Altair 500 and Orion XLTH wall units, UTY-XCSXZ3 for the Orion XLTH+, UTY-XCSX for cassettes, ducted units and air handlers.
Can you install it?
Yes. Our technicians fit the board, set the functions and wire your devices, everywhere in Greater Montréal.
Connect your Fujitsu wall unit to the building
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
