Fujitsu UTD-GXT(A/B/C)-W Auto Louver Grille Kit for ADUH Slim Duct Unit
The auto louver supply grille Fujitsu provides for its ADUH slim duct units, in three sizes by capacity.
AirGreen codeAG-AC-108
514 316-2973 · sales@airgreen.ca
Quick facts
The Fujitsu UTD-GXT(A/B/C)-W auto louver grille kit is the genuine air outlet Fujitsu specifies for its R-32 H series ADUH slim ducted units. Fujitsu calls it the "Auto Louver Grille Kit" and offers it in three sizes, one per capacity range.
Three grilles, three capacities
The ADUH spec sheets match each capacity to its grille. You therefore need to know the unit's capacity before ordering:
- UTD-GXTA-W: ADUH units from 7,000 to 12,000 BTU
- UTD-GXTB-W: 18,000 BTU ADUH unit
- UTD-GXTC-W: 24,000 BTU ADUH unit
For the slim ducted unit
The ADUH unit hides in a ceiling space, often in a multi-zone system where it serves a bedroom or an office. The auto louver grille replaces a fixed grille at the air outlet. Fujitsu lists it for the ADUH; the ARUH medium static pressure ducted unit does not appear on that list. The ceiling opening is planned according to the unit's manual and the grille's manual.
Ordering the right size
Give us the full model number of your indoor unit (ADUH07, 09, 12, 18 or 24KUAS): we order the matching grille and install it with the unit or during an upgrade.
Installed by AirGreen in Greater Montréal
Our technicians install the grille and check that the louvers work properly in Montréal, Laval, Longueuil, on the South Shore and the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the unit's capacity and the quantity.

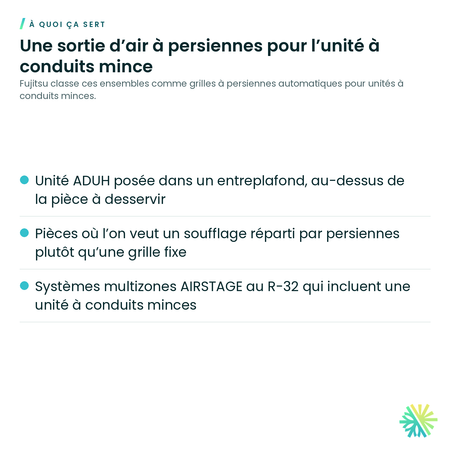

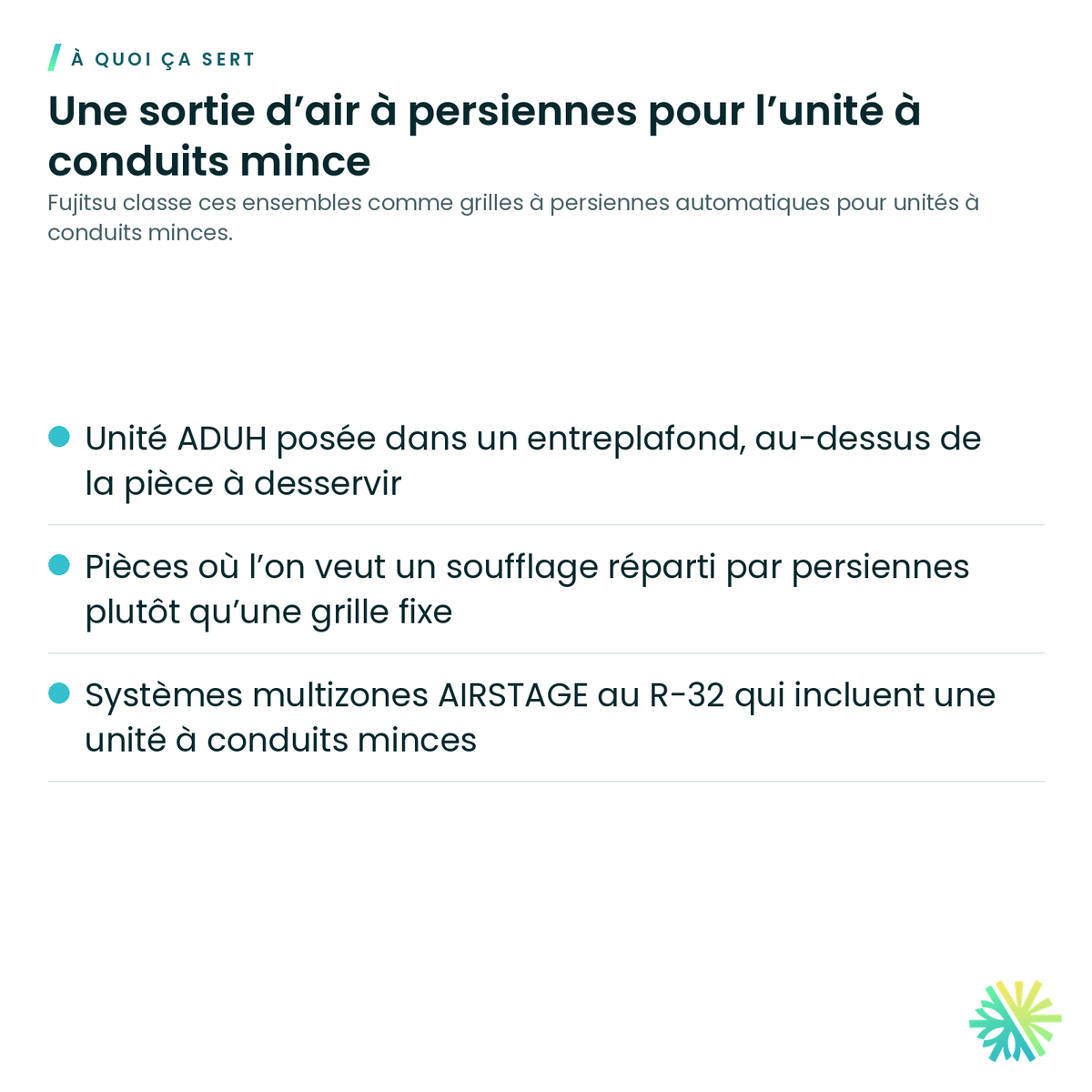

A louvered air outlet for the slim duct unit
Fujitsu classifies these kits as auto louver grilles for slim duct units.
- ADUH unit installed above the ceiling of the room it serves
- Rooms that call for louvered air distribution rather than a fixed grille
- R-32 AIRSTAGE multi-zone systems that include a slim duct unit

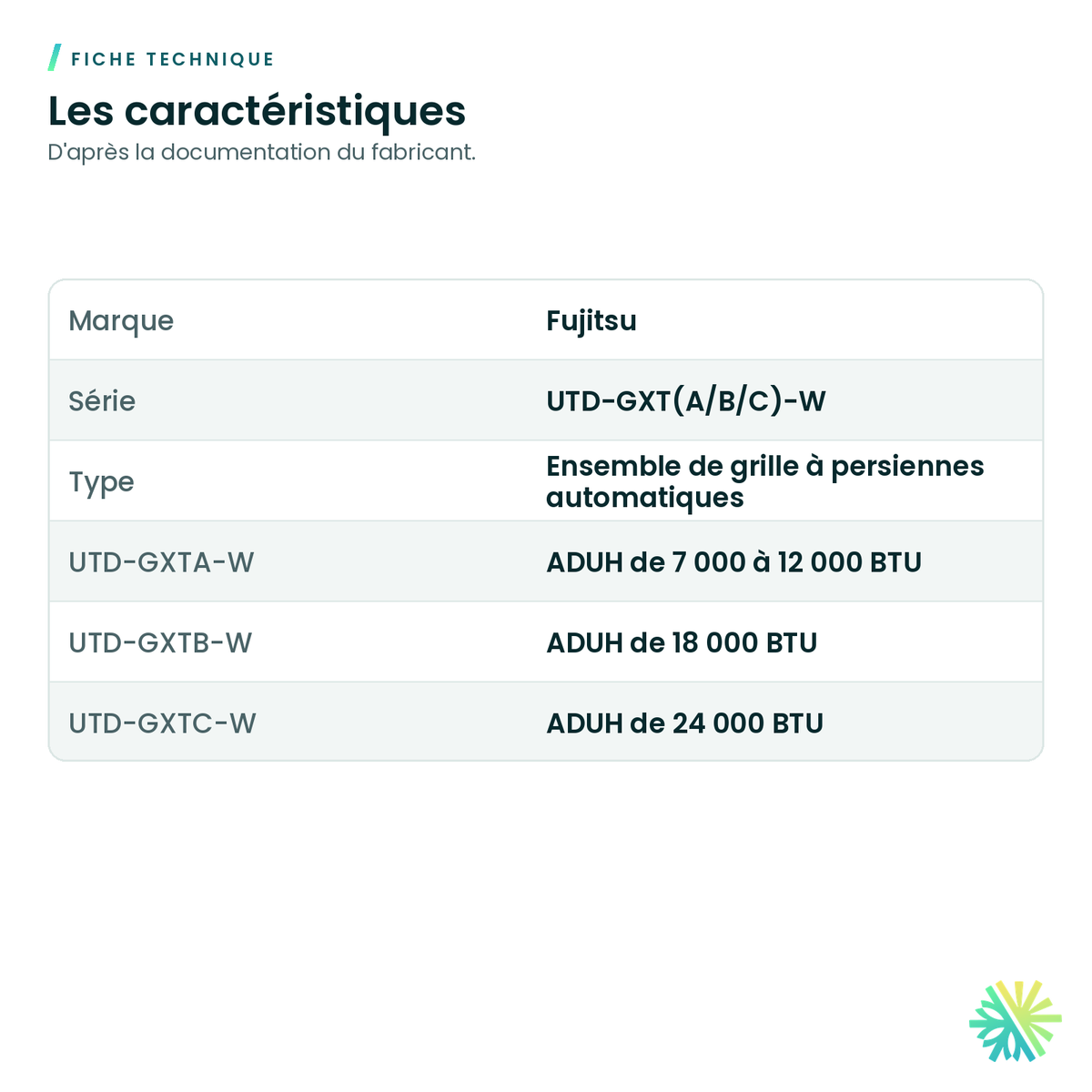

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

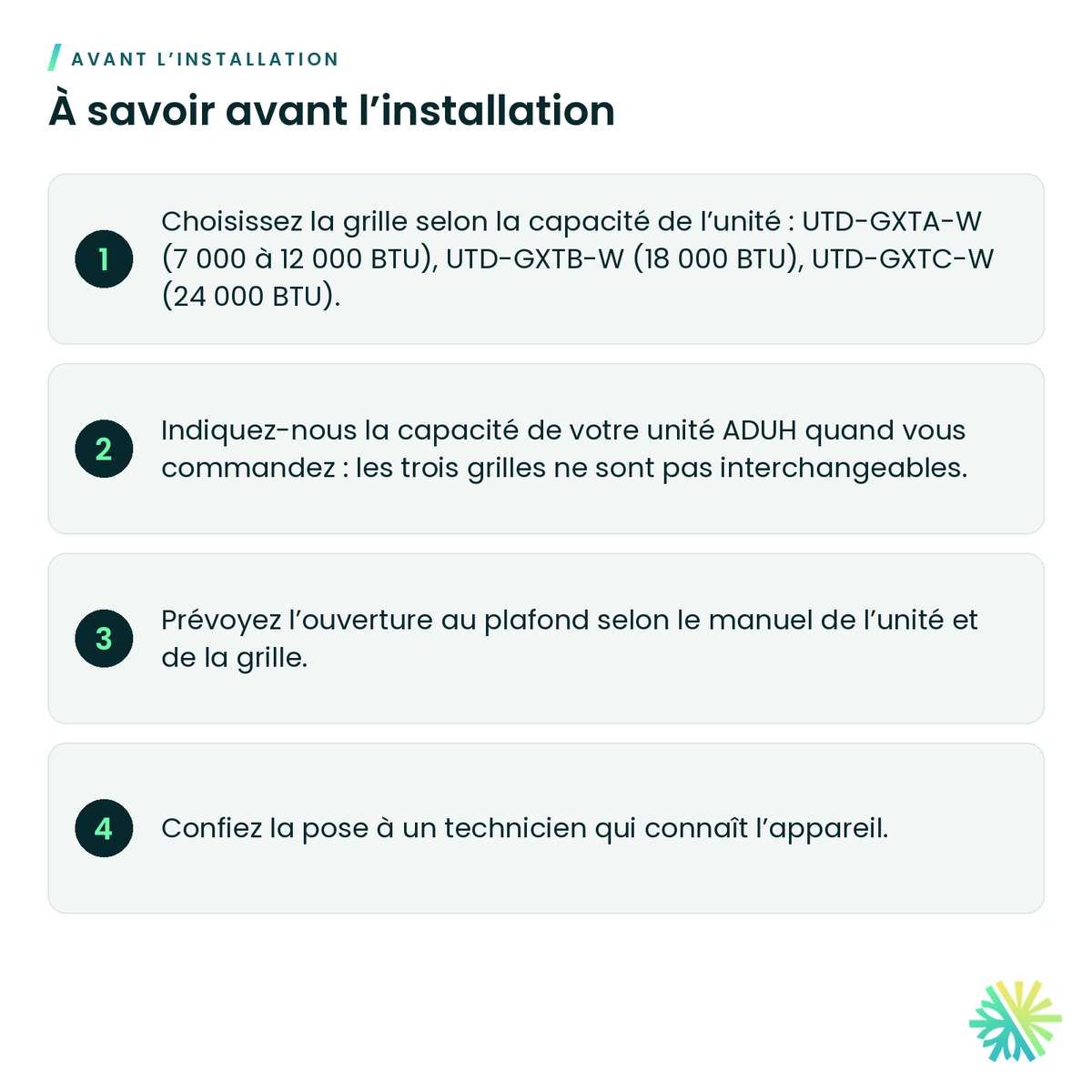

What to know before installing
- Choose by unit capacity: UTD-GXTA-W (7,000 to 12,000 BTU), UTD-GXTB-W (18,000 BTU), UTD-GXTC-W (24,000 BTU).
- Tell us your ADUH unit’s capacity when ordering: the three grilles are not interchangeable.
- Plan the ceiling opening per the unit and grille manuals.
- Have a technician familiar with the unit fit it.
You may also need
Fujitsu UTZ-GXEA External Input/Output PCB Box
Fujitsu IR Receiver Kit with Wireless Remote Control (Ducted and Air Handler) – UTY-LBTUM
Fujitsu Remote Temperature Sensor – UTY-XSZXZ1
Fujitsu Long Life Filter for Medium Static Pressure Ducted Unit
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Which grille fits my unit?
Per Fujitsu’s submittals: UTD-GXTA-W for 7,000 to 12,000 BTU ADUH units, UTD-GXTB-W for the 18,000 BTU and UTD-GXTC-W for the 24,000 BTU. Send us your model number and we order the right one.
Does it fit the ARUH ducted unit?
Fujitsu lists these grilles for the ADUH slim duct unit. The ARUH medium static unit is not on that list.
Can it be added to an installed unit?
Yes, if the ADUH unit and the ceiling opening allow it. We check on site.
Can you install it?
Yes. We fit the grille with the unit or during an upgrade, everywhere in Greater Montréal.
The genuine grille for your Fujitsu slim duct unit
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
