Samsung Single Point Breaker Kit – HA15B0CH1
Samsung’s genuine breaker kit that allows a single point connection for 15 and 20 kW Hylex heat kits.
AirGreen codeAG-AC-133
514 316-2973 · sales@airgreen.ca
Quick facts
The Samsung HA15B0CH1 single point breaker kit goes with the 15 and 20 kW heating elements of the R-454B Hylex™ multi-position air handlers. Samsung calls it the “Single point breaker kit for 15kW and 20kW electric heat kits” and lists it among the accessories for the MPAH air handlers, next to the heating elements.
A single connection for the large elements
The 15 kW (HA15E0CH1) and 20 kW (HA20E0CH1) elements are the largest backup heaters in the Hylex line. The HA15B0CH1 kit is used to connect them at a single point. It is not used with the 10 kW element.
Air handlers and elements covered
- Heating elements: HA15E0CH1 (15 kW) and HA20E0CH1 (20 kW)
- Air handlers: MPAH Hylex™ HH**M**C11H1, standard and premium versions
Electrical connection
Cable and breaker size at the panel follow the air handler’s nameplate data and the electrical code. The work is done by a master electrician. Order the kit at the same time as the heating element so everything arrives on site together.
Installed by AirGreen across Greater Montréal
We install Samsung Hylex systems, their heating elements and this kit in Montréal, Laval, Longueuil, the South Shore and the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the MPAH air handler model and the element’s output.
One connection for the large backup heaters
Samsung offers this kit with the 15 and 20 kW heat kits of Hylex MPAH air handlers.
- Samsung HA15E0CH1 heat kit (15 kW)
- Samsung HA20E0CH1 heat kit (20 kW)
- Standard and premium Hylex™ multi-position air handlers
- Installations where one supply to the air handler is wanted

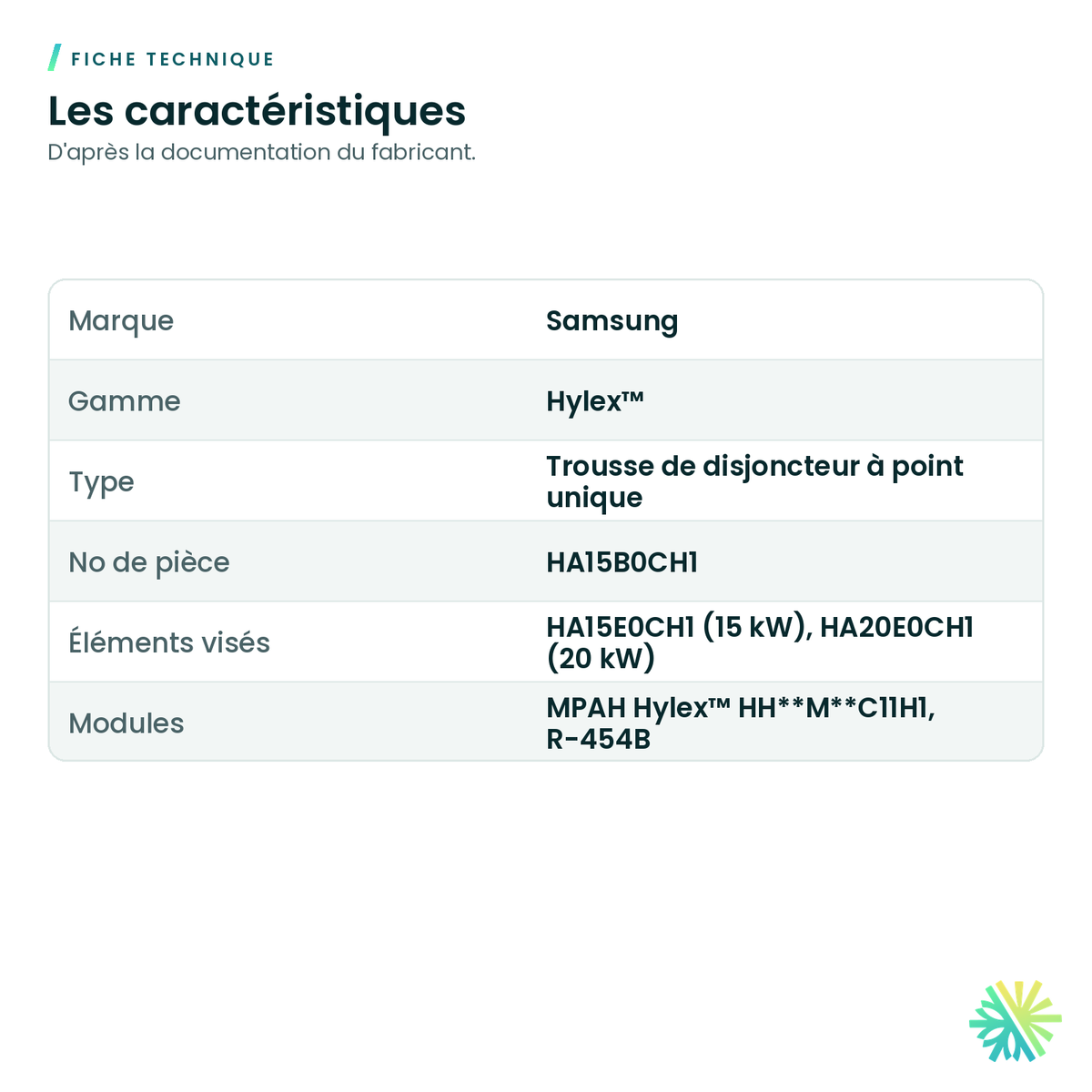

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- It is only used with the 15 and 20 kW Hylex heat kits.
- Wire and panel breaker sizes follow the air handler nameplate and the electrical code.
- The connection is a job for a licensed electrician.
- Order it together with the heat kit.
Manufacturer documents
You may also need
Samsung Hylex Heating Element Kit for MPAH Module
Samsung Hylex ACU Control Module MXD-U001XN
Copper Electrical Wire
Breaker for Residential Electrical Panel
Outdoor Disconnect Switch for Heat Pump
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)Original partsSee all
Frequently asked questions
Do I need it with my 15 or 20 kW kit?
Samsung describes it as the single point breaker kit for the 15 and 20 kW heat kits. We confirm the planned connection for your air handler and panel.
Does it work with the 10 kW kit?
No. Samsung designates it for the 15 and 20 kW kits only.
Which air handlers does it serve?
R-454B Hylex™ multi-position air handlers (HH**M**C11H1) fitted with a 15 or 20 kW kit.
Can you install it?
Yes. We install it with the heat kit and coordinate the connection with a licensed electrician, everywhere in Greater Montréal.
The genuine connection for your Hylex heat kits
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
