Why does the Polaris get more LogisVert?

LogisVert pays $120 per 1,000 BTU/h of rated heat at -8.3 °C, and that is where the Polaris is strong: at every size, it gives the highest rated heat of our Kinghome wall units. Its amount runs from $1,800 to $3,120 (compare).

What is a three-cylinder parallel compressor?

Per the brochure, a main cylinder and a micro auxiliary cylinder work in parallel, with enthalpy injection, to aim for both capacity and efficiency. The brochure calls it “Triple Rotary” in its table. Kinghome publishes no further technical detail.

How cold can the Polaris heat?

Down to -30 °C per NEEP and its brochure. At -30 °C, NEEP publishes 6,400 BTU/h for the 9,000, 7,300 for the 12,000, 11,000 for the 18,000 and 18,200 for the 24,000, with a COP of 1.40 to 1.78. At 18,000 and 24,000, that is the highest value of our Kinghome wall units at that temperature; at 9,000 and 12,000, the Airy does better.

Is the Polaris quiet?

Its product page and brochure give 20 dB(A) at indoor minimum (9,000 BTU/h) and 55 dB(A) outside. Its submittals of September 17, 2026 give higher indoor levels for all four sizes, and higher outdoor levels for the 18,000 (60 dB(A)) and the 24,000 (58) (details by model). The two documents differ: the page shows both.

What does the Polaris app show?

Per the brochure, electricity consumption (monthly and yearly reports, last 30 days) and a cost target you set yourself. The Polaris connects over 2.4 or 5 GHz Wi-Fi and Bluetooth, on Android and iOS.

Which line set for a Polaris?

10 to 131 ft for all four sizes per the brochure, the only one of our Kinghome wall series to allow it from the 9,000, and 82 ft of height difference per the submittals. Pre-charged for 25 ft per the brochure (24.6 ft per the submittals), then 0.2 oz/ft (9,000 to 18,000) or 0.4 oz/ft (24,000) of R-32.

What LogisVert amount for a Polaris?

From $1,800 (12,000 BTU/h) to $3,120 (24,000 BTU/h): $120 per 1,000 BTU/h of heat at -8 °C. The 9,000 BTU/h units are not eligible. The calculation for each model is above; Hydro-Québec confirms the amount when you apply.

Polaris or Airy at 24,000?

At 24,000, the Polaris gives 26,000 BTU/h at -8.3 °C against 23,000 for the Airy, hence a LogisVert of $3,120 against $2,760. At -30 °C, NEEP publishes 18,200 against 17,000 BTU/h. The Airy keeps the edge on SEER2 (27 against 25) and at -15 °C: 24,000 against 20,400 BTU/h on the ENERGY STAR certificates (the gap on the plate), 24,000 against 23,000 at most on NEEP.

Why two sets of figures for the Polaris 9,000?

The brochure prints SEER2 26.5, 15,000 BTU/h at -8.3 °C and 13,000 at -15 °C; the ENERGY STAR certificate and NEEP say 26.0, 14,000 and 12,000. Hydro-Québec reads the certificate: so does the page. Either way, the 9,000 is not eligible for LogisVert.

Why is the 24,000’s base-pan heater different?

Per NEEP, it switches on below -5 °C or in defrost on the Polaris 24,000, and below 1 °C or in defrost on our other Kinghome wall units listed on NEEP. It heats the outdoor unit’s base pan.

Which controls come with a Polaris?

A YBE1FBF infrared remote, and Wi-Fi (“WI-FI control”) among the included features. Optional: four wired controls (XE71-44G, XE74-44E, XE72-44E, XE71-00/E), per the submittals.

KINGHOME · POLARIS R32The KINGHOME space at AirGreenSold and installed by AirGreen · Montreal, Laval, Longueuil, South Shore and North Shore

KINGHOME warranty

KINGHOME · Polaris R32 · figures checked on October 26, 2026

Polaris R32: the most heat at -8.3 °C, size for size

At every size, the Polaris gives the highest rated heat at -8.3 °C of our Kinghome wall units. That is the figure Hydro-Québec reads for LogisVert: its amount is the highest of its size, from 12,000 BTU/h. Three-cylinder parallel compressor, line set up to 131 ft from the 9,000 and an app that shows consumption, per Kinghome.

Compare size for size Book my free estimate

All four Polaris units in one table

ENERGY STAR certified rated heat at -8.3 °C (the LogisVert basis), circuit (MCA / MOP, in amps) and LogisVert from the product pages. Tap a model for its full plate.

Model	At -8.3 °C	MCA / MOP	LogisVert
9,000 · 220 V	14,000	13 / 15	-
12,000 · 220 V	15,000	13 / 15	$1,800
18,000 · 220 V	20,400	16 / 20	$2,448
24,000 · 220 V	26,000	22 / 30	$3,120

Product pages, read live. 9,000 BTU/h: not eligible for LogisVert (under 12,000).

4Polaris models in the shop

26,000BTU/h at -8.3 °C at most (24,000)

$3,120LogisVert at most (24,000 BTU/h)

131 ftof line set at most, all four sizes (brochure)

-30 °Ccertified NEEP point, COP 1.78 for the 24,000

AirGreen × KINGHOMESold and installed by AirGreenPOLARIS R324 modelsThree cylinders in parallelLine set up to 131 ftHeating down to -30 °CMontreal · Laval · Longueuil · South Shore · North Shore

01 · Spec plate

One plate per model, and the difference against the Airy.

Pick a model: identity, certified heating, NEEP curve, efficiency, power, sound at each speed and installation. “Not published” means Kinghome does not give the figure.

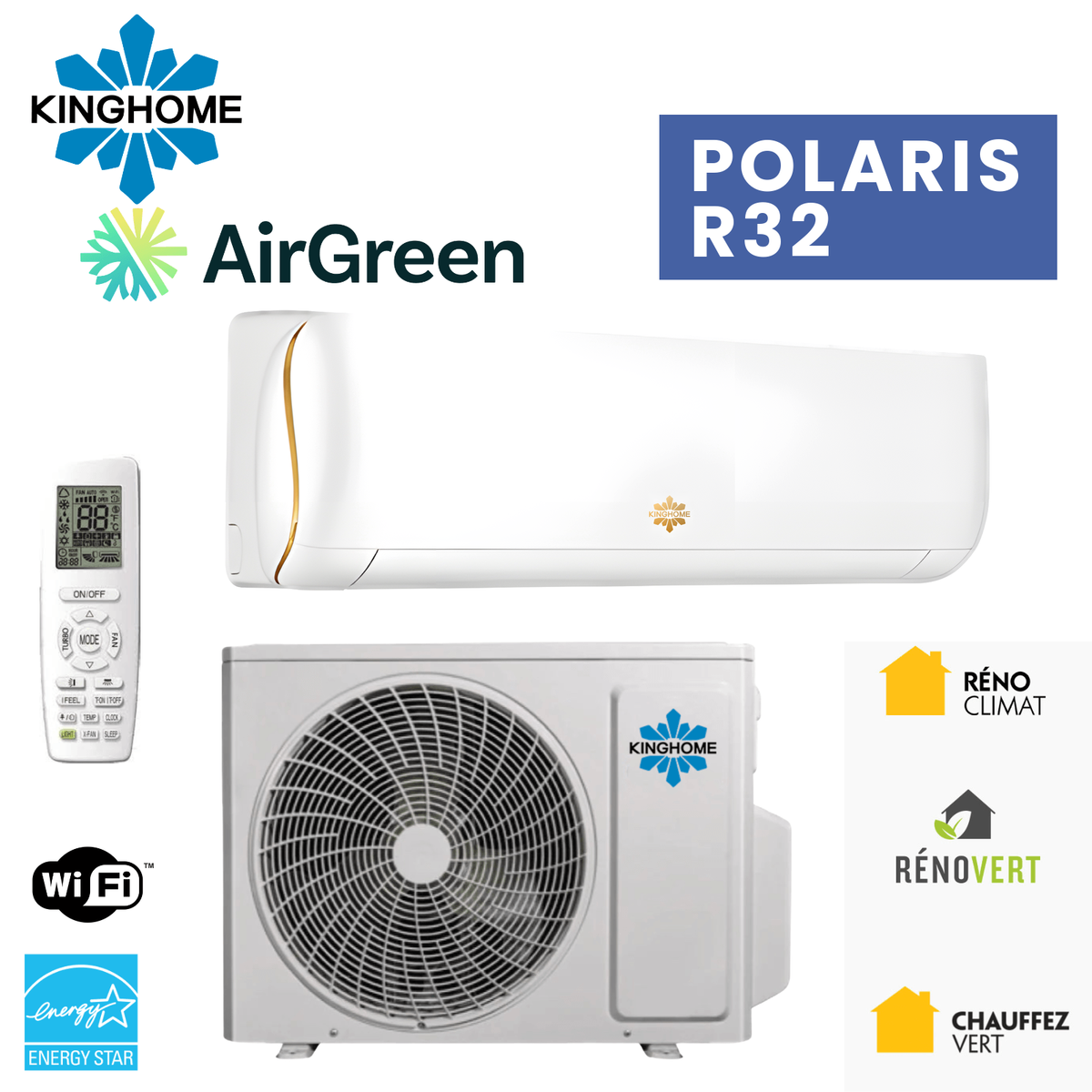

Polaris R32

Polaris 24,000 BTU/h · 220 V

KWP24R32C3I / KWP24R32C3O · See the product page

$3,120Indicative LogisVert, Hydro-Québec list of Oct. 26, 2026

Identity

Indoor unit: KWP24R32C3I
Outdoor unit: KWP24R32C3O
Compressor: three cylinders in parallel (brochure)
AHRI (product page): 218640282
ENERGY STAR: 4663298
Wi-Fi: included

Certified heating

Rated at -8.3 °C: 26,000 BTU/h
COP at -8.3 °C: 2.7
At -15 °C: 20,400 BTU/h
COP at -15 °C: 1.95
Cold climate: yes

ENERGY STAR

Heating per NEEP

8.3 °C: 28,000 BTU/h · COP 3.6
-8.3 °C: 26,000 BTU/h · COP 2.2
-15 °C: 23,000 BTU/h · COP 1.8
-30 °C: 18,200 BTU/h · COP 1.78
Min. at 8.3 °C: 7,000 BTU/h
Turndown (NEEP): 3.29

Maximum heat published and COP.

Efficiency

SEER2: 25
EER2: 14.2
HSPF2 Region IV: 9.5
HSPF2 Region V (Canada): 8

Power

Voltage: 220 V
MCA / MOP: 22 / 30 A
Voltage range: 187-253 V
Power wire: 10/3 AWG
Interconnecting wire: 14/4 AWG

Sound and air

Indoor min. / max.: 35 / 52 dB(A)
Indoor sound, 7 speeds: 45 · 47 · 49 · 51 · 54 · 56 · 62 dB(A)Sleep to Turbo, submittal of Sept. 17, 2026; higher than the product page and the brochure, the two documents differ
Outdoor: 55 dB(A)submittal: 58, the brochure says 55
Max. airflow: 736 CFM

Installation

Liquid-gas line: 1/4 - 5/8 in
Indoor W × D × H: 43.9 × 9.8 × 13.1 in
Outdoor W × D × H: 37.7 × 15.8 × 26.0 in
Line length: 10-131 ft
Max. height difference: 82 ftsubmittal
Pre-charged for: 24.6 ft (7.5 m)submittal
Additional charge: 0.4 oz/ftbrochure
Factory R-32 charge: 52.9 oz
Net weight out. / in.: 92.6 / 35.3 lb
Dehumidification: 2 L/h
Min. height outside: 45 cm (18 in)snow and defrost, submittal

Product page, 2026 Polaris brochure, Polaris outdoor unit manual (Sept. 24, 2026) and the model’s submittal (notes).

Against the Airy 24,000 (220 V), its same-size sibling

Difference against the Airy. See the Airy.

+3,000BTU/h at -8.3 °C
-3,600BTU/h at -15 °C (ENERGY STAR)
-2SEER2
-1dB(A) at indoor minimum
-7dB(A) outside
+$360LogisVert

02 · Size for size

At equal size, which series heats the most?

Two measures, two sources: the rated heat at -8.3 °C from the ENERGY STAR certificates, the one that sets LogisVert, and the maximum heat published at -30 °C on NEEP. Pick a size.

Size

Measure

03 · A brand-new series

The newest of the four series, and all its documents.

The Polaris was not in Kinghome’s wall unit brochure of March 13, 2025, which showed Charmo, Clivia and Airy. Its documents came out between July and September 2026: this page is built on them.

July 22, 2026English sales brochureTable of the four sizes, heating range -30 to 30 °C.
Aug. 24 to Sept. 4, 2026NEEP recordsCertified points from 8.3 to -30 °C for all four sizes.
Aug. 25, 2026Three-fold brochureThree-cylinder compressor, dual-band Wi-Fi, consumption in the app, 46 ft throw.
Sept. 4 and 25, 2026French brochuresSame features, official French names.
Sept. 17, 2026SubmittalsLine set, 82 ft height difference, wires, sound at 7 speeds.
Sept. 24, 2026Indoor and outdoor manualsThe outdoor manual repeats the installation rules of the R32 Split Type manual used by the other series.

kinghomecanada.com media library (upload dates) and NEEP (modification dates), checked Oct. 26, 2026.

The POLARIS shop

All Polaris units, right below.

Filter by capacity, then open the product page: each one carries its AHRI number and, from 12,000 BTU/h, its indicative LogisVert amount.

Everything to know

Everything to know about the Polaris

Cold, noise at each speed, space inside and out, controls, what the technician must follow and the LogisVert calculation for each model.

04 · Deep cold

How much heat each Polaris keeps when it freezes.

Slide toward the cold: the four Polaris units show their maximum heat and COP per NEEP, down to -30 °C, their coldest certified point.

Outdoor temperature

-15 °C

Temperature

8.3-8.3-15-25-30

-9.2 °CJanuary daily mean at Montreal-Trudeau

-13.5 °CJanuary average daily minimum

-31.8 °Cextreme cold of 1991-2020 (January 27, 1994)

Environment and Climate Change Canada, 1991-2020 normals. Heating points: NEEP, only at the published temperatures, no interpolation.

The NEEP curve, from 8.3 to -30 °C

05 · Noise

Each Polaris’s sound, speed by speed.

Pick a model: its 7 speeds, from Sleep to Turbo, are placed on the Government of Québec scale, with the outdoor unit sound. Kinghome does not publish the test conditions: compare models with each other.

Model

20 dB(A)A whisper heard at one metre, a light wind in the trees

30 dB(A)A conversation in a low voice

40 dB(A)A library, a refrigerator, a quiet street at night

50 dB(A)Moderate rain, a washing machine

60 dB(A)A normal conversation

70 dB(A)A busy street, a vacuum cleaner

Scale: Québec.ca, “Mesure du bruit”, updated June 16, 2022. Levels: product pages (indoor minimum / maximum, outdoor). Polaris: its submittals (Sept. 17, 2026) give higher levels than its product page and brochure; the note shows under the model.

06 · Dimensions

The Polaris to scale, inside and outside.

Pick a model: the indoor and outdoor units are drawn to scale, the outdoor unit 45 cm (18 in) off the ground as the submittals ask.

Model

Dimensions: product pages (width × depth × height, inches). 45 cm (18 in) under the outdoor unit: submittals. 30 cm from the wall: Polaris outdoor unit manual (Sept. 24, 2026). 1 ft grid.

07 · Controls and features

The remote, the optional controls and the Polaris’s features.

The names are Kinghome’s own. Where the sheet gives no description, we say so.

Controls

YBE1FBFinfrared remote

Optional accessories:

XE71-44Gwired controller
XE74-44Eembedded wired controller
XE72-44Eembedded Wi-Fi wired controller
XE71-00/E24 V interlock wired controller

Included features

WI-FI controlWi-Fi control
8C heating8 °C heating
I-feelKinghome’s name, no description on the sheet
Forced defrostforced defrost
Soft startsoft start
Self cleanself-cleaning
Low voltage startuplow-voltage start-up

Polaris submittals, Kinghome Canada (Sept. 17, 2026), read Oct. 26, 2026.

What the brochure highlights

The Polaris brochure also puts numbers on the three-cylinder compressor’s gains (SEER2, capacity at -15 and -8 °C, COP) against conventional models, from tests the brochure cites: we do not repeat them, as no conditions are published for these models.

08 · Technician’s corner

All four Polaris units, installation side.

The only one of our Kinghome wall series with a 131 ft line from the 9,000. Pre-charged for 25 ft per the brochure, 24.6 ft (7.5 m) per the submittals. Its brochure gives no height difference: its submittals say 82 ft for all four sizes. Its outdoor manual (Sept. 24, 2026) repeats the installation rules of the other wall units.

Model	Line (ft)	Height diff. (ft)	Add. (oz/ft)	Charge (oz)	Outdoor wt (lb)	Dehum. (L/h)	Wires (AWG)
9,000 · 220 V	10-131	82^s	0.2	38.1	81.6	0.8	14/3 / 16/4
12,000 · 220 V	10-131	82^s	0.2	38.1	81.6	1.4	14/3 / 16/4
18,000 · 220 V	10-131	82^s	0.2	54.7	94.8	1.8	12/3 / 16/4
24,000 · 220 V	10-131	82^s	0.4	52.9	92.694.8^s	2	10/3 / 14/4

2026 Polaris brochure (July 22, 2026). ^s: submittal (Sept. 17, 2026), the only source for the height difference and in small type when it differs from the brochure. Wires: power / interconnecting (submittals). Outdoor unit at least 18 in (45 cm) above any surface, per the submittals.

Torque, vacuum and clearances

09 · LogisVert

The LogisVert of each Polaris, with the calculation.

For an ENERGY STAR cold-climate heat pump, Hydro-Québec pays $120 per 1,000 BTU/h of heat at -8 °C, if the outdoor unit is at least 12,000 BTU/h. The rules and the deadline are on the Kinghome page.

Model	Heat at -8.3 °C	Calculation	LogisVert
Polaris 9,000 · 220 V	14,000 BTU/h	nominal size under 12,000 BTU/h	not eligible
Polaris 12,000 · 220 V	15,000 BTU/h	15,000 × $120 ÷ 1,000	$1,800
Polaris 18,000 · 220 V	20,400 BTU/h	20,400 × $120 ÷ 1,000	$2,448
Polaris 24,000 · 220 V	26,000 BTU/h	26,000 × $120 ÷ 1,000	$3,120

Heat at -8.3 °C (17 °F) and amount: product pages, read live, identical to Hydro-Québec’s list of October 26, 2026. Hydro-Québec confirms the amount when you apply.

10 · Frequently asked questions

Your questions about the Polaris.

Product-page figures are read live: when a product page changes, the answer follows. The others come from the dated documents at the foot of the page.

AirGreen × KINGHOMESold and installed by AirGreenPOLARIS R32Three cylinders in parallelLine set up to 131 ftMontreal · Laval · Longueuil · South Shore · North Shore

AirGreen

A Polaris for hard winters, installed by AirGreen.

We come to see the house, choose the size with you and give you a clear quotation with the indicative LogisVert amount. The estimate is free, with no commitment.

Book my free estimate 514 316-2973

Gas or oil: that work goes to a licensed partner.

RBQ 5645-9605-01Subclasses 15.8, 15.10 and 16

Free estimateAt home, no commitment

Showroom1370, rue Joliot-Curie, local 712, Boucherville

Montreal office4951 Sainte-Catherine Street East, Montreal

Sources checked on October 26, 2026

AirGreen Kinghome Polaris product pages (metafields), read live.
Kinghome Canada, Polaris submittals, 4 models (Sept. 17, 2026), indoor and outdoor manuals (Sept. 24, 2026), English brochures (July 22 and Aug. 25, 2026) and French ones (Sept. 4 and 25, 2026), read Oct. 26, 2026.
NEEP, Cold Climate Air Source Heat Pump List, Kinghome wall unit records (modified Aug. 24 to Sept. 4, 2026), re-read Oct. 26, 2026.
ENERGY STAR, certified heat pumps dataset w7cv-9xjt (Canadian market), re-read Oct. 26, 2026.
Hydro-Québec, LogisVert list “owner, existing home” of Oct. 26, 2026; participation guide v1.10 (Sept. 15, 2026).
Environment and Climate Change Canada, 1991-2020 climate normals, Montreal-Trudeau, re-read Oct. 26, 2026.
Québec.ca, “Mesure du bruit” (updated June 16, 2022), re-read Oct. 26, 2026.

The amounts shown are estimates; only the responsible organizations confirm the assistance granted. Capacities and sound levels come from Kinghome documents and certificates; your installation may give a different result.
