ARCOAIRE EAA4X18L14A Evaporator A-Coil | 1.5 Tons
Arcoaire 1.5-ton uncased R-410A evaporator A-coil with a factory-installed thermostatic expansion valve (TXV).
Model numberEAA4X18L14A
514 316-2973 · sales@airgreen.ca
Quick facts
Central air conditioning for a small electric furnace, starting at 1.5 tons
Many condos and bungalows in the region are heated by a forced-air electric furnace but have never had central air conditioning. The ductwork, however, is already there. What is missing is an evaporator coil above or below the furnace, and an outdoor unit. The Arcoaire EAA4X18L14A A-coil is the indoor part of that project: 1.5 tons (18,000 BTU/h nominal), R-410A, with a factory-installed thermostatic expansion valve (TXV). It is available while supplies last.
An A-coil for a 14-3/16 in cabinet
According to Arcoaire’s nomenclature, this model is designed for a 14-3/16 in wide cabinet: it matches electric furnaces and air handlers of the same width. It installs vertically, in upflow or downflow. Its main tubes and fins are aluminum, with copper stubs for brazing on site, and it weighs 22.0 lb for shipping. The manufacturer’s brochure declares it compatible with an air conditioner as well as a heat pump.
What "uncased" means for you
The EAA4X18L14A arrives without a cabinet. It fits in the furnace plenum, or in a suitable casing when the existing plenum is not suitable. During the estimate, we measure the plenum and state in the quote whether a casing or transition is needed. That is also when we check the outdoor unit: Arcoaire does not publish a matching list for this coil, and the unit must run on R-410A.
What to know about performance and the grant
A coil sold alone has no efficiency rating of its own. Seasonal performance depends on the combination with the outdoor unit and the furnace. For the same reason, a coil bought alone does not qualify for the LogisVert grant. If you add a heat pump rather than an air conditioner, the same coil also distributes heat in winter, and the electric furnace tops up during deep cold.
Installed by AirGreen
AirGreen is a family business established in Montreal for more than fifteen years, holding RBQ licence 5645-9605-01 (ventilation, refrigeration and electrical). After a free on-site estimate and a written quote, we set the coil in the plenum, braze the 3/8 and 5/8 in refrigerant lines, pressure-test and pull a vacuum, install the condensate drain with its trap, then commission the system. We work in Montreal, Laval, Longueuil, on the South Shore and on the North Shore.
EAA4X stock is limited: ask for your free estimate now. Financing is available for your air conditioning project.
Adding air conditioning to a small electric furnace
The EAA4X18L14A sits in the plenum, above or below an electric furnace or air handler 14-3/16 in wide. Connected to an R-410A outdoor unit, it cools; with a heat pump, it also heats.
- Adding a 1.5-ton central air conditioner to an existing electric furnace
- Condos, bungalows and small dwellings served by ductwork
- Furnaces and air handlers 14-3/16 in wide
- Upflow or downflow installations

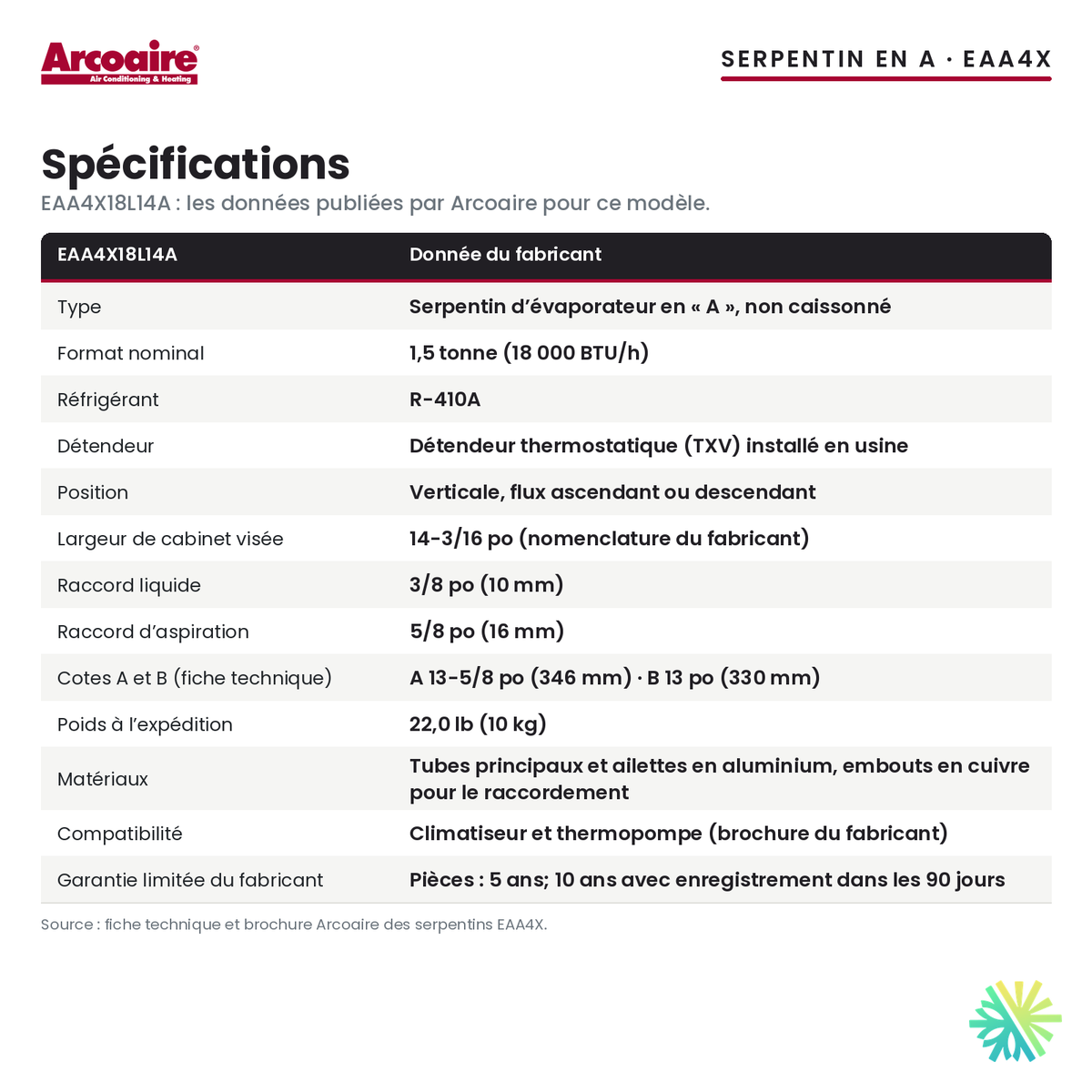

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Available while supplies last. Arcoaire’s website now features the next generation of coils.
- Sold alone: does not qualify for the LogisVert grant. The coil has no efficiency rating of its own; performance depends on the matched outdoor unit and air handler.
- Uncased: it fits in the plenum of the furnace or air handler, or in a suitable casing, not included.
- Designed for a 14-3/16 in wide cabinet, in the vertical position (upflow or downflow).
- R-410A: the outdoor unit must use the same refrigerant. Arcoaire does not publish a matching list for this model; we check compatibility before ordering.
Manufacturer documents
Explore the range
Evaporator coilsSee allSame brand
ARCOAIRESee all
Frequently asked questions
What does "uncased" mean?
The coil is delivered without a cabinet. It fits in the plenum, above or below the furnace depending on the airflow direction, or in a suitable casing sold separately. We include that part in the quote when needed.
What furnace width is it designed for?
According to Arcoaire’s nomenclature, this model is designed for a 14-3/16 in wide cabinet. The EAA4X series comes in other widths for wider furnaces.
Does it work with a heat pump?
Yes. Arcoaire’s brochure declares the series compatible with an air conditioner or a heat pump. The outdoor unit must run on R-410A.
Why "while supplies last"?
Arcoaire now features the next generation of coils. We sell the EAA4X units still available; once stock runs out, we will offer you another model of equivalent size.
What warranty does the manufacturer offer?
Arcoaire covers parts for 10 years with registration within 90 days, 5 years without registration, for owner-occupied residential use. Where the law prohibits requiring registration, Arcoaire automatically applies the 10-year warranty.
A 1.5-ton Arcoaire coil, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
