Fujitsu Simple Wired Remote Control with Leak Alerts – UTY-RSRYZ1
Fujitsu’s simple wall remote, with mode selection, a built-in temperature sensor and refrigerant leak alerts.
AirGreen codeAG-AC-070
514 316-2973 · sales@airgreen.ca
Quick facts
The Fujitsu UTY-RSRYZ1 simple wired remote control replaces the UTY-RSRY. It keeps the basic controls, on, off, mode selection and temperature, on a large backlit LCD screen, and adds refrigerant leak alerts and sensor replacement alerts.
A simple control for shared spaces
In an office, a classroom or a rental unit, a wall-mounted remote control prevents losses and extreme settings. The UTY-RSRYZ1 has a built-in temperature sensor: the reading is taken where the occupants are, with adjustment in 1 °F steps. Setpoint range limits can be set, and automatic changeover between heating and cooling is available.
Safety alerts
If a refrigerant leak condition is detected, the remote control warns with a buzzer, an on-screen icon, and a flashing backlight and indicator light. It also signals when it is time to replace the sensor.
Key points
- Controls up to 16 indoor units
- Compatible, according to Fujitsu, with all 2-wire H-series models and TLAV, TLAV1, TLAV2, KSA1 and KSA2 VRF systems
- Test run function for the technician
- To be installed away from direct sunlight and air outlets, since the sensor is in the housing
Installed by AirGreen across Greater Montréal
We install and connect the UTY-RSRYZ1, as a new installation or to replace a UTY-RSRY, in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with your indoor unit model.
The essentials, without complicated menus
On/off, mode and temperature: the UTY-RSRYZ1 keeps the basic controls at hand, on a large backlit screen.
- Offices, classrooms and homes that want simple control
- Fujitsu AIRSTAGE H-Series systems with 2-wire communication
- Fujitsu VRF TLAV, TLAV1, TLAV2, KSA1 and KSA2 systems
- Replacing a UTY-RSRY

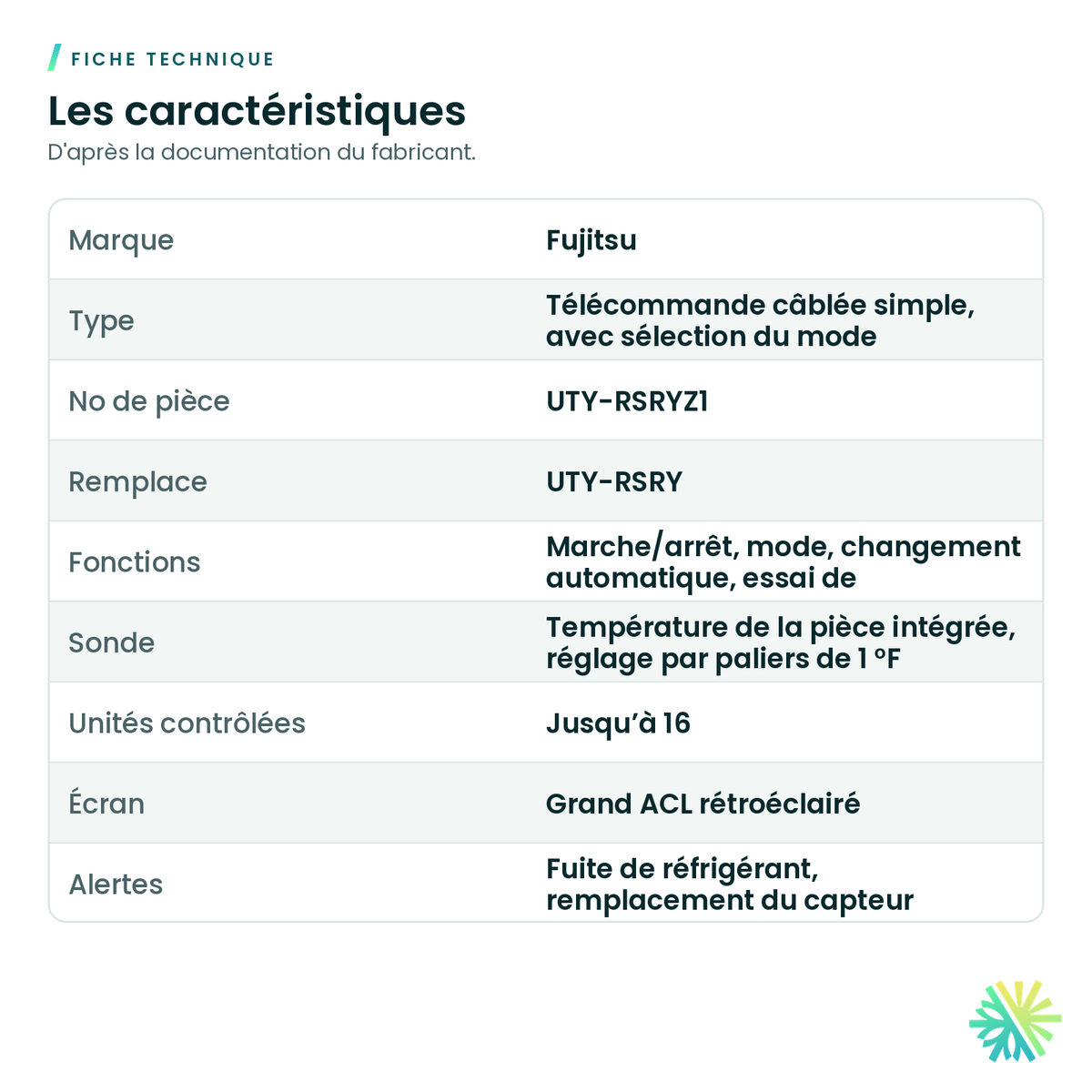

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Fujitsu presents it as the replacement for the UTY-RSRY.
- Since the sensor is in the remote, mount it away from direct sun, air outlets and heat sources.
- Send us the indoor unit model number to confirm compatibility.
- Wire it with the power off, by a technician.
Manufacturer documents
You may also need
Fujitsu 2-Wire Simple Remote Control with Mode Selection – UTY-RSRY
Fujitsu Simple 2-Wire Remote Control without Mode Selection – UTY-RHRY
Fujitsu Wired Remote Control with Leak Alerts – UTY-RNRUZ6
Fujitsu KAGAMI Wired Controller – UTY-RVRU
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Is my unit compatible?
Fujitsu rates it compatible with all 2-wire H-Series models and VRF TLAV, TLAV1, TLAV2, KSA1 and KSA2. Send us your model number and we confirm.
How is it different from the UTY-RHRY?
The UTY-RSRYZ1 lets you change the mode. The UTY-RHRY, designed for hospitality, gives no access to the mode.
Can the adjustable temperature be limited?
Yes. Fujitsu lists selectable setpoint range limits.
Can you install it?
Yes. We mount it and wire it to your indoor unit, everywhere in Greater Montréal.
Simple, safe control for your Fujitsu system
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
