Fujitsu 2-Wire Simple Remote Control with Mode Selection – UTY-RSRY
Fujitsu’s simple wall remote with mode selection, a built-in sensor and a large backlit screen.
AirGreen codeAG-AC-072
514 316-2973 · sales@airgreen.ca
Quick facts
The Fujitsu UTY-RSRY 2-wire simple remote control brings the everyday controls together in a compact wall unit: on, off, mode selection, fan speed, set point and vertical louvre direction. Its built-in temperature sensor measures the room air where the occupants are.
Full control, without menus
Auto changeover switches between heating and cooling on its own based on temperature. Adjustments are made in 1 °F steps on a large backlit display. For a property manager, the UTY-RSRY also offers set point range limits, control lockout, heating or cooling priority and a filter indicator.
Manufacturer specifications
- 12 V DC power from the indoor unit, 0.3 W maximum
- 2-conductor shielded, twisted, non-polarized cable, 22 to 16 AWG
- Up to 16 indoor units and 4 remote controls per group
- 120 × 75 × 19 mm, 120 g, operates from 0 to 46 °C
The model that succeeds it
Fujitsu now presents the UTY-RSRYZ1 as the replacement for the UTY-RSRY. The new model adds refrigerant leak and sensor replacement alerts. For a like-for-like replacement or a group already equipped with UTY-RSRY, this model still makes perfect sense; for a new project, we advise you based on your unit.
Installed by AirGreen across Greater Montréal
We install and connect Fujitsu remote controls in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with your indoor unit model and the quantity.
Every useful control, nothing complicated
Mode, fan, louver and temperature: the UTY-RSRY covers everyday settings in a few buttons.
- Offices, shops and homes
- Fujitsu AIRSTAGE R-32 indoor units that list it as an option
- Group control of up to 16 units
- Replacing an existing UTY-RSRY

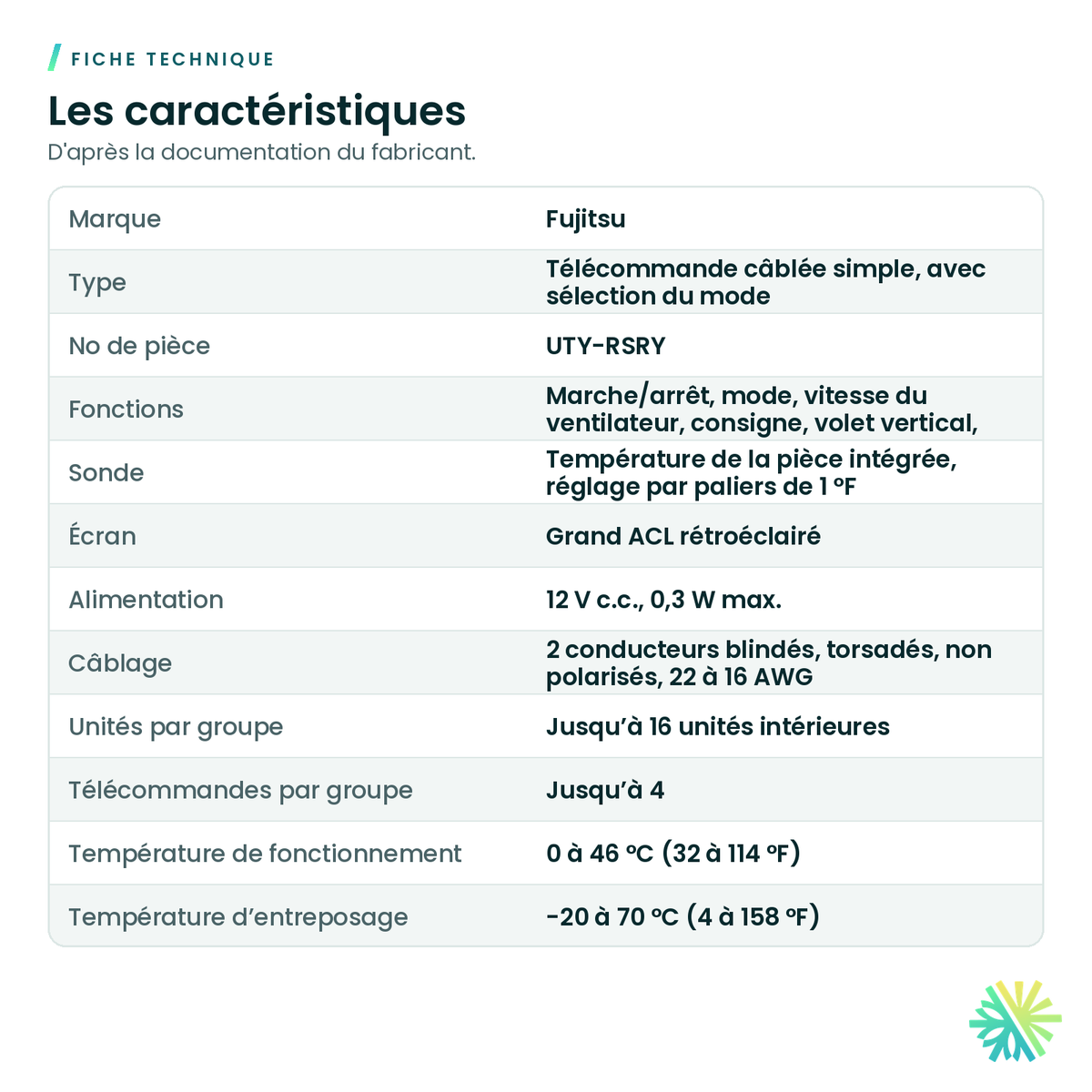

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Fujitsu now lists the UTY-RSRYZ1, which replaces it and adds refrigerant leak alerts.
- Non-polar 2-core shielded twisted pair, 22 to 16 AWG.
- Mount it away from direct sun, air outlets and heat sources: the sensor is in the housing.
- Send us the indoor unit model number to confirm compatibility.
You may also need
Fujitsu Simple Wired Remote Control with Leak Alerts – UTY-RSRYZ1
Fujitsu Simple 2-Wire Remote Control without Mode Selection – UTY-RHRY
Fujitsu KAGAMI Wired Controller – UTY-RVRU
Fujitsu UTY-TFSXJ4 Wi-Fi Module for Non-Wall-Mounted Unit (UART)
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Is my unit compatible?
Fujitsu lists it on the submittal sheets of its R-32 AMUH air handlers, ARUH ducted units, ACUH and AUUH cassettes and ABUH ceiling-suspended units. Send us your model number and we confirm.
How is it different from the UTY-RSRYZ1?
Per Fujitsu, the UTY-RSRYZ1 replaces the UTY-RSRY and adds refrigerant leak and sensor replacement alerts.
And from the UTY-RHRY?
Same housing and wiring, but the UTY-RHRY gives no access to the mode.
Can you install it?
Yes. We mount it and wire it to your indoor unit, everywhere in Greater Montréal.
Fujitsu’s simple, complete remote
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
