YORK HH8 central heat pump · checked October 27, 2026

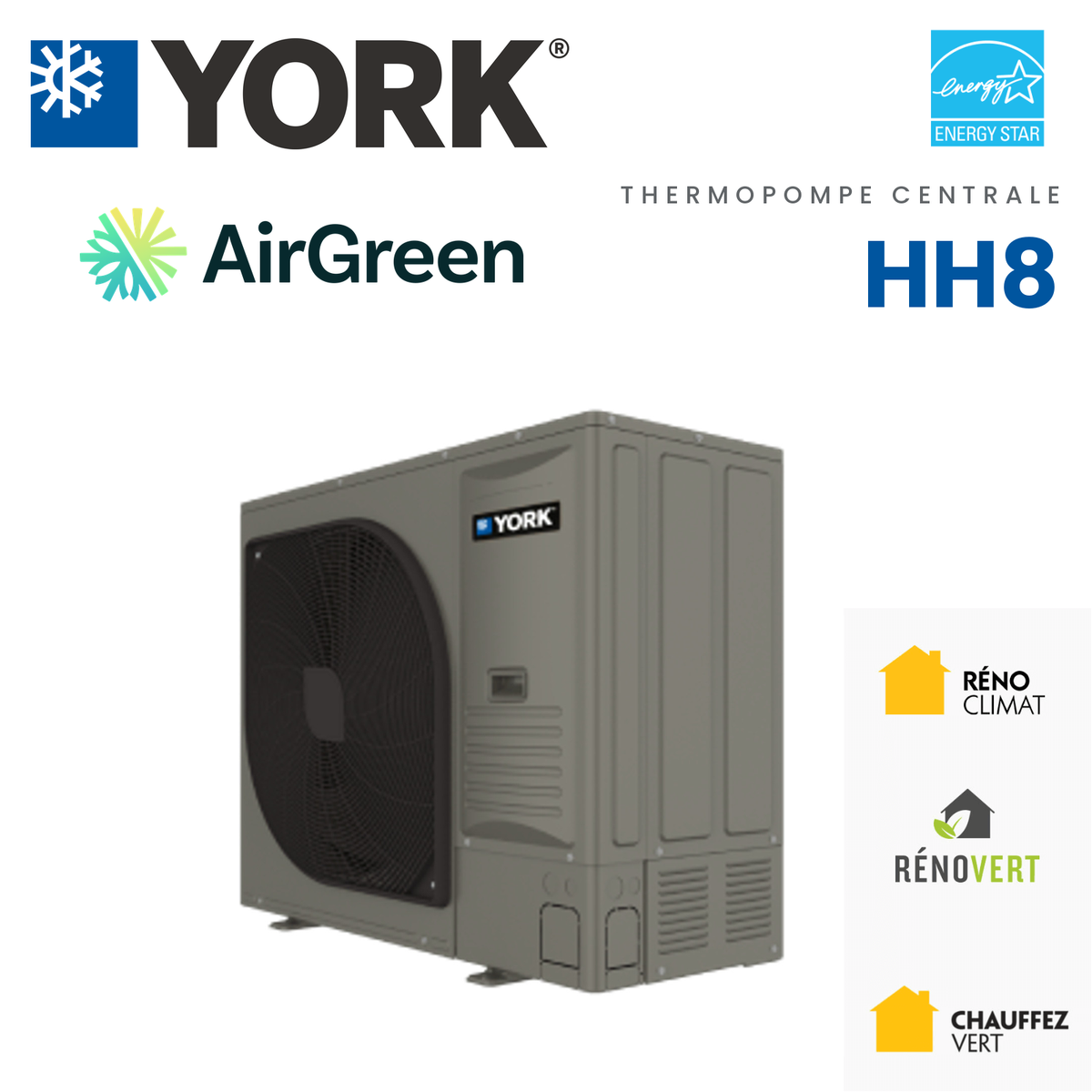

YORK HH8 central heat pump: ENERGY STAR cold-climate certified, with output published down to −25 °C

The HH8 is the variable-speed, side-discharge YORK central heat pump in our catalogue, 13 to 17 5/7 in. deep. NEEP lists its maximum output at −25 °C (−13 °F): 11,800 to 25,400 BTU/h, depending on size.

See the three sizes Book my free estimate
YORKHH8

At −25 °C, the output NEEP lists, tonnage by tonnage.

2 tons11,800 BTU/h
3 tons16,500 BTU/h
5 tons25,400 BTU/h

NEEP, maximum capacity at −13 °F (−25 °C), AHRI certificates of our listings, re-read October 27, 2026.

3ENERGY STAR cold-climate matched systems
2 to 5 tonsfrom 24,000 to 60,000 BTU/h (nominal size)
19.0SEER2 certified by ENERGY STAR
35 to 100%compressor modulation stated by YORK
AirGreen × YORKSold and installed by AirGreenENERGY STAR cold climateNEEP: output listed at −25 °CVariable speedSide dischargeMontreal · Laval · Longueuil · South Shore · North Shore
01 · Your tonnage

Three sizes, all side-discharge.

Each plate gives the certified pairing, the heating capacity at four temperatures with its COP, and the LogisVert amount; the difference from the same-size YH5 LX is shown with each plate. AirGreen confirms the tonnage at the free visit.

Tonnage
YORK
HH836E2S11+ JHE36B5CD2SS1 · JHE air handler
3 tons
AHRI
215853295
ENERGY STAR
3715161
Cold climate
Yes
Certified cooling
34,200 BTU/h
SEER2 · EER2
19.0 · 11.0
HSPF2 region IV · V
9.0 · 7.5
Sound level
Not published per model
LogisVert
$3,408
Open the product page
AirGreen × YORK

The HH8, designed by YORK, installed by AirGreen.

AirGreen picks the tonnage with you, finds the spot for the outdoor unit and installs it with its JHE air handler.

YORK

What YORK brings

  • Inverter-driven twin rotary compressorVariable speed: the compressor adjusts its speed to the heating or cooling load.
  • Base-pan heater as standardOn all three sizes, along with the crankcase heater, per the YORK technical guide.
  • Side dischargeAccording to YORK, this design helps keep snow, leaves and debris out of the unit. The unit can also be stacked and fits under most raised decks.
  • Conventional 24 V thermostatCompatible, according to YORK’s HH8 sell sheet.
AirGreen

What AirGreen brings

  • Sold and installed by AirGreenIn Montreal, Laval, Longueuil, the South Shore and the North Shore.
  • Free visitWe measure the rooms, the ducts, the insulation and the electrical service.
  • Clear quoteWith the AHRI number and the indicative LogisVert amount.
  • RBQ 5645-9605-01Subcategories 15.8, 15.10 and 16.

The result: an HH8 at the right tonnage, set where its side discharge has room, and installed by AirGreen.

See the three sizes Book my free estimate
The YORK shop · HH8

All 3 HH8 systems, right below.

One product page per size, each with its JHE air handler, its AHRI number, the YORK documents and the LogisVert amount.

YORK
Everything to know · HH8
02 · Footprint

Top view, to scale: the HH8 and the same-tonnage YH5 LX.

Areas calculated by AirGreen from the dimensions YORK prints (screw heads included). YORK itself claims up to a 30% smaller footprint than traditional equipment. Side discharge needs room at the side: clearances are not in the YORK documents we read, so we check them at the visit.

Tonnage
HH8YH5
  • HH836E2S1143 1/3 × 17 5/7 in. on the ground, 34 4/9 in. tall · 5.33 sq ft
  • YH536E2S1129 1/4 × 29 1/4 in. on the ground, 36 1/4 in. tall · 5.94 sq ft
  • 10% lessground area for the HH8
  • 1.8 in. lowerfor the HH8
03 · Technician’s corner

The HH8 for the electrician and the refrigeration tech: three sizes, three circuits.

Values from the YORK HH8 technical guide (table 3), including the ones the central systems page does not give: compressor current, fan motor and coil. Dimensions are in the Footprint section.

Compressor, circuit (208/230 V, single phase, 60 Hz), lines, fan, coil and charge
Outdoor unitTonnageCompressor rated load amps (RLA)Min. circuit ampacity (MCA)Max. overcurrent protectionLiquid · vapour lines (in.)FanOutdoor coilFactory charge (15 ft) · per foot
HH824E2S11+ JHE24B5AC2SS12 tons15 A22 A25 A3/8 · 5/81/7 hp · 2,235 CFM7.49 sq ft · 2 rows · 17 fins/in.5 lb 1 oz · 0.54 oz/ft
HH836E2S11+ JHE36B5CD2SS13 tons22.5 A30 A35 A3/8 · 3/41/3 hp · 3,350 CFM10.76 sq ft · 2 rows · 18 fins/in.7 lb 7 oz · 0.57 oz/ft
HH860E2S11+ JHE60C5CH2SS15 tons28 A37 A45 A3/8 · 7/81/5 hp · 4,820 CFM14.87 sq ft · 2.6 rows · 18 fins/in.11 lb · 0.6 oz/ft
  • Charge: each HH8 ships charged for 15 ft of lines. Add or remove 0.54 oz (HH824), 0.57 oz (HH836) or 0.6 oz (HH860) per foot of difference from 15 ft, measured on the actual (not equivalent) length.
  • Operating weight: 116.8 lb (HH824), 185.2 lb (HH836) and 244.7 lb (HH860), per the technical guide. The sell sheet gives 233.5 lb for the HH860; we use the guide.
  • Not published in the YORK documents we read: maximum length and lift, clearances, operating range.
04 · Did you know?

Four HH8 details from YORK, ENERGY STAR and NEEP documents. Tap or click a card.

No ductless use

YORK states that the HH8 is not designed for ductless use: it is part of a ducted system, with an air handler such as the JHE or, as a hybrid system, a gas furnace.

ENERGY STAR Most Efficient

As of October 27, 2026, ENERGY STAR lists all three HH8 matched systems under this designation; the YH5 LX systems do not have it.

More capacity at −15 °C than at −8.3 °C

The HH824 is certified at 18,300 BTU/h at −15 °C and 17,800 at −8.3 °C; the HH860 at 38,500 and 37,000. These are two separate tests, published as they are by ENERGY STAR; the documents we read do not explain the difference.

A COP of 2.14 at −25 °C

For the HH860, NEEP lists a COP of 2.14 at its maximum output at −25 °C, compared with 2.0 at −15 °C from ENERGY STAR: two separate tests. At −25 °C, the unit still delivers more than twice as much heat as the electricity it uses.

05 · LogisVert

LogisVert: the cold-climate rate on all 3 HH8 systems.

The AHRI numbers of all 3 HH8 systems are on Hydro-Québec’s October 26, 2026 list, “homeowner, existing house” profile.

All 3 HH8 systems are ENERGY STAR cold-climate certified: LogisVert pays them $120 per 1,000 BTU/h of capacity at −8 °C, the 17 °F (−8.3 °C) point on the plates. Each size’s amount is on its plate, above.

These amounts apply to the HH8 + JHE pairing on each product page. Keeping a furnace or setting the HH860 to 4 tons: see the FAQ below.

9-month deadline and program rules: YORK page, LogisVert section

Frequently asked questions

What people ask us about the HH8: cold, 4 tons, furnace, sound.

How cold can the HH8 heat?

The YORK documents we read give no minimum operating temperature. NEEP lists its maximum output at −25 °C (−13 °F): 11,800 to 25,400 BTU/h depending on size; nothing is published below that point, so we size the backup heat at the visit. Montreal’s cold in figures is on the YORK central systems page.

Does the 5-ton HH8 suit a house that needs 4 tons?

YORK sells the HH860 for 4 and 5 tons: a capacity switch sets the unit. Our product page, its AHRI number and its LogisVert amount are for the 5-ton setting; at 4 tons, eligibility, the pairing and the amount are confirmed on the quote.

Can I keep a gas furnace with the HH8?

Yes, according to YORK, even a furnace of another brand. YORK’s HH8 sell sheet suggests the HH8 with an air handler in milder climates, and with a gas furnace as a hybrid system in colder climates. The HH8 is then no longer the HH8 + JHE pairing on our product pages: its LogisVert eligibility and amount are confirmed on the quote. Gas work goes to a partner holding the proper RBQ licence.

Is the HH8 quiet?

YORK claims “as low as 54 dBA” for the HH8, with no level by size and no test conditions in the documents we read. So we give no figure by tonnage.

HH8 or YH5 LX at the same tonnage?

At 2, 3 and 5 tons, the HH8 delivers more heating capacity at −15 °C and gets a higher LogisVert amount; each plate above shows the difference. Our catalogue also has the YH5 LX at 1.5 and 4 tons, with top discharge and a two-stage compressor from 2 tons up. The full comparison is on the YORK central systems page.

AirGreen · Air conditioning & heating

Your HH8: room on the discharge side, a circuit sized for its MCA (22 to 37 A) and the right tonnage, checked at your home.

At the free visit, we check the clearances on the discharge side, which the YORK documents we read do not give; the quote gives the exact HH8 matched system and its AHRI number.

Book my free estimate514 316-2973
RBQ 5645-9605-01Subcategories 15.8, 15.10 and 16
Free estimateAt home, no obligation
Sold and installed by AirGreenMontreal, Laval, Longueuil, South Shore and North Shore
Showroom1370 Joliot-Curie Street, unit 712, Boucherville

Sources and dates checked

  1. ENERGY STAR, Certified Air-Source Heat Pumps, dataset w7cv-9xjt, 8 YORK records (IDs 3713095, 3627807, 4498100, 3627809, 3627810, 3437360, 3715161, 3715141), Canadian market, read October 14, 2026, re-read October 26, 2026; “Most Efficient” designation re-checked October 27, 2026.
  2. NEEP, Cold Climate Air Source Heat Pump List, AHRI certificates 214396076, 215853295 and 215853276, read October 14, 2026, re-read October 27, 2026 (no YH5 listed).
  3. Hydro-Québec, LogisVert eligible heat pump search tool, file of October 26, 2026, “homeowner, existing house” profile.
  4. Hydro-Québec, LogisVert participation guide for residential customers, version 1.10 of September 15, 2026 (9-month deadline, p. 5; rates, p. 15), read October 14, 2026.
  5. YORK, YH5 and HH8 technical guides, tables 3 and 4 (copies in our documents).
  6. YORK, HH8 product page and HH8 sell sheet (PUBL-3444-C-0124), read October 14, 2026.
  7. Environment and Climate Change Canada, 1981-2010 climate normals, Montréal–Trudeau (7025250), read October 14, 2026.
  8. Natural Resources Canada, “ENERGY STAR Most Efficient” page (modified October 20, 2025), read October 14, 2026.
  9. airgreen.ca product pages: the matched systems we carry and the links to them.
