Home » YORK Wall-Mounted Heat Pumps
AirGreenYORK

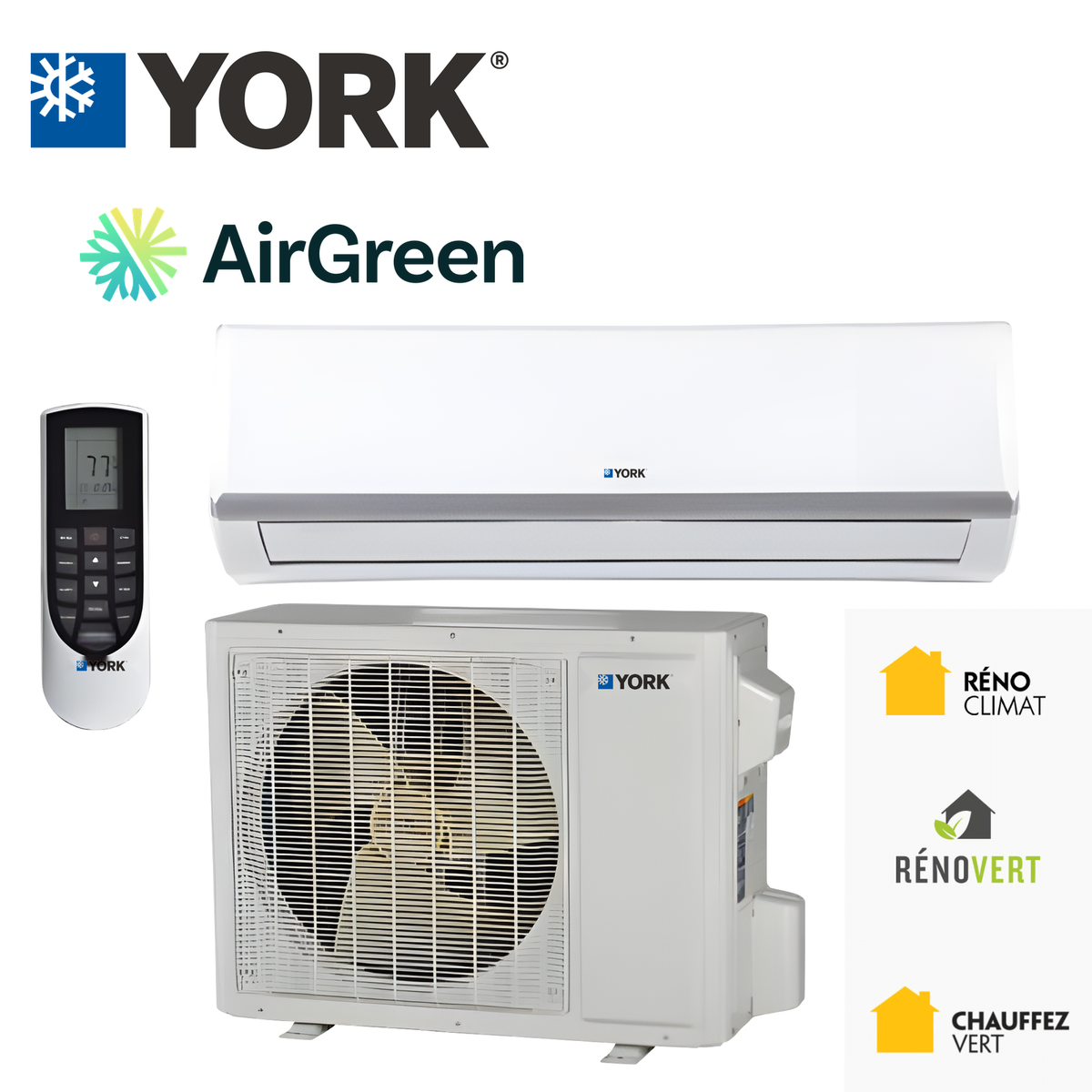

YORK · Wall-mounted heat pumps YORK at AirGreenSold and installed by AirGreen in Montreal, Laval, Longueuil, the South Shore and the North Shore.
The full YORK range
YORK wall-mounted heat pumps · checked October 26, 2026

YORK wall-mounted heat pumps: P, X or Z Series, depending on the room and the coldest night

The P and X Series heat down to −20 °C; the Z Series, down to −30 °C. Across the three: 16 to 28 SEER, six sizes from 9,000 to 36,000 BTU/h and four models on 115 V. Compare them size for size, then choose by room.

Compare size for size Book my free estimate
YORKP · X · Z

How cold each series heats, per the range YORK publishes.

PSeries · 8 listings−20 °C
XSeries · 6 listings−20 °C
ZSeries · 3 listings−30 °C
14 days a yearon average, the daily low drops below −20 °C at Montréal–Trudeau (14.26 days, 1981-2010 normals).
0.27 days a yearbelow −30 °C, the Z Series’ limit.

Heating ranges: YORK 2020 catalogue. Climate: ECCC, station 7025250.

17YORK wall-unit listings: 8 P, 6 X and 3 Z
9,000 to 36,000 BTU/h, nominal size
−30 °CZ Series heating limit (P and X: −20 °C)
28 SEER Z Series at 9,000 BTU/h, the range’s top rating
AirGreen × YORKSold and installed by AirGreenP, X and Z SeriesDown to −30 °C on the Z Series9,000 to 36,000 BTU/h115 V at 9,000 and 12,000 BTU/hMontreal · Laval · Longueuil · South Shore · North Shore
01 · Three series

P, X and Z: three YORK wall units, each for a different kind of room.

YORK names them after their top rating: “P SERIES 18 SEER”, “X SERIES 23 SEER”, “Z SERIES 28 SEER”. Ratings then vary by size.

P Seriesup to 18 SEER

The most sizes: the only YORK wall unit in our catalogue at 30,000 and 36,000 BTU/h.

Sizes9,000 to 36,000 BTU/hSEER16 to 18Heatsdown to −20 °C115 V9,000 and 12,000Wi-FiCS532AH adapterListings8See the P Series →X Seriesup to 23 SEER

Efficiency on 115 V: 22 to 23 SEER, versus 16 for the P.

Sizes9,000 to 24,000 BTU/hSEER20 to 23Heatsdown to −20 °C115 V9,000 and 12,000Wi-FiCS532AH adapterListings6See the X Series →Z Seriesup to 28 SEER

Deep cold: heats down to −30 °C, built-in Wi-Fi, seven fan speeds.

Sizes9,000 to 18,000 BTU/hSEER21 to 28Heatsdown to −30 °C115 VNoWi-FiBuilt inListings3See the Z Series →
02 · Size for size

P, X and Z at the same size, row by row.

Same nominal size, same voltage: what changes from one series to the next, from efficiency to the outdoor unit’s weight.

Size (208/230 V)
YORK wall series at 12,000 BTU/h
ItemP SeriesX SeriesZ Series
ModelsDHP12NWB21SDHP12CSB21SDHX12NWB21SDHX12CSB21SDHZ12NWB21SDHZ12CSB21S
SEER · EER · HSPF16 · 9.25 · 922 · 12.5 · 10.123 · 12.7 · 10.5
Rated heating at 8.3 °C13,000 BTU/hmax. 14,00013,000 BTU/hmax. 14,00013,000 BTU/hmax. 18,766
Rated cooling12,000 BTU/h12,000 BTU/h12,000 BTU/h
Heats down to−20 °C−20 °C−30 °C
Indoor sound, lowest speed29 dB(A)29 dB(A)23 dB(A)
Outdoor sound53 dB(A)54 dB(A)55 dB(A)
Outdoor unit (W × H × D)30.5 × 21 × 12.5 in.70 lb33 × 21 × 13 in.confirmed in the quote35 × 24 × 15 in.97 lb
MCA · MOCP9 A · 15 A9 A · 15 A13 A · 20 A
Refrigerant vapour line (liquid 1/4 in.)3/8 in.1/2 in.1/2 in.
Max. line length65 ft65.5 ft65.5 ft
Wi-FiCS532AH adapterCS532AH adapterBuilt in
RemoteDRCPXDRCPXDRCZ

In green, the best value in the row. On 115 V, only the P and the X exist (9,000 and 12,000 BTU/h); at 30,000 and 36,000 BTU/h, only the P. Source: YORK 2020 catalogue, AHRI 210/240 ratings.

AirGreen × YORK

YORK designs the wall unit; AirGreen mounts it on the right wall.

AirGreen picks the series and size with you, finds the spot for the indoor and outdoor units, then installs everything.

YORK

What YORK brings

  • Three wall seriesP, X and Z, from 16 to 28 SEER and 9,000 to 36,000 BTU/h depending on the series.
  • ETL listingMini-splits Intertek ETL listed for Canada and the USA, according to YORK.
  • YORK accessoriesPhotocatalytic and active carbon filters, wall brackets rated for 176 and 300 lb.
AirGreen

What AirGreen brings

  • Sold and installed by AirGreenIn Montreal, Laval, Longueuil, the South Shore and the North Shore.
  • Free visitWe measure the rooms, the insulation, the electrical service and the refrigerant line route.
  • Clear quoteThe exact model, what is included and the price, in writing.
  • RBQ 5645-9605-01Subcategories 15.8, 15.10 and 16.

The result: the right series, at the right size, mounted on the right wall by AirGreen.

Compare size for size Book my free estimate
The YORK shop · Wall units

All 17 YORK wall units, right below.

Filter by series or size; each listing gives the model numbers and the AHRI number.

YORK
Everything to know · Wall units
03 · By room

Your room, the series that fits it.

Five situations we often see, and what YORK’s figures say for each. The exact size is chosen at the visit.

P Series, 30,000 or 36,000 BTU/h

They are the only two YORK wall sizes in our catalogue above 24,000 BTU/h: 28,400 and 34,600 BTU/h of rated heating at 8.3 °C, and up to 98.5 ft of line set.

See the P Series →
P and X Series, 9,000 and 12,000 BTU/h

On 115 V, the X is rated 23 and 22 SEER, the P 16. The required circuit runs from 12 to 20 A (MCA) depending on the model: we check it at the visit, along with the electrical panel.

See the X Series →
Z Series, 22 dB(A) at its lowest

At its lowest speed, the 9,000 BTU/h Z indoor unit goes down to 22 dB(A), versus 28 (P) and 29 (X) on 208/230 V. Sound pressure levels published by YORK.

See the Z Series →
Z Series, down to −30 °C

The Z’s heating range goes down to −30 °C, the P’s and X’s to −20 °C. YORK claims “80%” of heating capacity at −30 °C (−22 °F) for the Z, without stating the reference capacity.

See the Z Series →
Z: built-in Wi-Fi

The Z has Wi-Fi built in; the P and the X need the CS532AH adapter. All three run on the EWPE Smart app (Google Play, App Store), according to YORK.

04 · In common

What all three series share.

Standard features YORK’s catalogue ticks for the P, the X and the Z, plus a few options.

Temperature read at the remote

iFeel function: according to YORK, the room temperature is measured at the remote, where you are, rather than at the indoor unit.

P · X · Z
No cold draft at start-up

Intelligent Preheating: according to YORK, in heating the indoor fan waits until the coil is warm before it blows.

P · X · Z
Defrost on demand

Intelligent Defrosting is a standard feature of all three series; for the X, YORK adds that it defrosts only when needed.

P · X · Z
Soft start, auto restart

Soft Start and Auto Restart are among the standard features of all three wall series.

P · X · Z
Optional filters

Photocatalytic and active carbon filters, offered by YORK for the P, X and Z Series.

P · X · Z
Listing

YORK mini-splits are Intertek ETL listed (Canada and USA) to ANSI/UL 1995 and CAN/CSA C22.2 No. 236-11, and AHRI certified, according to YORK.

Full range
05 · Installation

What the installer checks before drilling the wall.

The limits shared by all three series, then the line length allowed for each size.

33 ftmaximum height difference between the two units (10 m), for every size.
10 ftminimum line length, per the catalogue.
5/8 in.indoor unit drain on the P Series, per the catalogue; we confirm the X’s and Z’s in the quote.
176 · 300 lbcapacity of YORK’s two mini-split wall brackets (DL87743, DL87733).
Maximum line length by size
SizePXZ
9,000 BTU/h49.2 ft49.2 ft49.2 ft
12,000 BTU/h65 ft65.5 ft65.5 ft
18,000 BTU/h82 ft82 ft82 ft
24,000 BTU/h82 ft82 ft—
30,000 and 36,000 BTU/h98.5 ft——

1/4 in. liquid line on every model. The catalogue refers to YORK’s submittals for exact port sizes; we confirm them before the installation.

06 · Glossary

The catalogue’s terms, in plain words.

SEER

Seasonal cooling efficiency under the pre-2023 edition of AHRI 210/240, used in YORK’s 2020 catalogue. It does not compare directly with the SEER2 of central systems.

EER

Cooling efficiency at a single test point, 35 °C (95 °F) outdoors.

HSPF

Seasonal heating efficiency, on the same basis as SEER. The higher, the less heating costs.

dB(A)

A-weighted sound pressure level. The catalogue gives the indoor unit’s at each speed, and the outdoor unit’s.

MCA · MOCP

Minimum circuit ampacity and maximum overcurrent protection: the two values that size the electrical circuit.

Heating range

The outdoor temperatures within which YORK publishes heating operation: down to −20 °C for the P and the X, −30 °C for the Z.

07 · LogisVert

LogisVert and ENERGY STAR: none of the YORK wall units we carry.

0/17

None of the 17 AHRI numbers on our YORK wall-unit listings is on Hydro-Québec’s LogisVert list of October 26, 2026 (“homeowner, existing house” profile), nor in the ENERGY STAR records checked the same day. So we promise no LogisVert amount on these units.

Frequently asked questions

What people ask us about YORK wall units.

Which YORK wall unit heats in the deepest cold?

The Z Series: its heating range goes down to −30 °C, versus −20 °C for the P and X Series. Below those temperatures the unit is outside the range YORK publishes; we take that into account when choosing backup heat at the visit.

Does a YORK wall unit qualify for LogisVert?

Not ours: none of the 17 AHRI numbers on our YORK wall-unit listings is on Hydro-Québec’s October 26, 2026 list. So we promise no amount.

Can a YORK wall unit run on a 115 V circuit?

Yes, at 9,000 and 12,000 BTU/h, in the P and X Series. The required circuit runs from 12 to 20 A (MCA) depending on the model; we check it against your electrical panel at the visit.

How do I control a YORK wall unit from my phone?

The Z Series has Wi-Fi built in. The P and the X need the CS532AH adapter. YORK lists the EWPE Smart app, on Google Play and the App Store, for all three series.

Why does this page use SEER, and the central systems page SEER2?

YORK’s wall unit catalogue gives SEER, EER and HSPF ratings under the pre-2023 edition of AHRI 210/240; central systems are rated in SEER2 and HSPF2 under the 2023 edition, as listed by ENERGY STAR. The two scales do not compare directly.

What size wall unit for my room?

We choose it at the free visit, from the room’s area, insulation, windows and use. YORK sizes run from 9,000 to 18,000 BTU/h in the Z Series, up to 24,000 in the X Series and up to 36,000 in the P Series.

AirGreen · Air conditioning & heating

Your YORK wall unit, chosen for the room and mounted by AirGreen.

At the free visit, we measure the room, choose the series and size, and check the line-set route and the electrical circuit.

Book my free estimate514 316-2973
RBQ 5645-9605-01Subcategories 15.8, 15.10 and 16
Free estimateAt home, no obligation
Sold and installed by AirGreenMontreal, Laval, Longueuil, South Shore and North Shore
Showroom1370 Joliot-Curie Street, unit 712, Boucherville

Sources and dates checked

  1. YORK, Mini-Split Systems catalogue PUBL-7782v6 (November 2020): P, X and Z Series (pp. 9 to 16), features (p. 8), controls and accessories (pp. 40 to 44), listing and warranty (pp. 3 and 4); copy in our documents, re-read October 26, 2026.
  2. Hydro-Québec, LogisVert eligible heat pump list, file of October 26, 2026, “homeowner, existing house” profile, searched by AHRI number.
  3. ENERGY STAR, Certified Air-Source Heat Pumps, dataset w7cv-9xjt, searched by AHRI number on October 26, 2026.
  4. Environment and Climate Change Canada, 1981-2010 climate normals, Montréal–Trudeau (7025250), read October 14, 2026.
  5. airgreen.ca product pages: model and AHRI numbers of the units we carry, read October 26, 2026.

Price on quote. YORK® is a registered trademark, used here to identify the products we sell and install.
