Samsung Advanced Wired Controller – MWR-WG01UN
Samsung’s advanced wired wall controller: color screen, weekly schedule and energy tracking for Samsung residential and commercial systems.
AirGreen codeAG-AC-131
514 316-2973 · sales@airgreen.ca
Quick facts
The Samsung MWR-WG01UN advanced wired controller is a genuine wall control with a colour screen. It connects to the indoor unit with two conductors, which provide both the 12 V DC power supply and power-line communication. Samsung lists it for its DVM S systems, RAC wall units, FJM multi-zone systems, CAC systems and, as an optional communicating controller, Hylex™ modules.
More than a wall thermostat
The MWR-WG01UN offers a weekly schedule, energy use tracking by day, week, month and year, WindFree™ control on compatible units, an emergency heat indicator and partial button lock. It measures room temperature and can control up to 16 indoor units on R-410A. It can also activate the indoor unit's AP mode for the SmartThings app.
Manufacturer specifications
- Dimensions: 120 × 120 × 19 mm (4-3/4 × 4-3/4 × 3/4 in)
- Power: 12 V DC from the indoor unit, 2 W
- Cable: 22 to 16 AWG, up to 328 ft (100 m)
- Up to two controllers per system (main and secondary)
Good to know before installation
With R-32 units, Samsung states that group control by wired controller is not possible. Install the controller in a room between 0 and 39 °C, away from direct sun, with 10 mm of clearance above and on the sides and 50 mm below.
Installed by AirGreen in Greater Montréal
We install the controller, do the wiring and program the schedule in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the model of your indoor unit.

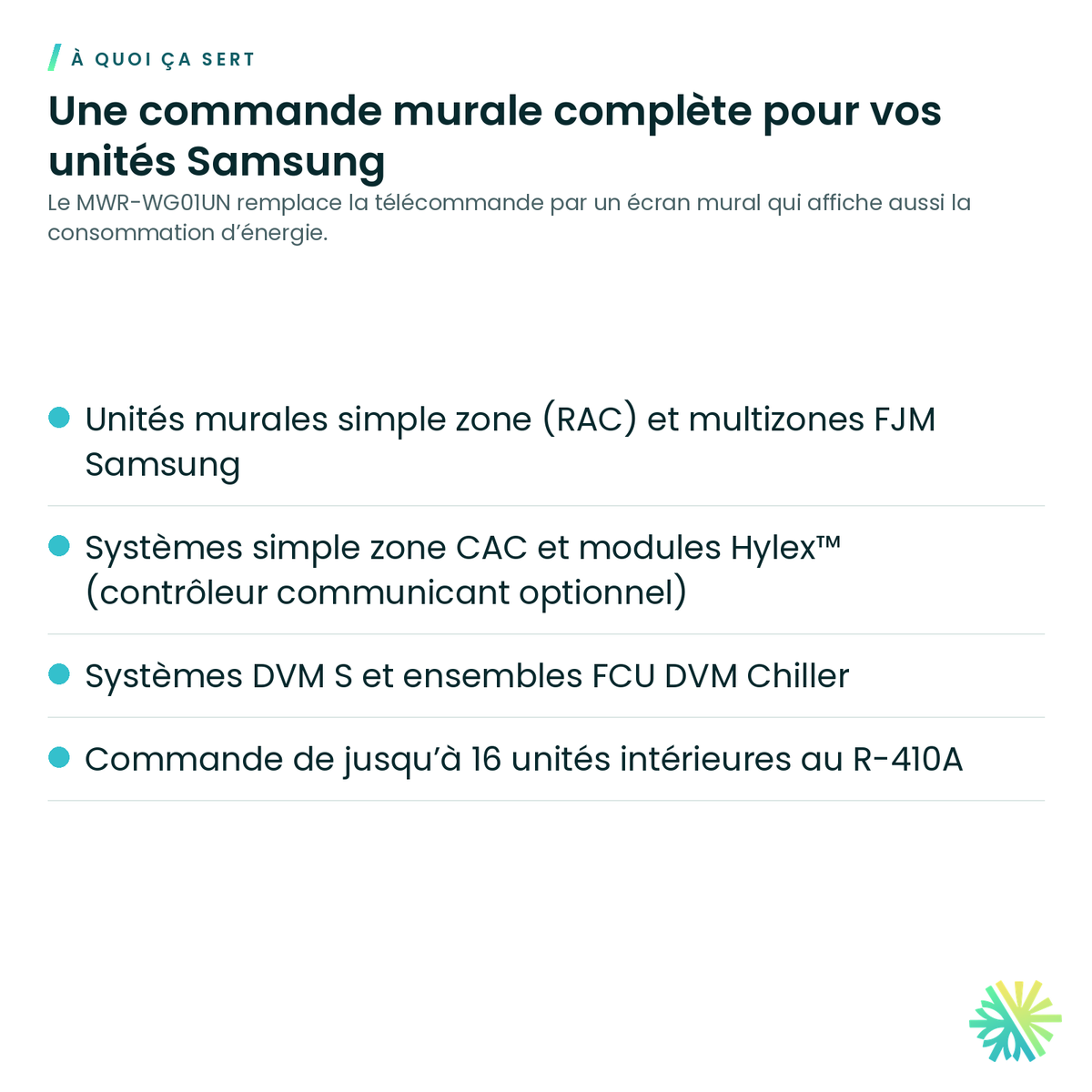

A full wall control for your Samsung units
The MWR-WG01UN replaces the remote with a wall screen that also shows energy use.
- Samsung single-zone wall units (RAC) and FJM multi-zone units
- Single-zone CAC systems and Hylex™ air handlers (optional communicating controller)
- DVM S systems and DVM Chiller FCU kits
- Control of up to 16 R-410A indoor units

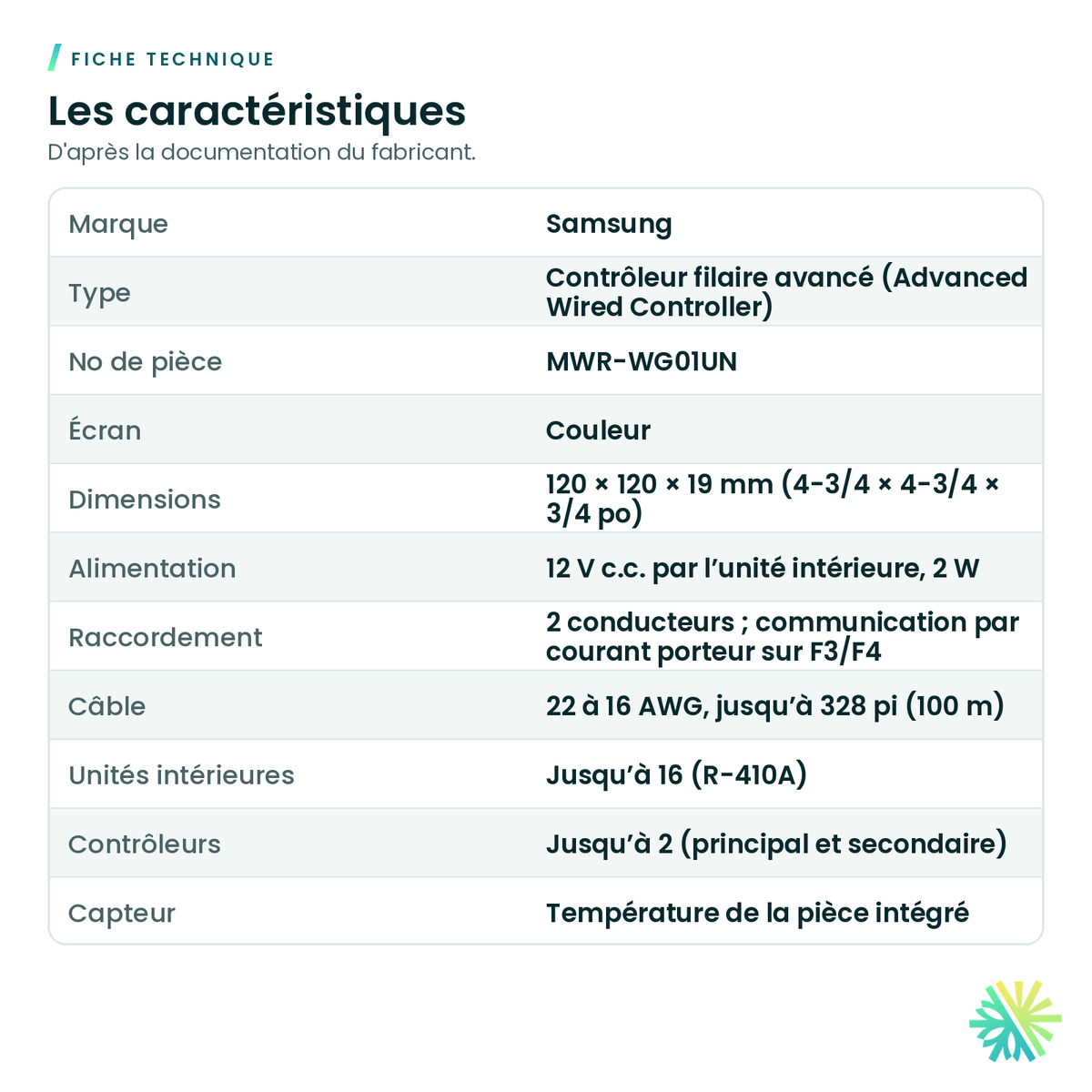

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

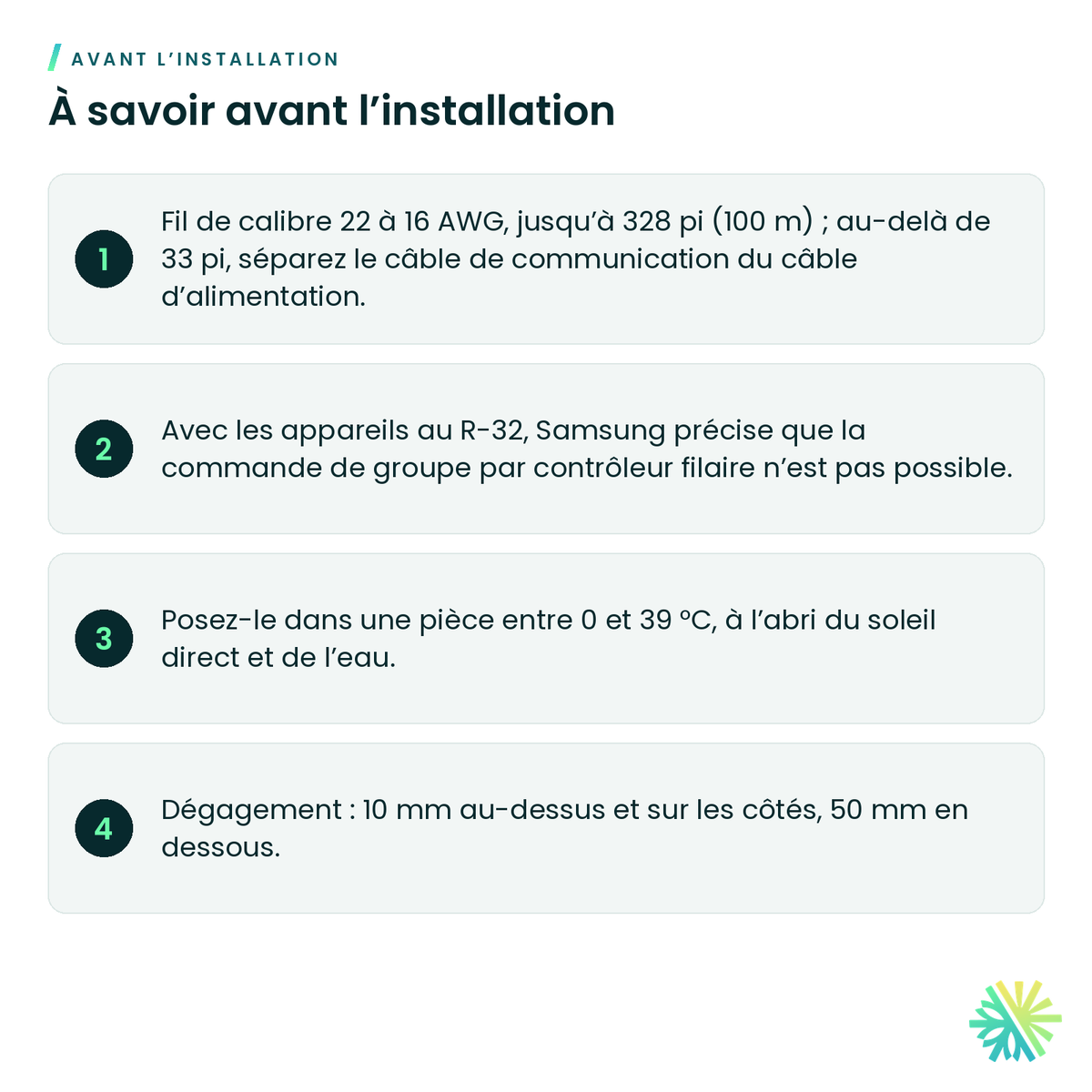

What to know before installing
- 22 to 16 AWG wire, up to 328 ft (100 m); beyond 33 ft, run communication and power cables separately.
- With R-32 units, Samsung states group control with a wired controller is not possible.
- Mount it in a room between 0 and 39 °C, away from direct sun and water.
- Clearance: 10 mm above and on the sides, 50 mm below.
Manufacturer documents
You may also need
Samsung External Contact Interface Module – MIM-B14U
Samsung Hylex ACU Control Module MXD-U001XN
Samsung Hylex Heating Element Kit for MPAH Module
14/4 Communication Cable for Heat Pumps
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Is it compatible with my Samsung unit?
Samsung lists it for DVM S systems, DVM Chiller FCU kits, RAC single-zone wall units, FJM multi-zone units and CAC single-zone systems; it is also the optional communicating controller for Hylex air handlers. Send us the model number and we confirm.
Can it run several units?
Yes, up to 16 R-410A indoor units. With R-32 units, Samsung states group control is not supported.
Does it need separate power?
No. It runs on 12 V DC from the indoor unit through a 2-conductor connection.
Can you install it?
Yes. We mount it, do the wiring and set the schedule, everywhere in Greater Montréal.
A complete Samsung controller, on the wall
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
