Samsung HA00A00203H1 Mitigation Controller for Hylex Coils
Samsung’s genuine controller that responds to the leak detector of R-454B Hylex coils by shutting the system down and running the mitigation sequence.
AirGreen codeAG-AC-130
514 316-2973 · sales@airgreen.ca
Quick facts
The Samsung HA00A00203H1 mitigation controller goes with R-454B Hylex™ coils. Samsung calls it the "Mitigation Controller for Hylex™ A-coils". The coil comes standard with a refrigerant leak detector; that detector needs the mitigation controller to shut the system down and run the mitigation sequences when a leak is detected.
A requirement tied to A2L refrigerants
R-454B is one of the A2L refrigerants, which are mildly flammable. With these refrigerants, leak detection and automatic response are part of the installation requirements. Samsung therefore lists the HA00A00203H1 among the mandatory accessories for Hylex coils, along with the MXD-U001XN ACU control module, both sold separately.
Coils covered
- HC24MCB021H1, HC36MBB021H1, HC36MCC021H1
- HC48MBC021H1
- HC60MCD021H1, HC60MBC021H1, HC60MAD021H1
What to include in the quote
A Hylex system with a coil on a furnace requires the outdoor unit, the coil, the ACU and this controller. We include them together to avoid a stop on the job site.
Installed by AirGreen in Greater Montréal
We install Samsung Hylex coils, their mitigation controller and the ACU in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the coil model.

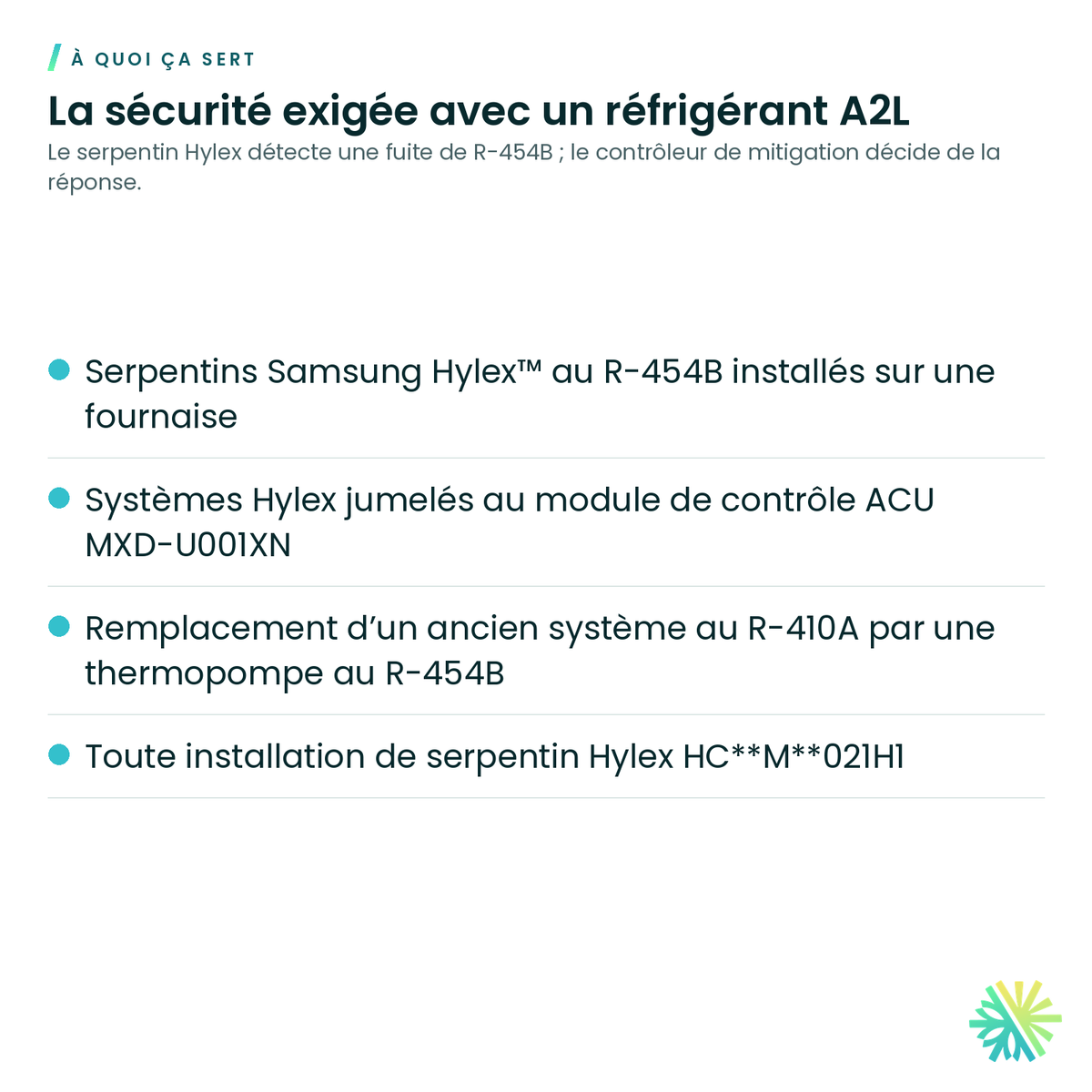

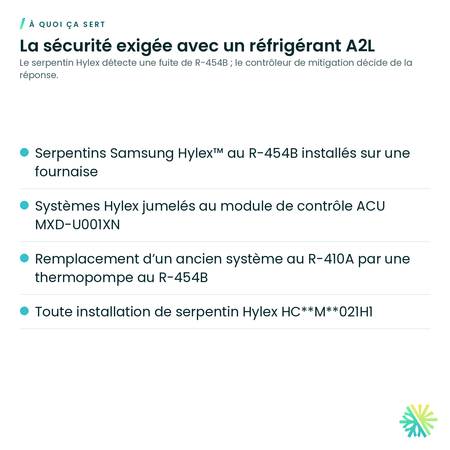

The safety required with an A2L refrigerant
The Hylex coil detects an R-454B leak; the mitigation controller decides the response.
- Samsung Hylex™ R-454B coils installed on a furnace
- Hylex systems paired with the MXD-U001XN ACU
- Replacing an old R-410A system with an R-454B heat pump
- Every Hylex HC**M**021H1 coil installation

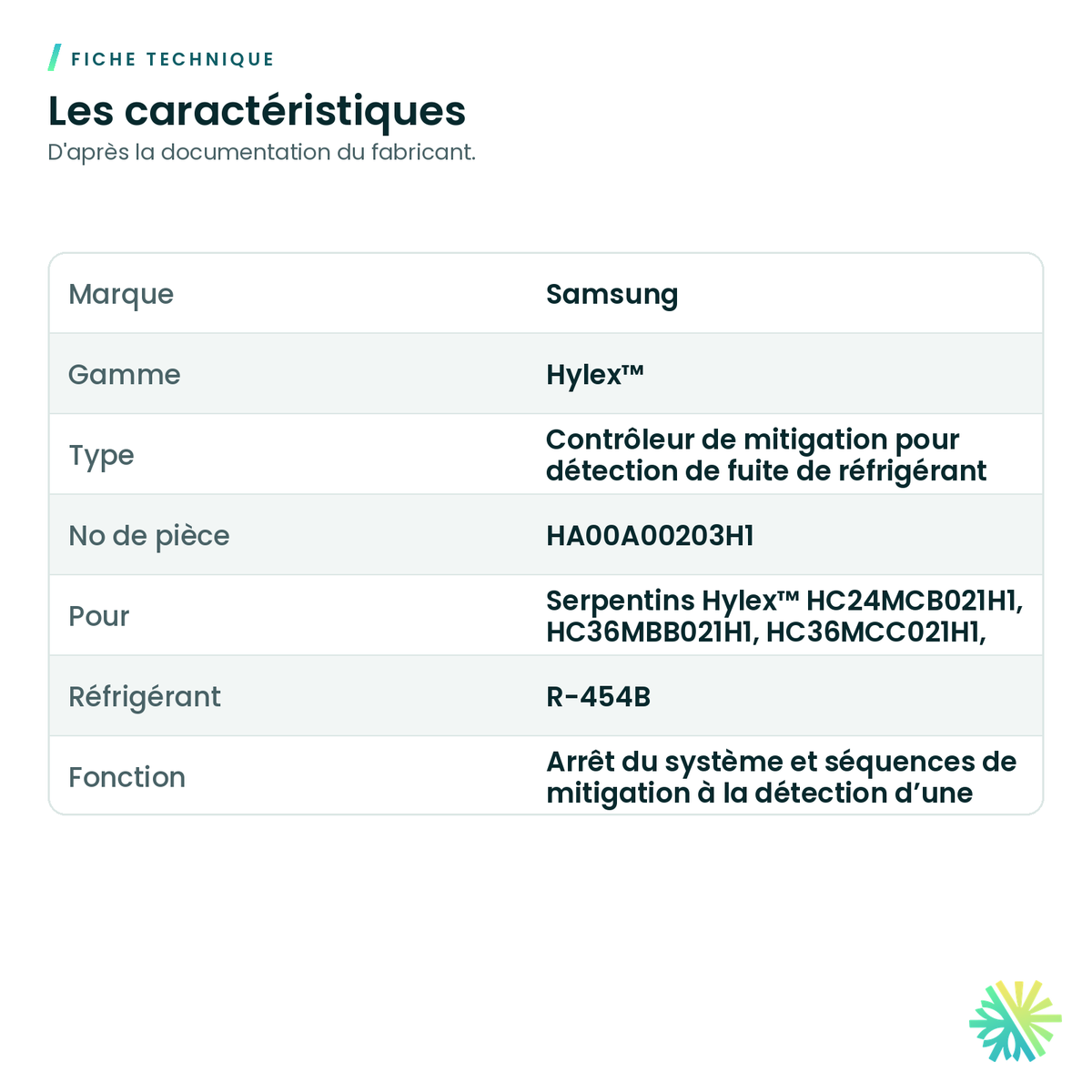

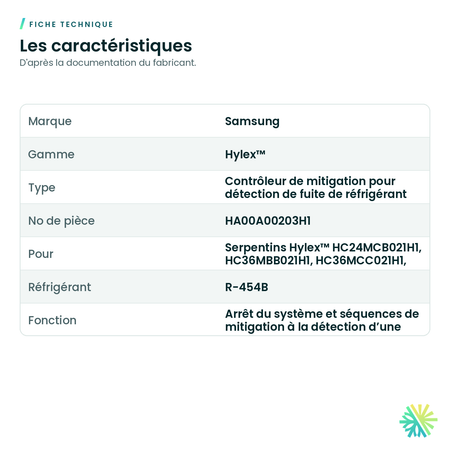

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

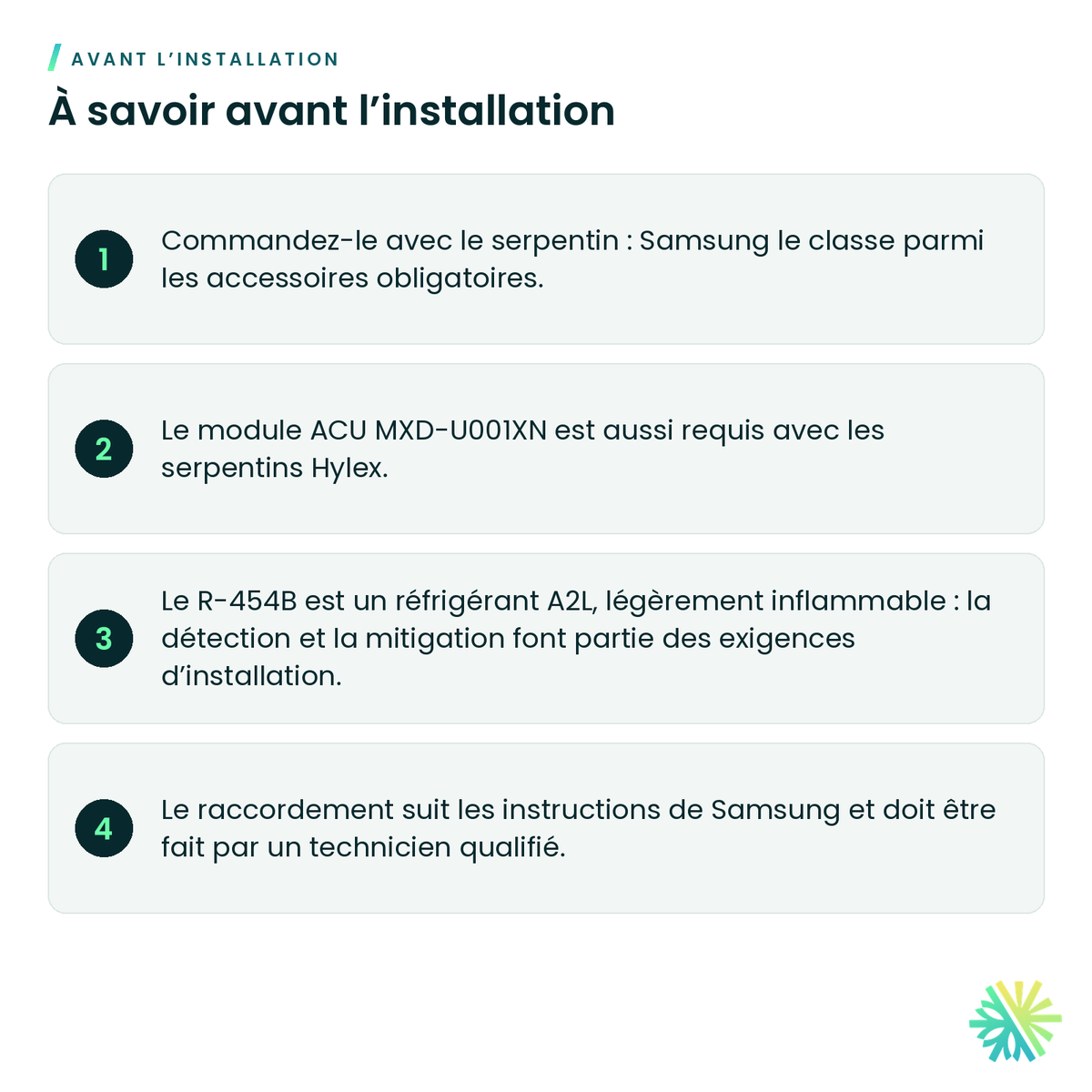

What to know before installing
- Order it with the coil: Samsung lists it among the mandatory accessories.
- The MXD-U001XN ACU is also required with Hylex coils.
- R-454B is an A2L, mildly flammable refrigerant: detection and mitigation are part of the installation requirements.
- Connect it per Samsung’s instructions, by a qualified technician.
Manufacturer documents
You may also need
Samsung Hylex ACU Control Module MXD-U001XN
Samsung Advanced Wired Controller – MWR-WG01UN
Samsung External Contact Interface Module – MIM-B14U
Samsung Hylex Heating Element Kit for MPAH Module
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Is it mandatory?
Yes, with Hylex coils. Samsung states the coil’s leak detector requires this mitigation controller, sold separately.
Which coils does it serve?
Hylex™ R-454B coils HC24MCB021H1, HC36MBB021H1, HC36MCC021H1, HC48MBC021H1, HC60MCD021H1, HC60MBC021H1 and HC60MAD021H1.
Is it a leak detector?
No. The detector is built into the coil. This controller receives its signal and triggers shutdown and mitigation.
Can you install it?
Yes. We install it with the coil and the ACU when we put in your Hylex system, everywhere in Greater Montréal.
The safety part for your Hylex coil
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
