Hitachi

Hitachi PHKF160PAQ1 Front Grille for airCore 700 Cassette

In stock

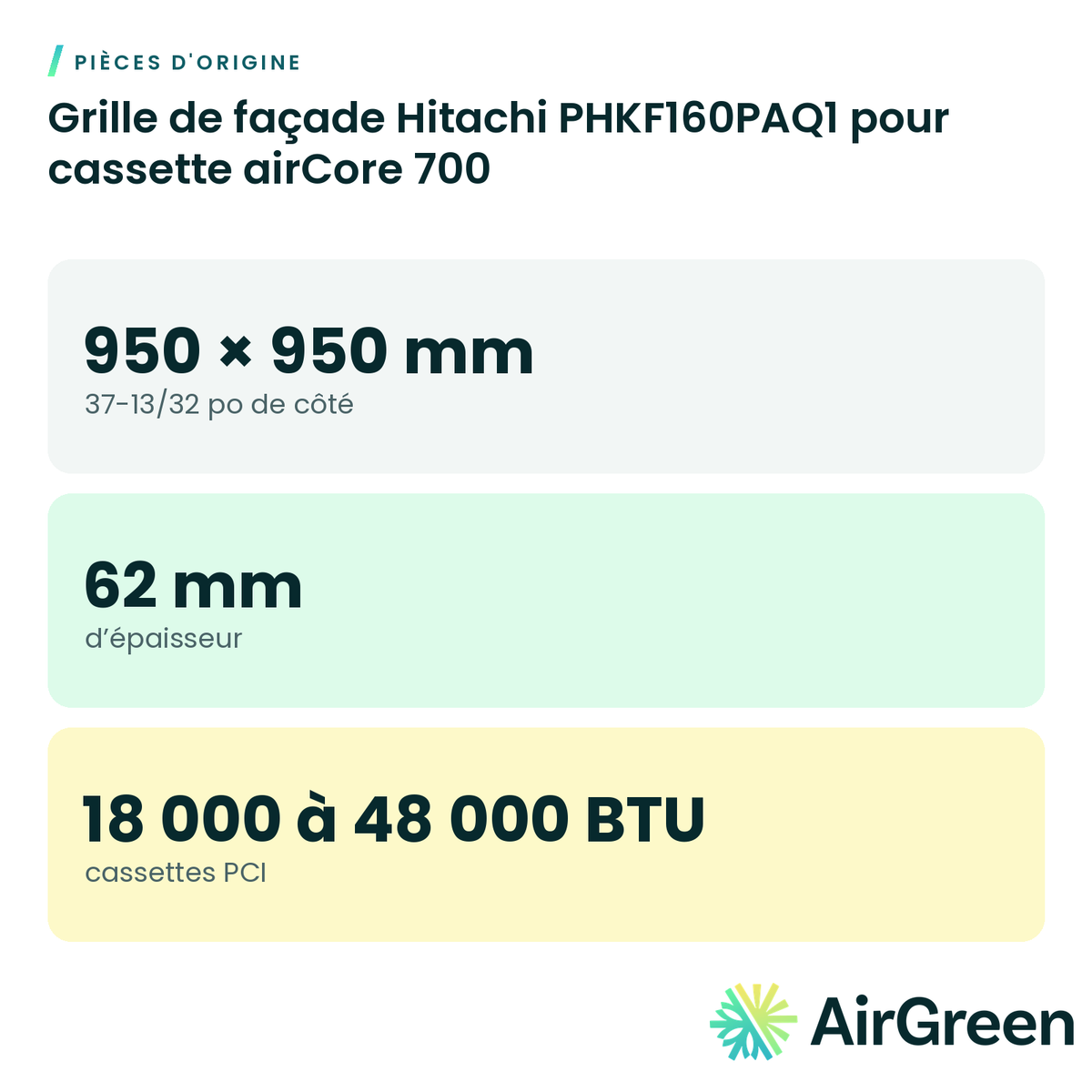

The genuine standard air panel for 18,000 to 48,000 BTU airCore 700 4-way cassettes.

AirGreen codeAG-AC-028

950 × 950 mm37-13/32 in square
62 mmthick
18,000 to 48,000 BTUPCI cassettes
4-way cassetteGenuine part
Ask for a quote

514 316-2973 · sales@airgreen.ca

Quick facts

AirGreen codeAG-AC-028
BrandHitachi
Part no.PHKF160PAQ1
ForPCI-B18 to B48UFA1DQ cassettes
Dimensions950 × 950 × 62 mm

The PHKF160PAQ1 front grille is the original standard panel for airCore 700 4-way cassettes from 18,000 to 48,000 BTU (PCI-B18UFA1DQ to PCI-B48UFA1DQ). It closes off the unit at the ceiling, draws air back in at the centre and distributes it in four directions.

One grille for the entire PCI lineup

The airCore 700 technical catalogue gives this grille as 950 × 950 mm (37-13/32 in per side) and 62 mm thick. The same grille fits every PCI cassette, from 18,000 to 48,000 BTU. Hitachi classifies it as an optional indoor unit accessory: it is ordered with the cassette.

Three possible front panels

  • PHKF160PAQ1: standard grille.
  • P-AP160NAE1: grille with motion sensor and radiant sensor.
  • P-GP160NAP*US: white Silent-Iconic front panel.

Mini-cassette or cassette?

The 9,000 and 12,000 BTU PCIM mini-cassettes take a different grille, the PHKM50PAQ1, 620 mm per side. The unit’s model number, on its nameplate, removes any doubt.

Installed by AirGreen in Greater Montréal

We install airCore 700 cassettes and their grille in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the cassette model and the quantity.

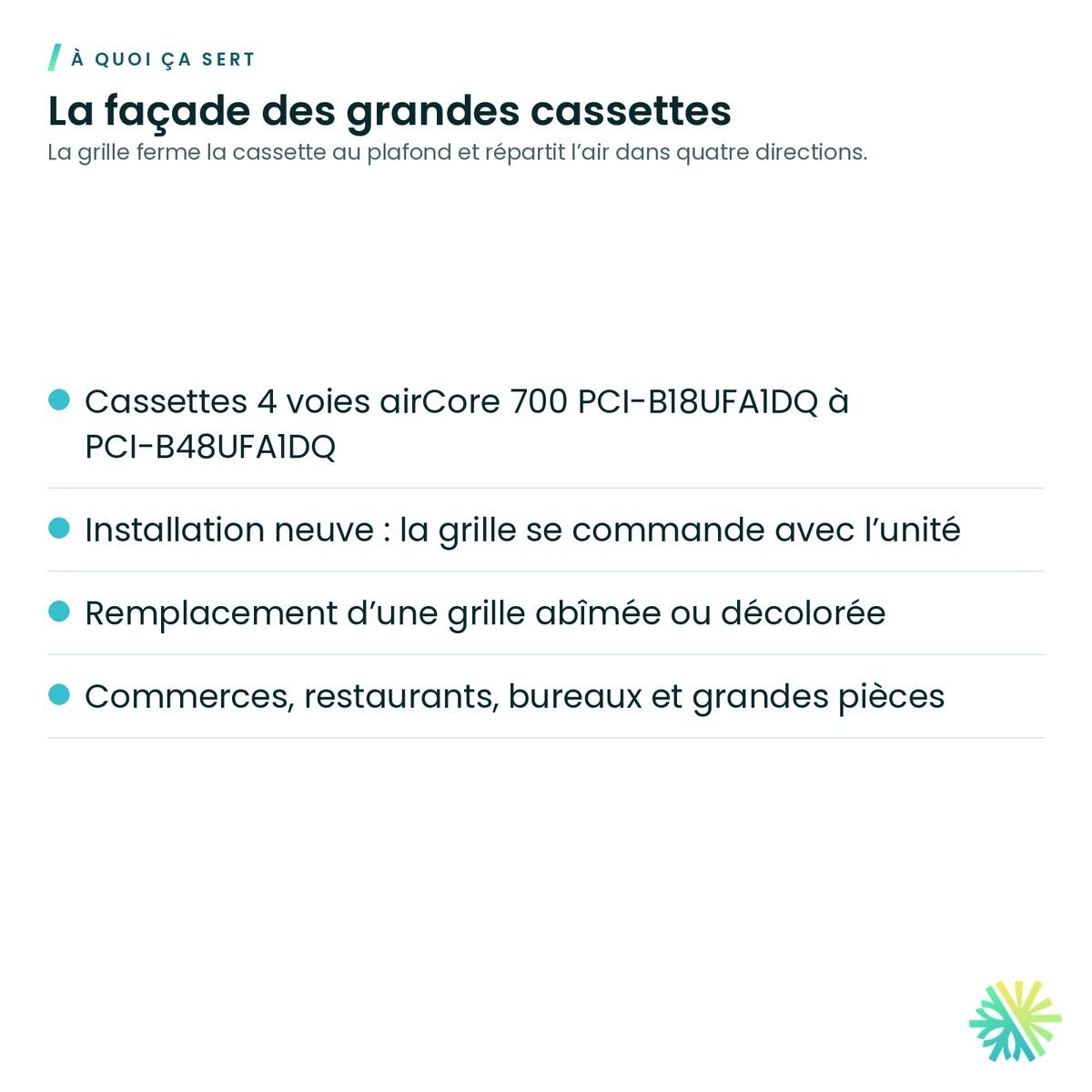

01 · What it is for

The face of the larger cassettes

The panel closes the cassette at the ceiling and spreads air four ways.

  • airCore 700 PCI-B18UFA1DQ to PCI-B48UFA1DQ 4-way cassettes
  • New installs: order the panel with the unit
  • Replacing a damaged or discoloured panel
  • Stores, restaurants, offices and large rooms
Standard panelHitachi’s base panel for PCI cassettes.
Whole rangeOne panel for cassettes from 18,000 to 48,000 BTU.
Other facesHitachi also offers a sensor panel and a Silent-Iconic panel.
Compatible with
PCI-B18UFA1DQPCI-B24UFA1DQPCI-B30UFA1DQPCI-B36UFA1DQPCI-B48UFA1DQ
Per the manufacturer. Send us your unit’s model number and we confirm before ordering.

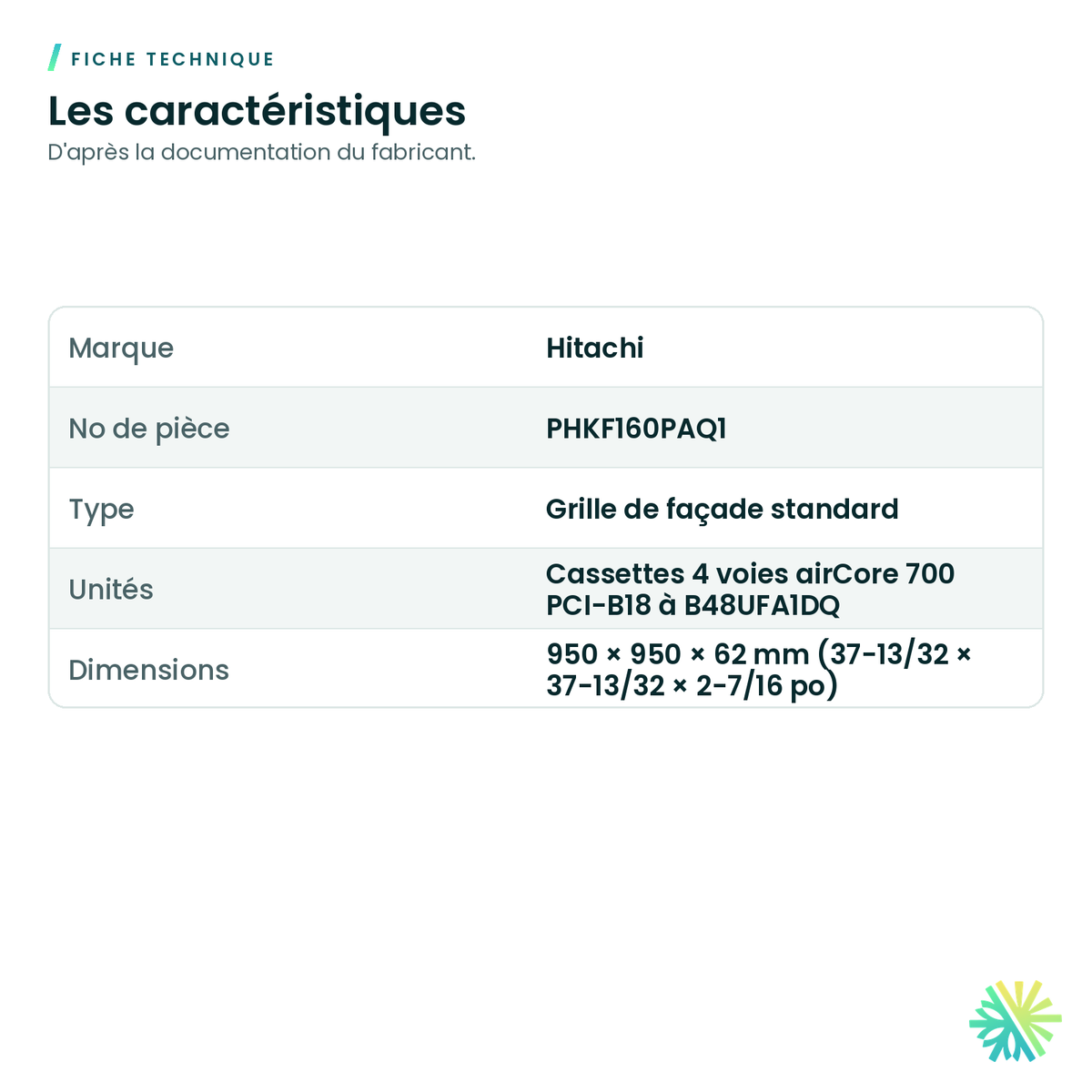

02 · Specifications

Specifications

From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

BrandHitachi
Part no.PHKF160PAQ1
TypeStandard air panel
UnitsairCore 700 4-way cassettes PCI-B18 to B48UFA1DQ
Dimensions950 × 950 × 62 mm (37-13/32 × 37-13/32 × 2-7/16 in)
AirGreen codeAG-AC-028

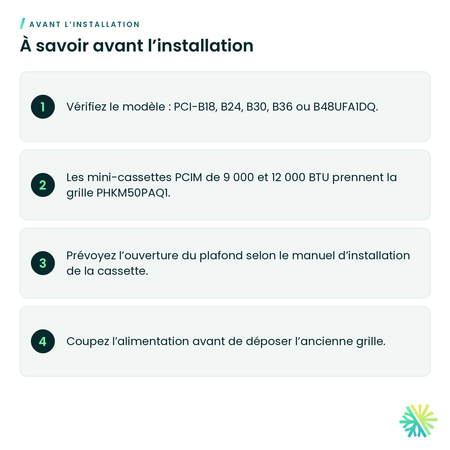

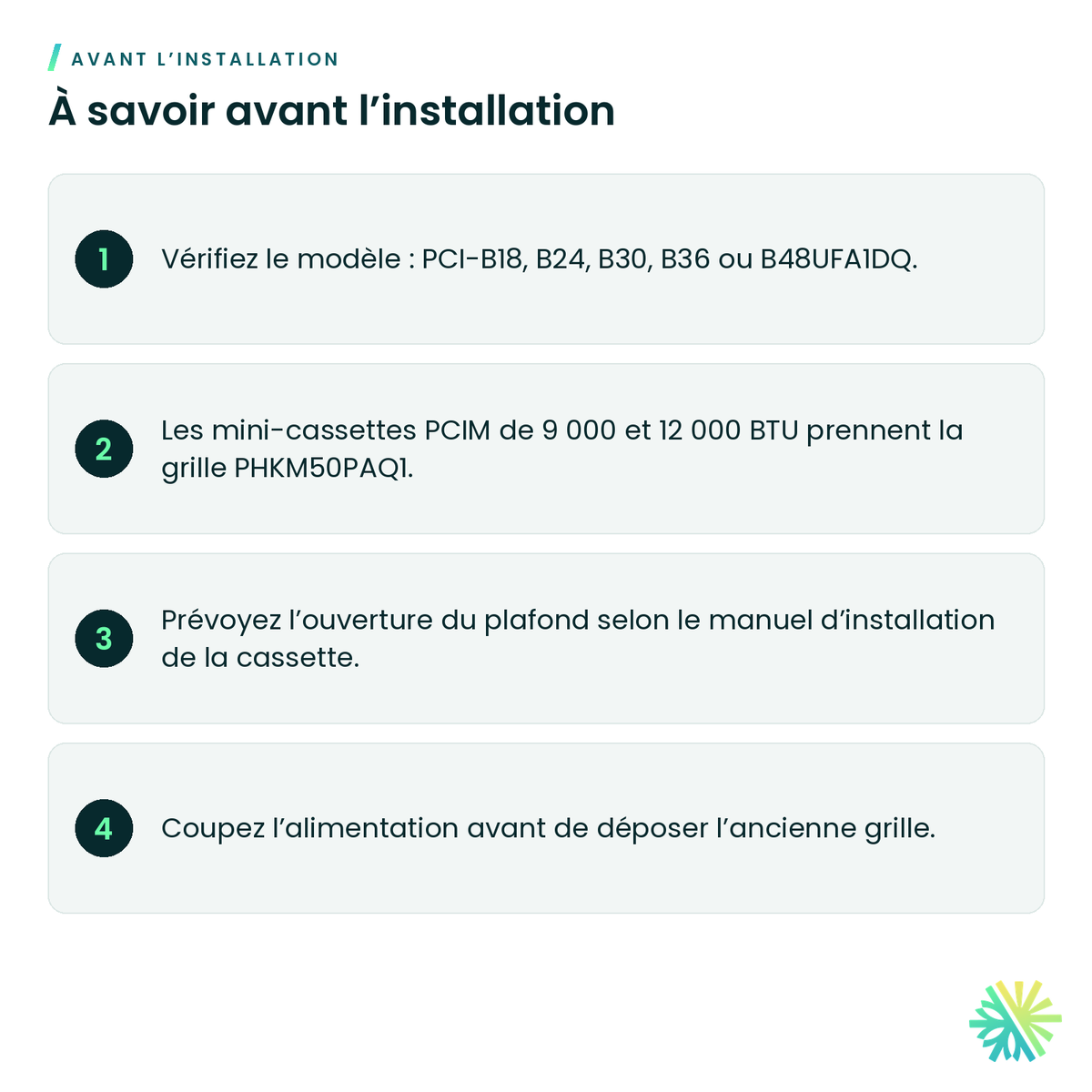

03 · Before installing

What to know before installing

  • Check the model: PCI-B18, B24, B30, B36 or B48UFA1DQ.
  • 9,000 and 12,000 BTU PCIM mini-cassettes take the PHKM50PAQ1 panel.
  • Plan the ceiling opening per the cassette installation manual.
  • Shut off power before removing the old panel.
04 · Documents

Manufacturer documents

PDFSpec sheetHitachiPDFInstallation manualHitachi
05 · Goes with

You may also need

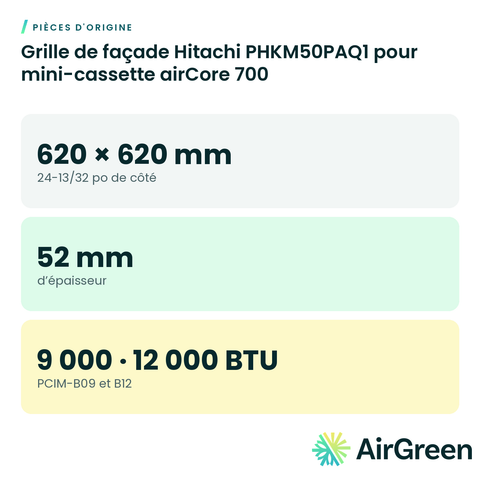

Grille de façade Hitachi PHKM50PAQ1 pour mini-cassette airCore 700Hitachi PHKM50PAQ1 Front Grille for airCore 700 Mini-CassetteTélécommande avec fil Hitachi CIW04H pour airCoreHitachi CIW04H Wired Remote for airCorePompe de relevage de condensat grande capacitéHigh-Capacity Condensate PumpTuyau de drain de condensat 5/8 po – rouleau de 100 pi5/8 in Condensate Drain Hose – 100 ft RollAccessoire du système de détection de fuites Fujitsu – UTYSGZUFujitsu Leak Detection System Accessory – UTYSGZUAdaptateur 5 fils pour thermostat 24 V Hitachi – C3STAT01Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01Adaptateur 5 fils pour thermostat Hitachi C1STAT01 (airHome)Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)Adaptateur de port Hitachi pour multizone airHome RAM-GHitachi Port Adapter for airHome RAM-G Multi-Zone
Same category
Original partsSee all
06 · Questions

Frequently asked questions

Which cassettes take it?

airCore 700 PCI-B18UFA1DQ to PCI-B48UFA1DQ 4-way cassettes. PCIM mini-cassettes take the PHKM50PAQ1 panel.

Are there other panel options?

Yes. The airCore 700 catalog also lists a panel with motion and radiation sensors (P-AP160NAE1) and a white Silent-Iconic panel (P-GP160NAP*US).

Is it sold separately?

Yes, Hitachi lists it among the indoor unit accessories.

Can you install it?

Yes. We install the cassette, its panel and accessories, everywhere in Greater Montréal.
