Hitachi PHKM50PAQ1 Front Grille for airCore 700 Mini-Cassette
The genuine standard air panel for 9,000 and 12,000 BTU airCore 700 4-way mini-cassettes.
AirGreen codeAG-AC-027
514 316-2973 · sales@airgreen.ca
Quick facts
The PHKM50PAQ1 front grille is the original standard panel for airCore 700 4-way mini-cassettes of 9,000 and 12,000 BTU (PCIM-B09UFA1DQ and PCIM-B12UFA1DQ). It is the visible part of the unit at the ceiling: it draws room air back in at the centre and blows it out in four directions.
A front panel sized for a suspended ceiling

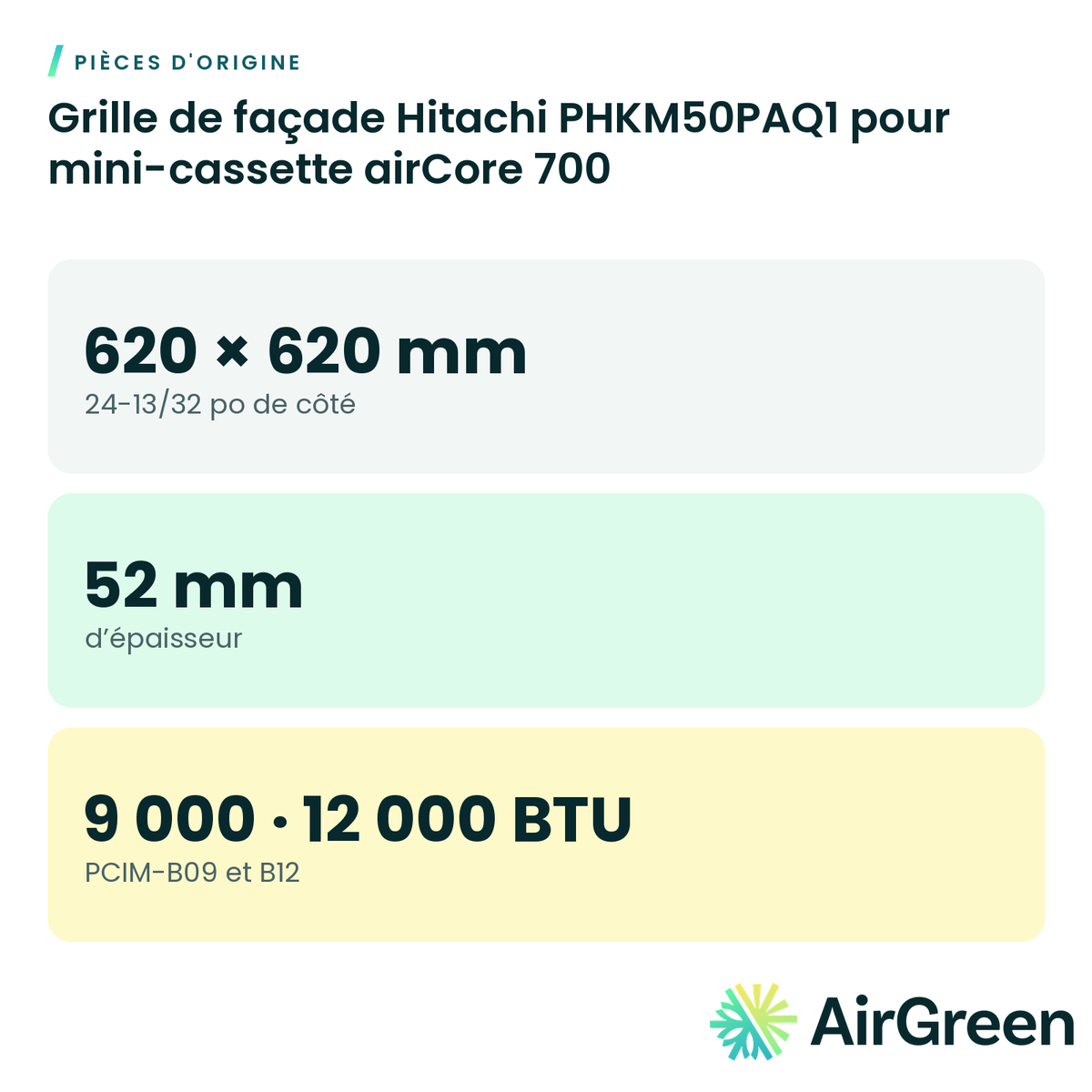

According to the airCore 700 technical catalogue, the grille measures 620 × 620 mm (24-13/32 in per side) and is 52 mm thick. This size fits a standard suspended ceiling, in an office, a store or a room at home. Hitachi classifies it as an optional indoor unit accessory: it is ordered with the cassette.
The right panel for the right cassette
- PHKM50PAQ1: PCIM-B09 and B12 mini-cassettes (9,000 and 12,000 BTU).
- PHKF160PAQ1: PCI-B18 to B48 4-way cassettes (18,000 to 48,000 BTU).
Occupancy sensing option
Hitachi offers an occupancy sensing kit, SOR-NEZ*US, which installs in the centre of the mini-cassette grille. We can plan for it during installation.
Installed by AirGreen in Greater Montréal
We install airCore 700 cassettes and their grille, or replace a damaged grille, in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the cassette model and the quantity.

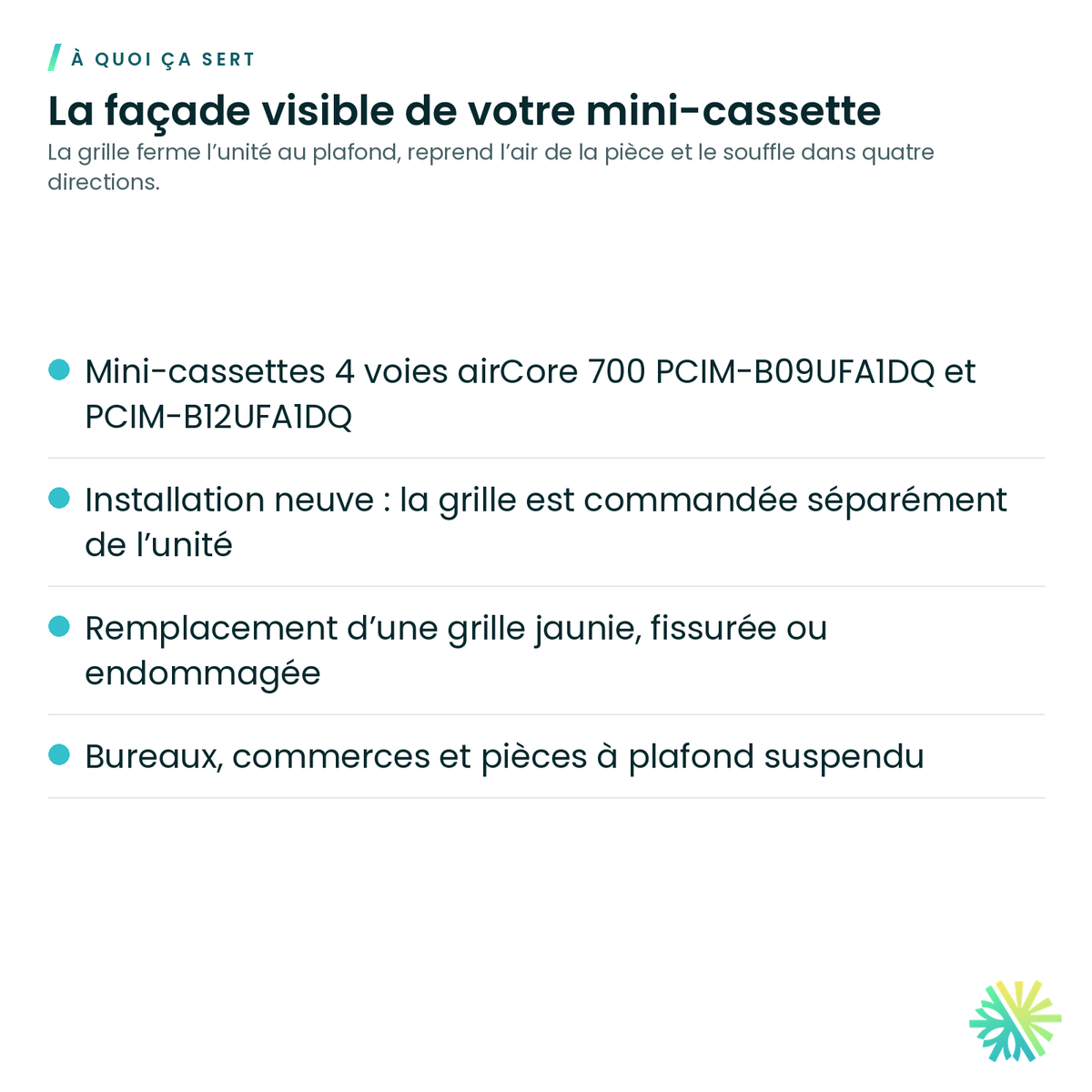

The visible face of your mini-cassette
The panel closes the unit at the ceiling, takes in room air and blows it four ways.
- airCore 700 PCIM-B09UFA1DQ and PCIM-B12UFA1DQ 4-way mini-cassettes
- New installs: the panel is ordered separately from the unit
- Replacing a yellowed, cracked or damaged panel
- Offices, stores and rooms with drop ceilings

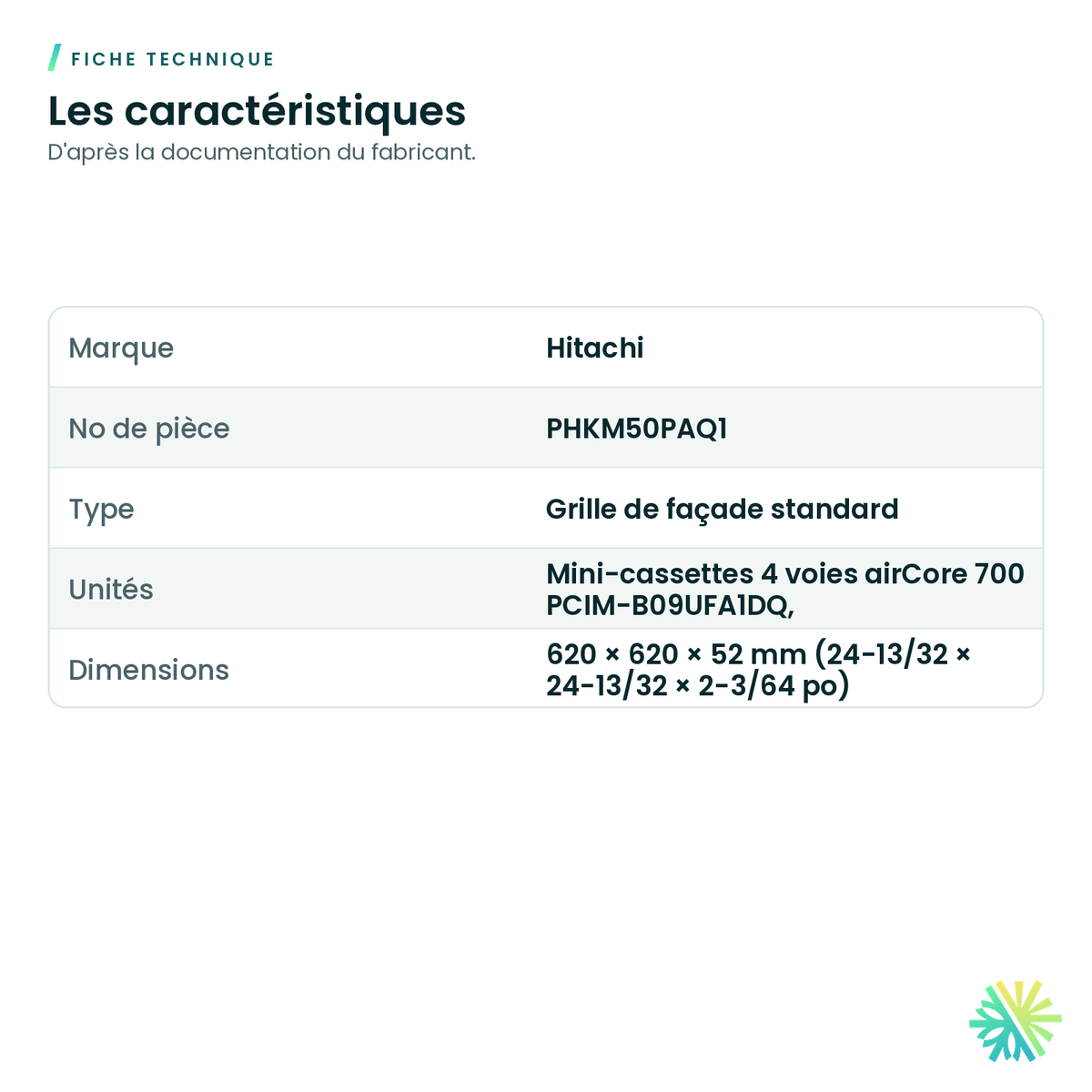

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

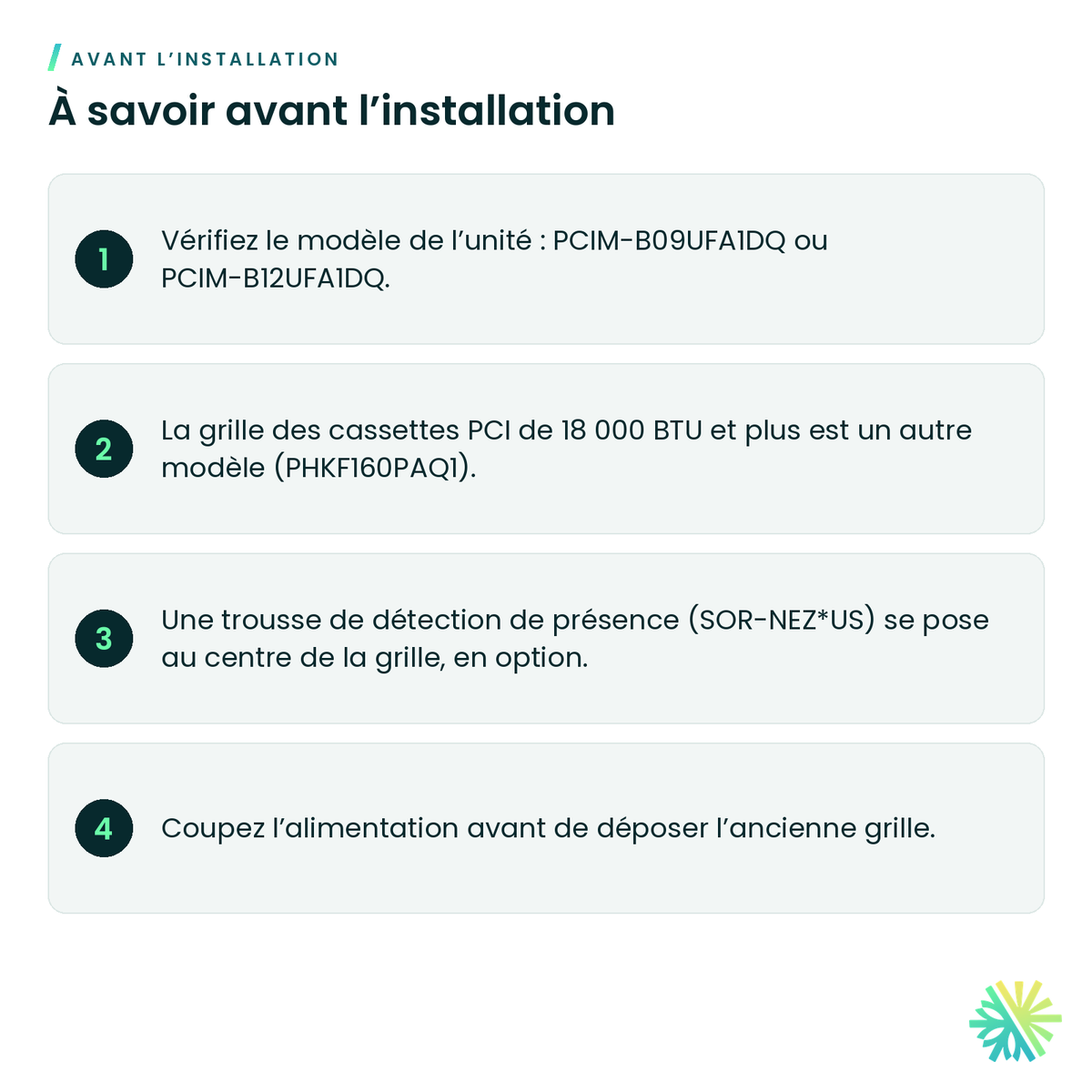

What to know before installing
- Check the unit model: PCIM-B09UFA1DQ or PCIM-B12UFA1DQ.
- The panel for 18,000 BTU and larger PCI cassettes is a different model (PHKF160PAQ1).
- An optional motion sensor kit (SOR-NEZ*US) fits in the centre of the panel.
- Shut off power before removing the old panel.
Manufacturer documents
You may also need

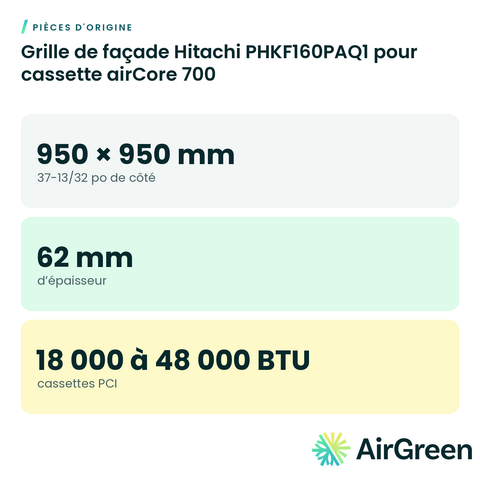

Hitachi PHKF160PAQ1 Front Grille for airCore 700 Cassette
Hitachi CIW04H Wired Remote for airCore
Condensate Pump for Wall-Mounted Heat Pump
5/8 in Condensate Drain Hose – 100 ft Roll
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Will it fit my cassette?
It is designed for airCore 700 PCIM-B09UFA1DQ and PCIM-B12UFA1DQ mini-cassettes. An 18,000 to 48,000 BTU PCI cassette takes the PHKF160PAQ1 panel.
Does the panel come with the unit?
The catalog lists it among the indoor unit accessories: order it with the cassette.
Can I add a motion sensor?
Yes, Hitachi offers a motion sensor kit (SOR-NEZ*US) that mounts in the centre of this panel.
Can you install it?
Yes. We install the cassette and its panel, or replace an existing panel, everywhere in Greater Montréal.
A genuine face for your mini-cassette
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
