ADP HE36160C210B2522AP Evaporator A-Coil | 5 Tons

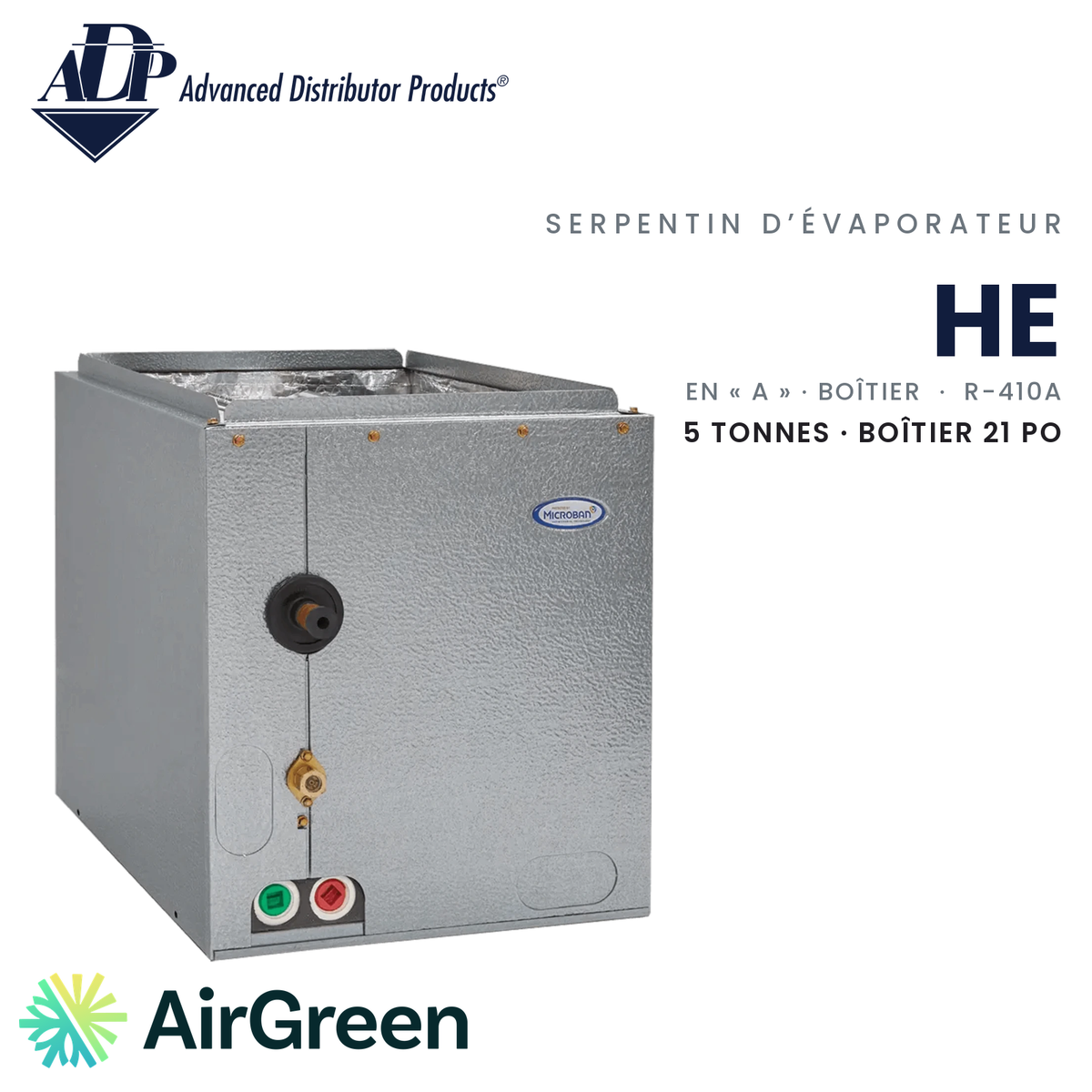

The ADP HE36160C210B2522AP evaporator A-coil: 5 tons in a 21.0 in wide multi-position cabinet, 7/8 in suction and piston metering on R-410A.
Model numberHE36160C210B2522AP
514 316-2973 · sales@airgreen.ca
Quick facts
A 5-ton ADP coil for large central systems
Who it is for
ADP’s HE36160C210B2522AP is an evaporator A-coil with a 5-ton nominal size, or 60,000 BTU/h. It is aimed at large single-family homes, enlarged residences and small commercial spaces whose ductwork serves a large area. It connects to a 21 in wide electric furnace or air handler and forms the indoor part of a central air conditioner or central heat pump; ADP states its HE coils are compatible with both uses.
Choosing a 5-ton coil always goes together with the outdoor unit: the two must form a coherent set, and ADP does not name a specific model. We therefore confirm the match before any order.
What the size changes at installation
A coil of this capacity calls for a few precautions that we build into the quote from the start.
- The suction line. The connection is 7/8 in ODF. If the existing refrigerant lines are a different size, we plan for adapting or replacing them.
- The weight. The coil weighs 64 lb. Lying horizontally, in a basement ceiling for example, it must be firmly supported.
- The height. The embossed cabinet is 25.5 in high, 21.0 in wide and 20.5 in deep: the space under the main duct must allow for it.
- The piston. Metering is by piston on R-410A; we check that it suits the chosen 5-ton outdoor unit.
The model is multi-position: upflow, or horizontal to the left or right, field convertible from the original left-hand configuration (code 22). For a downflow unit, a configuration ADP’s documentation does not clearly confirm for this model, we validate with the manufacturer before ordering.
Construction
ADP uses an E36 copper slab with brazed connections, a UV-resistant, 450°F polymer drain pan treated with Microban antimicrobial additive, and puts the coil through a helium leak test and a 500 psi air pressure test. The manufacturer’s limited warranty covers parts for 5 years from installation, extendable to 10 years under its conditions; labour is not part of it.
Sold alone, the coil has no efficiency rating of its own and is not eligible for the LogisVert grant.
A project this size, with AirGreen
AirGreen is a family business established in Montreal for more than fifteen years, holding RBQ licence 5645-9605-01 (ventilation, refrigeration and electrical). We assess the installation on site free of charge, give you a written quote, then set and support the coil, braze the connections, connect the drain and commission the system. We serve Montreal, Laval, Longueuil, the North Shore and the South Shore.
Ask for your free estimate for a 5-ton system; financing is available.
The coil for large central systems
With a 5-ton nominal size, the HE36160C210B2522AP is aimed at large homes and buildings whose ductwork serves a large area. It sits on a 21 in electric furnace or air handler, upright or lying down.
- Large single-family homes with extensive ductwork
- 5-ton central air conditioners and central heat pumps
- 21 in wide electric furnaces and air handlers
- Small commercial spaces with ductwork

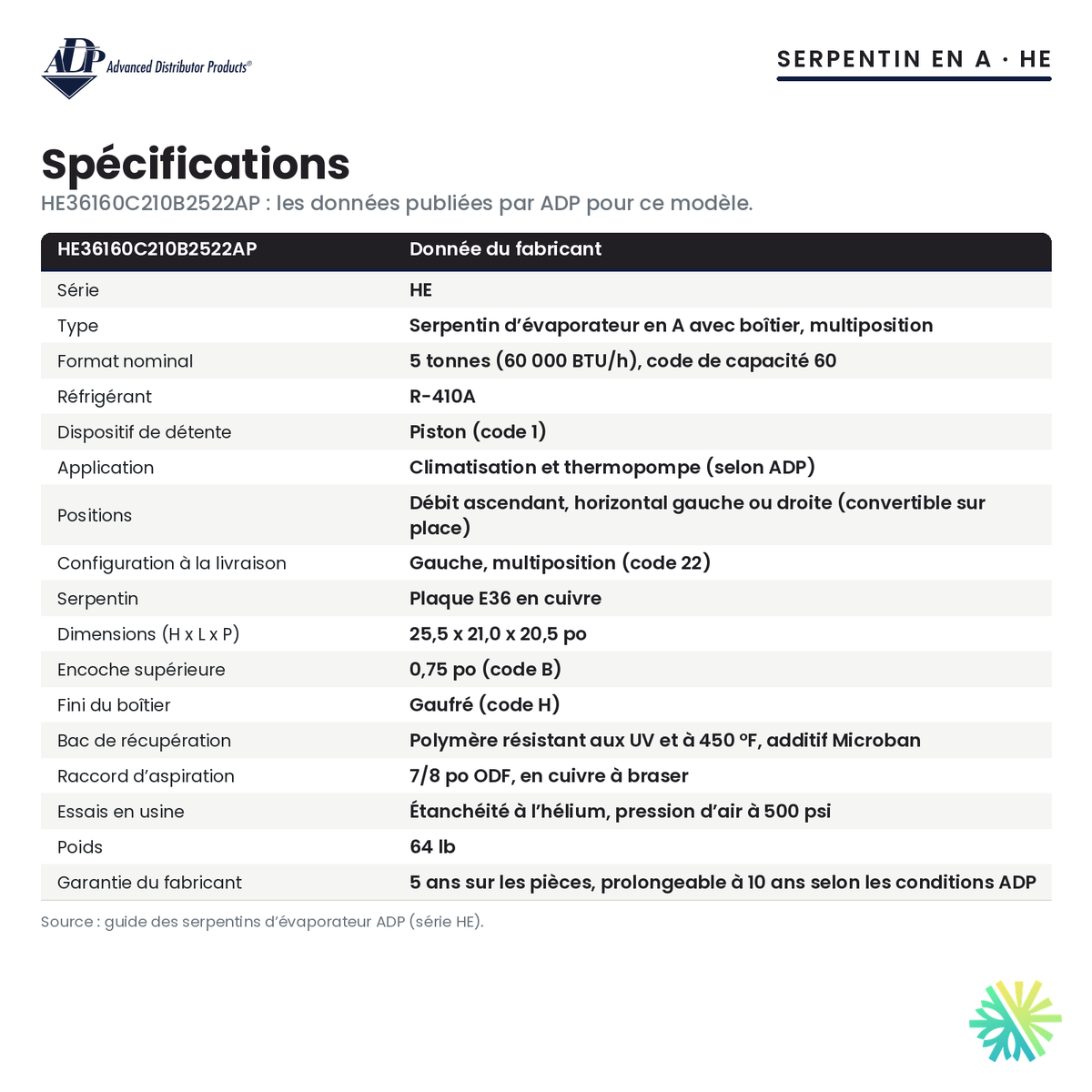

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Sold alone: not eligible for the LogisVert grant. A coil has no efficiency rating of its own; performance depends on the outdoor unit and indoor unit it is matched with.
- 7/8 in ODF suction connection: if the existing lines are a different size, adapting or replacing them is included in the quote.
- The coil weighs 64 lb and its cabinet is 25.5 in high: in a horizontal installation, it must be firmly supported.
- Piston metering: we check that the orifice suits the 5-ton outdoor unit. Downflow is not clearly confirmed for this model and is validated with ADP.
- The outdoor unit, refrigerant lines and indoor unit are not included.
Manufacturer documents
Explore the range
Evaporator coilsSee allSame brand
ADPSee all
Frequently asked questions
What suction line size is needed?
The coil’s suction connection is 7/8 in ODF. If your current refrigerant lines are a different size, we plan for adapting or replacing them in the quote.
Can it be installed horizontally despite its weight?
Yes. ADP designs it for upflow or horizontal installation to the left or right. Because it weighs 64 lb, we plan suitable supports when it lies horizontally. Downflow is not clearly confirmed for this model.
Which outdoor unit should it be matched with?
A 5-ton (60,000 BTU/h) unit. ADP does not name a specific model for this coil; we confirm the match and check that the piston suits the chosen unit.
Is it compatible with a heat pump?
Yes. ADP states that HE coils are compatible with air conditioning and heat pumps.
How does the ADP warranty work in Quebec?
ADP covers parts for 5 years from installation, no more than 6 years from manufacture, with a possible extension to 10 years under the conditions of its extended warranty. In Quebec, not registering does not reduce coverage. Labour and refrigerant are excluded from the manufacturer’s warranty.
A 5-ton ADP coil, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
