Fujitsu UTZ-GXNA External Input/Output Board Bracket
The genuine bracket that holds the UTY-XCSX input/output board on the Fujitsu ARUH ducted unit.
AirGreen codeAG-AC-095
514 316-2973 · sales@airgreen.ca
Quick facts
The Fujitsu UTZ-GXNA bracket is the original part that mounts the UTY-XCSX external input/output board on the AIRSTAGE H series medium static pressure ARUH ducted unit. Fujitsu calls it the “External input and output PCB Bracket”.
Connecting a ducted unit to the building
The ARUH unit distributes air through ducts to several rooms and is often hidden in a ceiling space or a basement. When it needs to communicate with a management system, a controller or external devices, the UTY-XCSX board is added to it. On this model, Fujitsu’s spec sheets pair the board with the UTZ-GXNA bracket, which holds it in the intended location.
Bracket or box: depends on the unit
- UTZ-GXNA (bracket): ARUH**KUAS ducted unit
- UTZ-GXEA (box): ACUH compact cassette, ADUH slim ducted unit, ceiling unit
- UTZ-GXRA (box): AUUH circular flow cassette, AMUH unit
Before installation
The bracket does not include the UTY-XCSX board. Also plan for access to the unit’s electrical box: in a ceiling space, an access panel may be needed. We check the exact model of your ARUH before ordering.
Installed by AirGreen in Greater Montréal
Our technicians install the bracket and the board and do the wiring in Montréal, Laval, Longueuil, on the South Shore and on the North Shore. RBQ licence 5645-9605-01. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca.

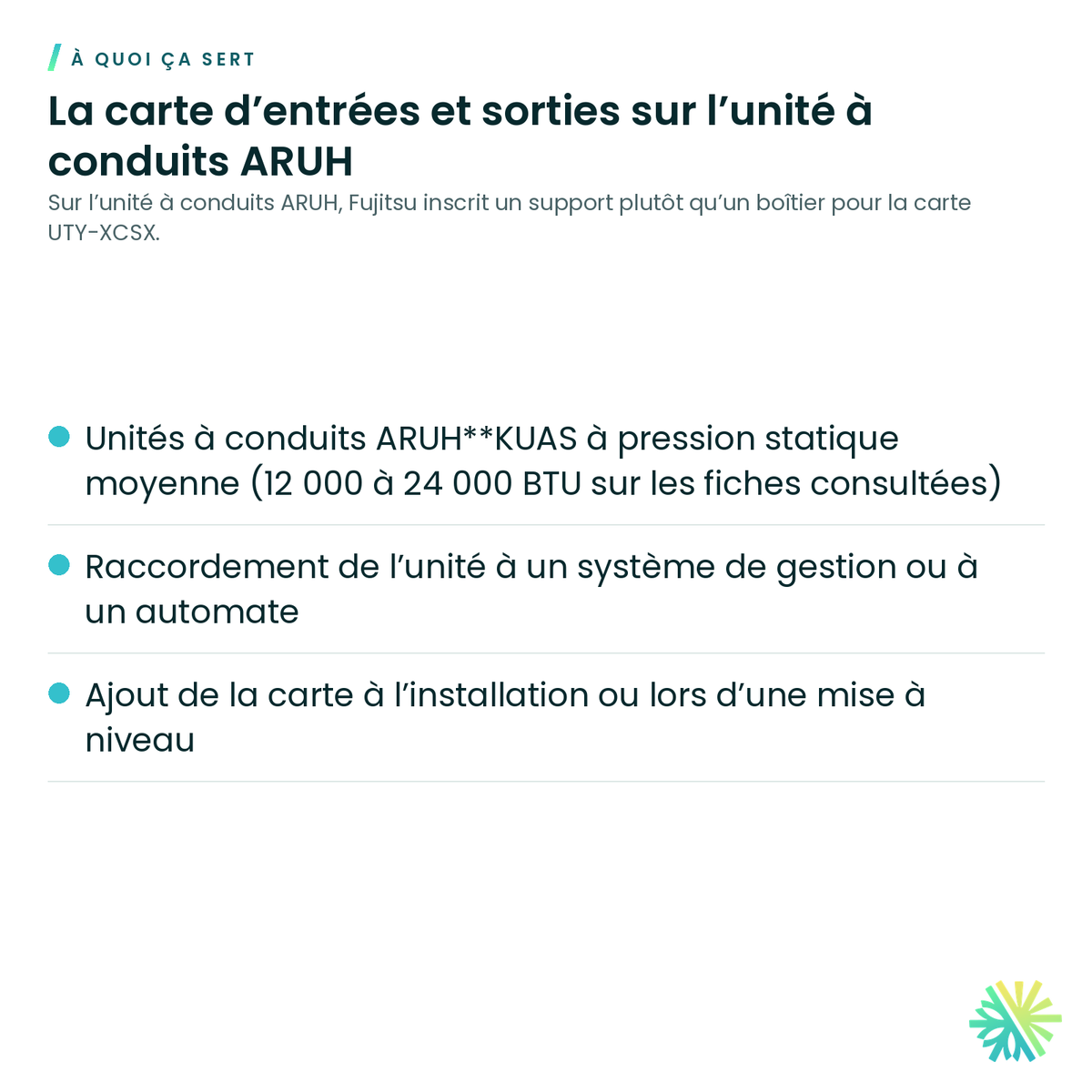

The input/output board on the ARUH ducted unit
On the ARUH ducted unit, Fujitsu lists a bracket rather than a box for the UTY-XCSX board.
- ARUH**KUAS medium static ducted units (12,000 to 24,000 BTU on the submittals reviewed)
- Connecting the unit to a building management system or controller
- Adding the board at installation or during an upgrade

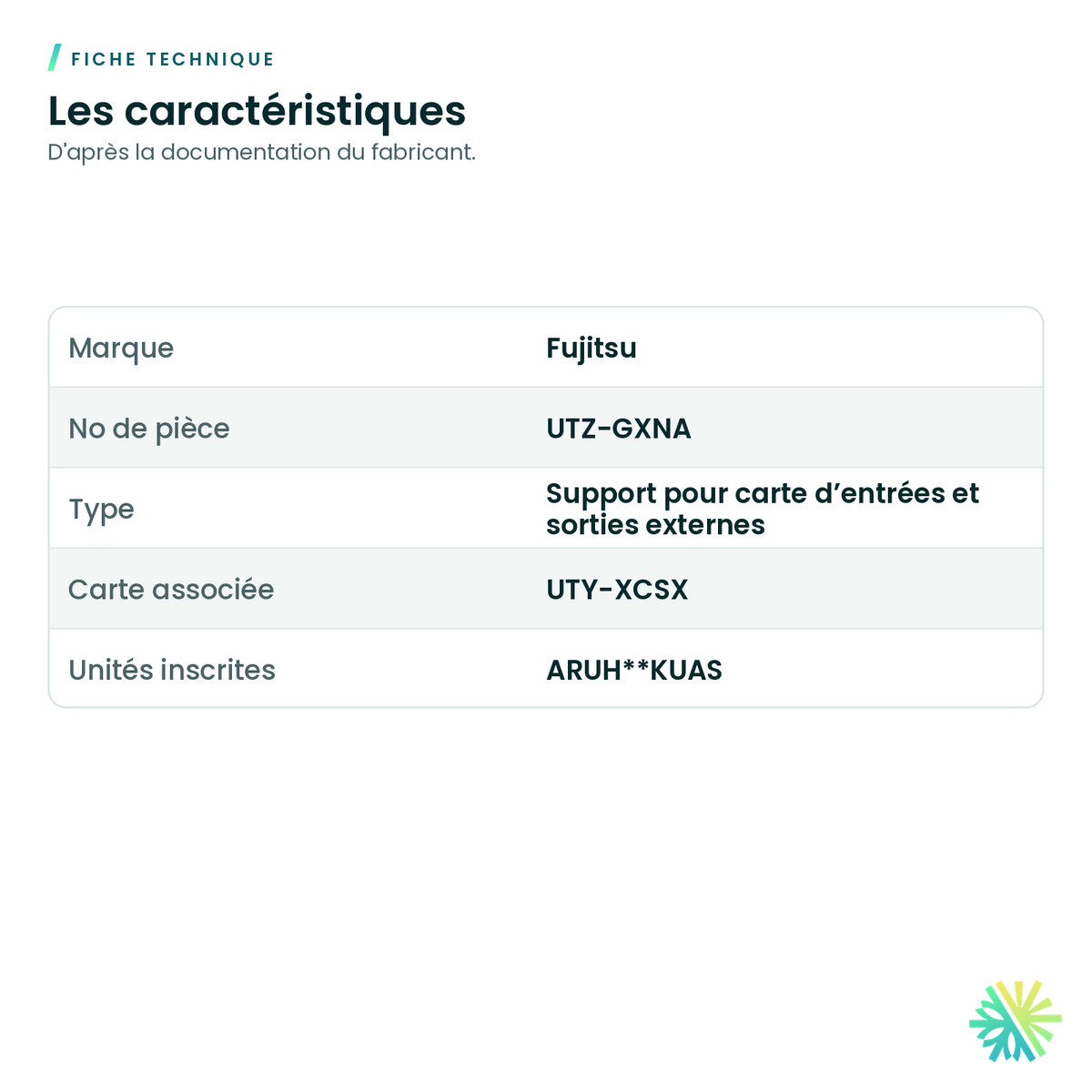

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

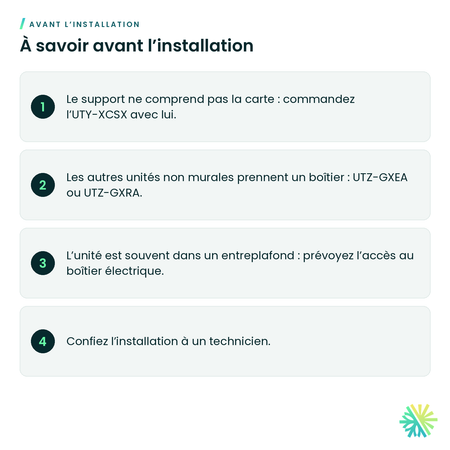

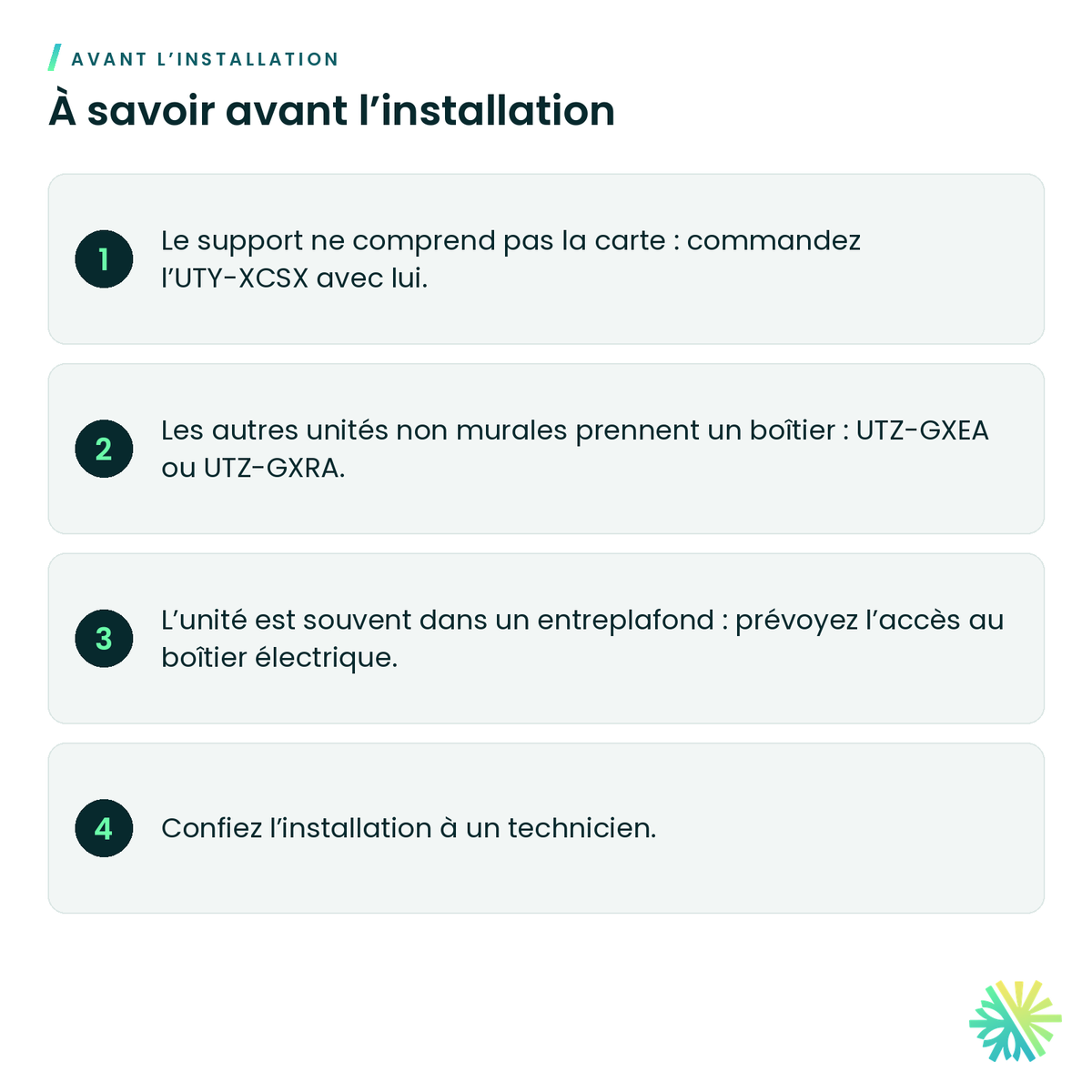

What to know before installing
- The bracket does not include the board: order the UTY-XCSX with it.
- Other non-wall units take a box: UTZ-GXEA or UTZ-GXRA.
- The unit is often above a ceiling: plan access to its electrical box.
- Have a technician install it.
You may also need
Fujitsu UTY-XCSX External Input and Output Board for Cassettes and Duct Units
Fujitsu UTY-XWZXZG External Connection Kit for Cassettes and Ducted Units
Fujitsu Remote Temperature Sensor – UTY-XSZXZ1
Fujitsu IR Receiver Kit with Wireless Remote Control (Ducted and Air Handler) – UTY-LBTUM
Fujitsu Leak Detection System Accessory – UTYSGZU
Hitachi 5-Wire Adapter for 24 V Thermostat – C3STAT01
Hitachi C1STAT01 5-Wire Thermostat Adapter (airHome)
Hitachi Port Adapter for airHome RAM-G Multi-ZoneOriginal partsSee all
Frequently asked questions
Is my unit compatible?
Fujitsu lists the UTZ-GXNA for its ARUH**KUAS medium static ducted units. Send us your model number and we confirm.
Why a bracket and not a box?
That is Fujitsu’s choice for the ARUH: its submittals pair the UTY-XCSX board with the UTZ-GXNA bracket, while cassettes and the AMUH unit use a box.
Is the board included?
No. The bracket and the UTY-XCSX board are separate parts.
Can you install it?
Yes. Our technicians fit the bracket and board and wire your devices, everywhere in Greater Montréal.
The genuine bracket for your Fujitsu ducted unit
Tell us the size and the quantity: we confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 7, 2026.
