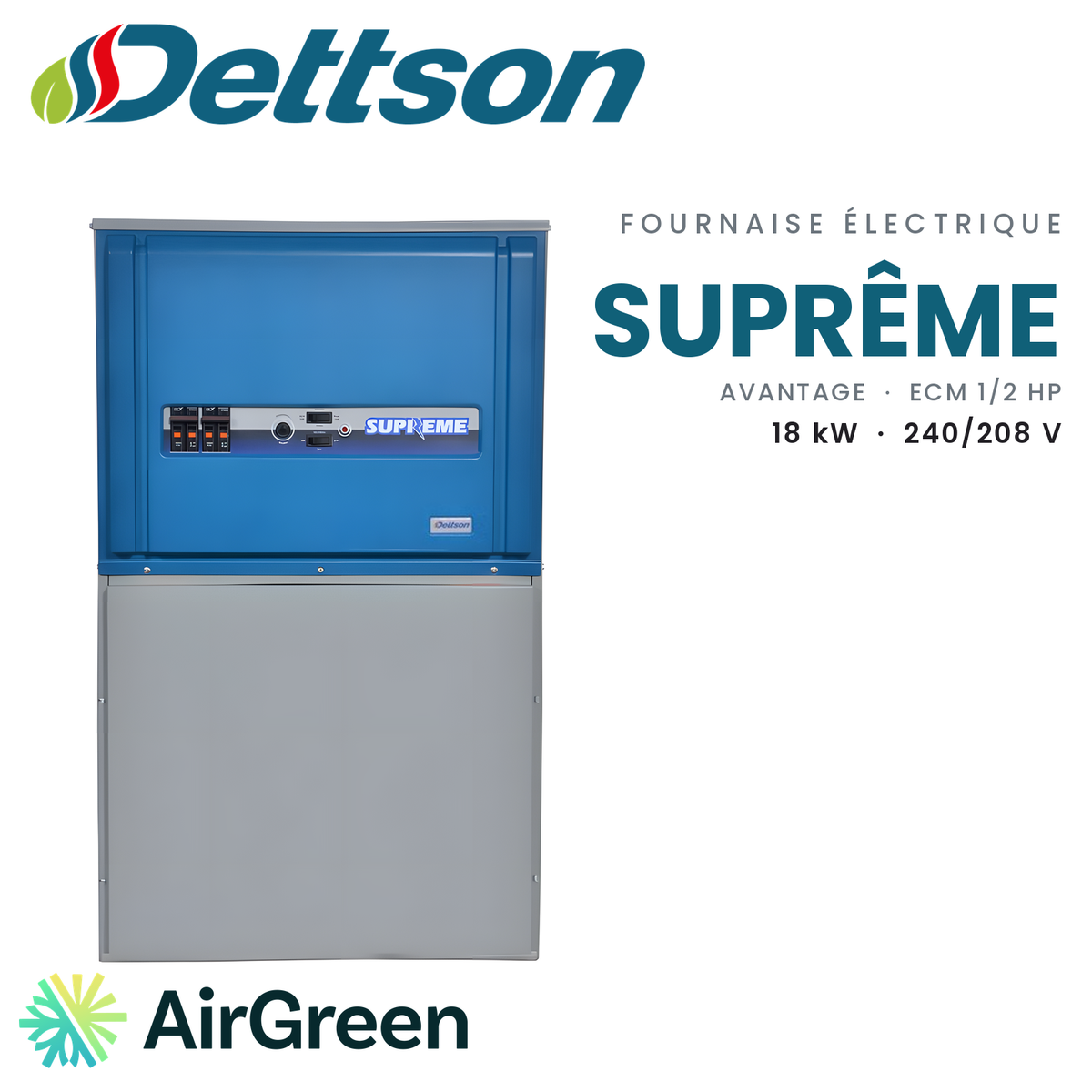

DETTSON Suprême Avantage SUP18-A240V12 Electric Furnace | 18 kW - 240V
The Dettson Suprême Avantage SUP18-A240V12: an 18 kW electric furnace with an ECM motor, well suited to serve as backup for a central heat pump.
Model numberSUP18-A240V12
514 316-2973 · sales@airgreen.ca
Quick facts
An 18 kW ECM furnace to back up your central heat pump
The role of the SUP18-A240V12
A central heat pump heats the house for most of the winter, but it needs a backup heat source. The Dettson Suprême Avantage SUP18-A240V12 plays that role. The heat-pump coil goes on its supply or return side, up to 3 tons, and its electric elements take over when the thermostat calls for them.
One point to know: Dettson requires non-simultaneous operation. The elements and the heat pump never heat at the same time; the thermostat chooses one source or the other. We set up the system accordingly.
What you get
The furnace delivers 18 kW at 240 V (13.5 kW at 208 V), with a first stage of 9 kW. Its 1/2 HP ECM motor lets the airflow be set separately for heating and for cooling, which helps match the furnace to the coil. Dettson publishes a 65 °F temperature rise at 240 V and covers the ECM motor for 5 years, on top of parts for 5 years in residential use. Labour is not covered by the manufacturer.
The controls stay simple: continuous-fan switch, low/high power switch, heat-demand indicator light and front-mounted breakers.
In a home in the region
This model suits ducted homes whose heating needs come to 18 kW, whether in Longueuil, Laval or a Montreal neighbourhood. The electrical side can be planned ahead: Dettson publishes a 94.7 A ampacity and calls for a 100 A maximum breaker at 240 V. The furnace is wired on two wires, or on three wires with accessories.
As for location, the Suprême is multi-position: upflow, downflow with the DFB-SUP base depending on the floor, horizontal or suspended, at 36 1/2 in high and 22 in deep. It is approved for zero clearance and for copper or aluminum wiring.
What AirGreen does
AirGreen is a family business established in Montreal for more than fifteen years. Our RBQ licence 5645-9605-01 for ventilation, refrigeration and electrical work lets us handle every step:
- the free on-site estimate and the written quote;
- setting the furnace and wiring it;
- integrating the coil and connecting the ducts;
- programming the thermostat to respect non-simultaneous operation;
- setting the ECM airflow and commissioning.
We also work on the North Shore and the South Shore.
Let’s talk about your project
Ask for a free estimate for your furnace, alone or with a heat pump: you receive a detailed written quote. Financing can make the project easier.
Backup heat for a central heat pump
Paired with a heat-pump coil of up to 3 tons, the SUP18-A240V12 becomes the home’s backup heat source. Its ECM motor adjusts the airflow separately for heating and for cooling.
- Central heat-pump projects that keep or install an electric furnace as backup
- Adding central air conditioning to existing ductwork
- Replacing an 18 kW electric furnace with an ECM-motor model
- Basement, horizontal or suspended installations
Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Sold alone, an electric furnace is not a heat pump: it does not qualify for the LogisVert grant.
- With a heat pump, Dettson requires non-simultaneous operation of the elements and the heat pump: the thermostat must manage it.
- Dedicated circuit: 100 A maximum breaker at 240 V (90 A at 208 V) and 94.7 A ampacity at 240 V.
- The air-conditioning or heat-pump coil is not included; it goes on the supply or return side.
- Standard 2-wire connection; a 3-wire connection (120–208/240 V) requires accessories.
- In downflow, the DFB-SUP base may be required depending on the type of floor.
Manufacturer documents
Explore the range
Electric furnacesSee allSame brand
DETTSONSee all
Frequently asked questions
Can it serve as backup for a central heat pump?
Yes. The heat-pump coil goes on the supply or return side, up to 3 tons. Dettson does require non-simultaneous operation, though: the thermostat runs either the heat pump or the elements, never both at once.
Why choose the ECM motor over the PSC version?
The 1/2 HP ECM motor lets the airflow be set separately for heating and for cooling, and Dettson covers it for 5 years. The PSC version in the series, the SUP18-A240D12, uses a direct-drive motor.
What electrical circuit is needed?
A 100 A maximum breaker at 240 V (90 A at 208 V). Dettson publishes a 94.7 A ampacity and a 78.1 A total current at 240 V.
How warm is the air at the registers?
Dettson publishes a 65 °F temperature rise at 240 V between the return air and the supply air.
Does it qualify for a grant?
No. Sold alone, an electric furnace is not a heat pump and does not qualify for the LogisVert grant.
What is the manufacturer warranty?
Parts for 5 years in residential use and 1 year in commercial use; ECM motor for 5 years. Labour is not covered by Dettson.
An 18 kW Suprême Avantage ECM, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
